Instructions for use / assembly instructions
Safety Notes
Gloves should be worn during installation to preventcrushing and cutting injuries.
Installation Instructions
The fitting must be installed, flushed and tested after the valid norms!
Do not use silicone containing acetic acid!

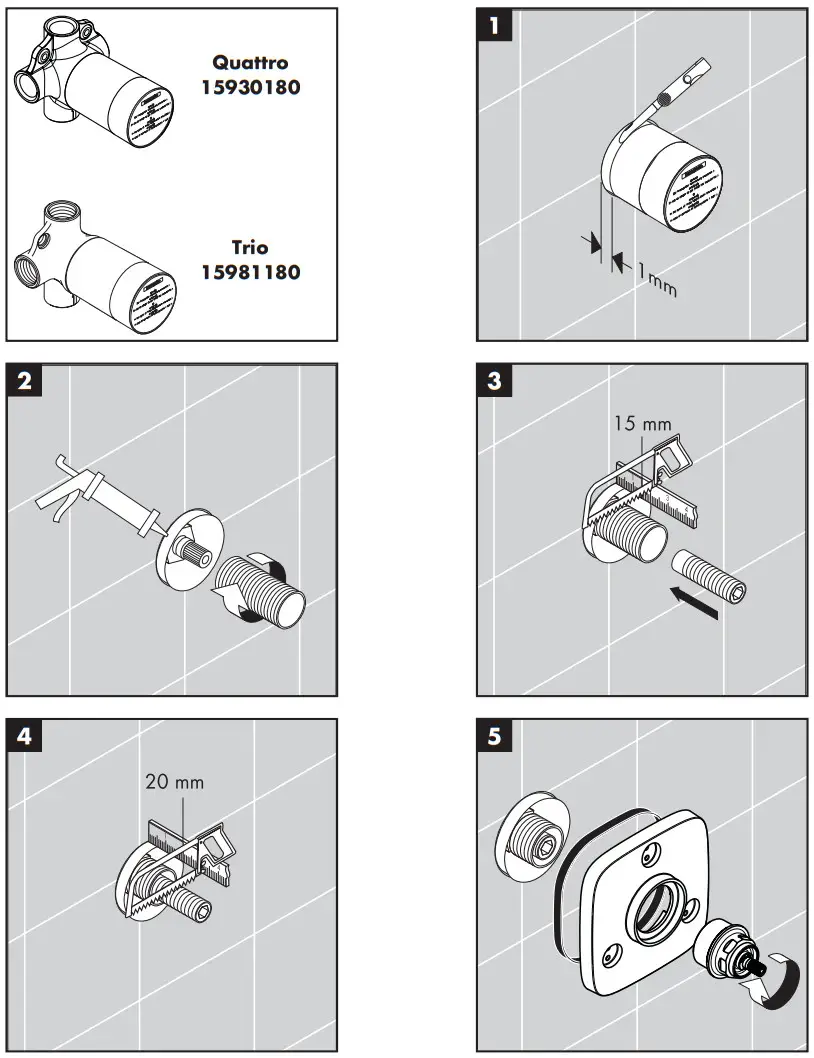

Assembly

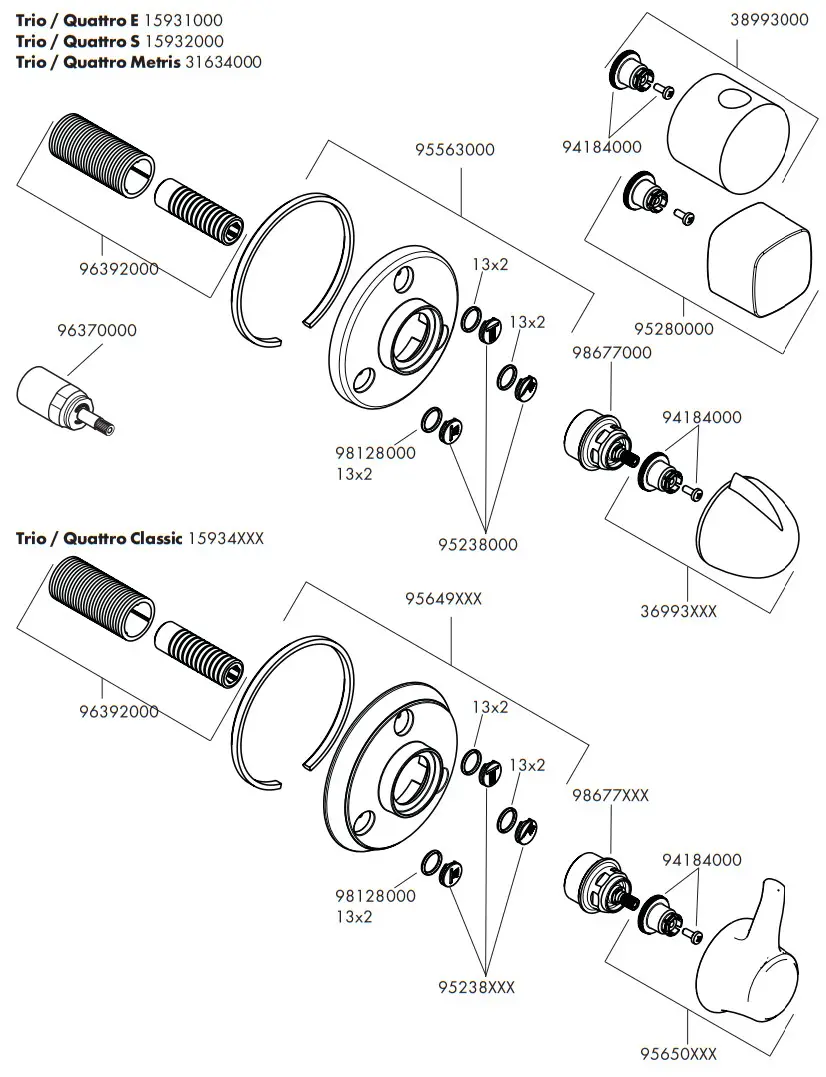

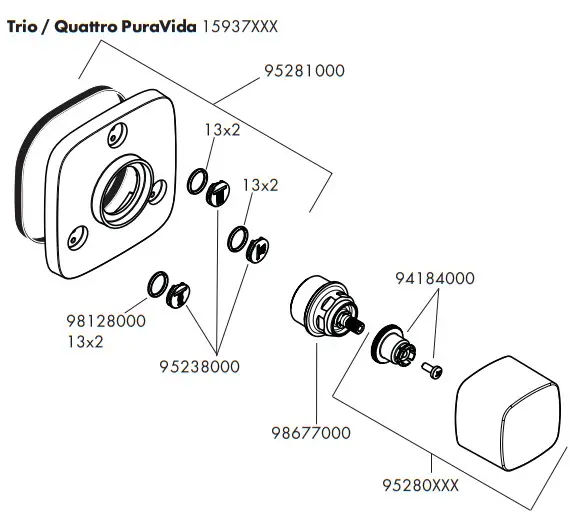

Spare parts
XXX = Colors
000 = chrome plated
400 = blanc
820 = brushed nickel

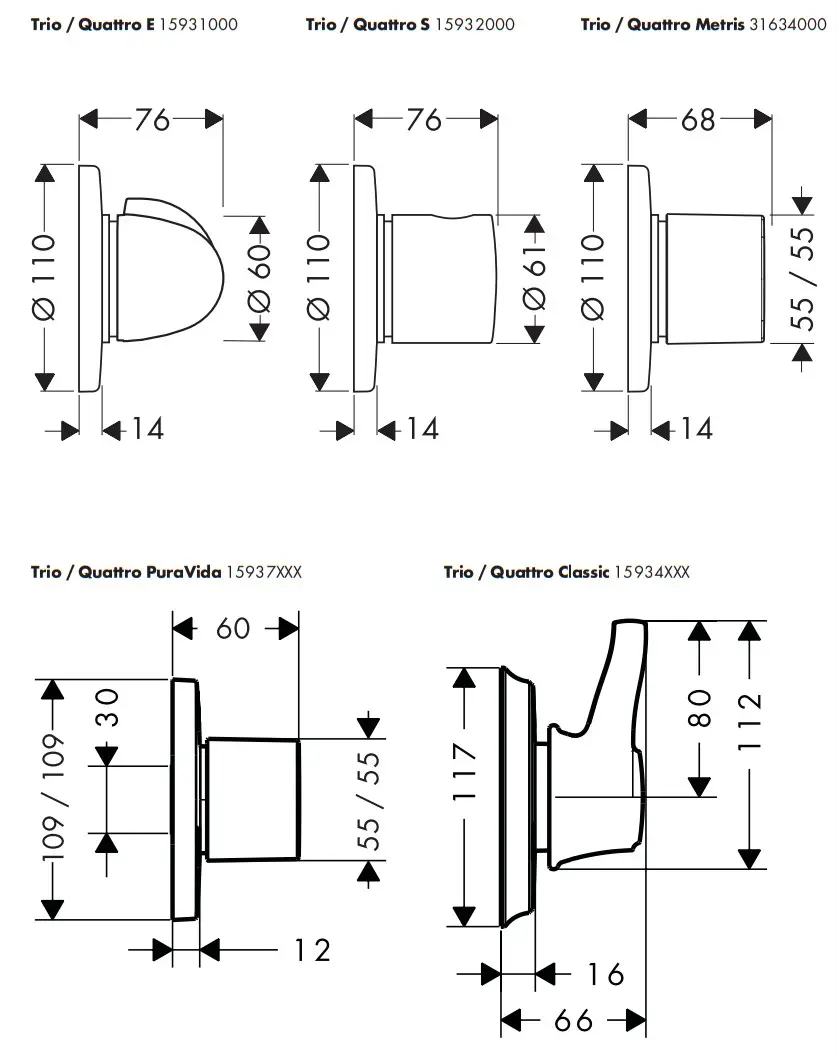

Dimensions
Test certificate
| P-IX | DVGW | SVGW | WRAS | KIWA | NF | ACS | ETA | |
| 15931000 | X | X | X | |||||
| 15932000 | X | X | X | |||||
| 15934XXX | ||||||||
| 15937XXX | X | |||||||
| 31634000 |
Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.co
