Instructions for use / assembly instructions
Safety Notes
Gloves should be worn during installation to preventcrushing and cutting injuries.
Symbol description
Do not use silicone containing acetic acid!

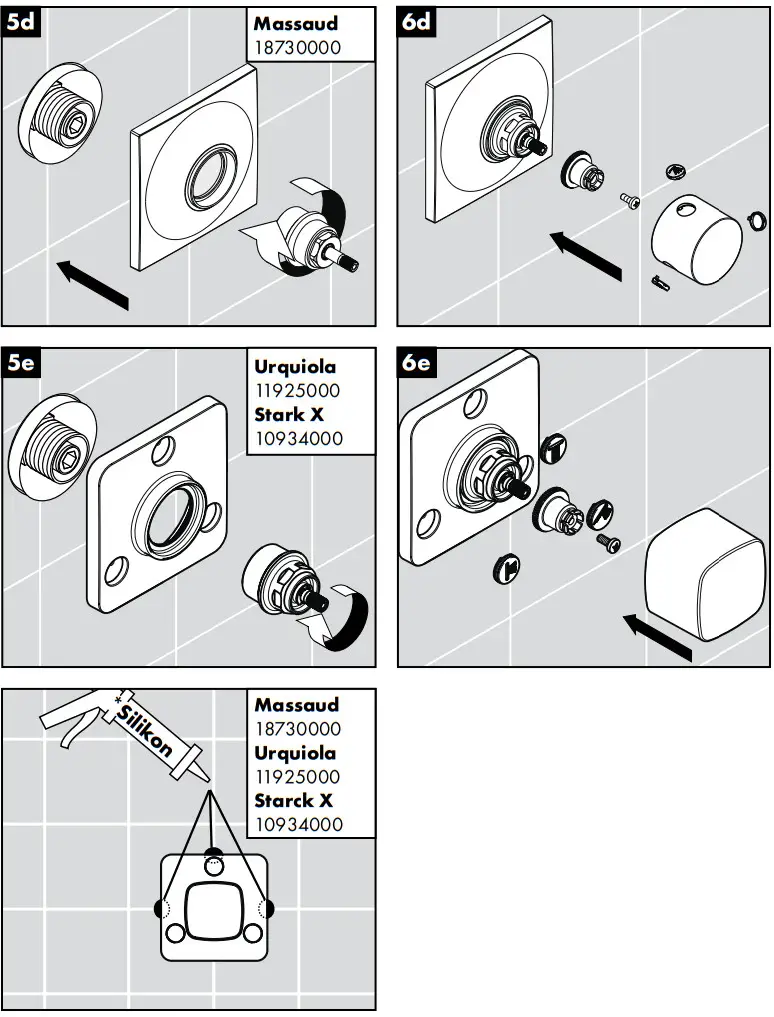

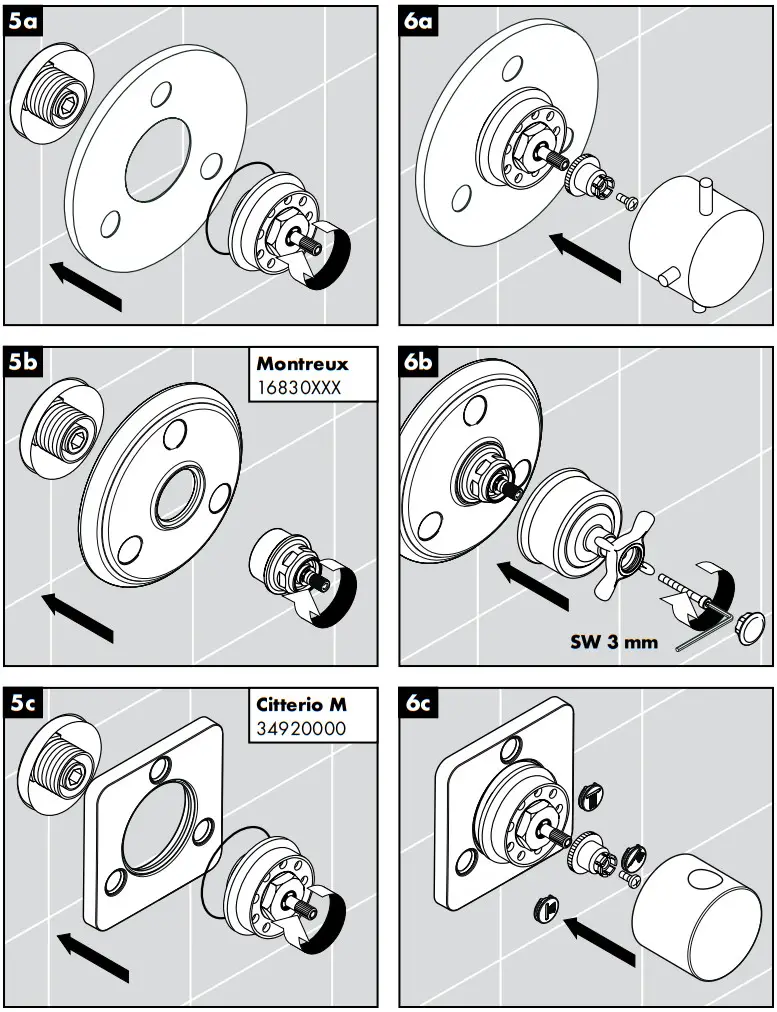

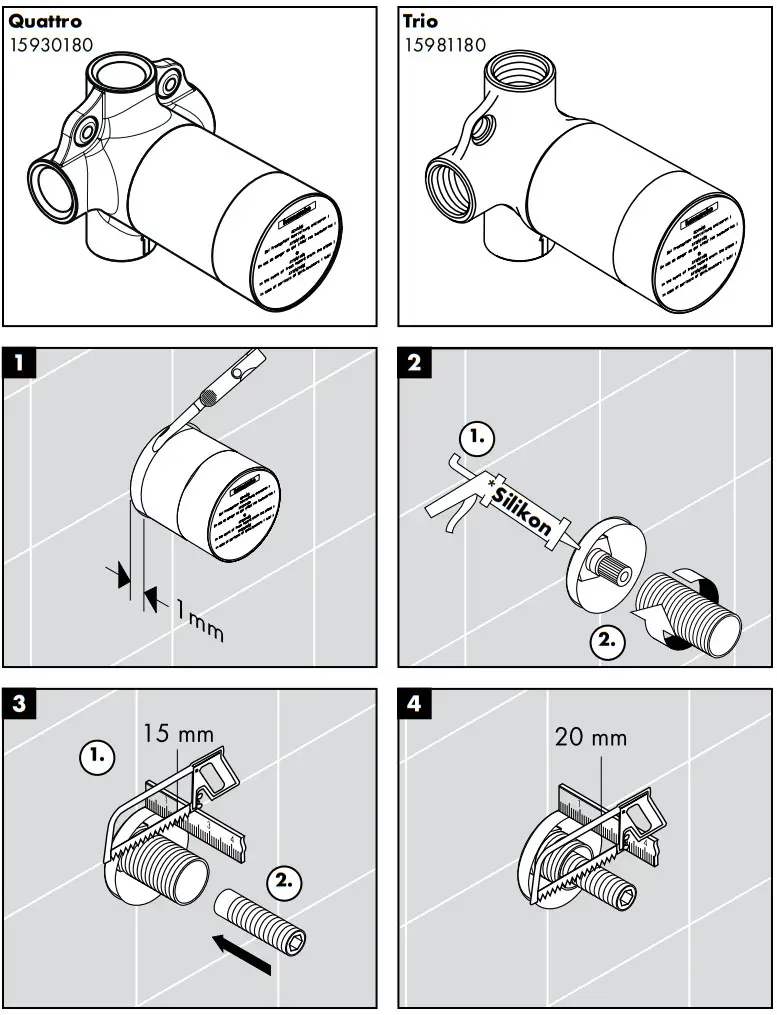

Assembly
Assembly

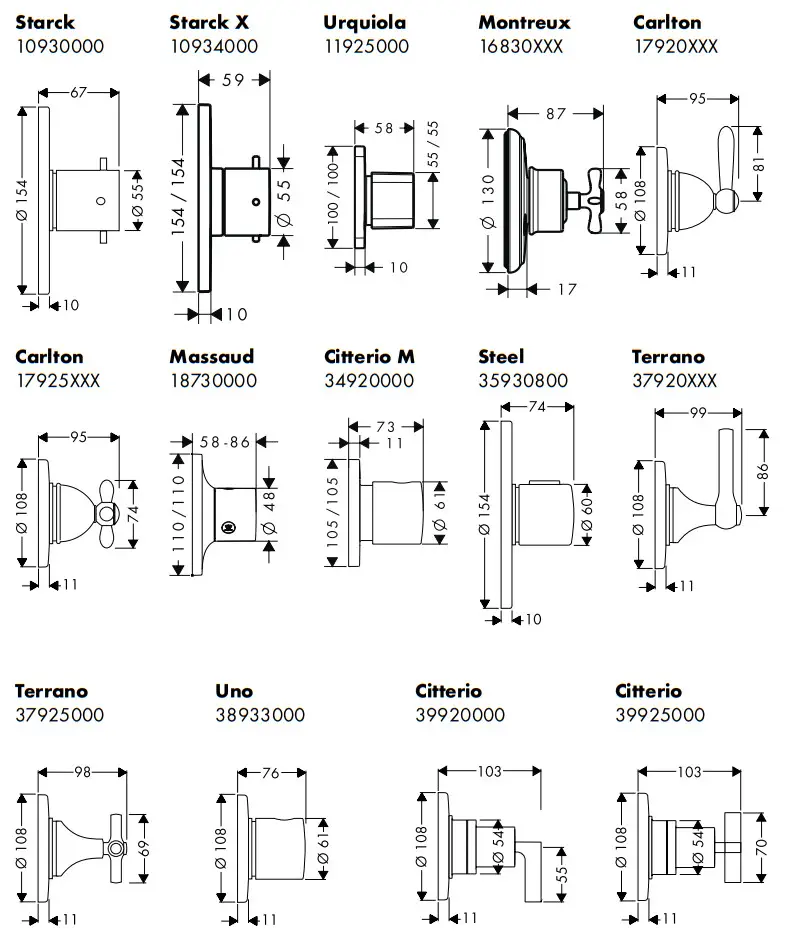

Dimensions
Dimensions
Test certificate
Test certificate| PA-IX | DVGW | SVGW | ACS | WRAS | MCA | KIWA | NF | |
| 10930000 | X | X | X | |||||
| 10934000 | ||||||||
| 11925000 | ||||||||
| 16920XXX | X | X | X | |||||
| 17920XXX | X | X | X | |||||
| 17925XXX | X | X | X | |||||
| 18730000 | X | X | X | |||||
| 34920000 | X | |||||||
| 35930000 | X | X | X | |||||
| 37920000 | X | X | X | |||||
| 37925000 | X | X | X | |||||
| 38933000 | X | X | X | |||||
| 39920000 | X | X | X | |||||
| 39925000 | X | X | X |

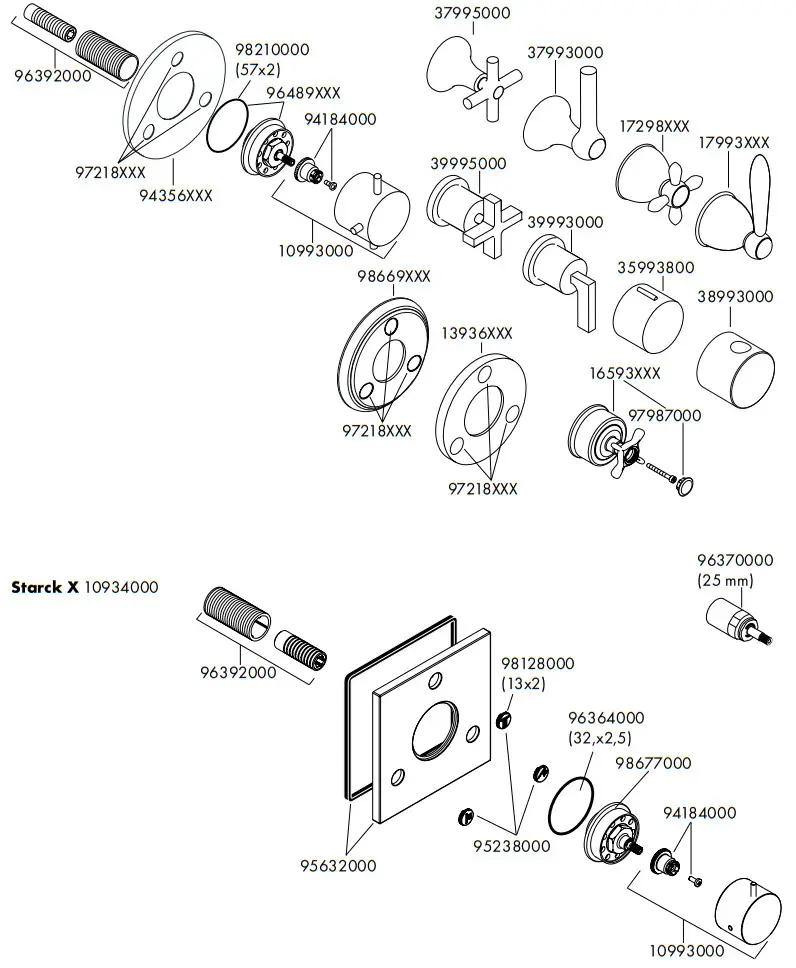

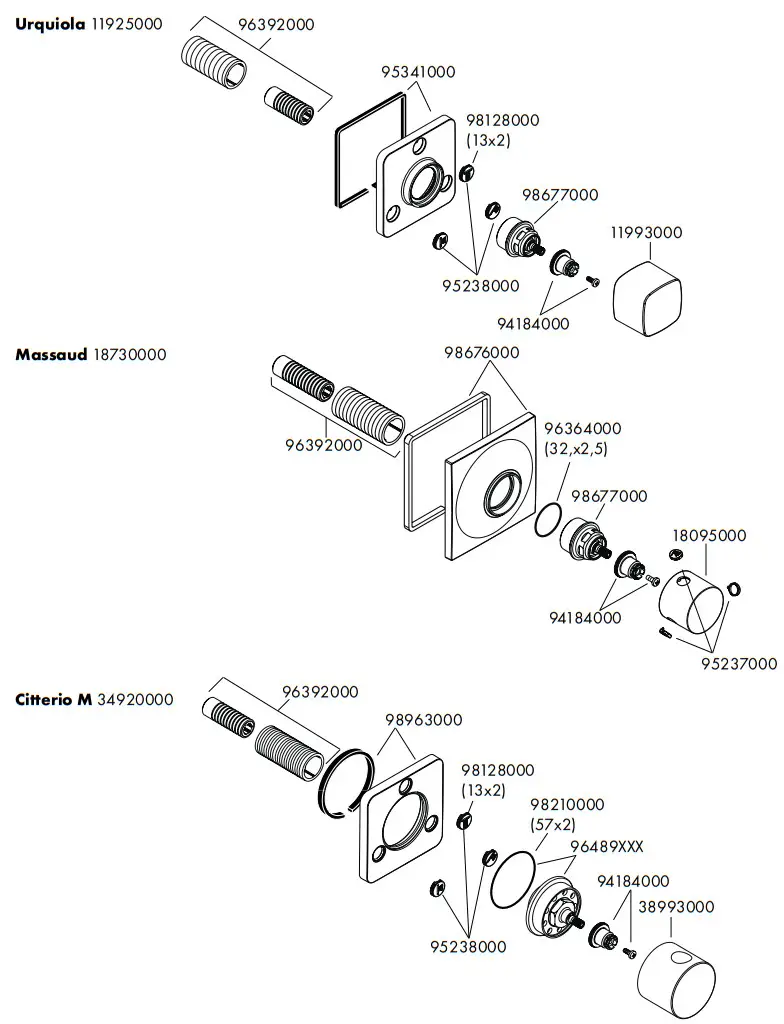

Spare parts
Spare partsXXX = Colors
000 = chrome plated
090 = chrome plated/gold plated
800 = stainless steel optic
820 = brushed nickel
830 = polished nickel

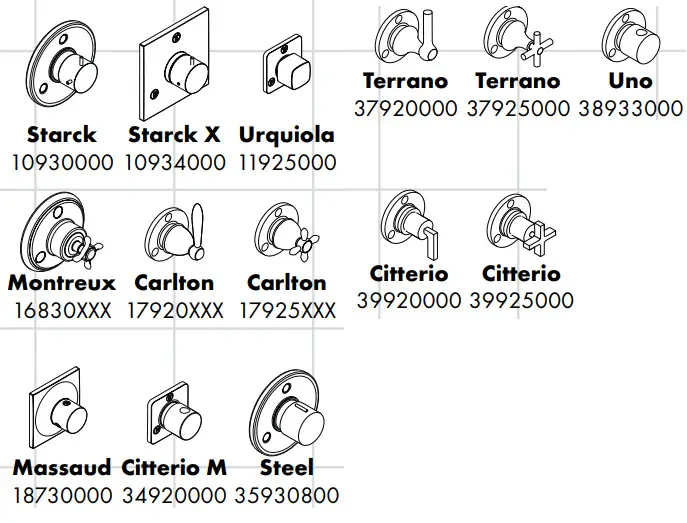

Starck 10930000 / Montreux 16830XXX / Carlton 17920XXX / Carlton 17925XXX / Steel 35930800 /Terrano 37920000 / Terrano 37925000 / Uno 38933000 / Citterio 39920000 / Citterio 39925000
Cleaning
CleaningCleaning recommendations, see enclosed brochure.
Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
