Zeapon M500 Micro 3 Manual-motorized Slider Rail User Manual

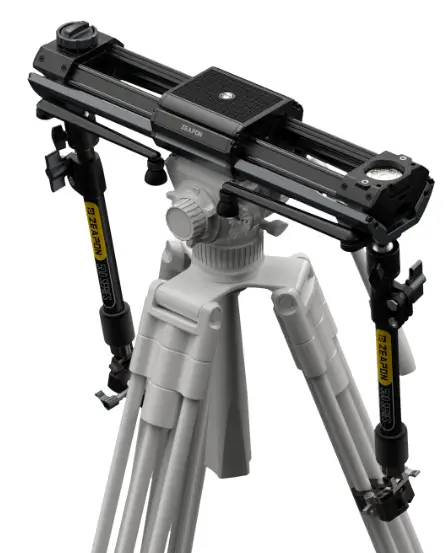

ZEAPON M500 Micro 3 Manual-Motorized Slider Rail

Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before first use and keep this user manual for future reference. Pay particular attention to the safety instructions. If you have any questions or comments about the device, please contact the customer line.

• www.alza.co.uk/kontakt
• ✆ +44 (0)203 514 4411
• Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

Product Description

1. Arri Gear
2. Slider Motor Fixing Hole
3. 1/4 & 3/8 Inch Nesting Scre
4. Platform
5. Slider Belt
6. Adjustable Damping Knob
7. Belt Lock Knob
8. Support Legs
9. Support Feet
10. Tripod Support Rod
11. Crab Claws
12. Ball Head
13. Multiple Positioning Holes
14. Support Assembly Screw

Adjustable Damping

The damping setting can be adjusted between 1 and 5. The higher the number, the higher the resistance.

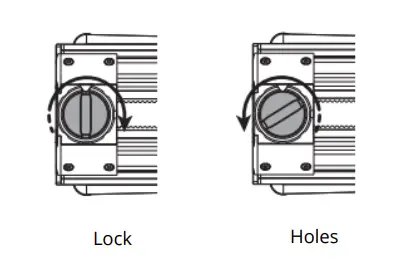

Belt Lock Feature

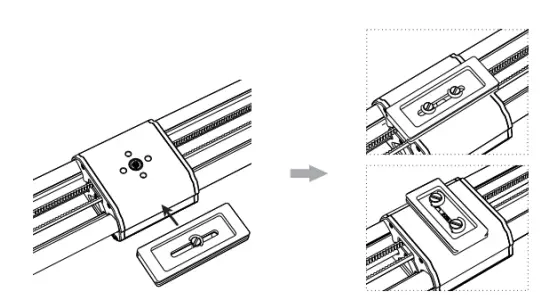

Quick Release Plate Installation

Supports 1/4- and 3/8-inch screws with multiple holes for more secure positioning.

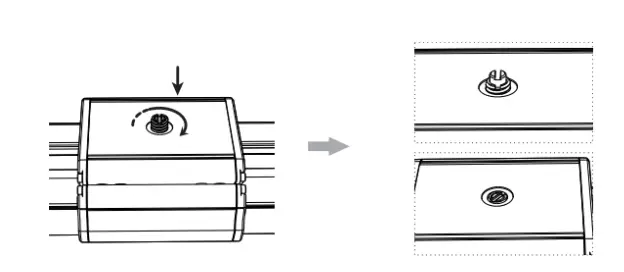

Nesting Screw with Hidden Design

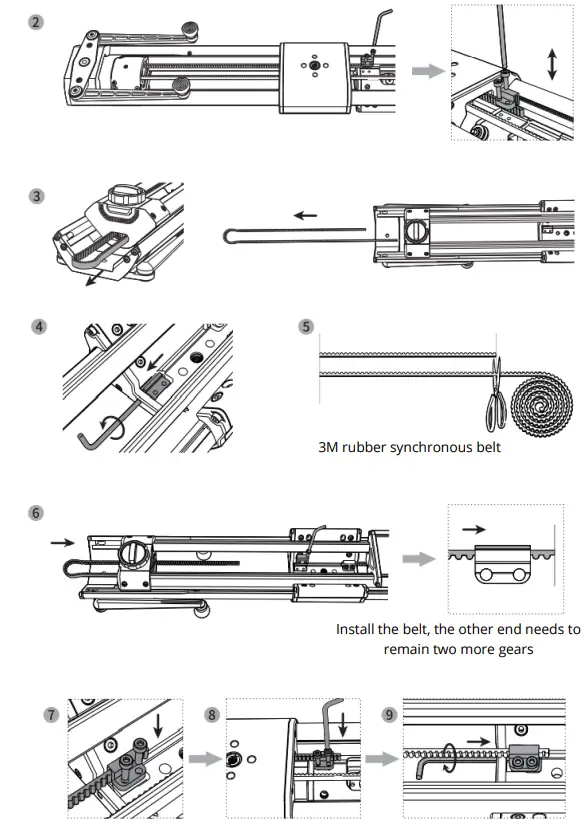

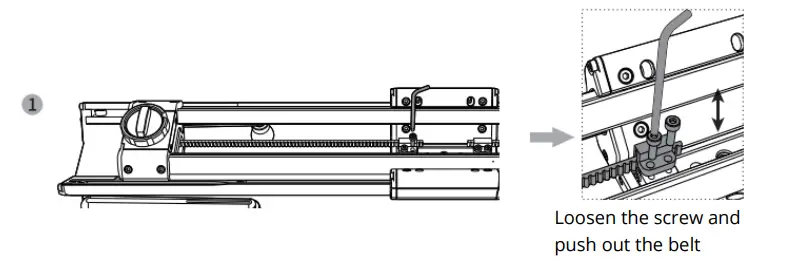

Belt change

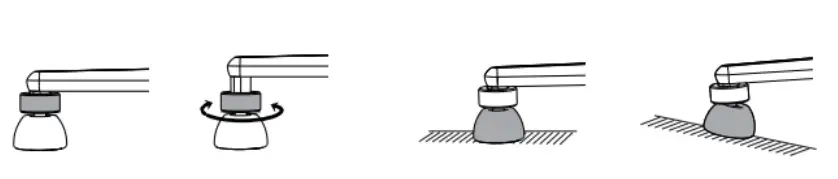

Adjustable support feet

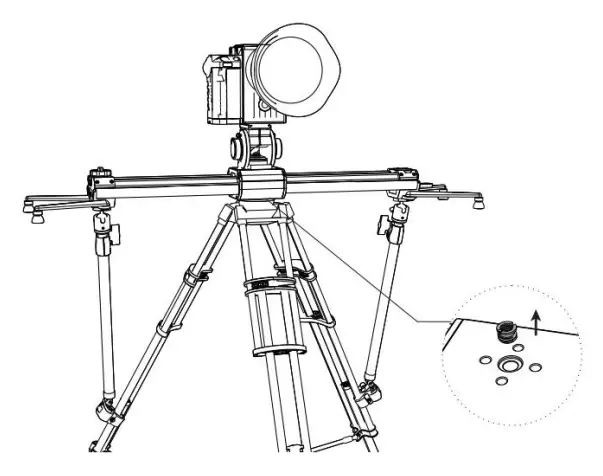

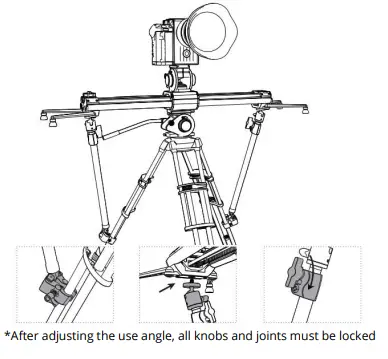

Tripod mode

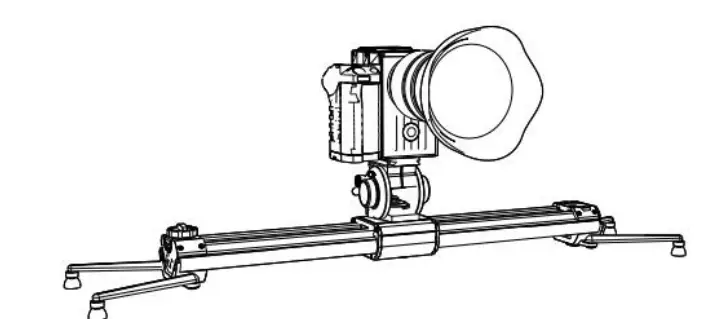

Ground Mode

Dual Head mode

Horizontal Mode

Tilting mode

Tips

• All parts of the slider have been pre-adjusted to reach the best state of tightness and smoothness.
• Please do not disassemble without permission, otherwise it is difficult to return to the initial state, which will compromise the slider performance.
• The slider shown in this manual is: M1000.
• The tripod, gimbal, quick release plate and other equipments shown in this manual are not included in this package and are only for demonstration.

• A detailed operation video can be viewed on the official website: https://www.zeapon.com
