Rollei Macro Rail Slide Micrometric Focusing Rail
Before the First Use
Read the operating instructions carefully before using the device for the first time. Keep the operating instructions together with the device for future use. If other people use this device, make this manual available to them. If you pass on the device to a third party, this manual belongs to the device and must be supplied with it.

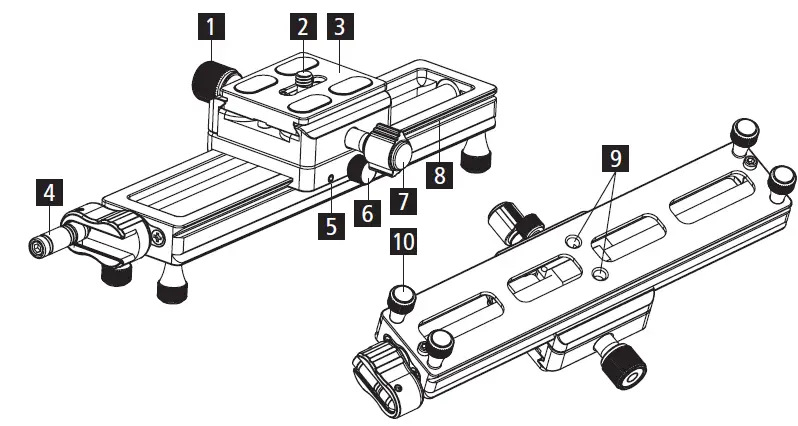

Components
- Platform locking knob
- 1/4 inch screw
- Quick release plate
- Sliding crank
- Damping screw
- Fine adjustment
- Panoramic locking knob
- Rail
- 1/4 inch thread
- Removable feet

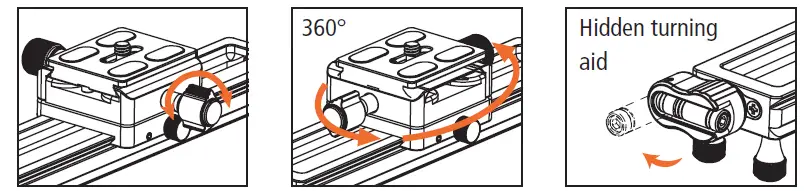

Operation
Loosen the panoramic locking knob [7] to be able to rotate the quick-release plate [3] 360°.
Technical Data
| Model | Macro Rail |
| Length | 210 mm |
| Guide length | 188 mm |
| Width | 59 mm |
| Height | 42 mm / 60 mm (without / with feet) |
| Weight | 410 g |
| Max. load | 8 kg |
Product Information
A big adjustment range of 145 mm with stainless steel trapezoidal threaded spindle for precise fine adjustments. Quick and easy crank operation. Perfect for macro photography.
Rollei GmbH & Co. KG
In de Tarpen 42
22848 Norderstedt
Service Hotline:
+49 40 270750277 Item No: 22977 @rollei_de /rollei.foto.de
