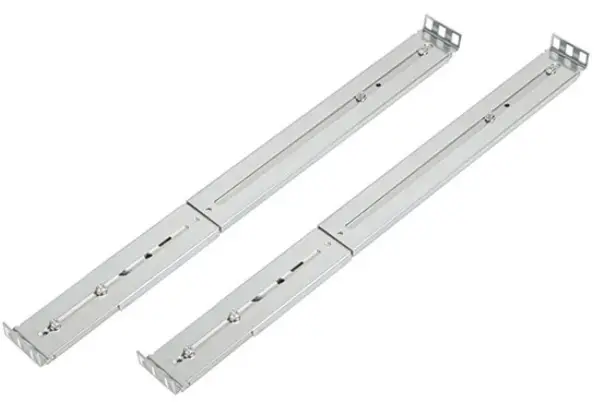

SILVERSTONE RMS07 Series High Quality Ball Bearing Sliding Rail Kit Instruction
Installation

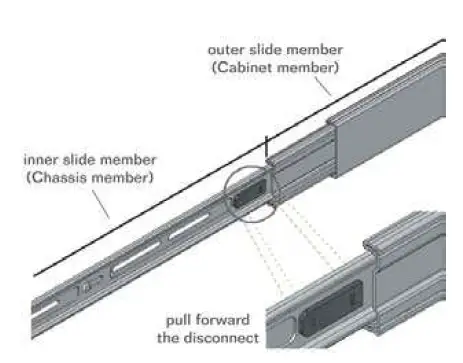

Step 1 – take the inner member ( smaller slide channel ) apart by pulling the front activating release latch forward.

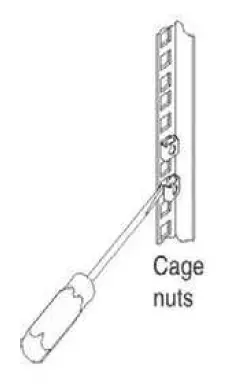

Step 2 – Hook the side lip of the cage nut in the square rail hole, and lever the cage nut into place.

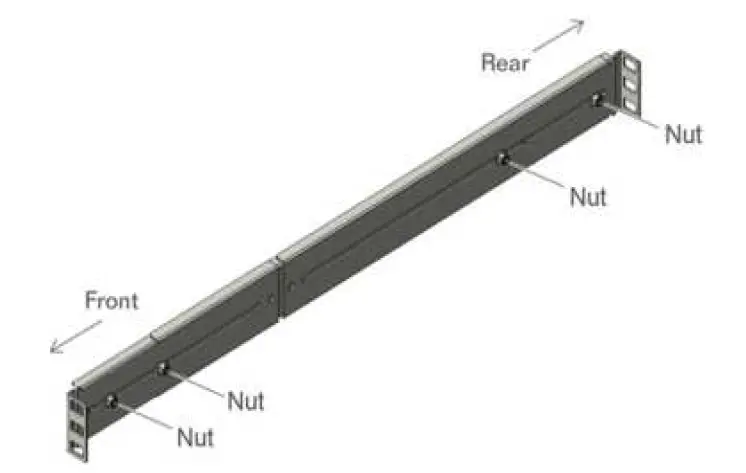

Step 3 – Each slide is pre-attached with front and rear adjustable EIA brackets. Loosen the nuts on the both brackets, and decide the proper setback distance to the opening, then tighten the nuts on the front brackets. Extend the rear brackets to where it reaches the rear rack. Do not fully tighten rear bracket mounting screws until final adjustment is made.
Step 4 –

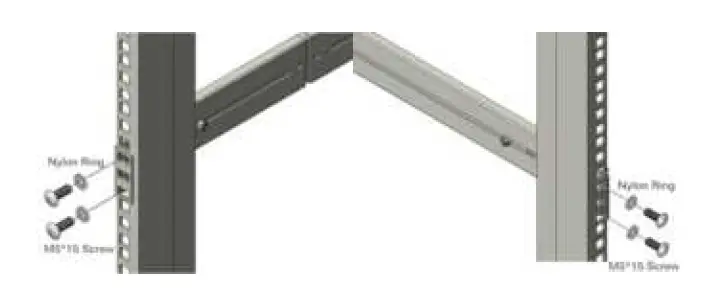

- A. Attach the L-shaped bracket to the front mounting flange using M5*15 screw & 12mm nylon ring from screw kit.
- B. Attach the L-shaped bracket to the rear mounting flange using M5*15 screw &12mm nylon ring from screw kit, then tighten rear bracket mounting

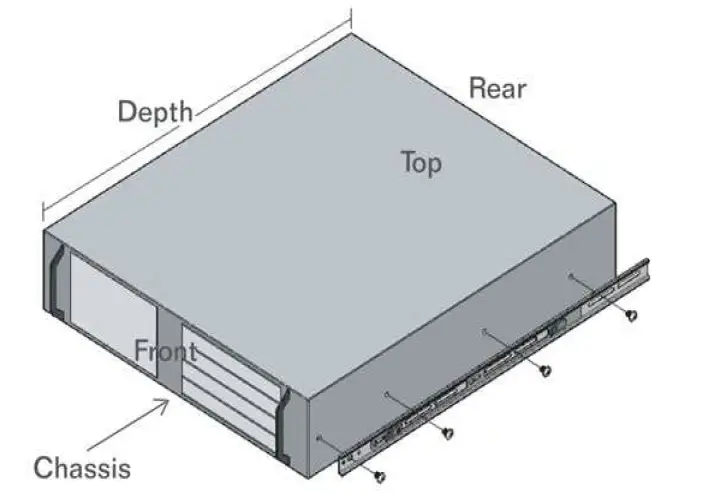

Step 5 – Attach the inner slide member to your chassis using screw from screw kit.

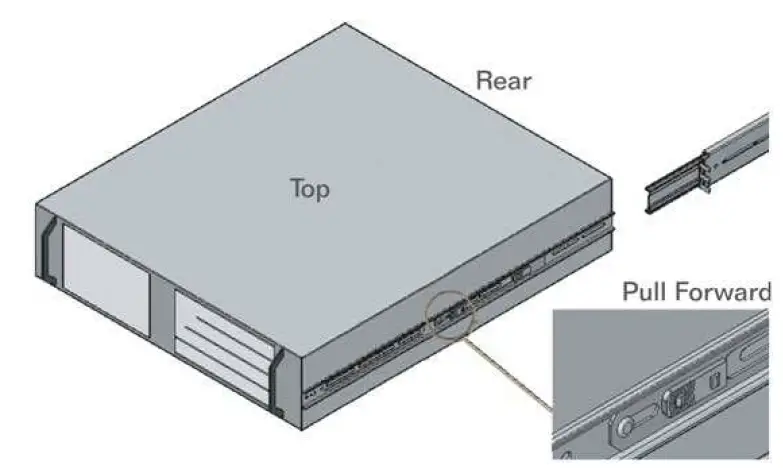

Step 5 – Pick up your chassis; insert your chassis with inner slide member into the intermediate member. The chassis will be locked when it reaches the fully open position, then pull forward on the front activating release latch in order to push your chassis all the way inward till the closed position.
