xentrex 818-2010 Freedom XC Pro Inverter/Charger Firmware User Guide
WHAT YOU NEED:
Download the latest firmware version from www.xantrex.com
Computer | Internet Connection | USB Drive | Access to FREEDOM XC PRO inverter/charger
STEP 1

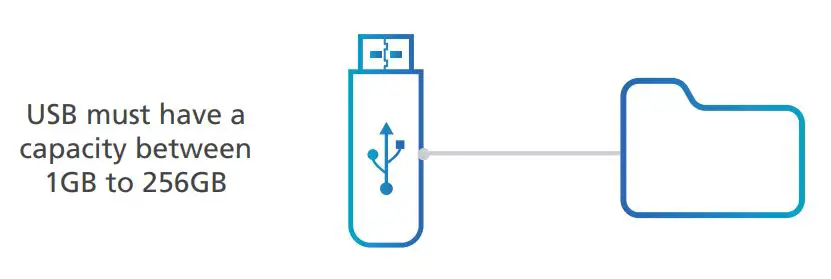

On a USB stick, create a folder titled exactly: FreedomX_Firmware
STEP 2

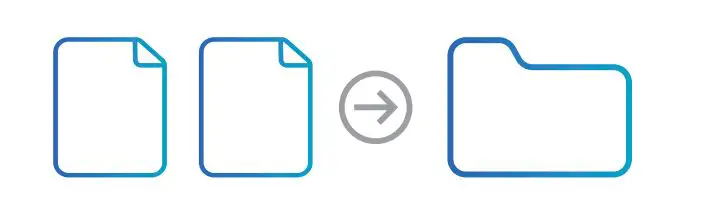

Place both FREEDOM X firmware files fxcc.enc and fxcc_manifest.cbor onto the USB stick inside the FreedomX_Firmware folder.
STEP 3

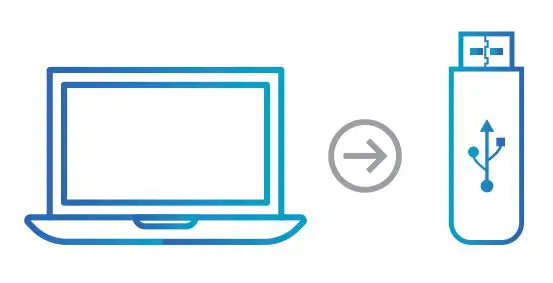

Safely eject the USB from the PC.
STEP 4
Turn off all AC loads and turn off the vehicle engine. Ensure that the inverter/charger remains powered on.
STEP 5

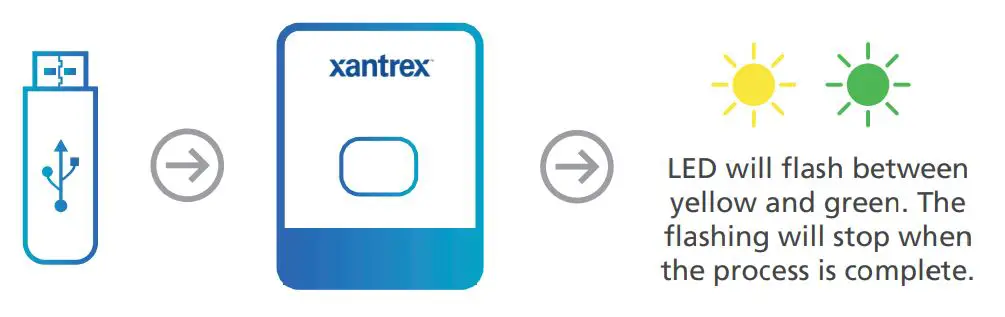

Insert the USB into the inverter/charger unit. Upon inserting the USB stick, the FREEDOM XC PRO inverter/charger LED should flash showing that the USB is recognized and the firmware is being downloaded.
STEP 6

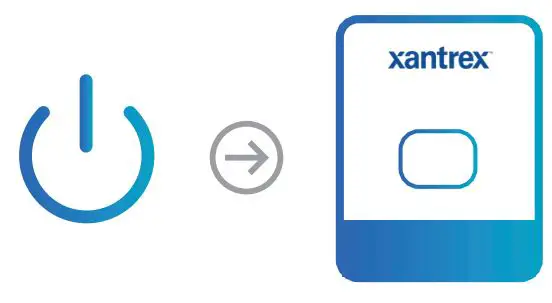

After the LED has stopped flashing, power cycle the inverter/charger (turn the inverter/charger off and on). You should see that the LED has begun flashing again indicating that it is upgrading the FREEDOM X firmware.
STEP 7

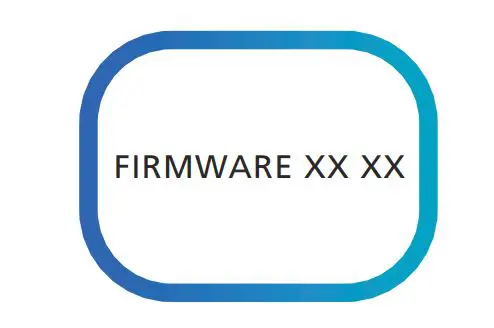

After the LED has stopped flashing, use the inverter’s local display to view FREEDOM X firmware screen (U3) which should show the new firmware version XX XX (Press the ‘scroll button’ on the inverter/charger).
