818-2015 Freedom XC PRO Marine Inverter
User Guide
WHAT YOU NEED:
Download the latest firmware version from www.xantrex.com
Computer | Internet Connection | USB Drive | Access to FREEDOM XC PRO Marine inverter/charger
STEP 1
On a USB stick, create a folder titled exactly: FreedomX_Firmware

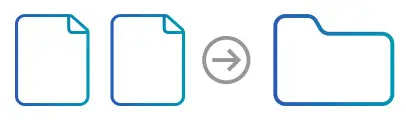

STEP 2
Place both FREEDOM X firmware files fcc. enc and fxcc_manifest.cbor onto the USB stick inside the FreedomX_Firmware folder.

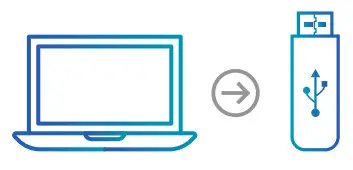

STEP 3
Safely eject the USB from the PC.
STEP 4
Turn off all AC loads and turn off the vehicle engine. Ensure that the inverter/charger remains powered on.

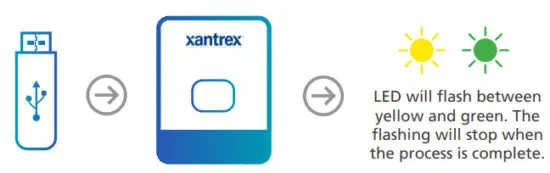

STEP 5
Insert the USB into the inverter/charger unit. Upon inserting the USB stick, the FREEDOM XC PRO Marine inverter/charger LED should flash showing that the USB is recognized and the firmware is being downloaded.

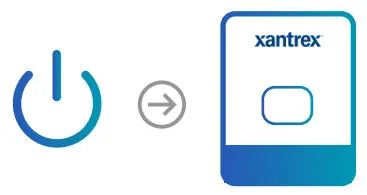

STEP 6
After the LED has stopped flashing, power cycle the inverter/charger (turn the inverter/charger off and on). You should see that the LED has begun flashing again indicating that it is upgrading the FREEDOM X firmware.
STEP 7
After the LED has stopped flashing, use the inverter’s local display to view the FREEDOM X firmware screen (U3) which should show the new firmware version XX XX (Press the ‘scroll button’ on the inverter/charger).
