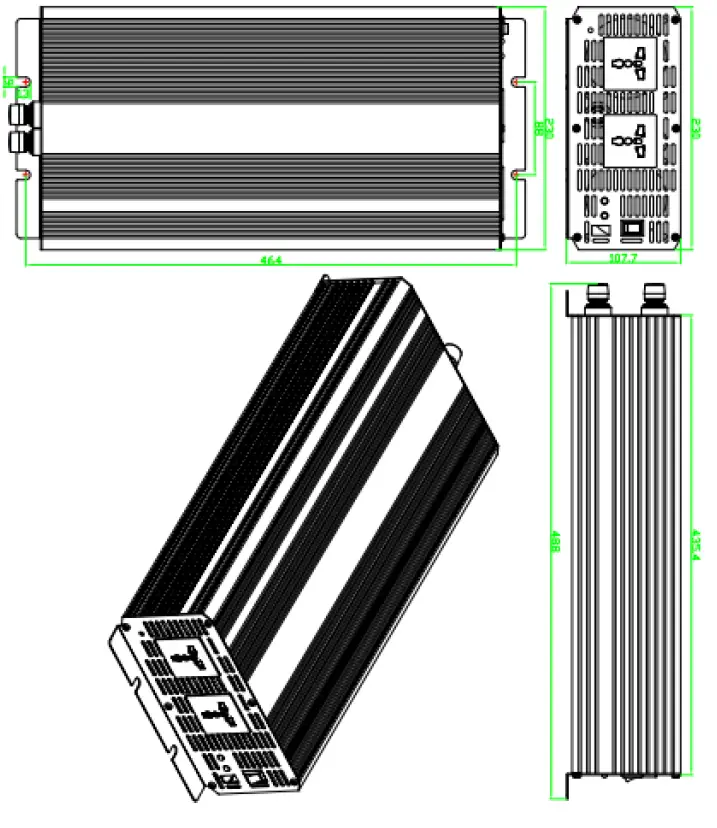

8 DIMENSIONS

9 Documents / Resources

9.1 References

10 Related Posts

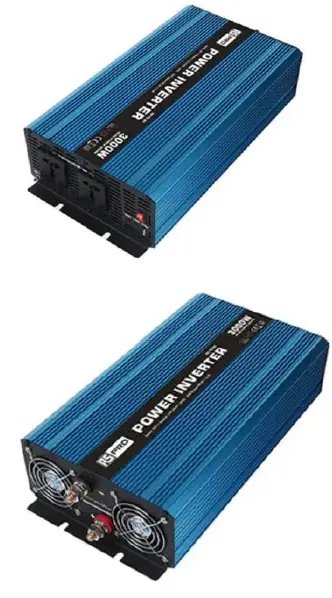

RS PRO 179-3341 DC-AC Power Inverters

FEATURES

DC-AC power inverter
Chassis mounting
Pure sine wave
One output connection
Single-phase electrical output
Input voltage of 24 V
Output voltage of 230 V
Universal output connection type
Efficiency rating over 90%
Mean time between failures of 50,000 h
Output current of 26.9 A
Maximum input of 250 A
Length of 488 mm
Width of 230 mm
Depth of 107.7 mm

RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price

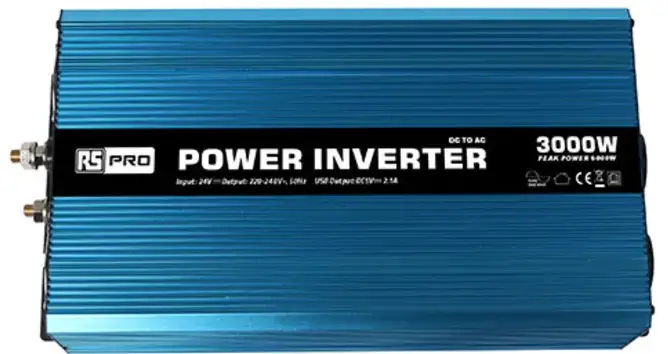

Product Description

The RS PRO fixed installation DC-AC power adapter converts direct current (DC) to alternating current (AC) to run numerous electrical appliances. It outputs 3000 W of power as a pure sine wave, which many electrical products are designed to work best with.

General Specifications

Inverter Directionality	DC to AC
Output Connection Type	Universal
Mounting Type	Chassis Mount
MTBF	50000h
Applications	Home appliance, Power tools, Office and Portable equipment

Electrical Specifications

Output Specifications
AC Voltage	230V
Rated Power	3000W
Peak Power	3100W
Surge Power	6000 W
Current	26.9A
Waveform	Pure Sine Wave
Frequency Range	50Hz
Number of Output Connection	2
Output Electrical Phase	1
Efficiency	>90%
