Rs Pro 179-3326 Dc-ac Power Inverters Installation Guide

300W Fixed Installation DC-
AC Power Inverter, 24V / 230V RS Stock No.: 179-3326
Installation Guide

RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a  comparable quality to the leading brands without paying a premium price.

FEATURES

• DC-AC power inverter
• Chassis mounting
• Pure sine wave
• One output connection
• Single-phase electrical output
• Input voltage of 24 V
• Output voltage of 230 V
• Universal output connection type
• Efficiency rating over 90%
• Mean time between failures of 50,000 h
• Output current of 2.61 A
• Maximum input of 25 A
• Length of 204.2 mm
• Width of 150 mm
• Depth of 58 mm

Product Description

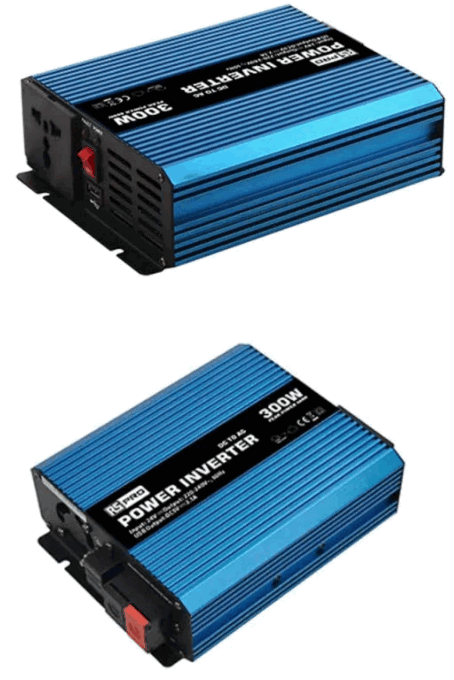

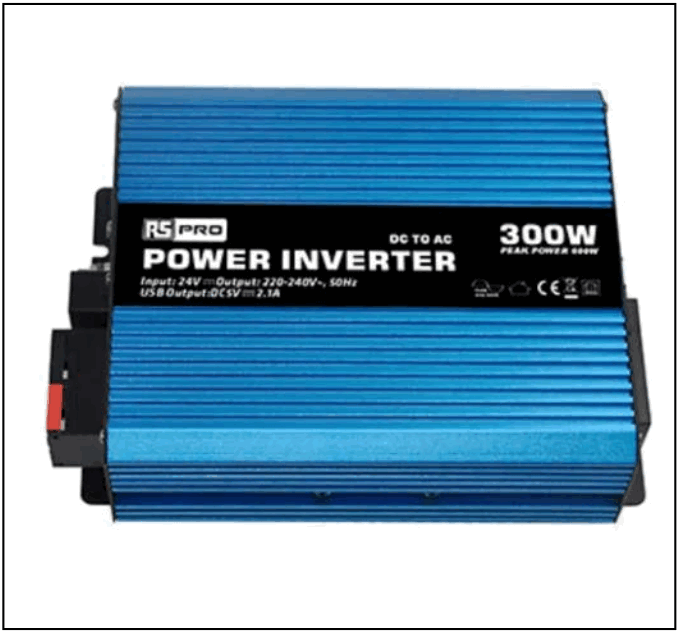

This compact 300 W DC to AC power inverter from RS PRO is designed to be connected to a car battery for the charging of appliances on-the-go or in emergencies. It  converts DC (direct current) voltage to alternating current (AC), which is how mains electricity is supplied in homes and other buildings. Car batteries produce DC voltage,  which is incompatible with most household appliances.

General Specifications

Electrical Specifications

Output Specifications

Input Specifications

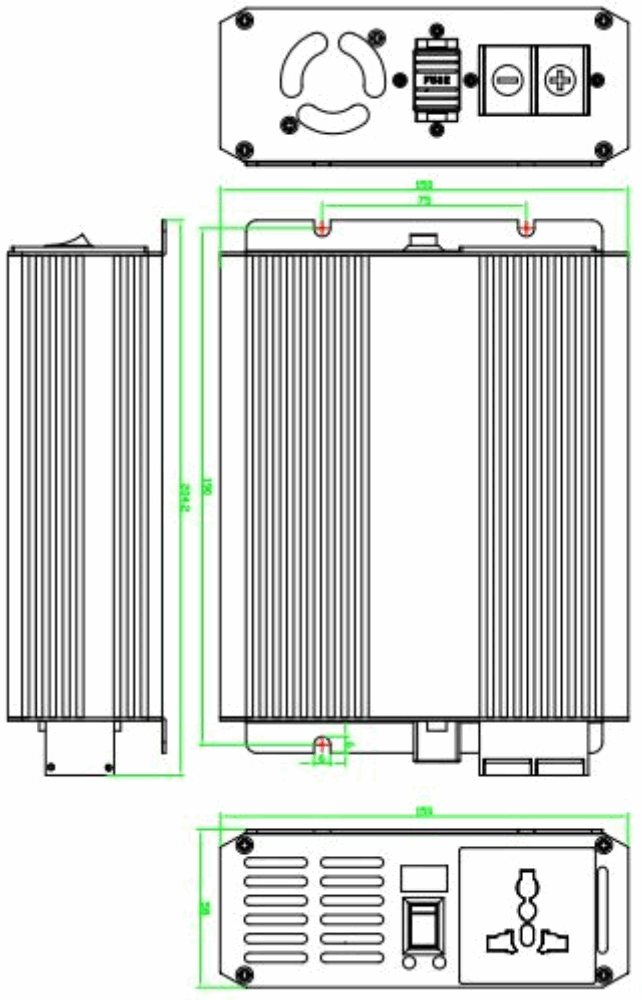

Mechanical Specifications

Operation Environment Specifications

Approvals
