Café™ Energy Star® 22.2 Cu. Ft. Counter-Depth
French-Door Refrigerator with Hot Water Dispenser
CYE22TP4MW2 / CYE22TP2MS1 / CYE22TP3MD1

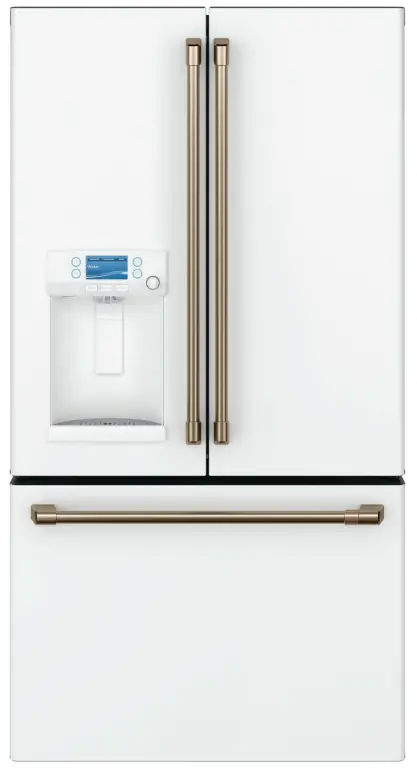

CYE22TP4MW2
Matte White with
Brushed Bronze handles
ALSO
AVAILABLE IN
CYE22TP2MS1
Stainless Steel with Brushed Stainless handles
CYE22TP3MD1
Matte Black with Brushed Stainless handles
FEATURES & BENEFITS
Create a built-in look with a counter-depth design that fits flush with surrounding cabinetry.
Steep a relaxing herbal tea or prepare light & fluffy couscous with an adjustable hot water dispenser that provides precise temperatures and measurements.
Use your voice or smart device to preheat water from your refrigerator while you relax in another part of the house.
Leave the measuring cups in the drawer with a Precise Fill setting that dispenses an exact amount of water with just a touch.
Food remains fresh longer with TwinChill™ evaporators that accurately maintain and control separate freezer and refrigerator environments.
Keep key ingredients fresh and within sight with a full-width, electronic, temperature-controlled drawer that uses an LED colored lighting system.
Display groceries like a gallery with showcase LED lighting positioned throughout the interior to spotlight your favorite foods and containers.
Protect your family and guests with an advanced water filtration system that uses RPWFE replacement filters to remove 98% of pharmaceuticals from ice and water*.
* Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone, and trimethoprim.
These pharmaceuticals are not necessarily in all users’ water.
APPEARANCE
| Counter-depth design | Yes |
| Exterior design | Flat doors |
| Handle design | GE Café |
| Hidden door hinge(s) | Yes |
| Textured steel case | Case only—Dark gray |
FEATURES
| Configuration | French door |
| WiFi connect | Built-in |
| Connected capabilities | Amazon Alexa; The Google Assistant; IFTTT |
| Temperature management features | Turbo Cool setting |
| Temperature management system | TwinChill™ evaporators |
| Defrost type | Frost Guard |
| Control type | External touch color LCD |
| Dispenser | Large stainless steel; cubes, crushed ice, and water |
| Dispenser features | Hot water; Precise Fill; LCD screen controls; Door alarm; LED dispenser light; Water filter indicator light |
| Icemaker | Space saving ice |
| Water filtration | Advanced filtration system (RPWFE); Removes pharmaceuticals; Water filter indicator light |
| Filter location | Left wall |
| Fresh food cabinet drawers | 3 total; 2 adjustable humidity drawers; 1 full-width, adjustable temperature with LED lighting |
| Fresh food cabinet shelves | 5 total—glass with silver trim; 4 split adjustable; 1 full-width; 3 spill proof; 1 Quick Space shelf |
| Fresh food door bins | 6 total (2 adjustable with gallon storage) |
| Fresh food door features | Dairy compartment; Drop-down tray |
| Fresh food features | Showcase LED lighting (7); Deli pan |
| Freezer storage baskets | 2 full-width |
| Freezer features | Turbo Freeze; Interior lighting—showcase LED (2) |
| Exterior style | Counter-depth |
| Leveling system | 2 front leveling legs |
| Performance features | Easily removable door gaskets; Sabbath Mode capable |
CAPACITY
| Total capacity (cubic feet) | 22.2 cu. ft. |
| Fresh food capacity | 15.0 cu. ft. |
| Freezer capacity | 7.2 cu. ft. |
WEIGHTS & DIMENSIONS
| Overall depth | 31-1/4 in. |
| Overall height | 70-1/2 in. |
| Overall width | 35-3/4 in. |
| Case depth without door | 24-3/8 in. |
| Depth with door open 90° | 43-3/8 in. |
| Depth without handle | 30-1/4 in. |
| Height to top of case | 69 in. |
| Width with door open 90° including handle | 44-3/4 in. |
| Approximate shipping weight | 398 lb. |
| Net weight | 365 lb. |
WARRANTY
| Parts warranty | Limited 1-year entire appliance; Limited 5-year sealed refrigerating system |
| Labor warranty | Limited 1-year entire appliance; Limited 5-year sealed refrigerating system |
| Warranty notes | See written warranty for full details |

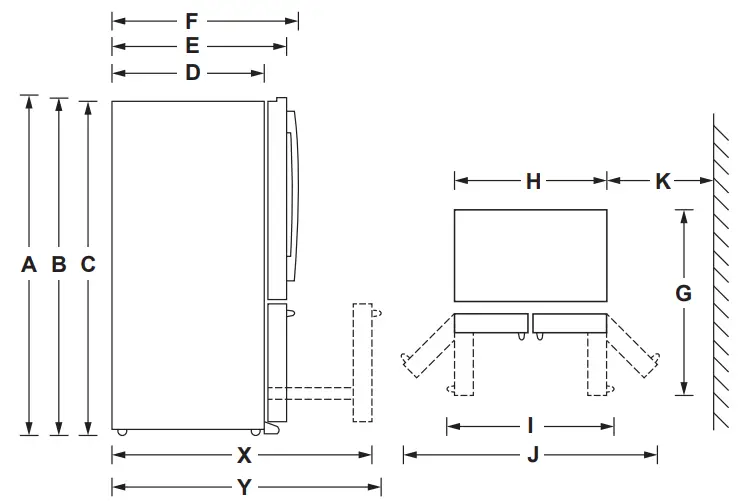

DIMENSIONS
| Height to top of door (in.) A | 70-1/2 |
| Height to top of a hinge (in.) B | 70-1/2 |
| Height to top of case (in.) C | 69 |
| Case depth without door (in.) D** | 24-3/8 |
| Case depthless door handle (in.) E** | 30-1/4* |
| Case depth with door handle (in.) F** | 31-1/4 |
| Depth with fresh food door open 90˚ (in.) G** | 43-3/8 |
| Width (in.) H | 35-3/4 |
| Width with door open 90˚ with door handle (in.) I | 44-3/4 |
| Width with doors opens fully (in.) J | 61-5/8 |
| Min distance between side of case and wall, in either direction, to allow doors to open fully (in.) K | 13-1/8 |
| Depth with FZ door completely open (w/o handle) (in.) X | 44-1/4 |
| Depth with FZ door completely open (w/ handle) (in.) Y | 46-3/4 |
*Includes hot water knob.
**Water hookup fits in back air clearance when calculating installation depth.
ADDITIONAL ACCESSORIES
 | CXLB3H3PMBZ Brushed Bronze 3 handles (Standard on Matte White) |
 | CXLB3H3PMSS Brushed Stainless 3 handles (Standard on Matte Black and Stainless Steel) |
 | CXLB3H3PMBT Brushed Black 3 handles |
 | CXLB3H3PMCU Brushed Copper 3 handles |
For answers to your Café™ product questions, visit our website at cafeappliances.com.
© 2021 GE Appliances PC90238 9/21
