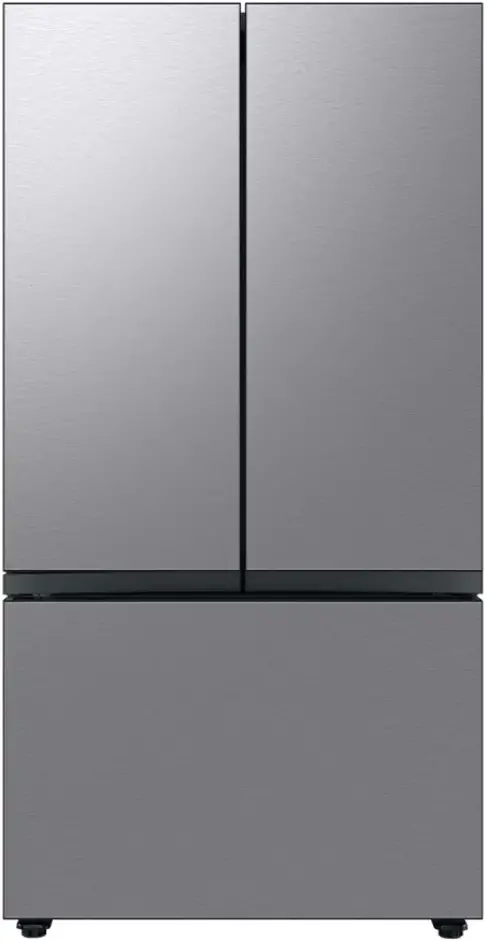

Samsung RF24BB6600AP Bespoke Counter Depth 3 Door French Door Refrigerator

Product Information

The RF24BB6600 Bespoke Counter Depth 3-Door French Door Refrigerator is a 24 cubic feet refrigerator with a customizable and changeable door panel available in a variety of colors and finishes. It features a concealed Beverage CenterTM with both a water dispenser and AutoFill Water Pitcher, and a Dual Ice Maker with cubed ice and Ice BitesTM.

Available Colors

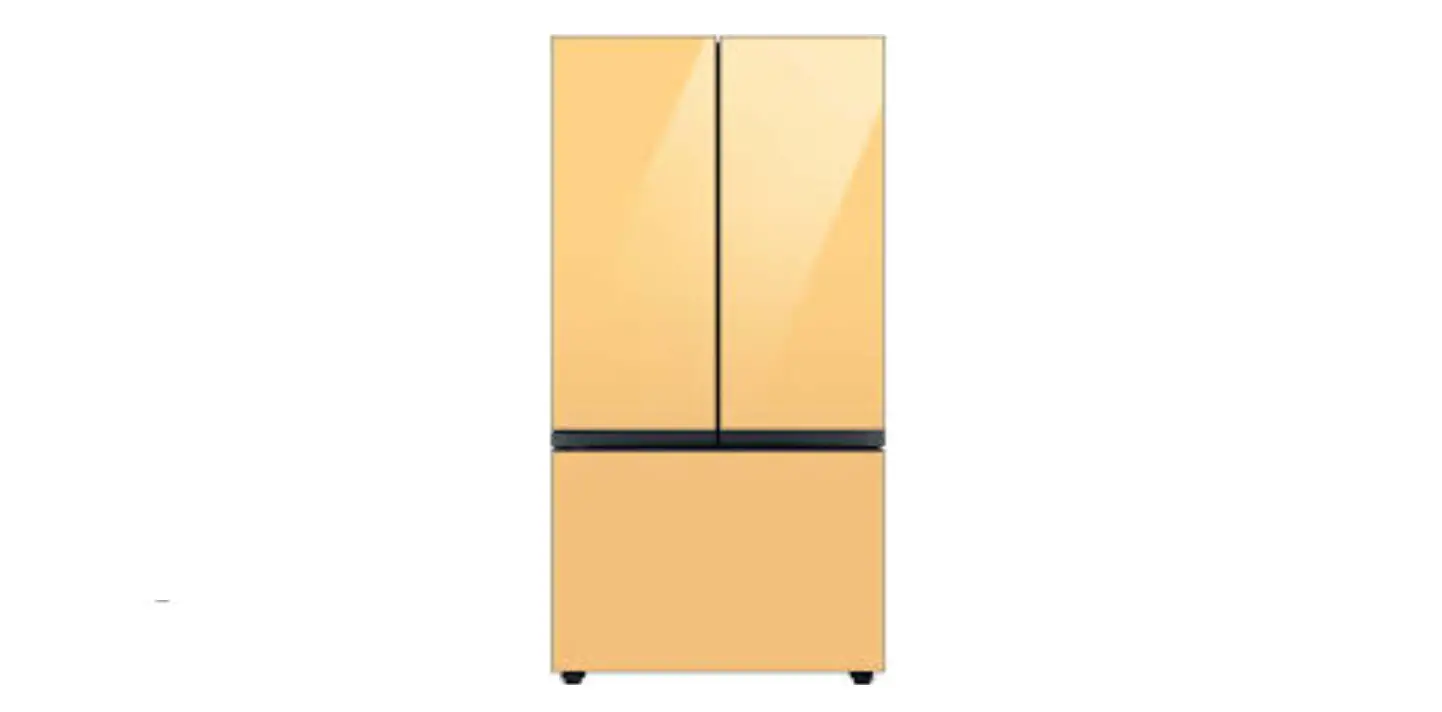

Bespoke Counter Depth 3-Door French Door Refrigerator (24 cu. ft.) with Beverage Center™ in Customizable Door Panel Colors
RF24BB6600AP
Bespoke Counter Depth 3-Door French Door Refrigerator (24 cu. ft.) with Beverage Center™ in Stainless Steel – All Panels
RF24BB6600QL
Bespoke Counter Depth 3-Door French Door Refrigerator (24 cu. ft.) with Beverage Center™ in White Glass – All Panels
RF24BB660012

Product Usage Instructions

To use the RF24BB6600 Bespoke Counter Depth 3-Door French Door Refrigerator:

Ensure that the refrigerator is properly installed and plugged into an electrical outlet.
To change the door panel, refer to the Bespoke Panel Installation Guide (found on page 21 of the user manual).
The concealed Beverage CenterTM features both a water dispenser and AutoFill Water Pitcher. To use, simply press the water dispenser lever or fill the pitcher with water and place it back in its place.
The Dual Ice Maker produces cubed ice and Ice BitesTM. To activate, simply press the Ice Maker button on the control panel.
To adjust the temperature settings, refer to the Refrigerator Specs section of the user manual (found on page 17).

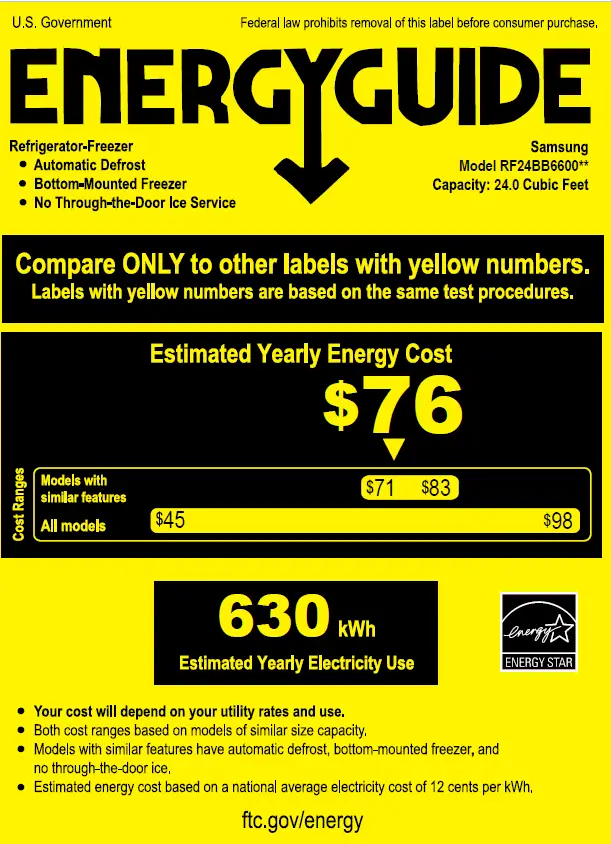

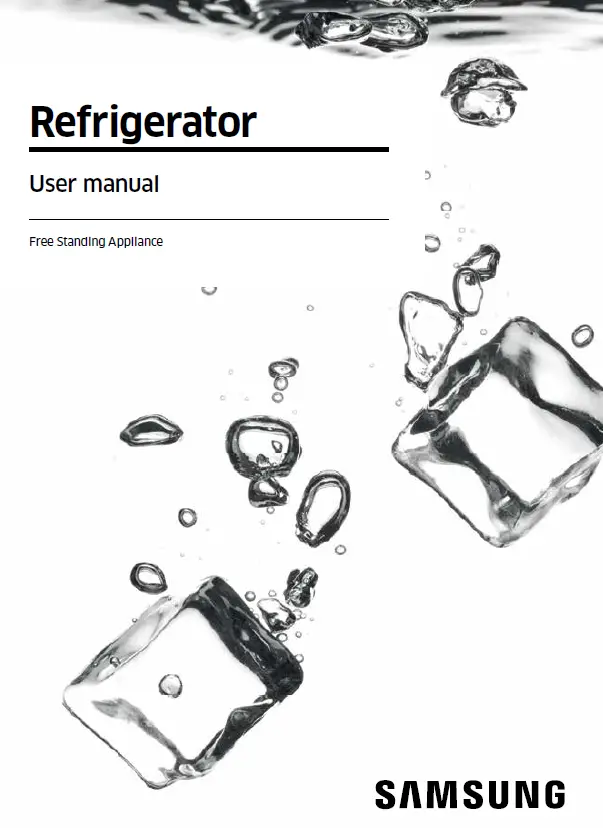

Refer to the Energy Guide and User Manual section for further information on proper usage and maintenance of the refrigerator.

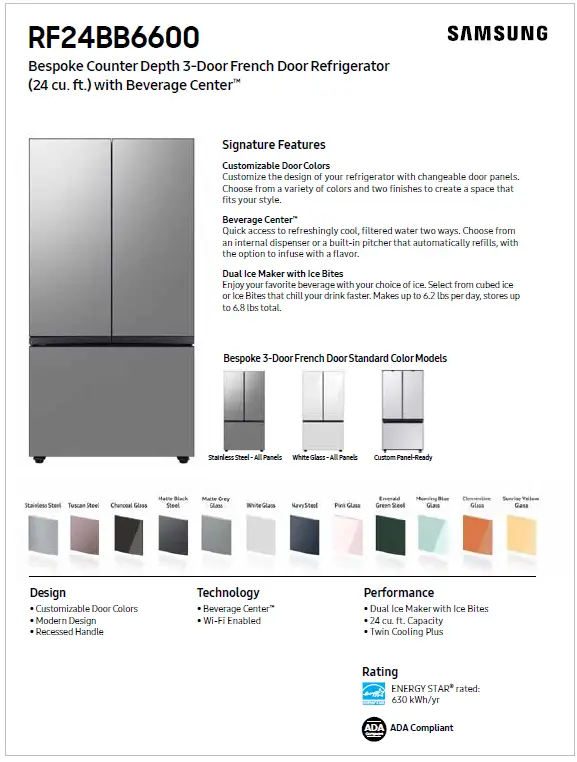

Product Overview

Product Title
Bespoke Counter Depth 3-Door French Door Refrigerator (24 cu. ft.) with Beverage Center™
Product Description
Counter Depth 3-Door French Door Refrigerator with customizable and changeable door panels available in a variety of colors and finishes. A revolution in convenience and design, the concealed Beverage Center™ features both a water dispenser and AutoFill Water Pitcher, plus a Dual Ice Maker with cubed ice and Ice Bites™.

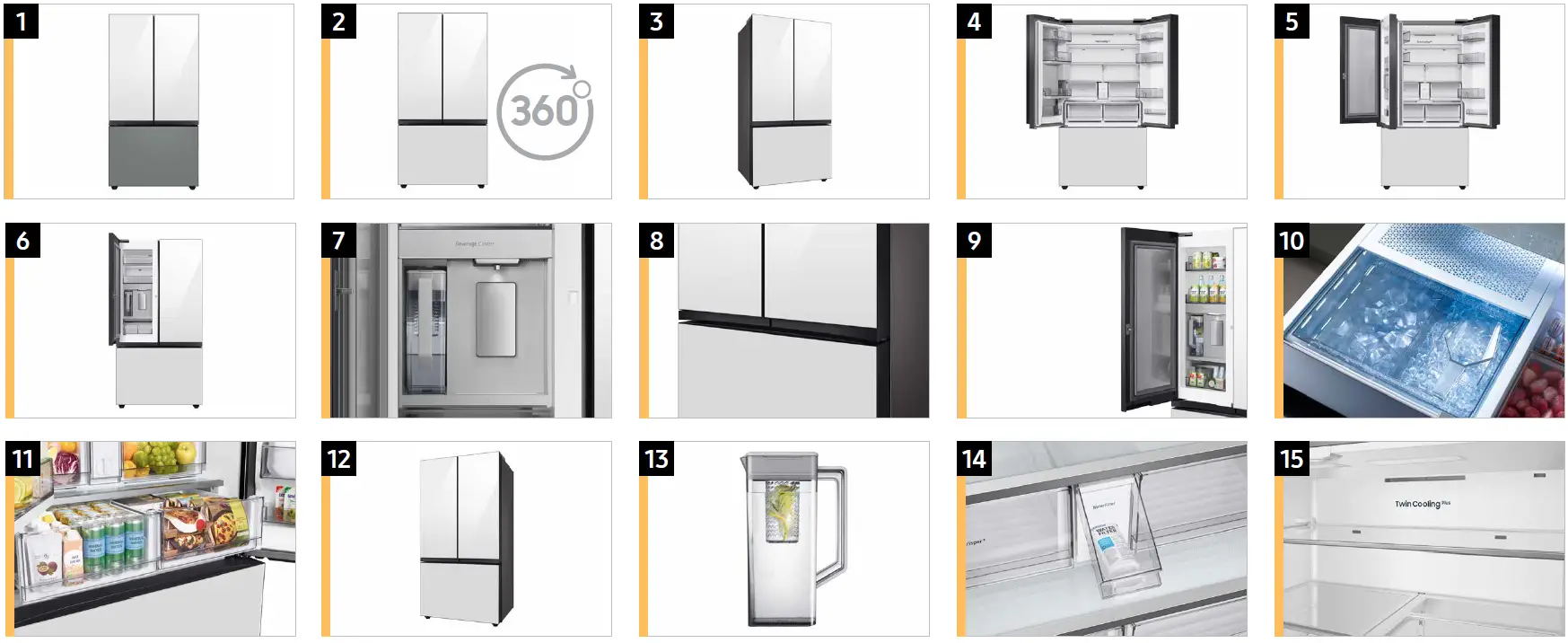

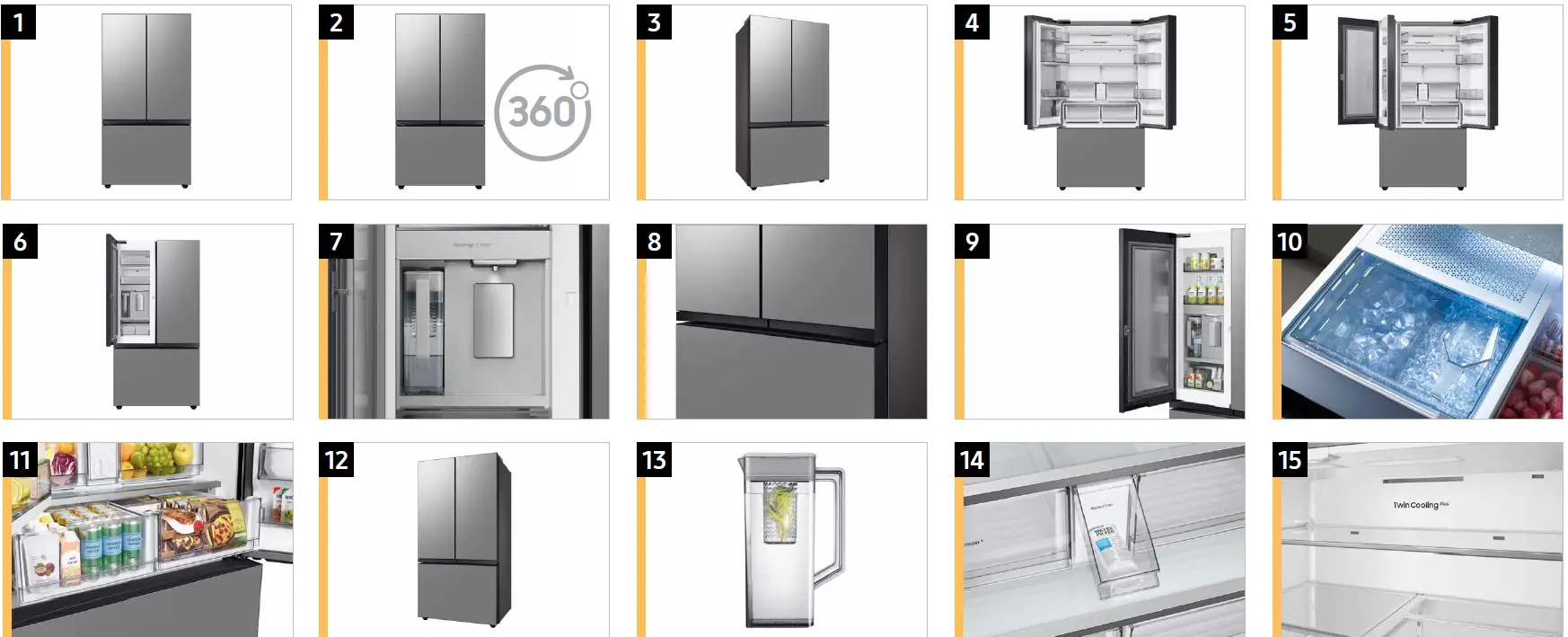

Carousel Image Order

RF24BB6600AP Carousel Image Order

RF24BB660012 Carousel Image Order

Product Messaging

Features and Benefits – RF24BB6600

Overall Product Headline	Feature Name	Long Body Copy	Short Body Copy	Associated Image
Customizable Door Colors	Color Customization	Customize the design of your refrigerator with changeable door panels. Choose from a variety of colors and two finishes to create a space that fits your style.	With customizable door panels, choose from twelve colors and two finishes to create a space that fits your style.
Press or Pour – Water Two Ways	Beverage Center™	Quick access to refreshingly cool, filtered water two ways. Choose from an internal dispenser or a built-in pitcher that automatically refills, with the option to infuse with a flavor.	Choose from an internal dispenser or a built-in AutoFill Water Pitcher.
Ice your way	Dual Ice Maker with Ice Bites™	Enjoy your favorite beverage with your choice of ice. Select from cubed ice or Ice Bites™ that chill your drink faster.	Select from cubed ice or Ice Bites™ that chill your drink faster.

Overall Product Headline	Feature Name	Long Body Copy	Short Body Copy	Associated Image

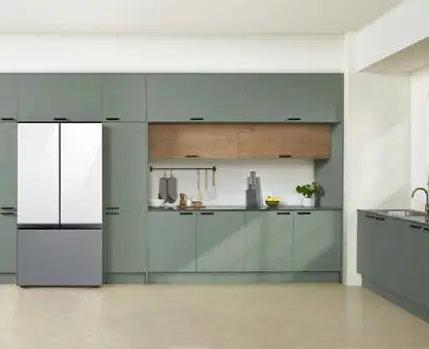

Designed for a modern look	Modern Design	Flat panel door design with easy-to-open recessed handles blends into your cabinetry to give you a modern built-in-look.	Modern, built-in look that blends into your cabinetry.

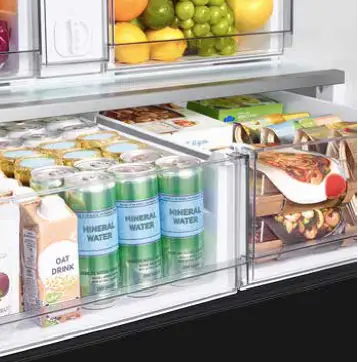

Separate pantry drawers for more storage	Pantry Drawers	Two separate drawers that let you store more deli items, meat, poultry, and fish, including large-sized items.	Store more meat, poultry and fish.

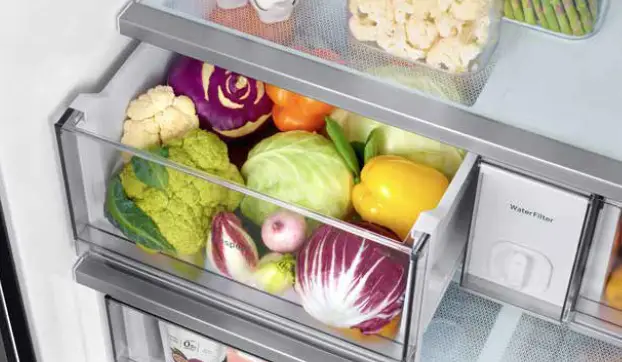

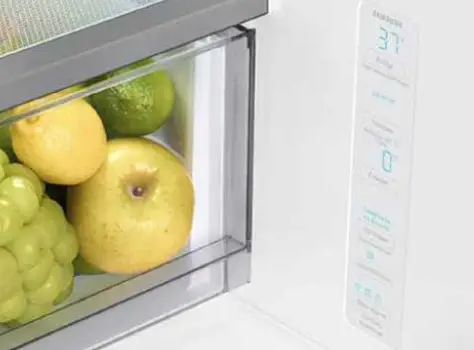

Keep your fruits and vegetables fresh	Large Crisper Drawers	Two large drawers that are perfect for storing fruits and vegetables.	Two large drawers perfect for storing fruits and vegetables.

Overall Product Headline	Feature Name	Long Body Copy	Short Body Copy	Associated Image

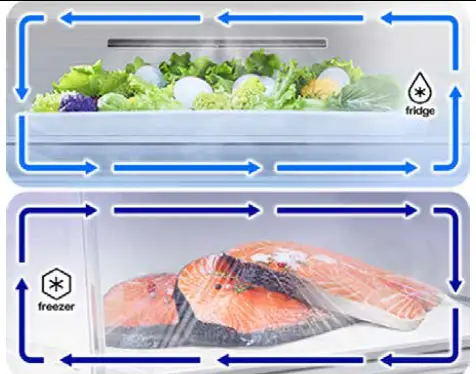

N/A	Twin Cooling Plus™	Independent fridge and freezer controls keep food fresher longer.	Independent controls keep food fresher longer.
Stay connected anywhere, anytime	Wi-Fi Connectivity	Use the Samsung SmartThings App* to get notified when the door’s open or when you need a new water filter. *Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.	Use Samsung SmartThings to get notified when the door’s open or when you need a new water filter.* *Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.
N/A	ADA-Compliant Display	ADA-Compliant Display Easy-to-reach controls for everyone.	Easy-to-reach controls.

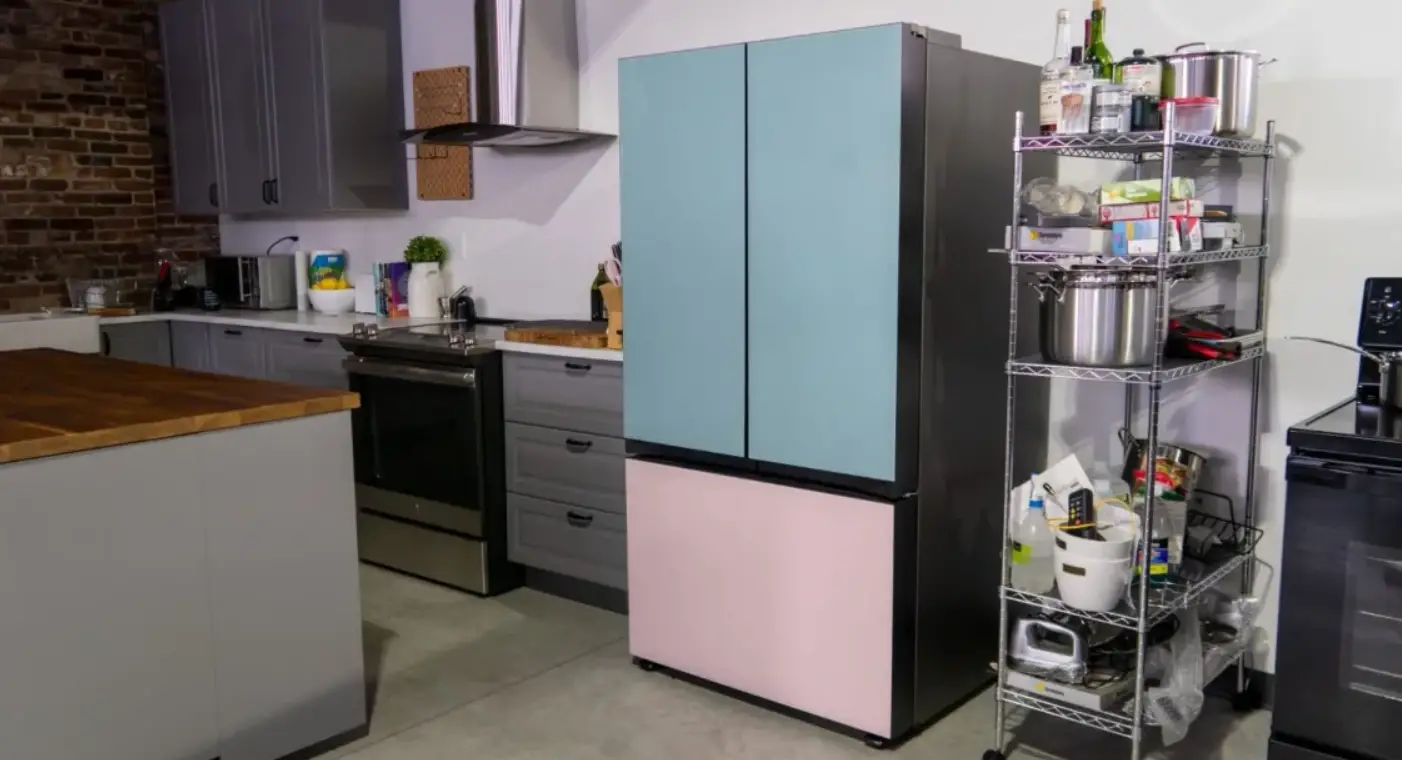

Lifestyle Images

Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=RF24BB6600%20Lifestyle%20Image

Videos

Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=RF24BB6600%20Videos

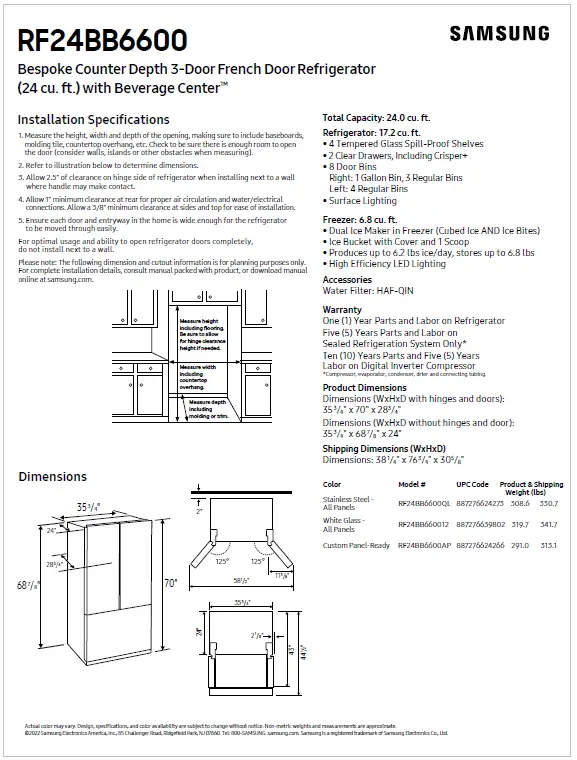

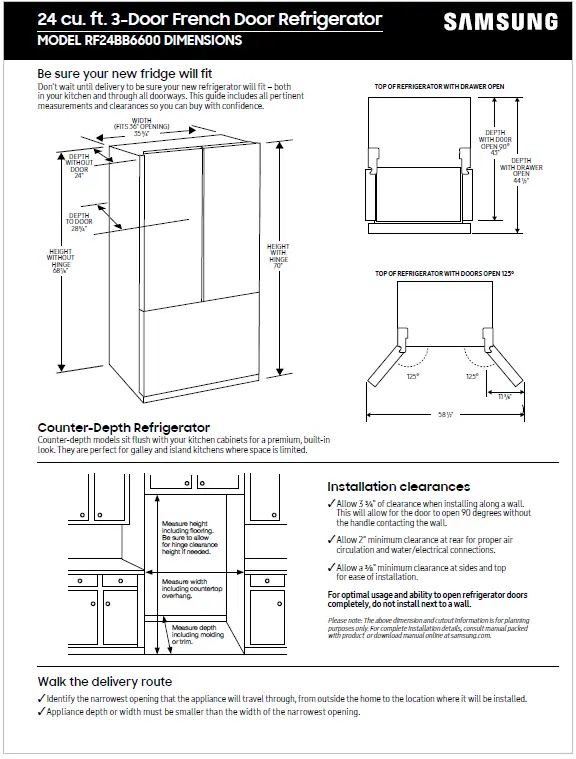

Product Specs

Review Mapping

SKU	Type	Color
RF24BB6600QL	Counter Depth 3-Door French Door	Bespoke Counter Depth 3-Door French Door Refrigerator (24 cu. ft.) with Beverage Center™ in Customizable Door Panel Colors
RF24BB660012	Counter Depth 3-Door French Door	Bespoke Counter Depth 3-Door French Door Refrigerator (24 cu. ft.) with Beverage Center™ in Stainless Steel – All Panels
RF24BB6600AP	Counter Depth 3-Door French Door	Bespoke Counter Depth 3-Door French Door Refrigerator (24 cu. ft.) with Beverage Center™ in White Glass – All Panels

CAUTION

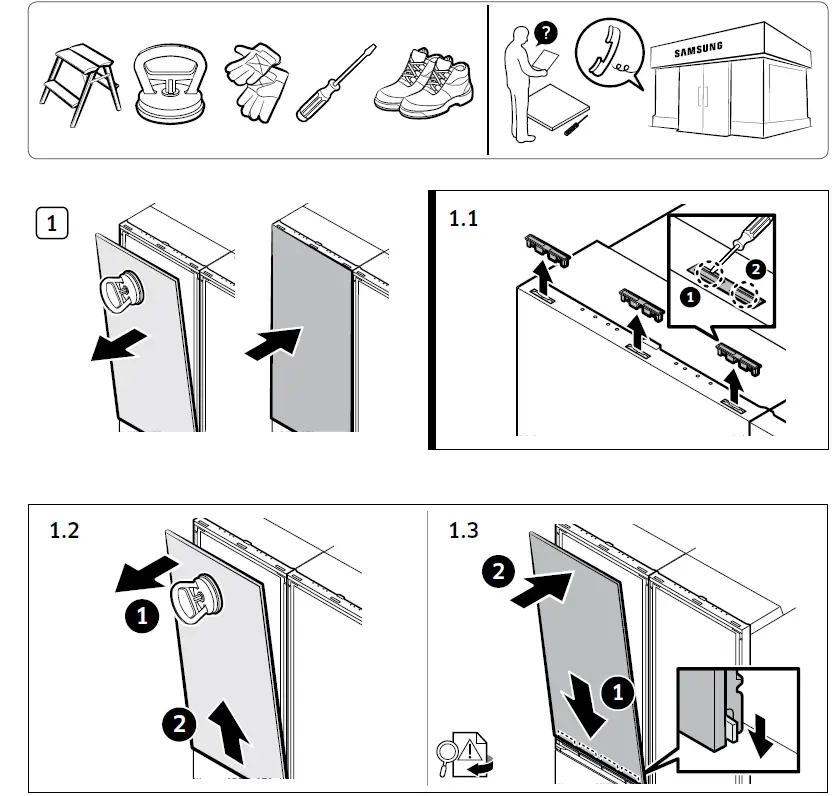

Place the top panel into the groove along the bottom of the top door and press the edges of the panel in to secure it as shown in figure 1.3. Make sure that there is no gap between the panel and the door. Once the panel is securely installed, insert the retaining clips.
Place the middle or bottom panel into the groove along the top of the bottom door and press the edges of the panel in to secure it as shown in figure 2.3. Make sure that there is no gap between the panel and the door. Once the panel is securely installed, insert the retaining clips as shown in figure 2.5. (The number of clips differs with the product type.)
After inserting the panel properly, make sure it is firmly secured by pressing its edges tightly.
Ensure there is no gap between the panel and the door and the retaining clips are fully inserted to prevent the panel from falling off due to external forces.
Wear gloves without ornaments such as rings before working on the installation.
It is recommended to use a chair or ladder when working on a higher portion of the product. Be careful not to fall.
For safety reasons, two or more persons are recommended to handle the product.
When removing the bottom clips, take caution not to drop them under the bottom of the product.
