Black Box Rm2400a Select Server Cabinets User Manual

Select Server Cabinets

SELECT SERVER CABINETS
TRADEMARKS USED IN THIS MANUAL
PLEXIGLAS is a registered trademark of Roehm GmbH & CO.
UL is a registered trademark of Underwriters Laboratories Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

Specifications

Capacity: 2205 lb. (1000 kg)
Mounting Rails: 19″ M6 rails
Compliance: UL ® Listed
Interior Height: RM2400A, RM2410A: 26.3″ (15U) (66.8 cm); RM2420A, RM2430A: 66.5″ (38U) (168.9 cm); RM2440A, RM2450A: 73.5″ (42U) (186.7 cm)
Exterior Height: RM2400A, RM2410A: 30.4″ (77.2 cm); RM2420A, RM2430A: 70.7″ (38 U) (179.6 cm); RM2440A, RM2450A: 77.6″ (197.1 cm)
Interior Width: 21.3″ (54.1 cm)
Exterior Width: 23.6″ (59.9 cm)
Interior Depth: 38.5″ (97.8 cm)
Exterior Depth: 39.4″ (100.1 cm)

Overview

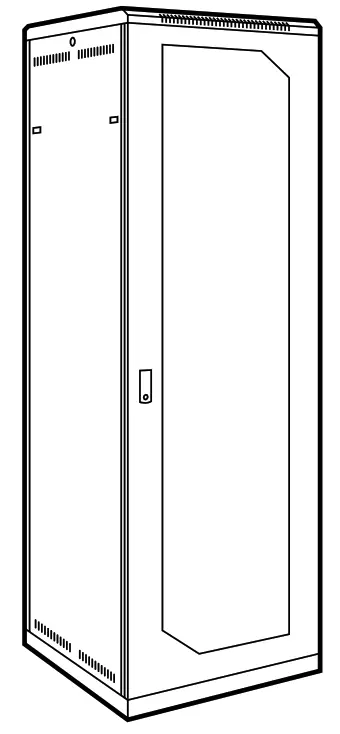

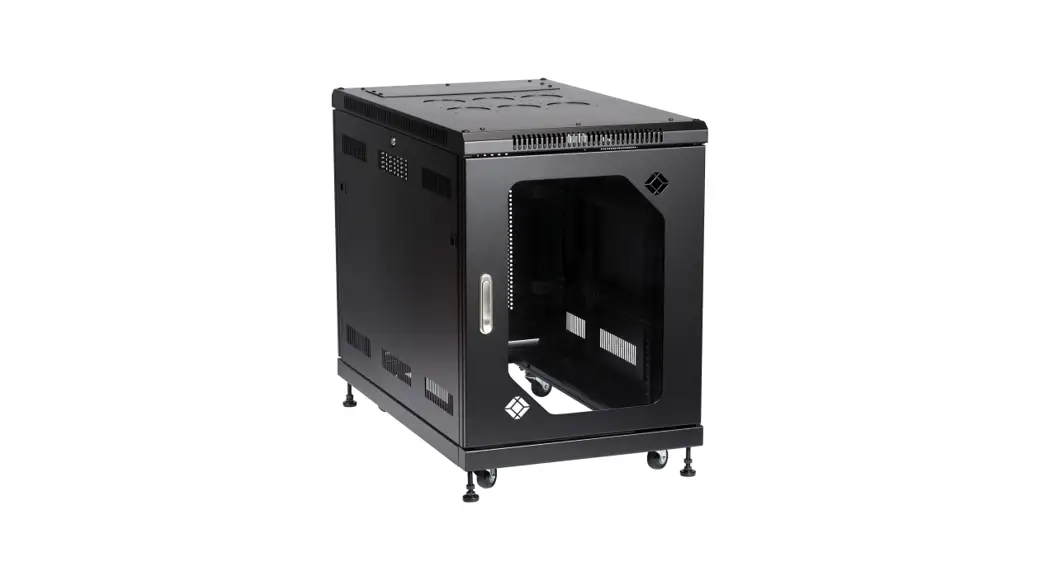

The Select Server® Cabinet holds your data center servers. It arrives fully assembled and includes keyed door locks and locking side panels for security. Six models are available. Choose either mesh or PLEXIGLAS ® doors.

• Select Server Cabinet, 15U, Mesh (RM2400A)
• Select Server Cabinet, 15U, PLEXIGLAS (RM2410A)
• Select Server Cabinet, 38U, Mesh (RM2420A)
• Select Server Cabinet, 38U, PLEXIGLAS (RM2430A)
• Select Server Cabinet, 42U, Mesh (RM2440A)
• Select Server Cabinet, 42U, PLEXIGLAS (RM2450A)
  Optional accessories are also available.
• Multicabinet Joining Kit (RM2407)

SELECT SERVER CABINETS

• Grounding Kit (RM2408)
• 3-Fan Unit (RM2409)
• 6-Fan Unit (RM2415)

What‘s Included
Your Select Server® Cabinet (RM2400A, RM2410A, RM2420A, RM2430A, RM2440A, or RM2450A) package should include the following items. If anything is missing or damaged, please contact Black Box Technical Support at 877.877.2269.

1. Select Server Cabinet with attached casters and leg levelers
2.  sets of panel keys (8025)
3. sets of door keys (R-0220)
   (1) bag of clip nuts
   (1) bag of screws with standard washers and clear plastic washers

Your accessories packages should include the following items.
Multicabinet Joining Kit (RM2407):

• (24) 3 ⁄4″ (1.9-cm) screws
• (6) joining connectors
  Grounding Kit (RM2408):
• (6) 8″ (20.3-cm) grounding straps
• (12) hex bolts

3-Fan Unit (RM2409):

• (3) fans in one unit with a power cord
  4-Fan Unit (RM2415):
• (6) fans in one unit with a power cord

© Copyright 2005, 2022. Black Box Corporation. All rights reserved.
rm2400a_user_Rev2.pdf
1000 Park Drive
• Lawrence, PA 15055-1018
• 1.877.877.2269
