Devaise Adyj002 Black Accent Storage Cabinets User Manual

ADYJ002

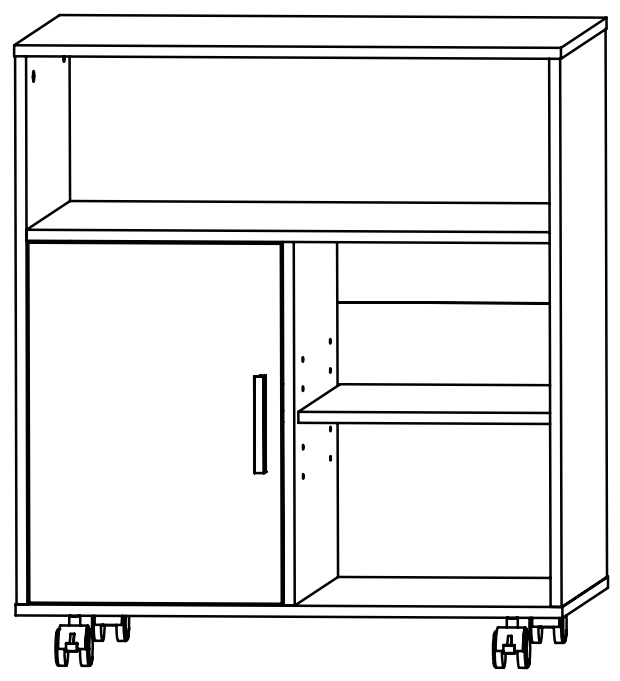

Wood Printer Organizer with Shelf
V3.1

IMPORTANT INFORMATION
READ CAREFULLY.
KEEP THIS INFORMATION FOR FURTHER REFERENCE.

GENERAL GUIDELINES

• Please read the following instruction carefully and use the product accordingly.
• Please keep this manual and hand it over when you transfer the product.
• This summary may not include every detail of all variations and considered steps. Please contact us when further information and help are needed.

NOTES

• Please follow the assembly instructions precisely and only use the product as intended.
• If an odor is present when first opening the package. please leave the unwrapped product in a shaded and ventilated area for a few days to air out.
• Prior to assembly, please check the product for defects or missing accessories. If any defects are found or accessories are missing, do not use the product as damage or injury may occur;
  Please contact us for assistance and replacement.
• It is suggested you regularly check the product’s bolts and connections to ensure state use.
• Assemble the item on a soft fiat and clean surface to avoid scratches and damage.
• It is recommended that two people assemble this product.

WARNING

• During assembly, keep parts and packaging materials away from children and pets as there could cause injury and are a potential choking hazard.
• Avoid sharp objects or corrosive chemicals to prevent damage to the product.
• Please open the item slowly and cautiously to avoid pinching your hands with metal joints, especially for children.

• If you have any further questions, please feel free to contact us by email or official website: [email protected]
  We will reply ASAP.
• Before installation, please make sure you have all the hardware, the serial numbers are properly labeled corresponding to the list, and the quantity is correct.
• Enjoy your new purchase!

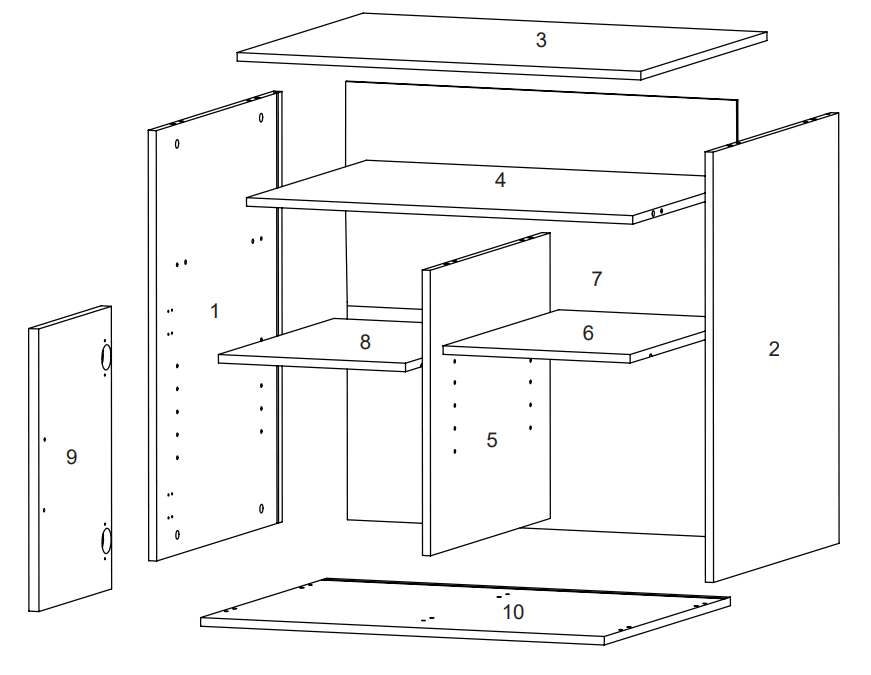

EXPLODED DRAWING

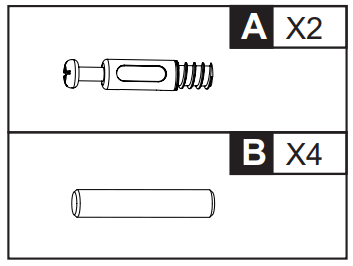

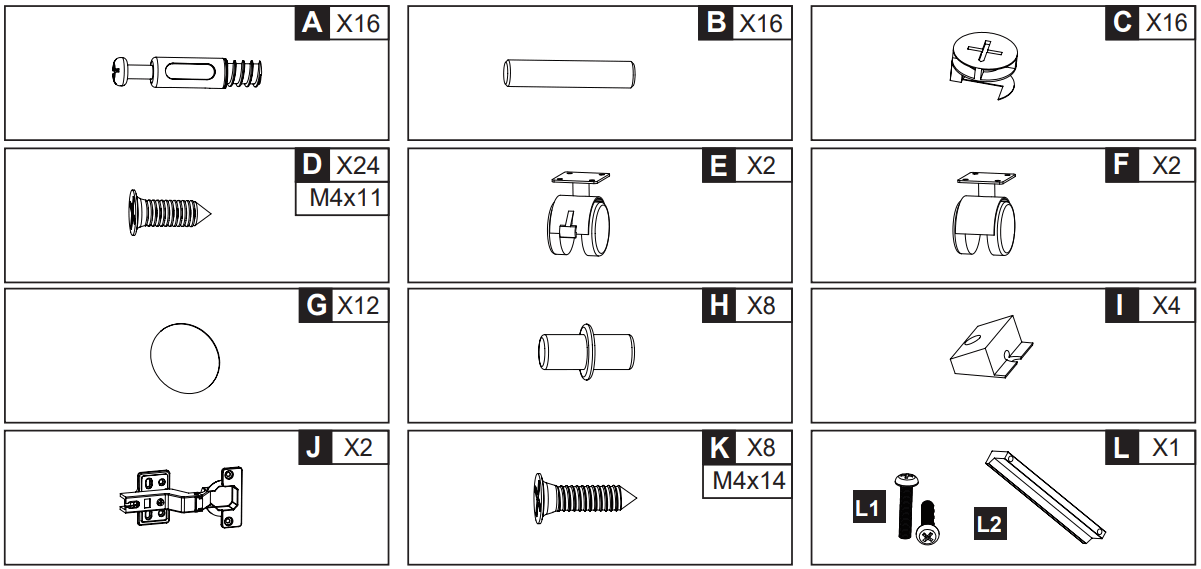

PARTS

REMARK

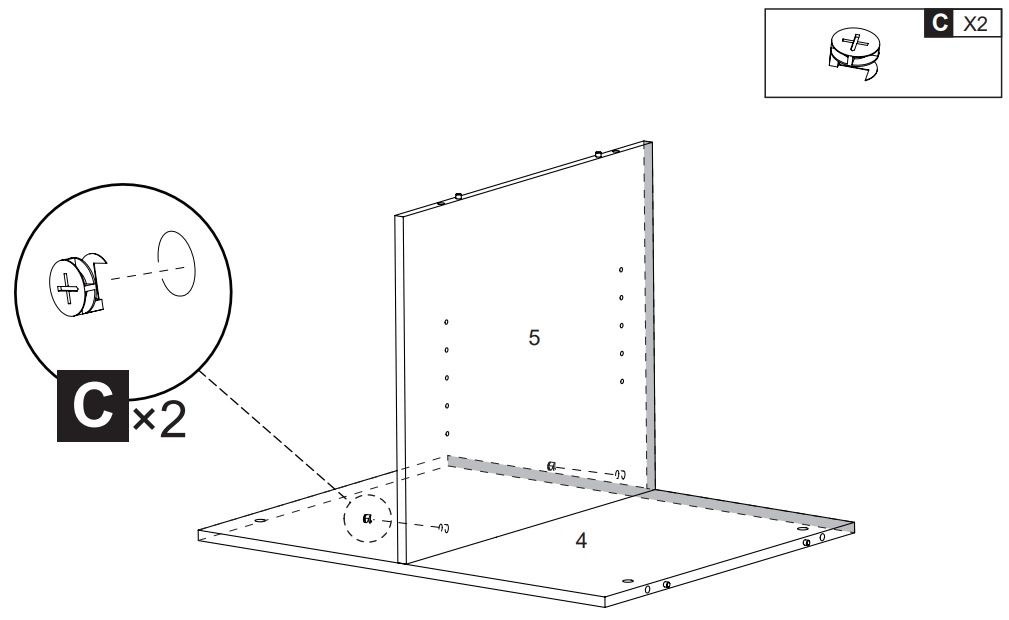

MINIFIX POSITION

REMARK

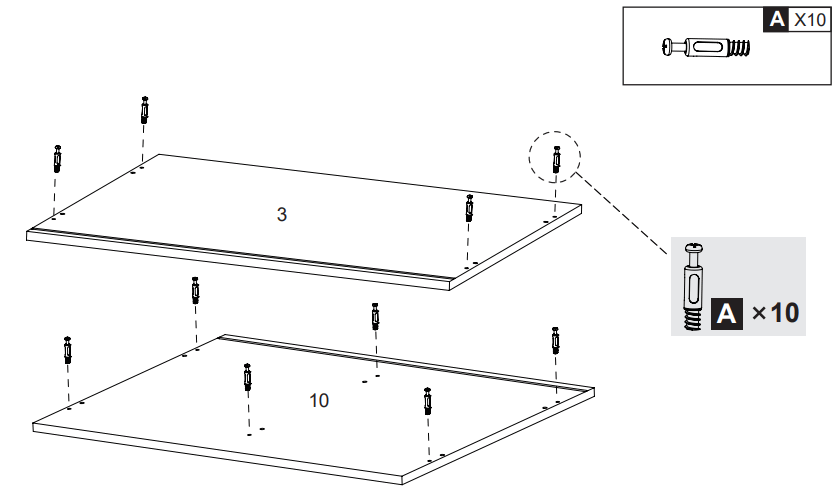

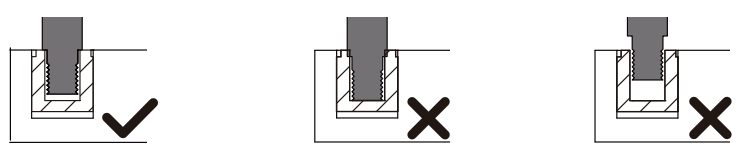

1. Please do not screw A too deep or too shallow.

2. Put a blanket under the board to avoid scratches or damage.

REMARK

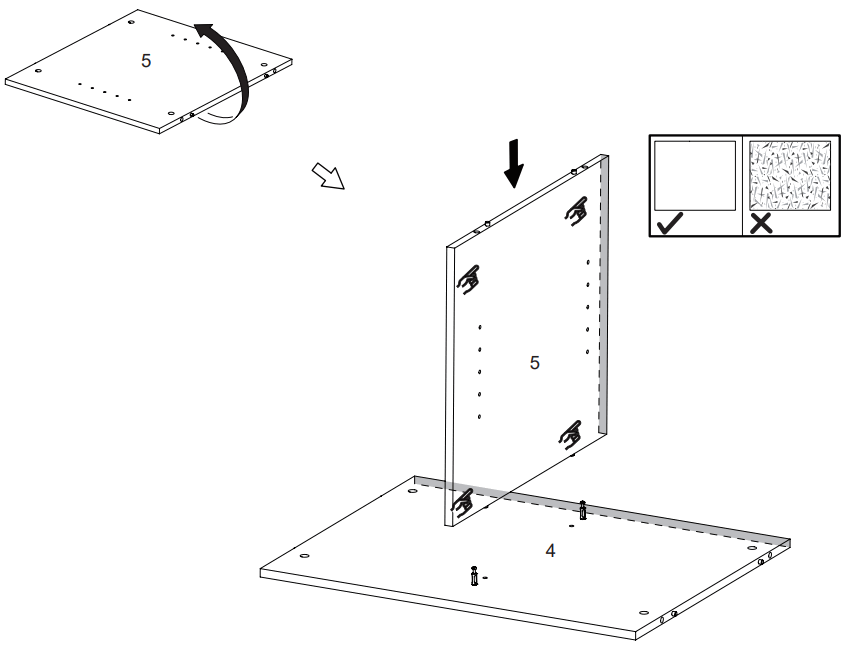

The inner side should be the edge banding side.

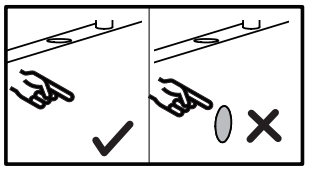

The position indicated by the finger on the side without an eccentric hole is correct.

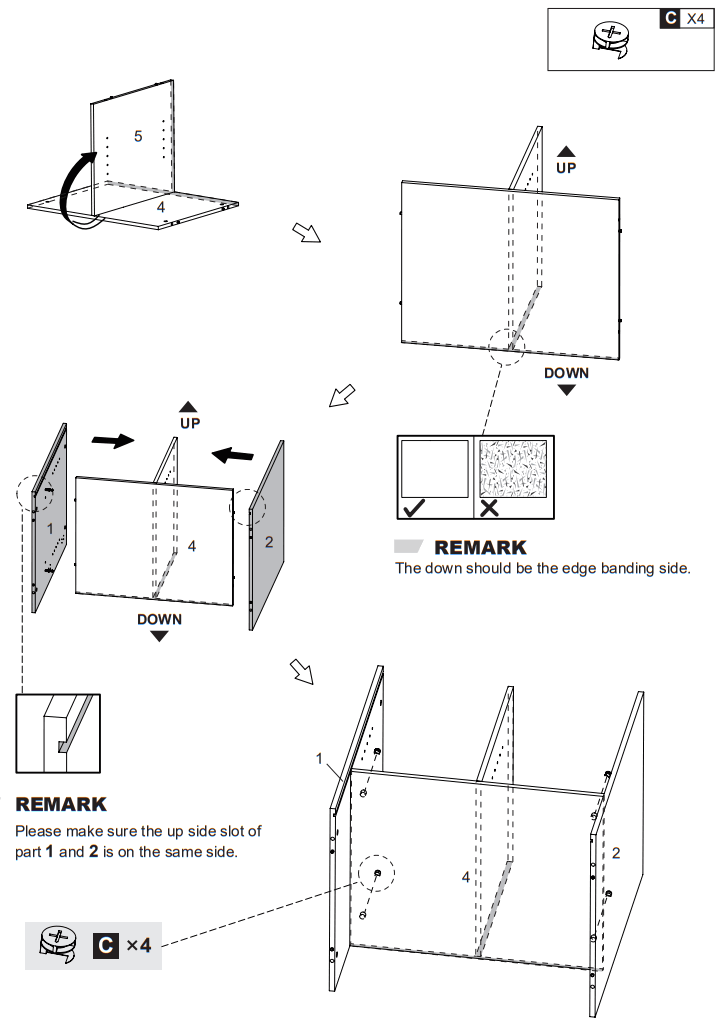

REMARK

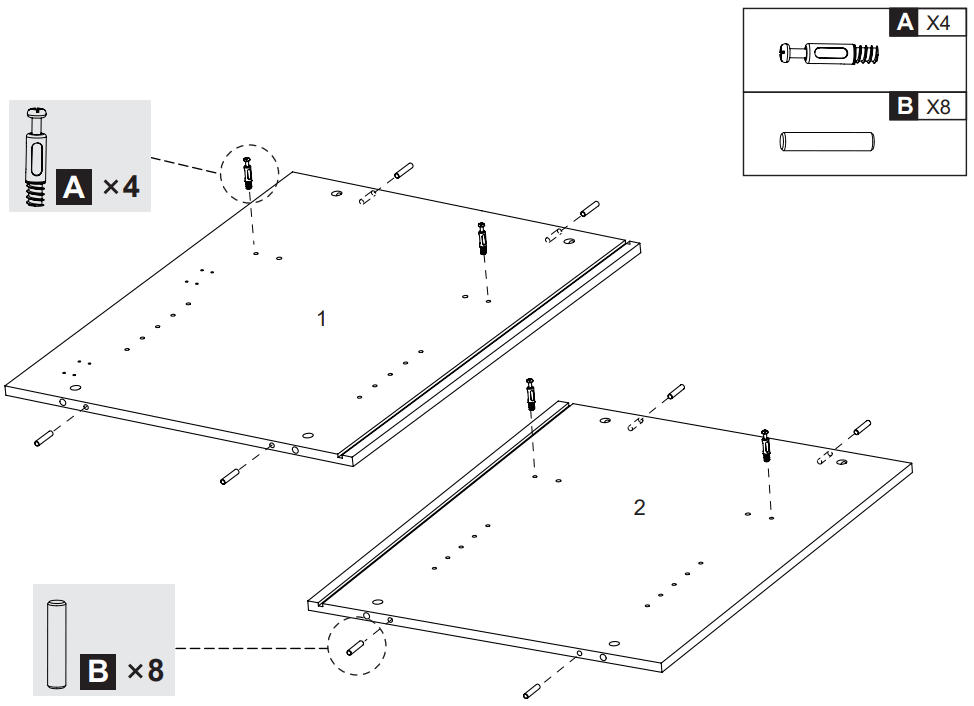

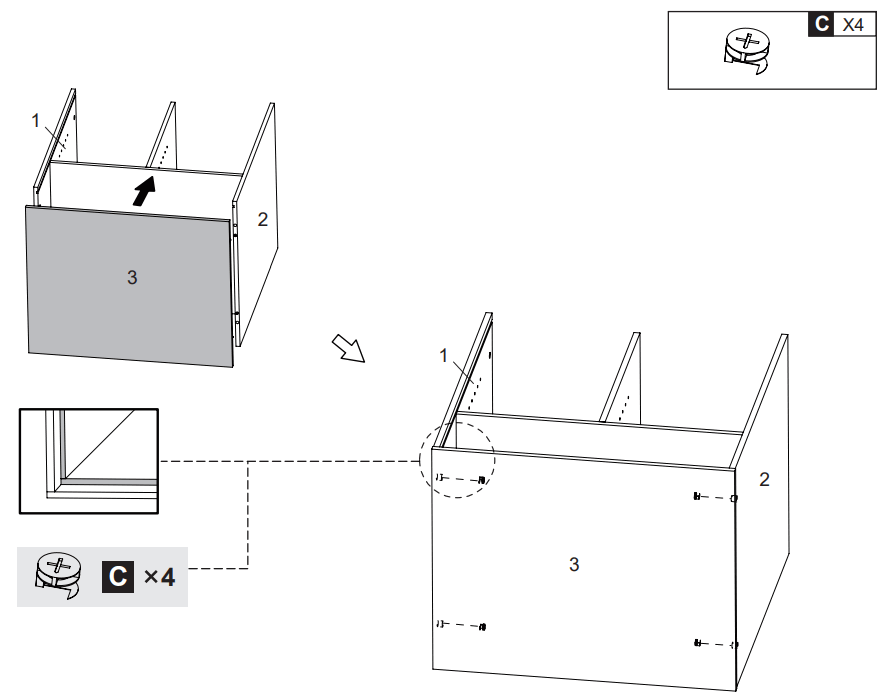

Let the grooves on parts 1 and 2 be connected to the groove on part 3.

REMARK

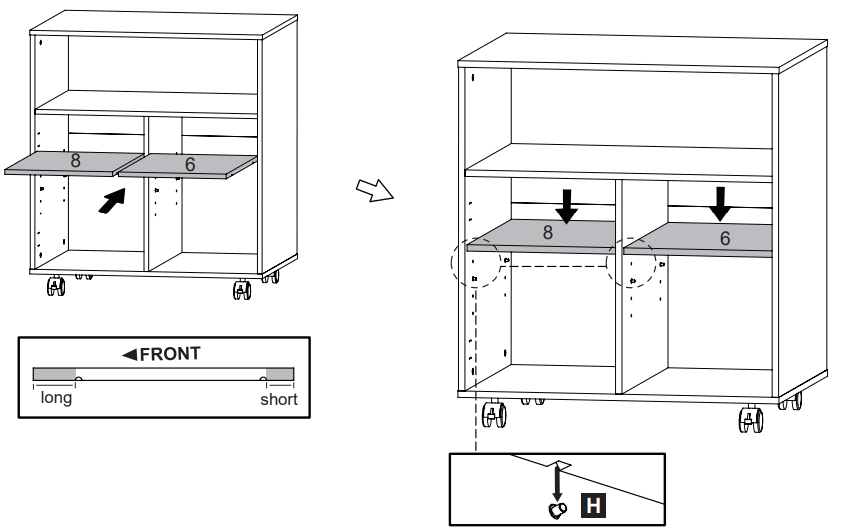

1. The long shadow part is in front and the short one is inside.
2. Part 6 and 8 is an adjustable shelves.

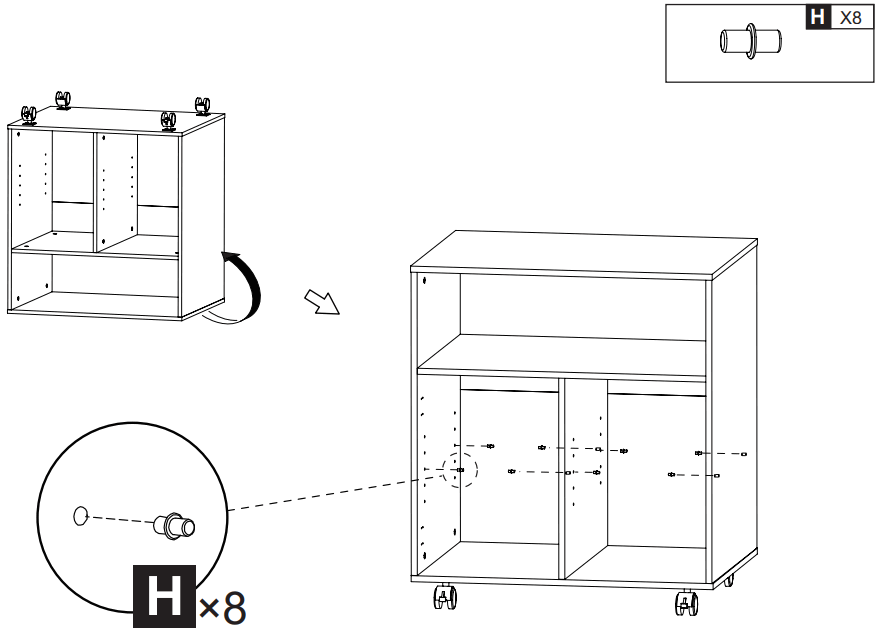

3. Please make the groove on parts 6 and 8 match with part H.

HINGE ADJUSTMENT

If the door does not appear square or aligned, loosen or tighten the appropriate screws on each case hinge as illustrated.

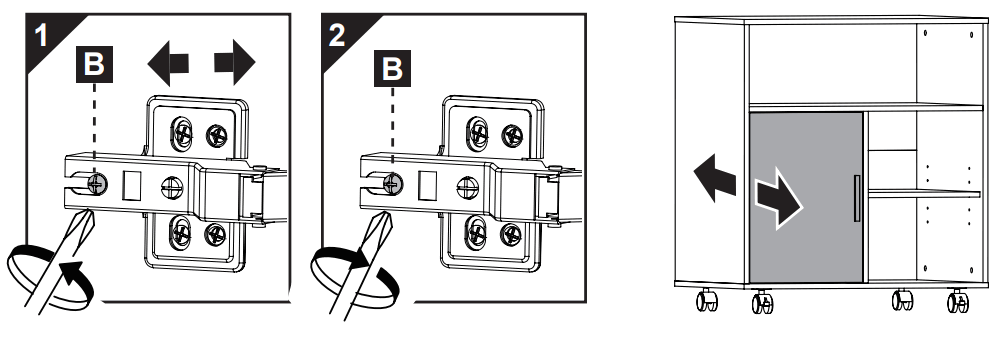

DEPTH ADJUSTMENT
Loosen screw B ( Do not lose screw B to the end), push hinge arm forwards or backward, and re-tighten screw B.

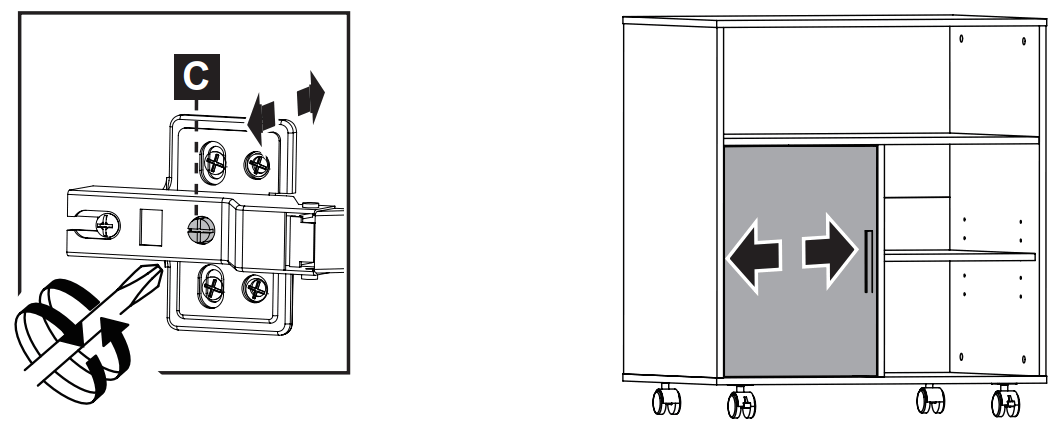

SIDE-TO-SIDE ADJUSTMENT
Adjust screw C to make hinge move left or right to the ideal place.
