590 Battery Contact Spring (Leaf) Multiple Cell PC Pin
User Guide

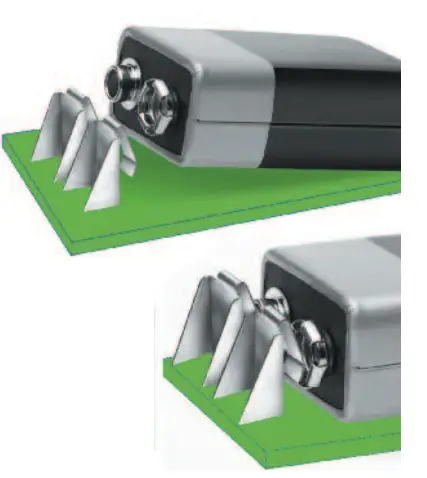

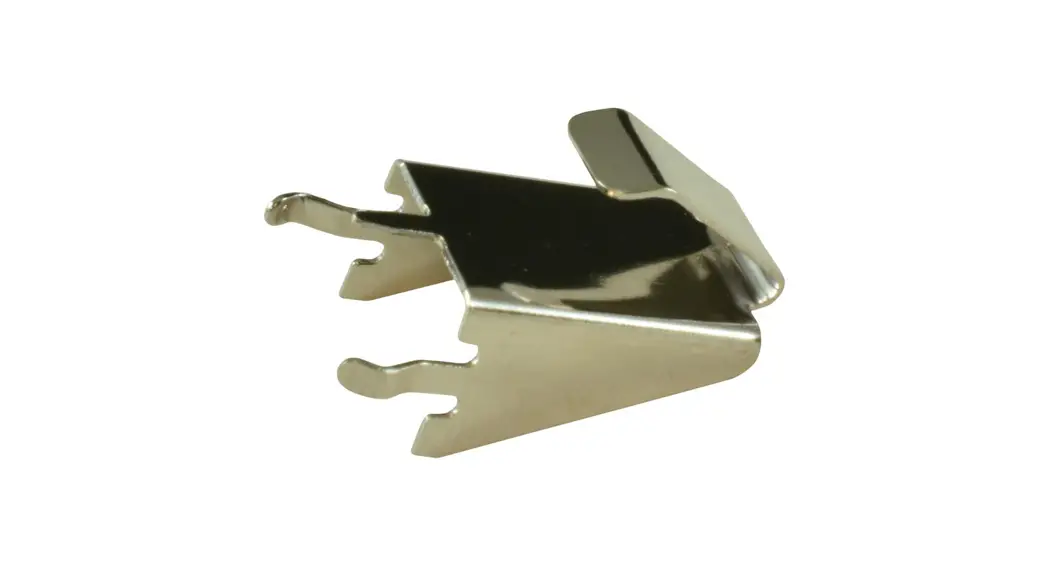

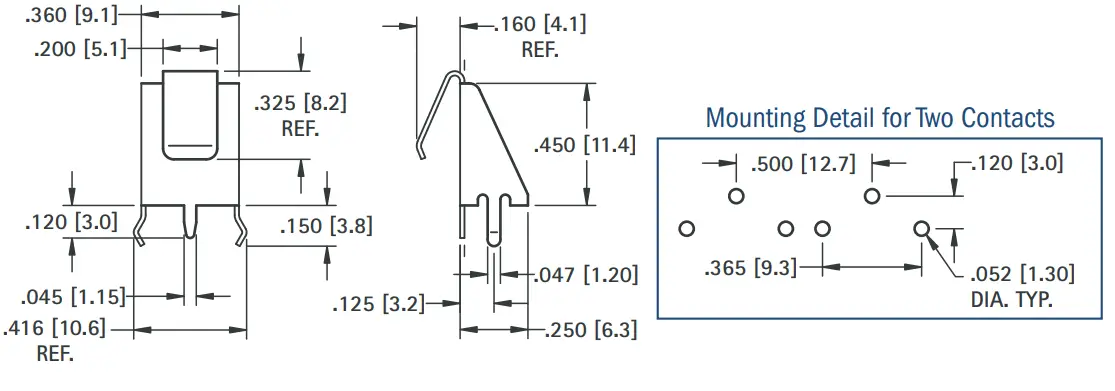

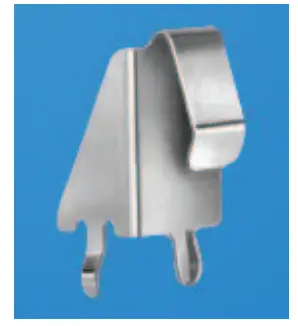

HORIZONTAL 9 VOLT PC LEAF-SPRING CONTACT
- Ideal “Slide-In” contact for easy installation and removalof 9 Volt batteries
- Space saving design installs directly onto the PC board
- Suitable for .062 (1.57) to .093 (2.36) PC boards
- Reliable leaf-spring assures low contact resistance
- Ideal for self-contained battery compartments
- Snap-in mounting legs holds contact secure during wave soldering
MATERIAL: .012 (.30) Spring Steel, Tin-Nickel Plate
HORIZONTAL 9 VOLT PC SNAP-ON CONTACTS
Mounts Directly to Printed Circuit Board
- Space saving design installs directly onto the PC board
To Mount Battery “On” PC Board Use Cat. No. 593 and Cat. No. 594 - Suitable for .062 (1.57) to .093 (2.36) PC boards
- Ideal for self-contained battery compartments

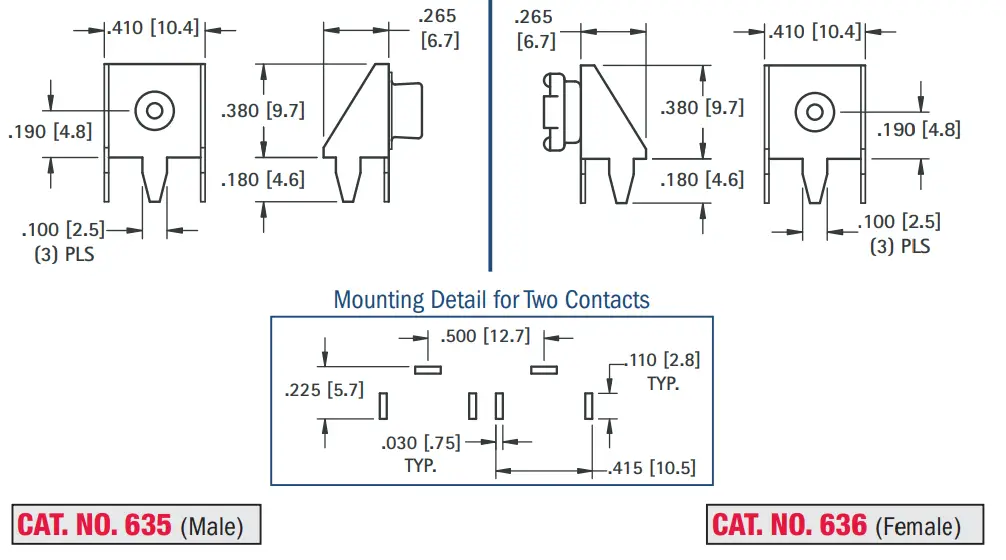

To Mount Battery “Off” PC Board Use Cat. No. 635 and Cat. No. 636

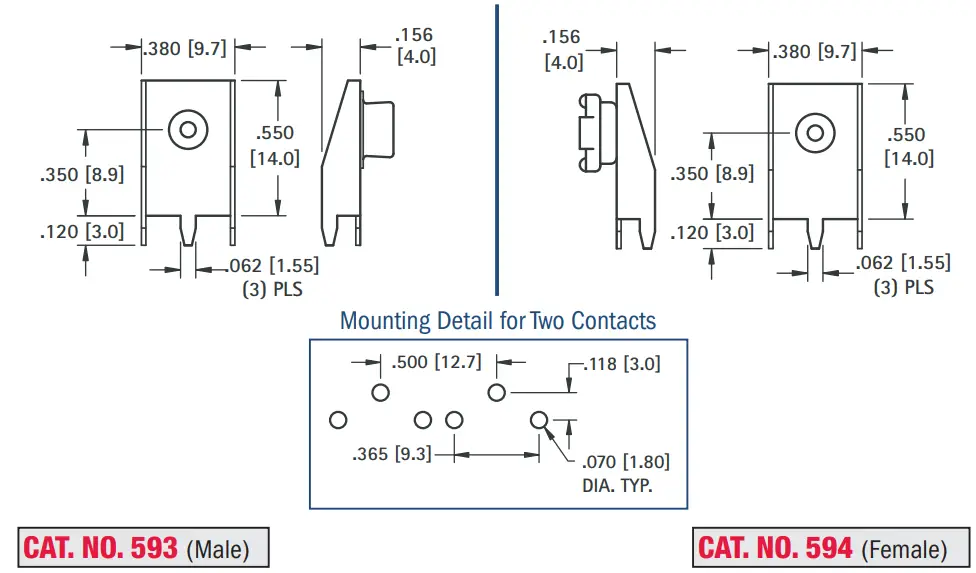

To Mount Battery “On” PC Board Use Cat. No. 593 and Cat. No. 594
To Mount Battery “Off” PC Board Use Cat. No. 635 and Cat. No. 636MATERIAL: Frame: .015 (.38) Steel, Tin Plate; Contacts: Steel, Nickel Plate
“On-Board”

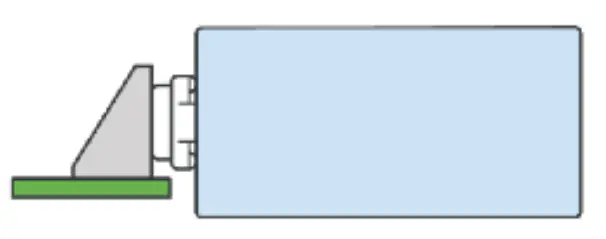

“Off-Board”
BATTERY SNAP-ONS
For most electronic applications requiring a quick connect and disconnect of circuit. Commonly used with 9 Volt or other batteries designed with snap fasteners. Ideal for temporary or permanent means of connecting without soldering. Can be cascaded together for multiple connections.

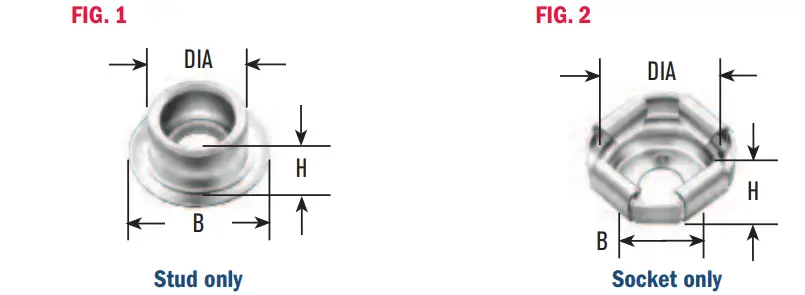

SOCKET OR STUD ONLY
| CAT.NO. | FIG NO. | DIA | H | B | HOLE | SIZE | MATERIAL | ||||
| 261* | 1 | 0. | (6.) | 0. | (3.) | 0. | (8.) | 0. | (3.) | Junior* | Steel, Nickel Plate |
| 269* | 2 | .210 | (5.) | .150 | (4.) | .250 | (6.) | 0. | (2.) | ||
| 262 | 1 | 0. | (7.) | 0. | (4.) | 0. | (11.) | 0. | (3.) | Senior | Brass, Nickel Plate |
| 270 | 2 | 0. | (7.) | 0. | (4.) | 0. | (8.) | 0. | (3.) | ||
*Use Jr. Socket and stud for standard 9 Volt Battery

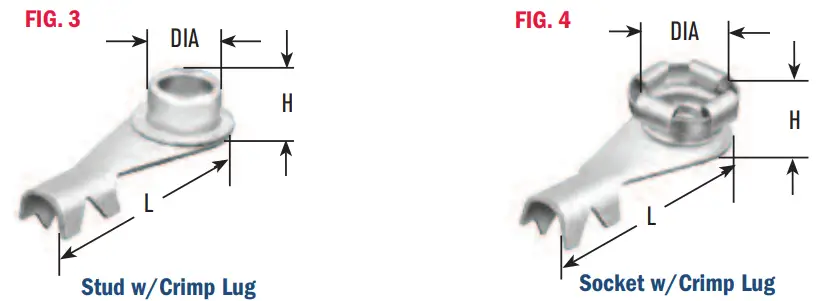

SOCKET OR STUD W/CRIMP LUG
| CAT.NO. | FIGNO. | DIA | H | L | SIZE | MATERIAL | |||
| 263* | 3 | 0. | (6.) | .170 | (4.) | .790 | (20.) | Junior* | Stud: Steel, Nickel Plate Lug: Brass, Tin Plate |
| 271* | 4 | 0. | (5.) | .200 | (5.) | .790 | (20.) | ||
| 264 | 3 | 0. | (7.) | 0. | (5.) | .840 | (21.) | Senior | Stud: Brass, Nickel Plate Lug: Brass, Tin Plate |
| 272 | 4 | 0. | (7.) | 0. | (5.) | 1. | (21.) | ||
DIMENSIONS ARE FOR REFERENCE ONLY
*Use Jr. Socket and stud for standard 9 Volt Battery
RoHS COMPLIANT ~ ISO 9001 CERTIFIED
