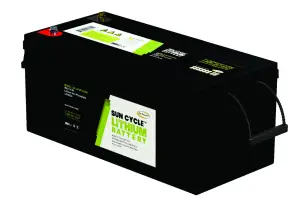

GP-LiFeP04-2 50
LITHIUM BATTERY
Quick Start Guide
WARNING
- Only wire 4 batteries maximum in parallel
- Do not wire in series
- Do not get wet
- Only suitable for 12-volt applications
| Length | 20.5 in / 520 mm |
| Width | 9.5 in/ 240 mm |
| Height | 8.8 in / 223 mm |
| Weight | 80 lbs/ 36 kg |
| Carrying | Nylon Straps |
Find tech tips, manuals, and support at gpelectric.com
BATTERY SPECIFICATIONS
SPECIFICATIONS
| Technology | Lithium Iron Phosphate |
| Nominal Voltage | 12.8 V |
| Rated Capacity 77°F (25 -±5 °C) | 100 Ah @ 20A (5hr run time); 92 Ah @ 50A (1 hr 54 min run time; 92 Ah @ 100A (55 min run time) |
| Capacity Correction for Temperature Variations | -4 °F (-20°C) 60% 131°F (55°C) 95% |
| Maximum Discharge Current | 100A (continuous) 120A (30 minutes) 150A (5 seconds) |
| Specific Energy Density | 80 Wh/kg |
| Volumetric Energy Density | 114.35 WI/L |
| Internal Resistance | ≤5 mΩ |
| Terminals 8 inse | M8 inset Torque: 11-14.7 Nm (97.3 – 130 Ibs) |
| Cyde Life – 77°F (25°C) | ≤1500 @ 100% Depth of Discharge; X3000 @ 80%; .≥4500 @ 30% |
| Charge Voltage | 14.6V |
| Maximum Charge Current | 100A |
| Certifications | UN 38.3; CE; ETL |
| Charge Cut-off Voltage | 14.6V |
| Discharge Cut-off Voltage | 8.4V |
| Operating Temperature | Charge: 32°F (0°C) to 131°F (55°C |
| Discharge: -4°F (-20°C) to 131°F (55°C) | |
| Storage Temperature’ | 1 Week: -4°F (-20°C) to 122°F (50°C) |
| 1 month: -4°F (-20°C) to 113°F (45°C) | |
| 6 monthsl: -4°F (-20°C) to 104°F (40°C) | |
| Humidity | Operating: 5% to 90 % RH Storage: 45% to 85% RH |
| BMS Leakage Current | 3mA |
- Max storage time before recharge is 6 months.
WIRING GUIDE
The illustrations below show how to properly wire lithium batteries.
Batteries should be installed upright for mobile applications.
BATTERY BANK TERMINAL CONNECTIONS

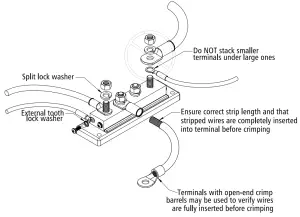

All battery interconnects, busbar, and device connections to resist vibration by using nylon insert lock nuts, thread locking fluid, or lock washers (split lock or external tooth).
250AH LITHIUM BATTERY BANK PARALLEL CONNECTION
Note: Up to a maximum of 4x 250Ah lithium batteries may be connected in parallel. Lithium batteries may not be connected in series. New batteries should never be connected to old batteries. All batteries should be charged to a minimum of 13V before connecting them together.
All busbar connections to external devices (inverter, converter, solar controller, etc.) to be equal length and gauge, sized appropriately for each device with suitable positive circuit protection (fusing or breakers).
