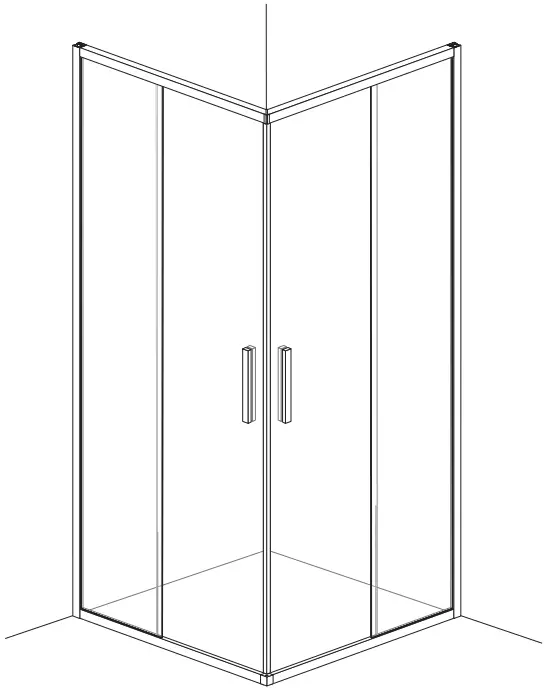

Sanimaster Star and ART Black Ecoline Douchecabine Slide Door

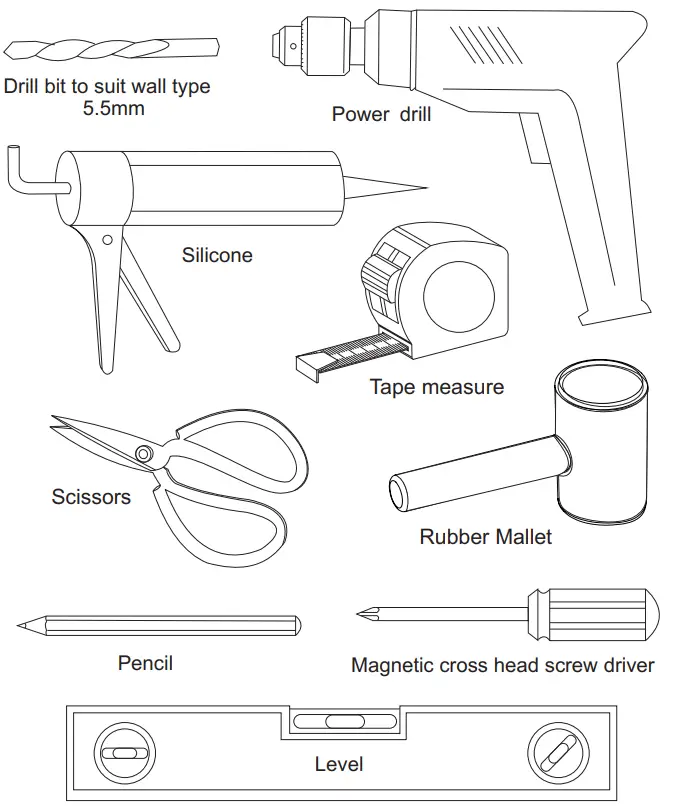

TOOLS REQUIRED(NOT SUPPLIED)
- when you’re ready to start.make sure that you have the following tools to hand,plenty or space and a clean dry area for assembly.
- Two people are needed. Please note: although these instructions are comprehensive, We always recommend that a technically competent installer should undertake installation.

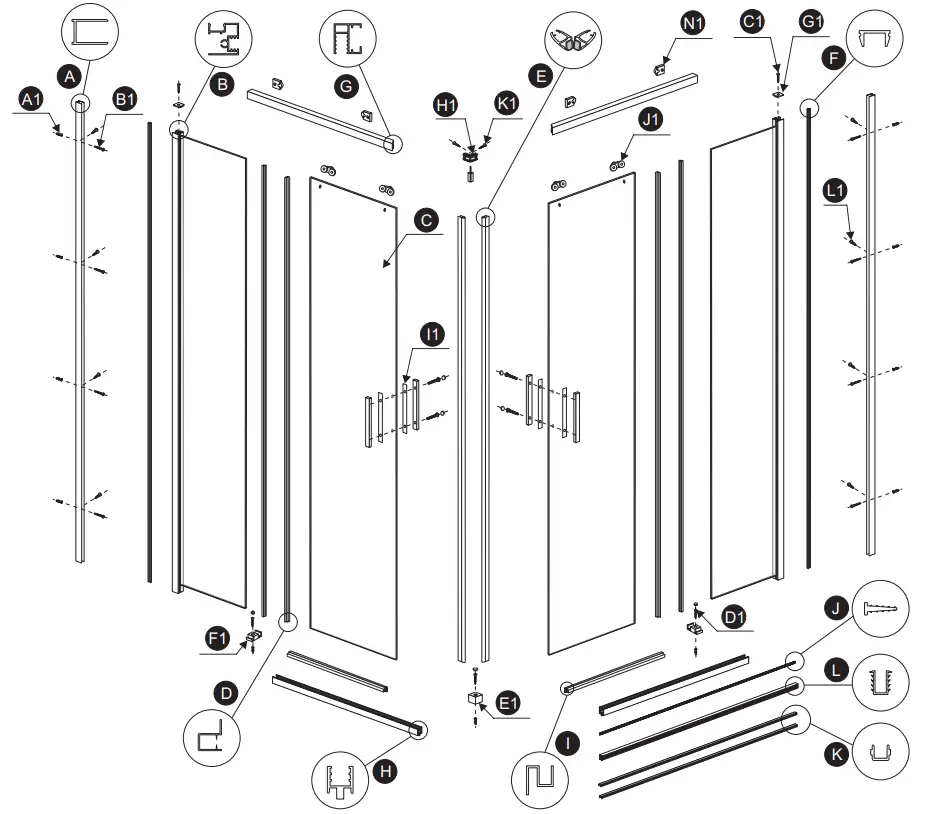

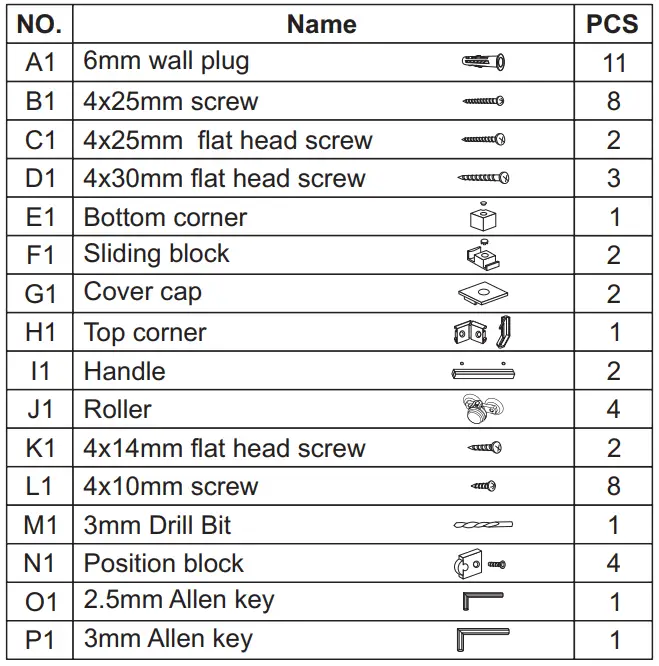

PARTS LIST
| NO. | Name | PCS |
| A | Wall profile | 2 |
| B | Fixed glass | 2 |
| C | Sliding glass | 2 |
| D | Rubber seal | 4 |
| E | Magnetic rubber seal | 2 |
| F | Aluminum alloy rail cover strip | 2 |
| G | Top rail | 2 |
| H | Bottom rail | 2 |
| I | Bottom rubber seal | 2 |
| J | Strips | 1 |
| K | Aluminum alloy rail cover strip | 2 |
| L | Strap | 1 |

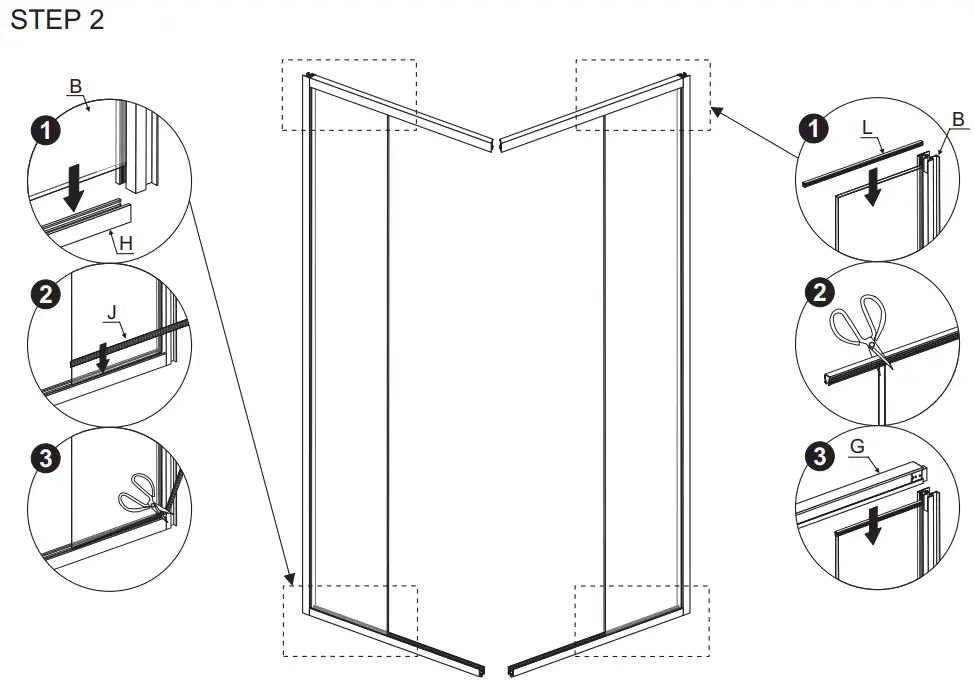

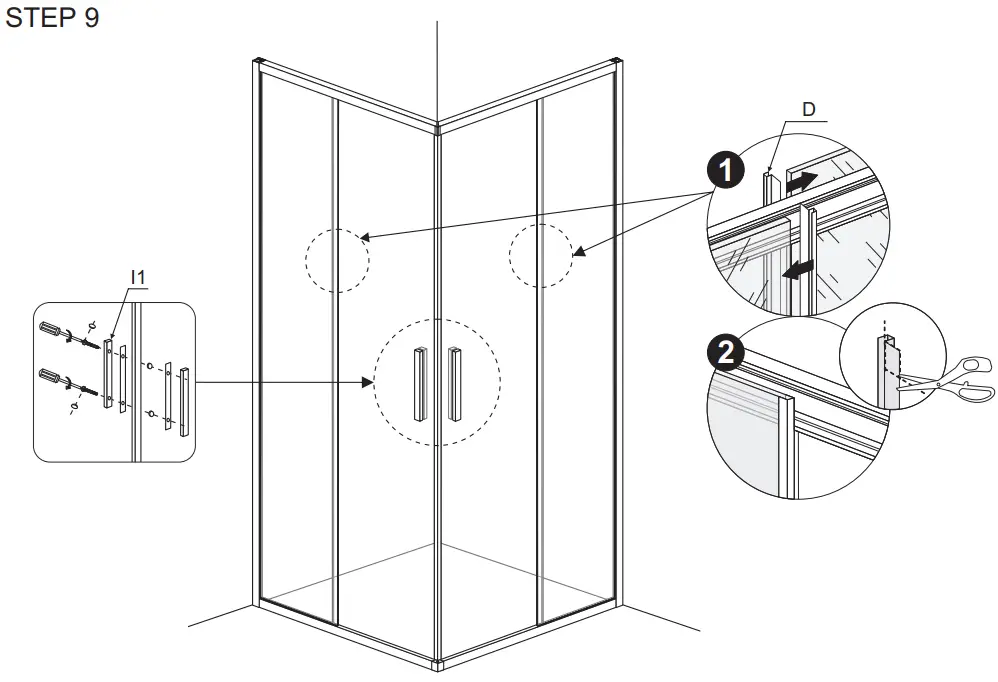

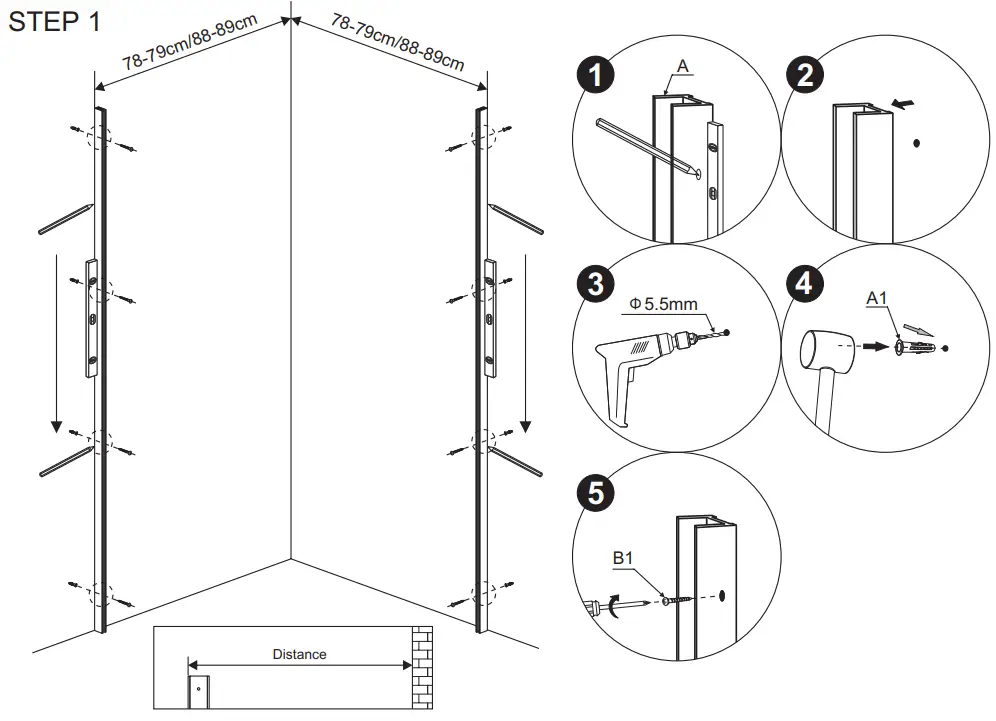

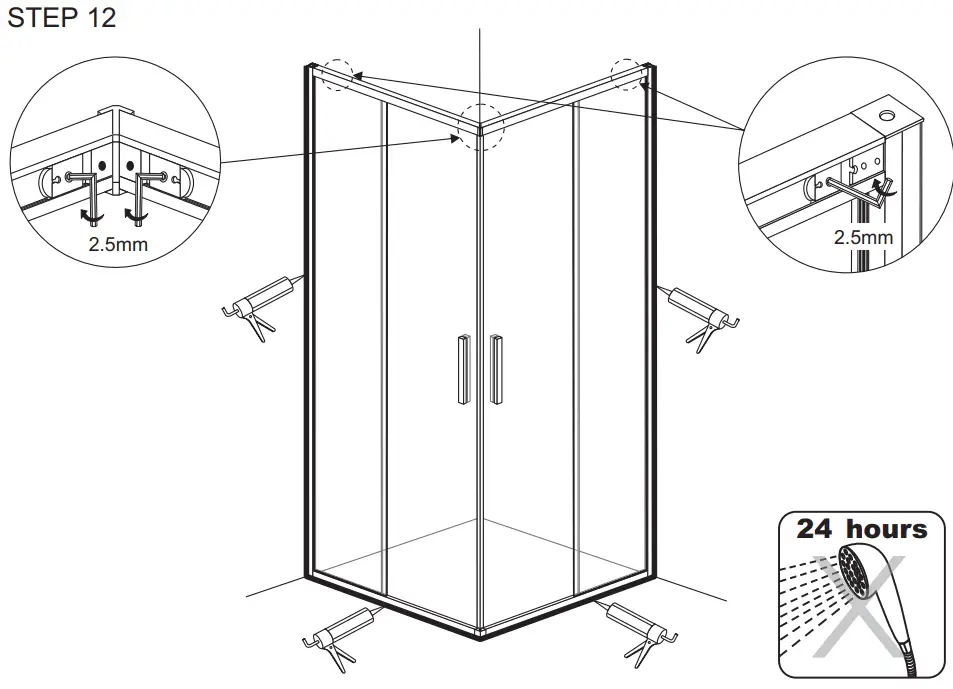

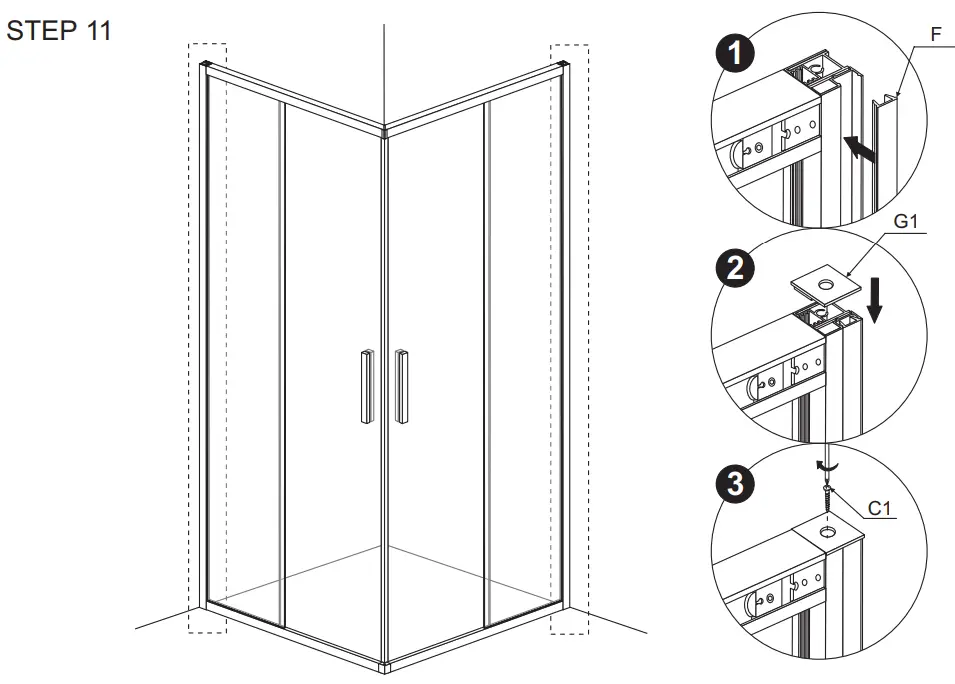

INSTALLATION INSTRUCTION
