Mi.Light
Subordinate New Brand
RGB+CCT Full Touch Remote Controller
Model No.: FUT088
Product Features
This product adopt worldwide used 2.4GHz frequency, GFSK control method, with the features of low power consumption, long distance transmitting, strong anti-interference, and fast communication rate. Adopt high-precision touching IC Touching is more stable and sensitive, can control specified MiBoxer smart light with color, color temperature, saturation, and brightness changing.
Parameters
Model No.: FUT088
Working Voltage: 3V(AAA Battery*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
Working Temperature: -20~60°C
Radio Frequency: 2400-2483.5MHz
Modulation Method: GFSK

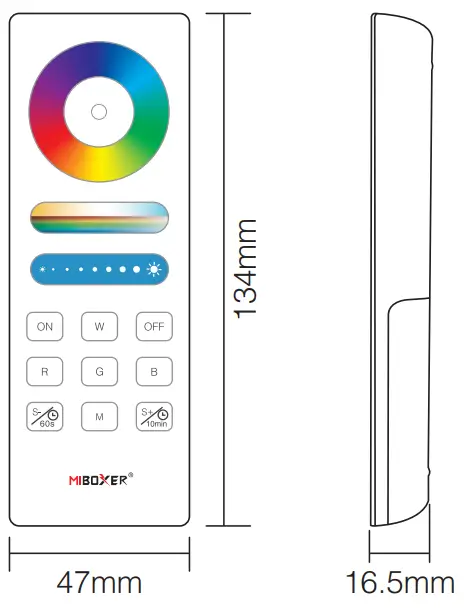

Control Distance: 30m Size: 47*16.5*134mm
Products Key Diagram
Touch the color ring to change colors.
Under white light mode, adjust color temperature; Under color light mode, change color saturation.
Slide the brightness slider to adjust the brightness.
ON Touch the ON button, turn on the linked device.
OFF Touch the OFF button, turn off the linked device.
W Press the button to get white light.
R Static Red Light.
G Static Green Light.
B Static Blue Light.
M Dynamic mode switching button.
Slow the speed under the present dynamic mode. Under static mode, Long press for 2 seconds, the light shine once, the light will be off after 60 seconds.
Accelerate the speed under the present dynamic mode. Under static mode, Long press for 2 seconds, the light shine once, the light will be off after 10 minutes
Linking&Unlinking
Remark: The light can be working after linking with the remote controller.
Linking Instructions
| Switch off the light, after 10 seconds switch on again | When the light is on, short press press ” ON ” 3 times within 3 seconds | The light blinking 3 times slowly means the linking is done successfully. |
If the light does not blink slowly, the linking failed, Pls switch off the light again, and follow the above steps again.

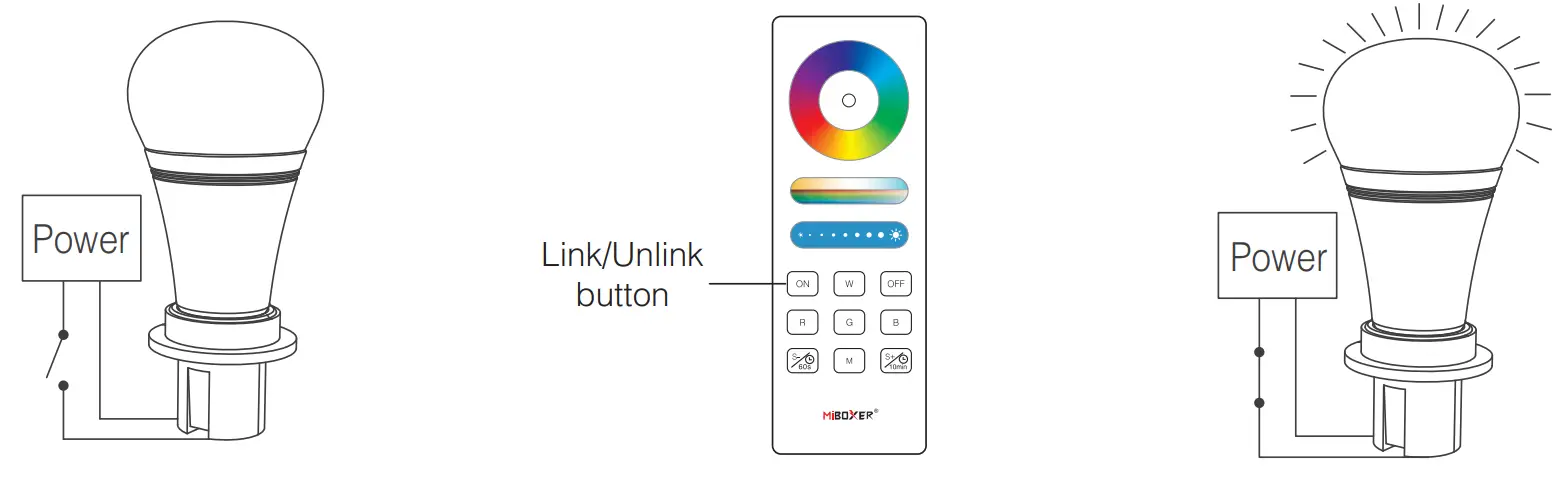

Unlinking Instructions
| Switch off the light, after 10 seconds switch on again | When the light is on, shortpress2″ ON ” 5 times within 3 seconds | The light blinking 10 times quickly, means the unblinking successfully. |
If the light does not blink quickly, the unlink failed, pls switch off the light again, and follow the above steps to unlink again.
Attention
- Remote controller only controls specified MiBoxer products; not all MiBoxer series can work on this remote controller.
- In the use of the remote, if the indicated lamp blinking quickly, pls change the battery in time. Pls, don’t use poor-quality batteries to avoid the leaking of battery liquid to damage the remote controller.
- Please keep your finger off the touch ring when installing the batteries, to improve its sensitivity, and use the remote ( 3 seconds later ) after the batteries are installed. Please reinstall the batteries, if the focus ring is found low-sensitivity.
- This 2.4GHz remote control system is a precise electronic product; don’t use it in humid, high temperature, dust, and high voltage environment; Saving it at indoor, dry, and no static electricity environment.
- Pls don’t use the remote controller on the wide-range metal or strong electromagnetic wave area, otherwise, it will badly affect the controlling distance.
Made in China
