MiBOXER FUT027 2.4G Touch Screen RGBW LED Control System
Welcome to use Touch Screen RGBW LED Control System. please read the instruction carefully before using them.
Product Description
This system is a high-performance RGBW led touch remote controller, adopting the most advanced PWM control technology, controlling all RGBW led products with five lines and four circuits( common anode), owning 640 thousand colors and 20 automatical changing modes to choose.
Also, It has the memory function(that is to say, the previous settings will be resumed when power on again). It is widely used in led RGBW LED strip lights, led modules, and so on. With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long-distance transmission, strong anti-interference ability, high-speed telecommunications, etc.
The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use . The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.
Technical Data
|
Remote | Size | 110• 52• 20mm |
| Power | AAA battory”2pcs | |
| Material | ABS | |
| Fabrication processing | Multicolor printing & UV varnish | |
|
Controller | Size | 85• 45• 23mm |
| Wol1<ing voltage | DC12V ~ 24V | |
| Control way | R G B W four channels | |
| Max load per chamel | 6A | |
| lo1al ou!pul Max | 10A | |
| Output connection | Common anode | |
| Telecontrol distance | 30 meters | |
| Programs | 20 kinds |

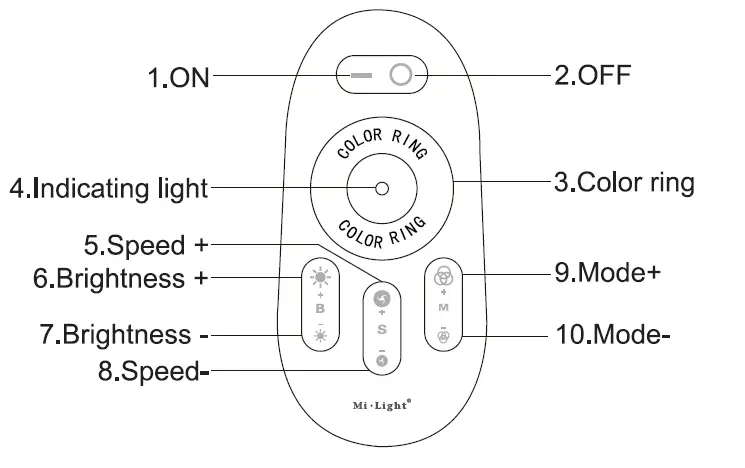

Function of Keys
Program List
| Number | Mode | Speed state | Remark | |
| 1 | Static color | Adjustable | Unadjustable | Choose any color by touching the color ring |
| 2 | Static white color | Adjustable | Unadjustable | White only |
| 3 | Color /white static coexist | Adjustable | Unadjustable | Cearing free to dioose, ilfi!11bless adjus1s only for oolor ight |
| 4 | All colors gradual change | Adjustable | Adjustable | White (off) |
| 5 | Four colors gradual change | Adjustable | Adjustable | |
| 6 | Four colors jump to change | Adjustable | Adjustable | |
| 7 | Seven colOl’S Jump to change (with wMe color) | Adjustable | Adjustable | |
| 8 | Red/white jumps to change | Adjustable | Adjustable | |
| 9 | Blue/white jumps to change | Adjustable | Adjustable | |
| 10 | Green/while jumps to change | Adjustable | Adjustable | |
| 11 | Red jumps to change | Adjustable | Adjustable | |
| 12 | Blue jumps to change | Adjustable | Adjustable | |
| 13 | Green jumps to change | Adjustable | Adjustable | |
| 14 | While jumps to change | Adjustable | Adjustable | |
| 15 | Circulation mode | Adjustable | Unadjustable | all the modes cycle |
Programming(code clearing and code matching )
Code matching :
For a new kit ( remote& controller), the remote can work only when it is programmed to the controller.
Please follow the below instructions: Correctly connect the power supply, LED controller, and LED load.
Switch off the power, then switch on again, and press key 5 once (within 3 seconds) the moment you see the light is on. The LED light blinks twice slowly when it is done.
Code clearing :
The code can be cleared as needed. The kit (remote and controller) will stay in its original state after code clearing.
It can work when code rematching is done. Please follow the below instructions: Also, correctly connect the power supply, LED controller, and LED load. Switch off the power, then switch on again, and long-press key 5(within 3 seconds) the moment you see the light is on. The LED light blinks nine times swiftly when it is done
Attention:
- The regular product for sale is a kit (remote and controller). The user can re-program freely as needed. One remote can control countless controllers, but one controller can only be controlled by four remotes (Max).
- Please check the battery installation and controller (totally discharge the power), when you program after switching off and switching on.

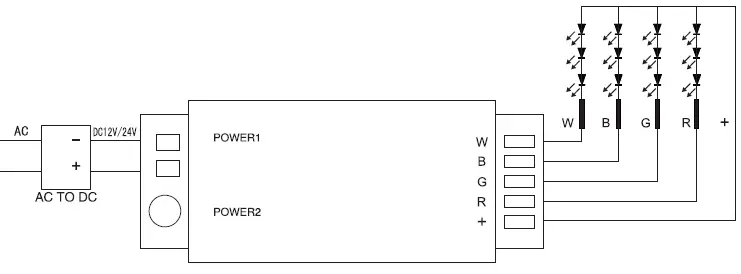

Connection
Attention
- Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection
of both the cathode and anode, otherwise, the controller will be broken. - Please don’t connect wires with power on. Please switch on again only when it is in the right connection and no short circuit.
- Please keep your finger off the touch ring when installing the batteries, to improve its sensitivity, and use the remote ( 3 seconds later) after the batteries are installed. Please reinstall the batteries, if the touch ring is found low-sensitivity.
- Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.
