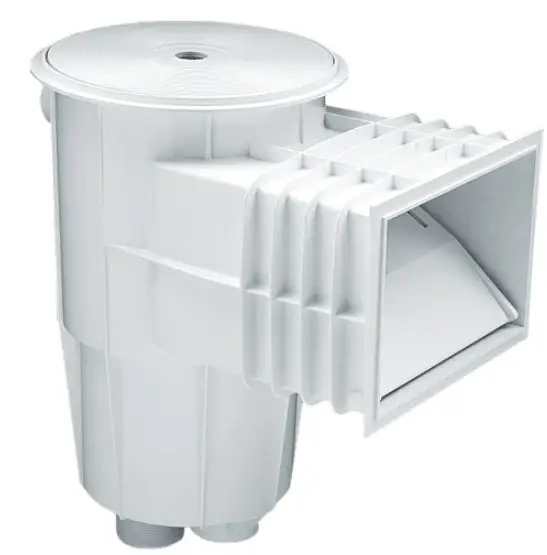

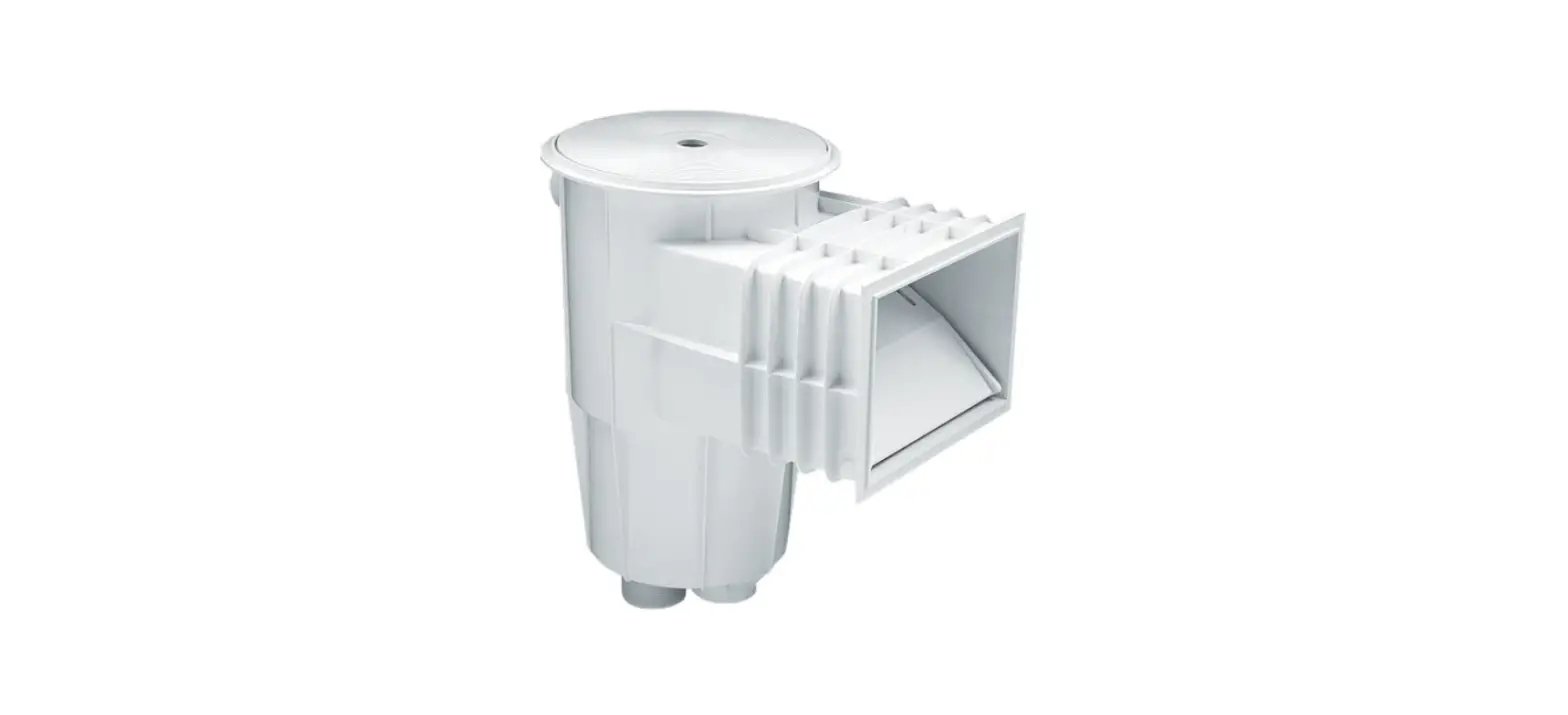

ASTRALPOOL 00249CL129 15L Standard Mouth LIGHT GRAY Color
Product Information
This user manual provides information for a pool product with the following specifications:
- Two different pool types: concrete and prefabricated/liner
- Two different skimmer sizes: 15 L and 17.5 L
- Pool sizes: 162 x 40 x 120 cm, 190 x 63 cm, 70 x 210 x 260 cm, and 67.5 x 67.5 x 171 cm
Product Usage Instructions
When using this product, please follow these instructions:
- Step 1: Determine Your Pool Type and Size Determine if you have a concrete or prefabricated/liner pool. Then, determine the size of your pool based on the dimensions provided in the product information section.
- Step 2: Determine Your Skimmer Size Determine if you have a 15 L or 17.5 L skimmer based on the product information provided.
- Step 3: Determine Your Injert Type If your pool requires injerts, determine if you need type 00249, 00250, 00251, 00252, 06469, 06470, 06472, or 34413 for concrete pools or type 01461, 01462, 01463, or 01464 for prefabricated/liner pools. If your pool does not require injerts, skip to step 4.
- Step 4: Determine Your Contents If your pool requires injerts, determine the contents based on the numbers provided in the product information section. If your pool does not require injerts, skip to step 5.
- Step 5: Determine Your Flow Rate Determine your desired flow rate based on your skimmer size. For a 15 L skimmer, the flow rate is 5 m3/h. For a 17.5 L skimmer, the flow rate is 7.5 m3/h.
- Step 6: Determine Your Water Velocity Determine your desired water velocity, which is V = 1.5 m/s.
- Step 7: Install Your Skimmer Install your skimmer based on the product information provided. For a 15 L skimmer, use a 1 1/2 BSP inlet and for a 17.5 L skimmer, use a 2 BSP inlet.
- Step 8: Determine Your Pump Requirements Determine your pump requirements based on the product information provided. For a 15 L skimmer, the minimum pump power is 0.37 kW and the maximum pump power is 0.62 kW. For a 17.5 L skimmer, the minimum pump power is 0.75 kW and the maximum pump power is 1.1 kW.
- Step 9: Follow Safety Precautions Always follow safety precautions when using this product to prevent injury or damage. Refer to the user manual for more information.
- Please read this manual carefully and keep it for future reference.
- The installation, assembly and maintenance work must be carried out by qualified, authorized personnel.

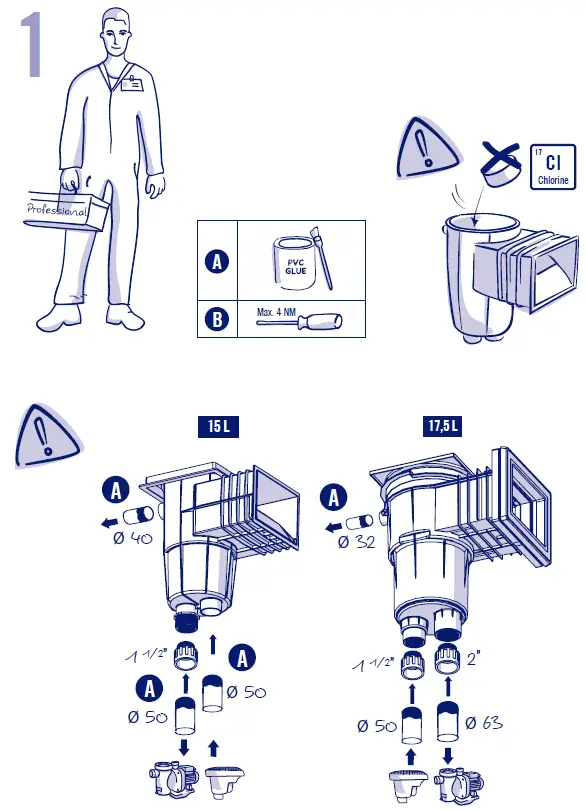

INSTALLATION INSTRUCTIONS

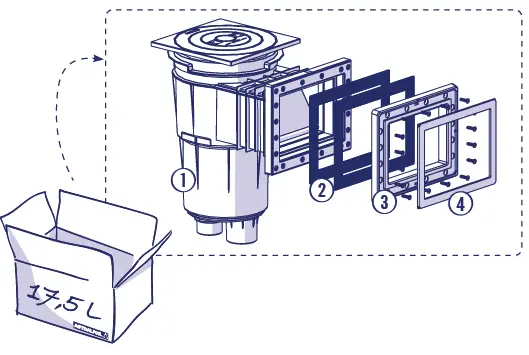

CONTENTS ACCORDING TO PRODUCT CODE
| Concrete | Prefabricated / Liner | |||||||||||
| No injerts | 00249 – 00250 | 00251 – 00252 | 06469 – 06470 – 06472 – 34413 | |||||||||
| Injerts | 01461 – 01462 – 01463 – 01464 | |||||||||||
| Contents | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Concrete | Prefabricated / Liner | |||||||||||
| No injerts | 11306 – 11307 | 11302 – 11303 | 11314 – 11317 – 17109 – 68108 | |||||||||
| Injerts | 11304 – 11305 | 11309 – 11310 – 11311 – 11313 35664 – 35665 | ||||||||||
| Contents | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |

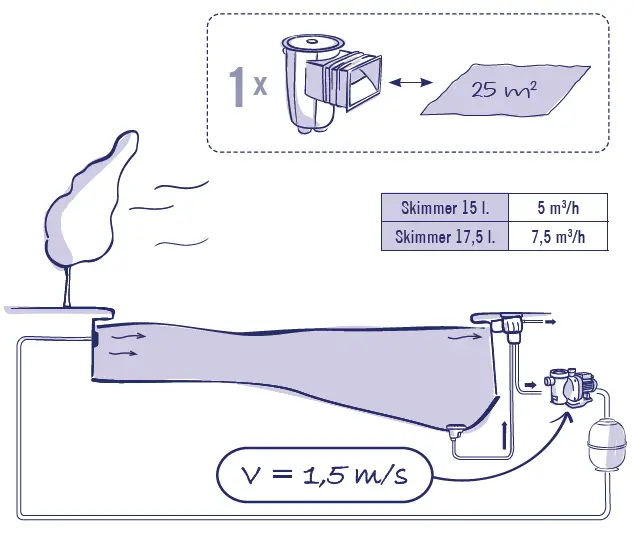

OPERATING DIAGRAM
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY GLUING DONE BY THE INSTALLER.
| 15 l. | 17,5 l. | |
| 00249 | 11302 | 11303 |
| 00250 | 11304 | 11305 |
| 00251 | 11306 | 11307 |
| 00252 |

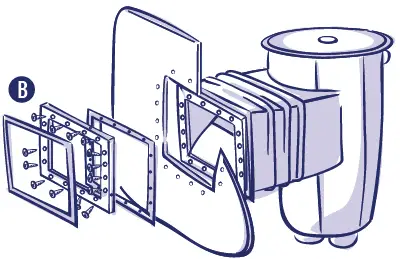

prefabricated pool

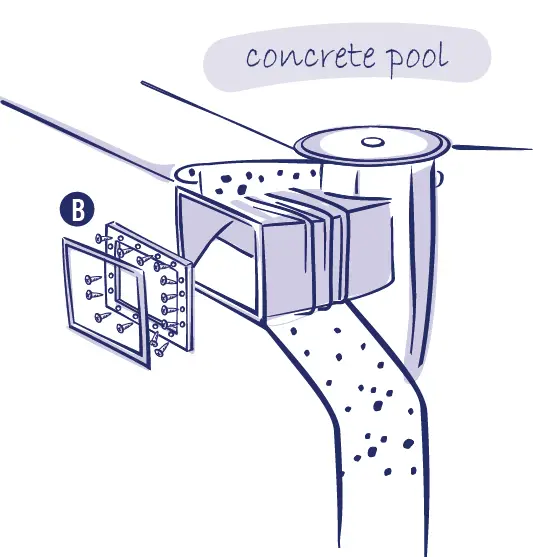

concrete pool + liner
| 15 l. | 17,5 l. | ||
| 01461 | 01462 | 11309 | 11310 |
| 01463 | 01464 | 11311 | 11313 |
| 06469 | 06470 | 11314 | 11317 |
| 06472 | 34413 | 17109 | 35664 |
| 35665 | 68108 | ||

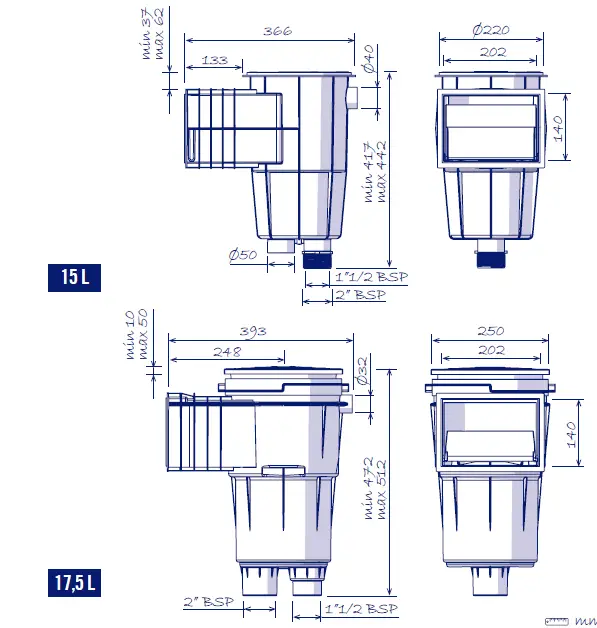

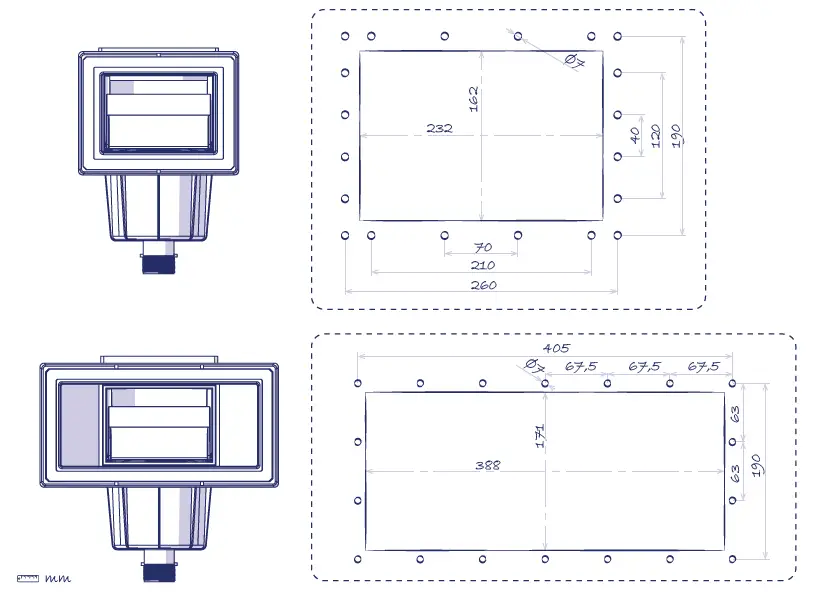

DIMENSIONS

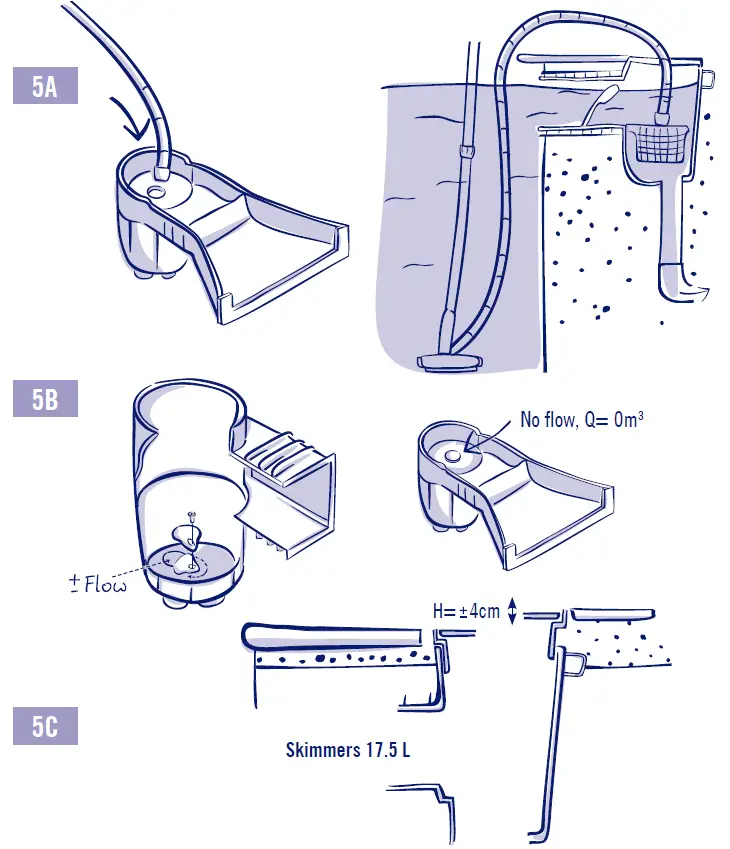

Clean the basket as needed depending on pool use
The life span of the product is 10 years Only use glue for PVC. The manufacturer assumes no responsibility for the use of any other product such as adhesive sealants, putty, silicone, etc
Distributed by: Fluidra S.A.-Astralpool Avda. Alcalde Barnils, 69, 08174 Sant Cugat del Vallès, Barcelona (Spain) – www.astralpool.com Made by NIF A-17092610 ©2022 Fluidra S.A. All rights reserved. This document is subject to changes without prior warning
