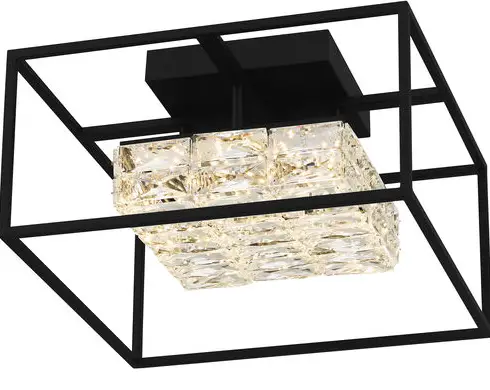

Quoizel PCDZ1716MBK Dazzle LED 16 Inch Matte Black Semi-Flush

Quoizel-PCDZ1716MBK-Dazzle-LED-16-Inch-Matte-Black-Semi-Flush-product

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.





Ratings

120Vac, 60Hz
Model No.Wattage
PCDZ1716MBK25W
PCDZ1716SGD25W

WARNING

  • RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.

CAUTION

  • For your safety, read instructions completely before beginning installation.
  • If in doubt about electrical installation, consult a licensed electrician.

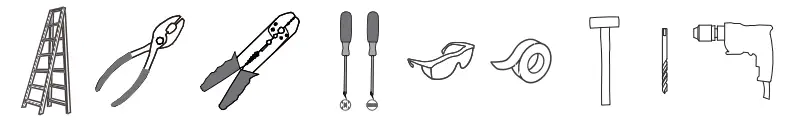

TOOLS REQUIRED

Quoizel-PCDZ1716MBK-Dazzle-LED-16-Inch-Matte-Black-Semi-Flush-fig-1

CARE AND MAINTENANCE

  • Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

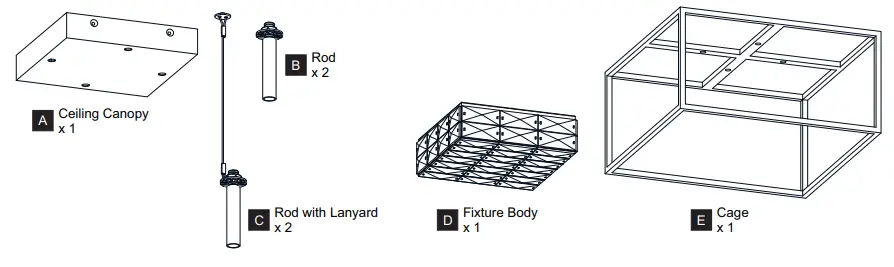

PACKAGE CONTENTS

Quoizel-PCDZ1716MBK-Dazzle-LED-16-Inch-Matte-Black-Semi-Flush-fig-2

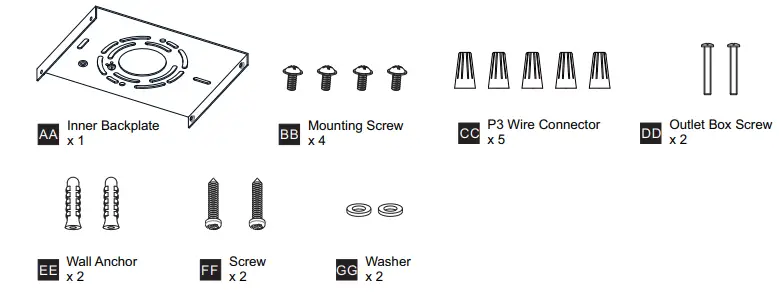

MOUNTING HARDWAREQuoizel-PCDZ1716MBK-Dazzle-LED-16-Inch-Matte-Black-Semi-Flush-fig-3

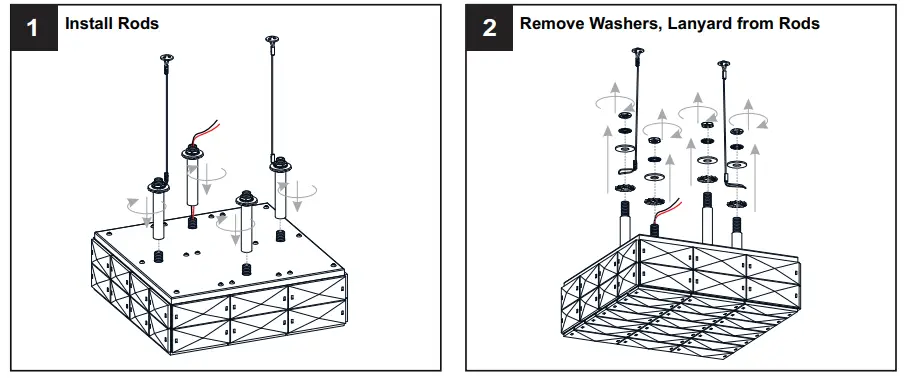

INSTALLATION

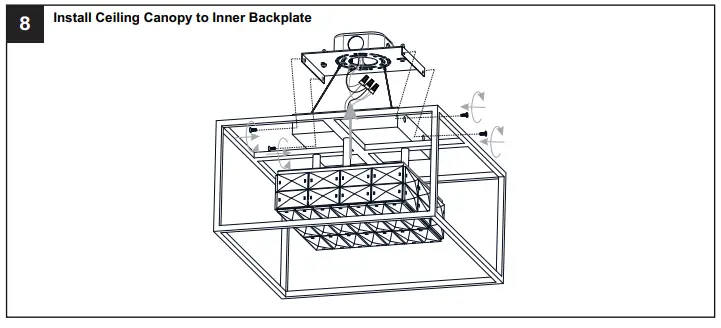

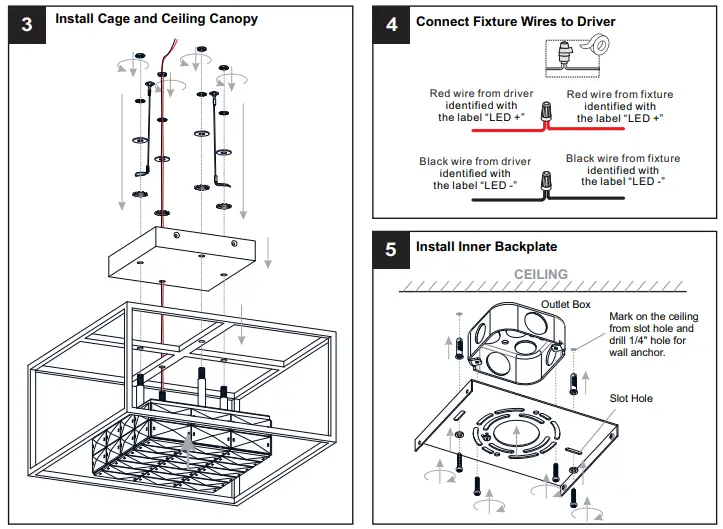

Quoizel-PCDZ1716MBK-Dazzle-LED-16-Inch-Matte-Black-Semi-Flush-fig-5Quoizel-PCDZ1716MBK-Dazzle-LED-16-Inch-Matte-Black-Semi-Flush-fig-5Quoizel-PCDZ1716MBK-Dazzle-LED-16-Inch-Matte-Black-Semi-Flush-fig-6Quoizel-PCDZ1716MBK-Dazzle-LED-16-Inch-Matte-Black-Semi-Flush-fig-7Your installation is now complete! Restore electricity and save this sheet for future reference.
