INSTALLATION GUIDE FOR PCDPR1714BWS
AND PCDPR2814BWS
Released Date: 2022-03-25
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).

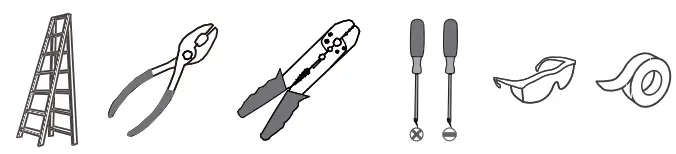

TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

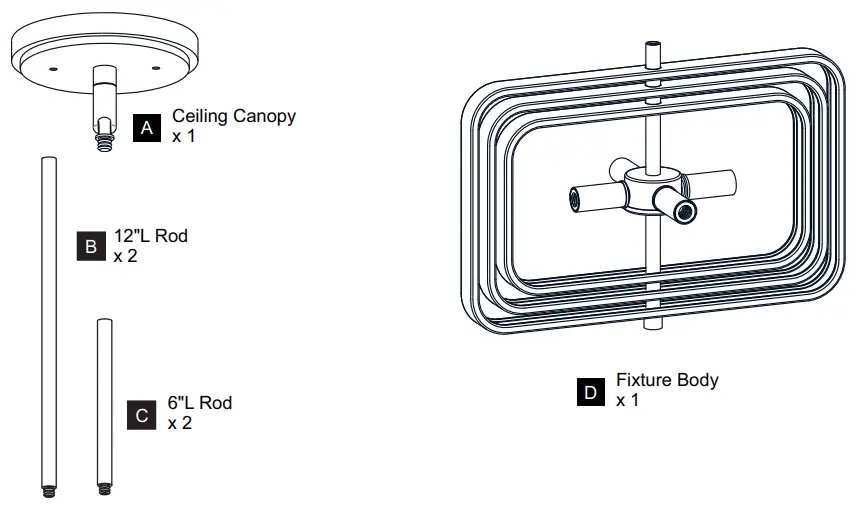

PACKAGE CONTENTS

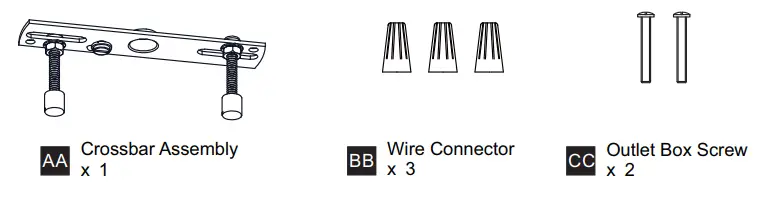

MOUNTING HARDWARE
INSTALLATION
OPTION 1: PENDANT PCDPR2814BWS

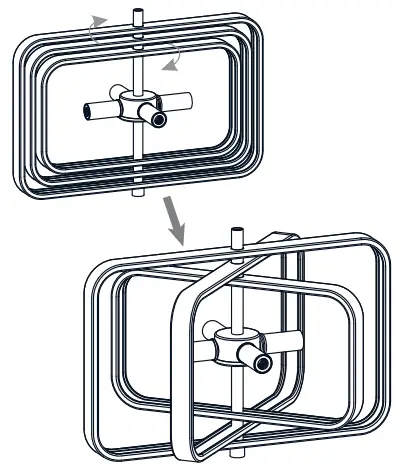

- Unfold Fixture Body

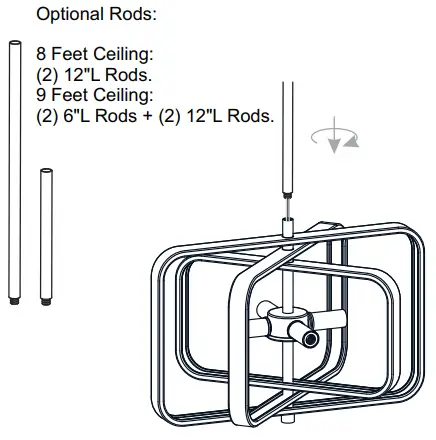

- Install Rods
- Tighten hex nut inside of the ceiling canopy

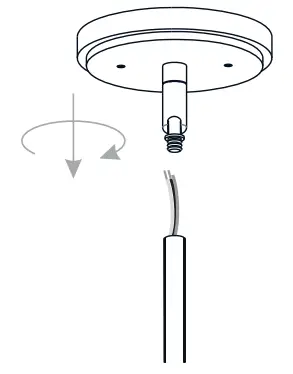

- Install Ceiling Canopy to Upper Rod

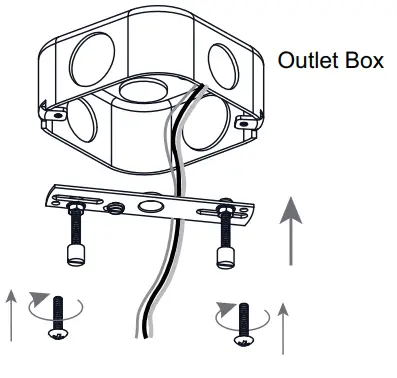

- Install Crossbar Assembly

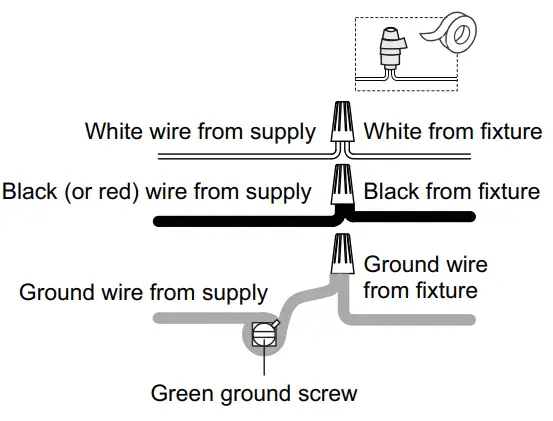

- Wiring

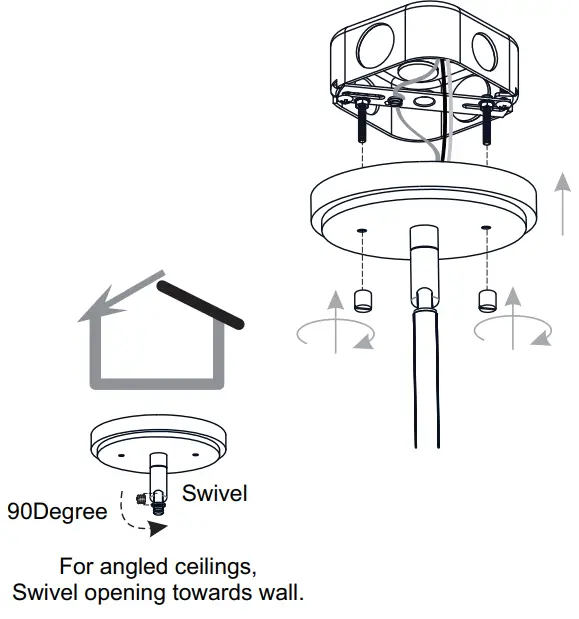

- Install Ceiling Canopy to Crossbar Assembly
- Install Bulbs
Install four bulbs referring to fixture markings and/or labels for maximum wattage.
OPTION 2: SEMI-FLUSH PCDPR1714BWS
* Set aside the (2) 6″L Rods and (2) 12″L Rods since they are not required for the semi-flush installation.

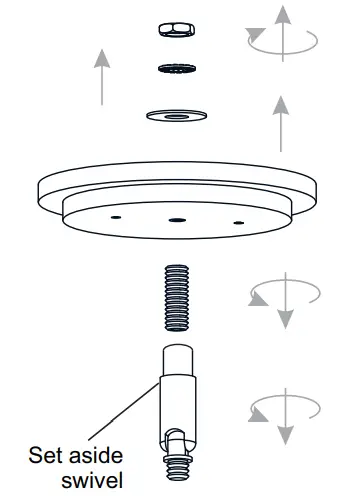

- Remove Swivel

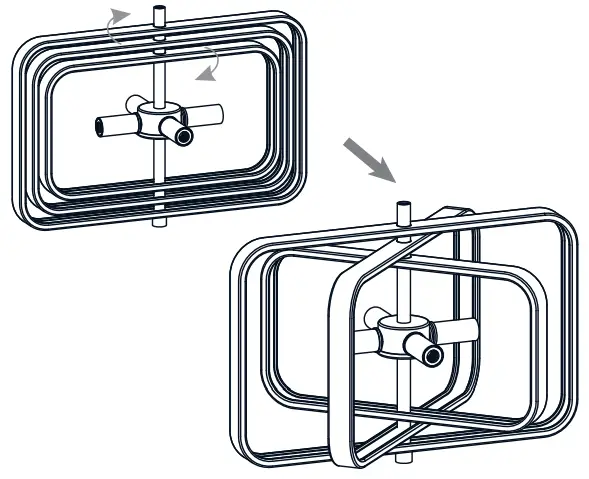

- Unfold Fixture Body

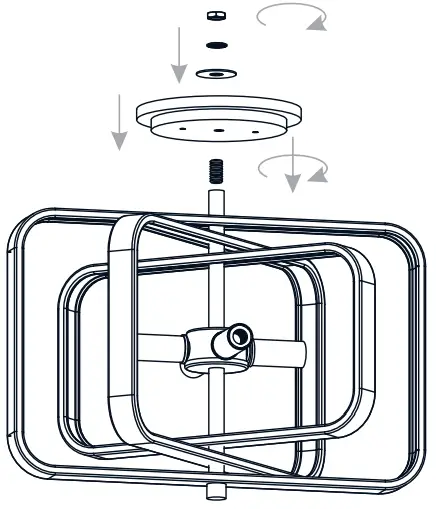

- Install Ceiling Canopy

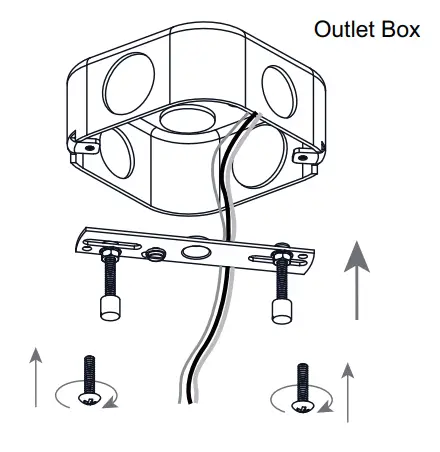

- Install Crossbar Assembly

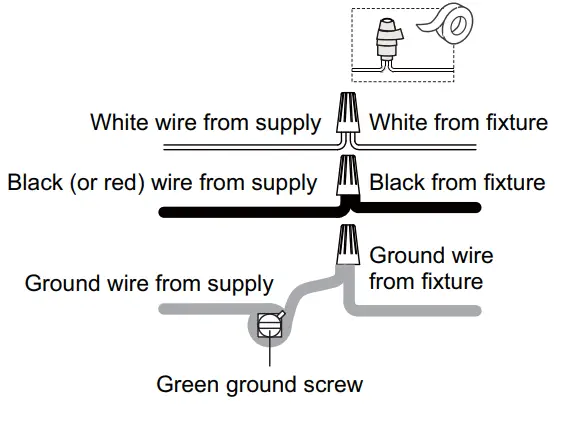

- Wiring

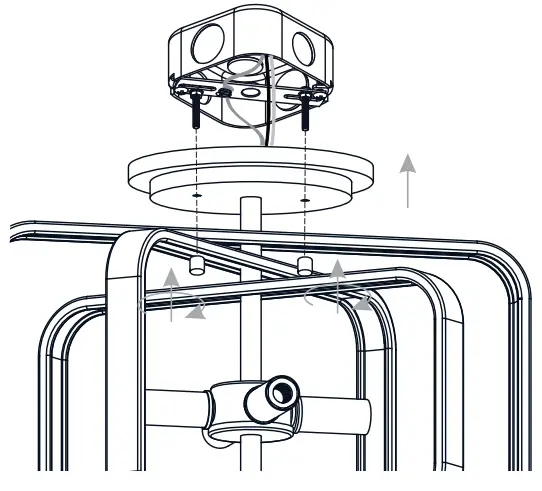

- Install Fixture to Crossbar Assembly

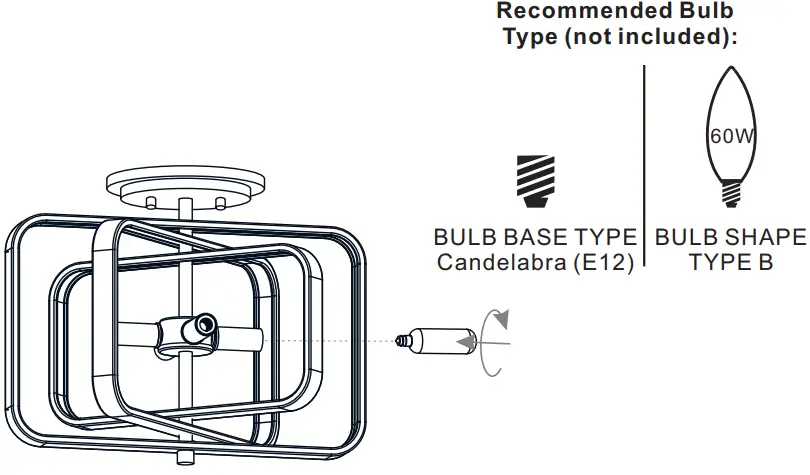

- Install Bulbs
Install four bulbs referring to fixture markings and/or labels for maximum wattage.
Your installation is now complete! Restore electricity and save this sheet for future reference.
Quoizel | Artisans In Lighting
