INSTALLATION GUIDE FOR QFL5612MRG,
QFL5612MBK, QPP5612MRG AND QPP5612MBK
Installation Guide
SAFETY INFORMATION
SAFETY INFORMATIONPlease read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).
TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

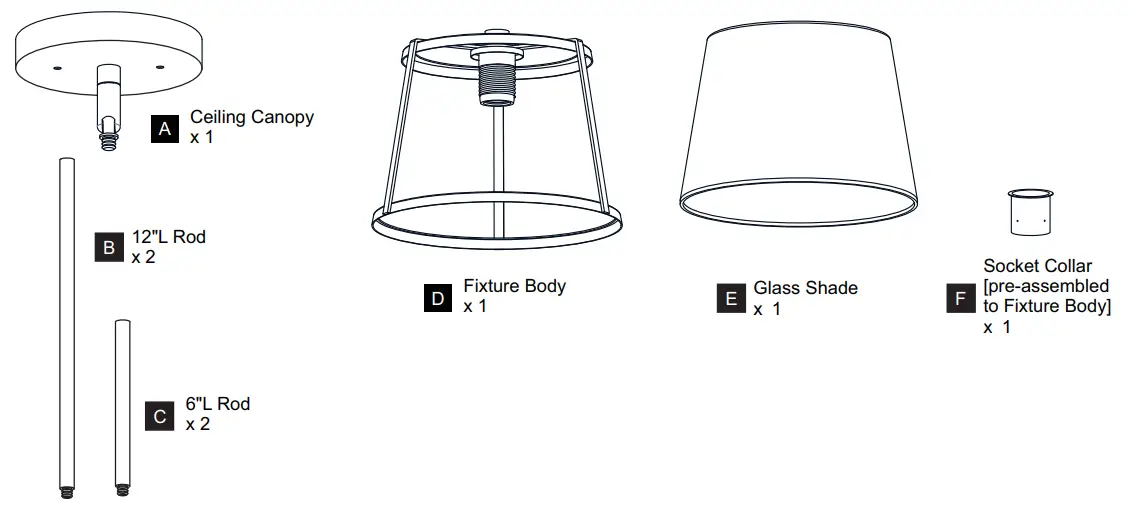

PACKAGE CONTENTS

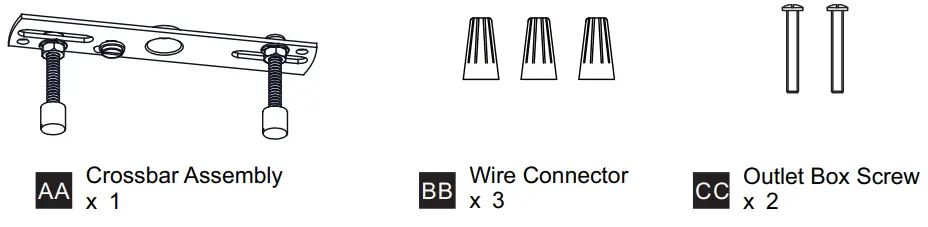

MOUNTING HARDWARE
INSTALLATION
OPTION 1: PENDANT QPP5612MBK AND QPP5612MRG

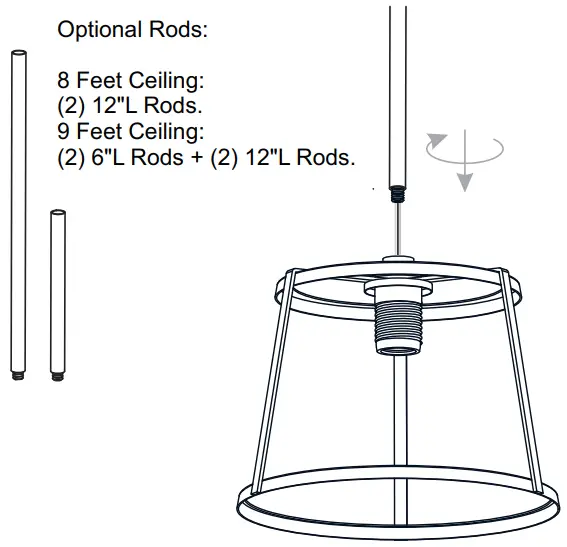

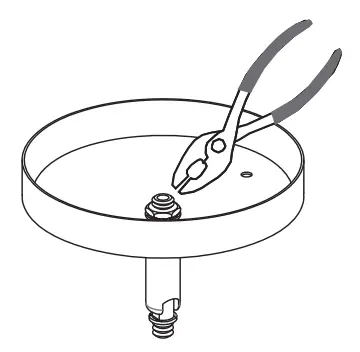

| 1 Install Rods | 2 Tighten hex nut inside of the ceiling canopy |
 |  |

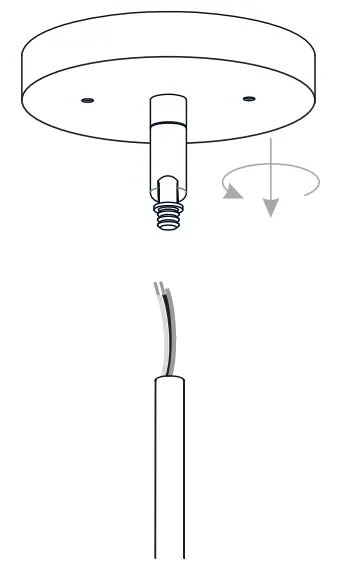

| 3 Install Ceiling Canopy to Upper Rod | 4 Install Crossbar Assembly |
 |  |

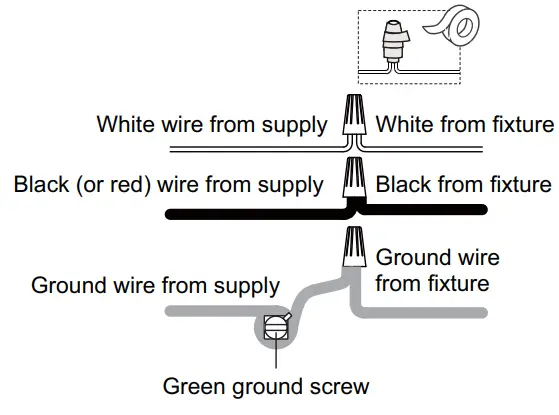

| 5 Wiring | 6 Install Ceiling Canopy to Crossbar Assembly |
 |  |

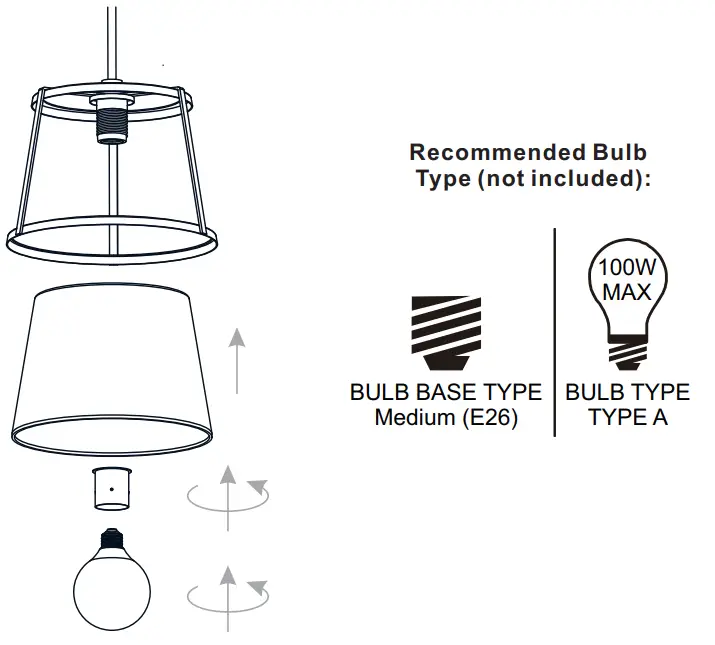

| 7 Install Glass Shade and Bulb Install one correct bulb referring to fixture markings and/or labels for maximum wattage. |  |
OPTION 2: SEMI-FLUSH QFL5612MBK AND QFL5612MRG
* Set aside the (2) 6″L Rods and (2) 12″L Rods since they are not required for the semi-flush installation.

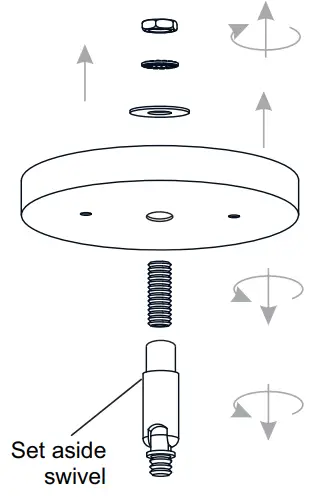

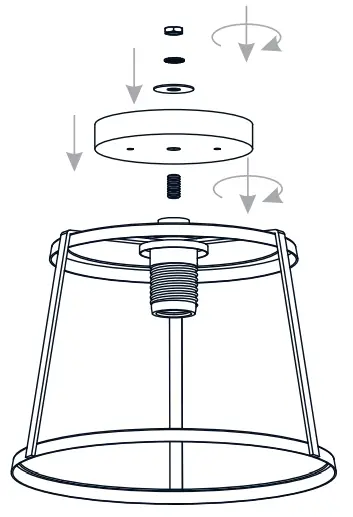

| 1 Remove Swivel | 2 Install Ceiling Canopy |
 |  |

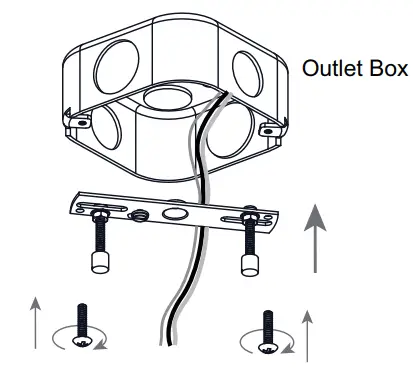

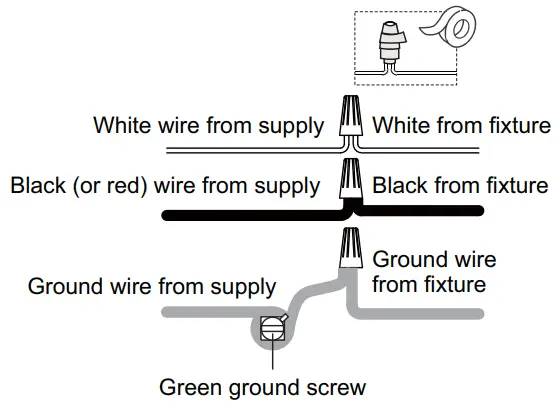

| 3 Install Crossbar Assembly | 4 Wiring |
 |  |

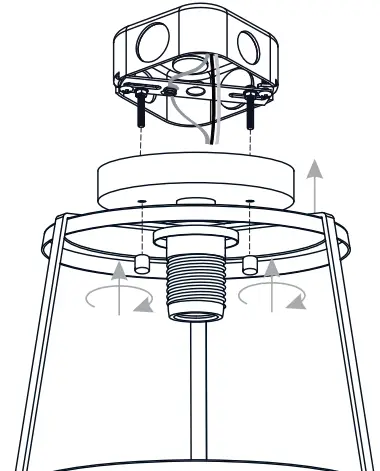

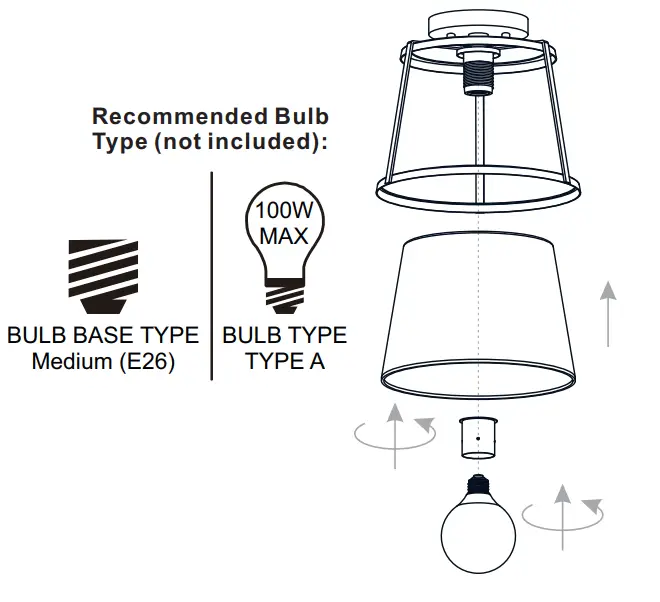

| 5 Install Ceiling Canopy to Crossbar Assembly | 6 Install Shade and Bulb Install one correct bulbs referring to fixture markings and/or labels for maximum wattage. |
 |  |
Your installation is now complete! Restore electricity and save this sheet for future reference.
Quoizel | Artisans In Lighting
