INSTALLATION GUIDE
FOR QP5632MBK and QSF5632MBK
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).

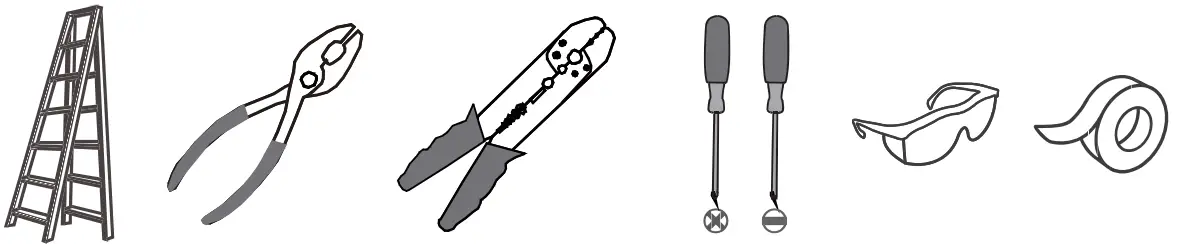

TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184(9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com

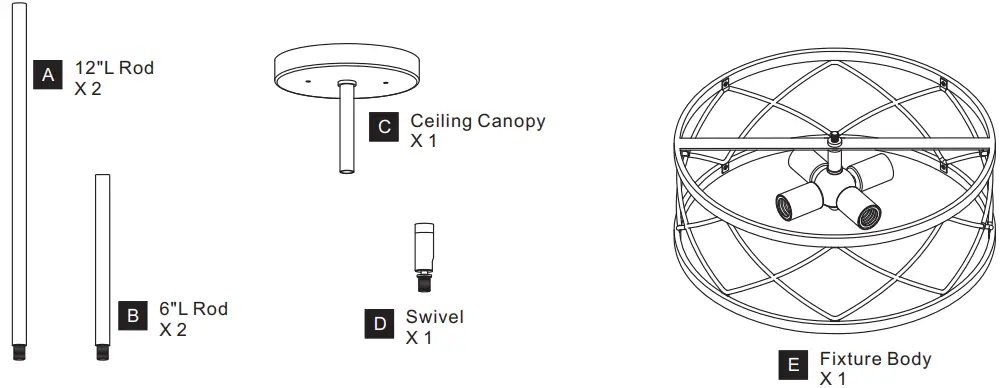

PACKAGE CONTENTS

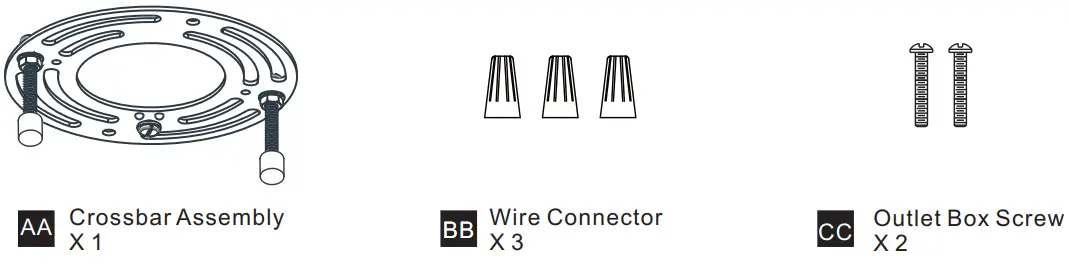

MOUNTING HARDWARE
INSTALLATION
IMPORTANT: This CONVERTIBLE fixture can be mounted as pendant light or semi-flush light. DO NOT CUT SUPPLY WIRESif you intend to use it as pendant light.
OPTION 1: SEMI-FLUSH SGL1714MBK
* Set aside (2) 6″L Rods, (2) 12″L Rods, Swivel since they are not required for the semi-flush

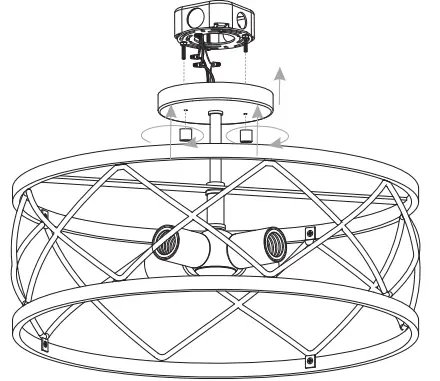

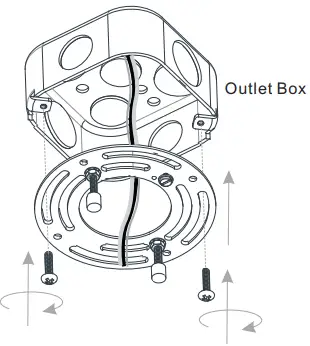

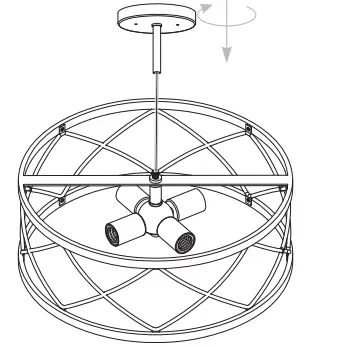

| 1. Install Ceiling Canopy to Fixture Body | 2.Install Crossbar Assembly |
 |  |

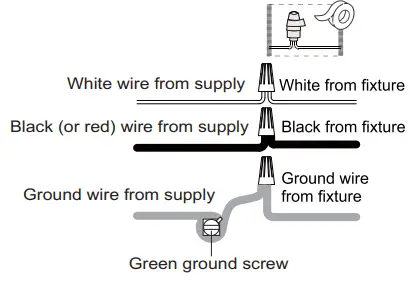

| 3.Wiring | 4.Install Ceiling Canopy |
 |  |

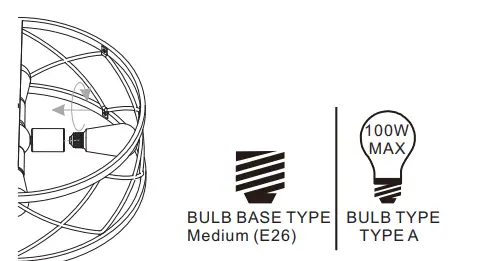

5.Install Bulbs | |
IMPORTANT:
This CONVERTIBLE fixture can be mounted as pendant light or semi-flush light. DO NOT CUT SUPPLY WIRES if you intend to use it as pendant light.
OPTION 2: PENDANT QP5632MBK

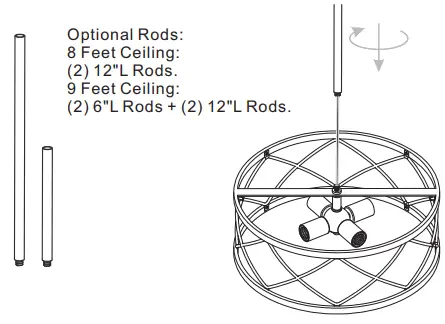

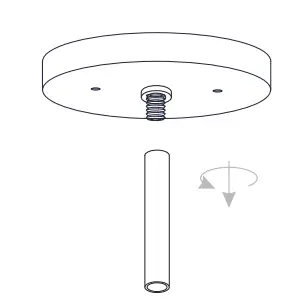

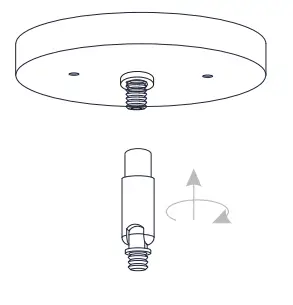

| 1.Remove Candle Cover Candle cover since they are not required for the semi-flush installation. | 2.Install Ceiling Canopy | 3.Install Socket Assembly to Rods |
 |  |  |

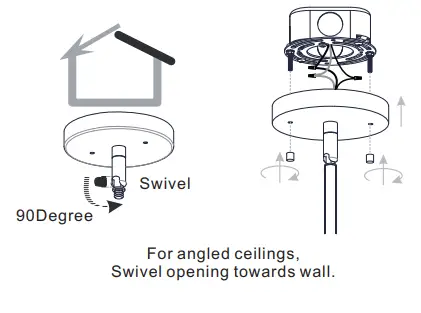

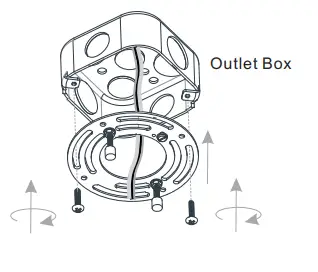

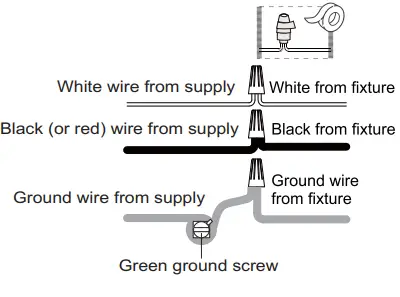

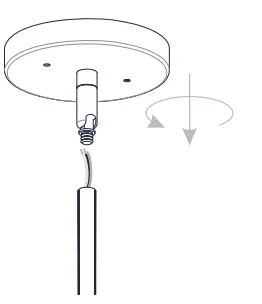

| 4.Install Ceiling Canopy A to Upper Rod | 5.Install Crossbar Assembly | 6.Wiring |
 |  |  |

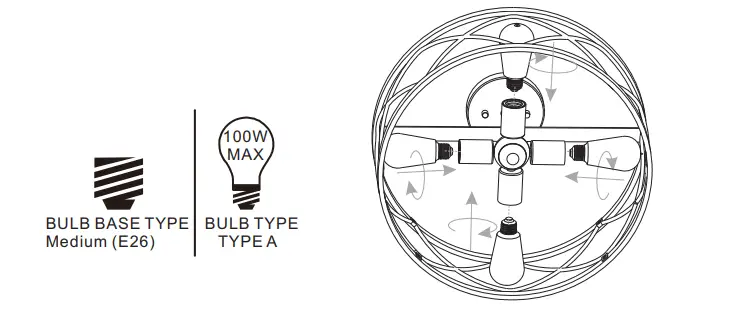

| 7.Install Ceiling Canopy A to Crossbar Assembly | 8.Install Bulbs |
 | Install four correct bulbs referring to fixture markings and/or labels for maximum wattage. |
Your installation is now complete! Restore electricity and save this sheet for future reference.
