ANCHORS & FASTENERS
GENERAL INFORMATION

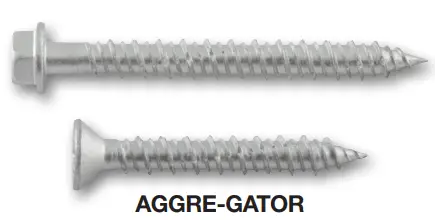

AGGRE-GATOR®
300 Series Stainless Bi-metal Concrete and masonry fasteners
PRODUCT DESCRIPTION
The Aggre-Gator anchor is a bi-metal screw anchor for light to medium duty applications in concrete and masonry block base materials. The Aggre-Gator is fast and easy to install and provides a neat, finished appearance. Aggre-Gator anchors provide excellent corrosion resistance in demanding applications, such as those in exposed environments.
GENERAL APPLICATIONS AND USES
- Exposed anchoring/wet areas
- Hurricane shutters
- Windows and screens
- Masonry facade support anchors (e.g. brick tie anchors)
- Aluminum enclosures
- Curtain wall & window wall support anchors
- Pressure-treated wood (e.g. ACQ)
FEATURES AND BENEFITS
+ High in-place value over life of structure
+ High strength and ductility
+ stalgard Gb coating creates greater galvanic compatibility in dissimilar metal applications involving aluminum
+ Anchor design and thread profile provides quick cutting during installation
APPROVALS AND LISTINGS
- Tested in accordance with AsTM E488
- Miami-Dade County Notice of Acceptance (NoA) No. 21-0201.08
- Florida statewide Product Approval FL29068.1
GUIDE SPECIFICATIONS
CsI Divisions: 03 16 00 – Concrete Anchors, 04 05 19.16 – Masonry Anchors and 05 05 19 -Post-Installed Concrete Anchors. Concrete screw Anchors shall be Aggre-Gator as supplied by DEWALT, Towson, MD. Concrete screw anchors shall be installed in accordance with published instructions and the Authority Having Jurisdiction.

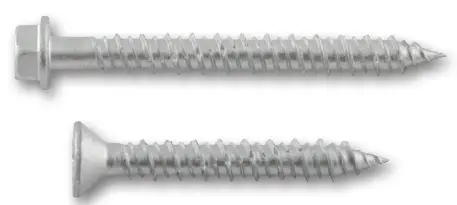

HEAD STYLES
- Hex Washer Head
- TrimFit® Flat Head
ANCHOR MATERIALS
- 300 series (18-8) stainless steel head and shank with hardened steel tapping threads and gimlet point
- stalgard® Gb coating (Galvanic barrier)
ANCHOR SIZE RANGE
- 1/4″ diameter x 1-1/4″ to 4″ lengths
SUITABLE BASE MATERIALS
- Normal-weight Concrete
- Hollow Concrete Masonry (CMU)
- Grout-Filled Concrete Masonry (CMU)
- brick Masonry
- Wood
MATERIAL SPECIFICATIONS
| Anchor Component | Specification |
| Anchor Head and Shank | 300 series stainless steel |
| Tapping Threads and Gimlet Point | Hardened Steel |
| Coating/Plating/Finish | Stalgard® GB (silver color) |
| The tapping threads with gimlet point is approximately 1/2-inch in length. | |
INSTALLATION SPECIFICATIONS
Aggre-Gator Hex Head and Flat Head Screw Anchors1,2
| Dimension | Nominal Anchor Diameter | |
| 1/4″ HWH | 1/4″ TFH | |
| Anchor Shank Diameter | 0.189 | 0.189 |
| Ultracon+ Drill Bit Size (in) | 3/16 | 3/16 |
| UltraCon+ bit tolerance range (in.) | 0.202 to 0.206 | |
| Typ. Fixture Clearance hole (in) | 5/16 | 5/16 |
| Head Height (in) | 9/64 | 3/16 |
| Head Width (in) | 5/16 | 13/32 |
| Washer O.D. (in) | 13/32 | N/A |
| Washer Thickness (in) | 3/64 | N/A |
| Hex Driver (in) / Phillips Driver | 5/16 | #3 |
| 1. For minimum nominal embedment depths, hnom, see the performance data tables. The minimum hole depth, ho, is 1/4-inch more than the selected nominal embedment depth. 2. In light gauge steel material (.036″ / 20 gauge and thinner), the clearance hole can be the same diameter as the drill bit. | ||

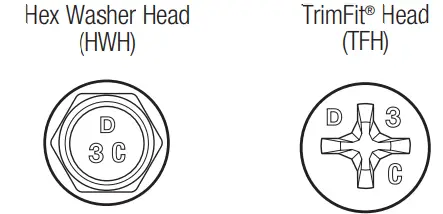

300 Series Stainless Steel Aggre-Gator Identification
The head markings consist of a “D” for the DEWALT brand, the number “3” for the 300 series stainless steel classification, and the length code.
Aggre-Gator Length Code Identification System
| Length ID marking on head |  | A | B | C | D | E | F | |
| Overall anchor length ℓanch (inches) | From | 1″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 3-1/2″ | 4″ |
| Up to but not including | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 3-1/2″ | 4″ | 4-1/2″ | |

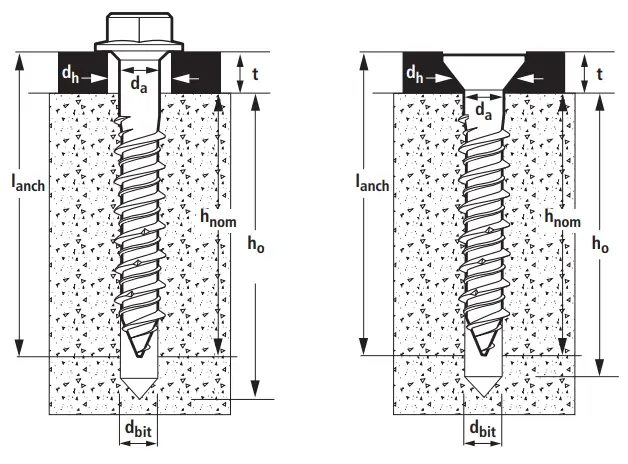

Anchor Detail
Nomenclature
d = Diameter of anchor
dbit = Diameter of drill bit
dh = Diameter of fixture clearance hole
hnom = Minimum embedment depth
h = base material thickness The minimum value of h should be 1.5hnom or 3″ whichever is greater
ho = Minimum hole depth
INSTALLATION INSTRUCTIONS
Installation Instructions for Aggre-Gator

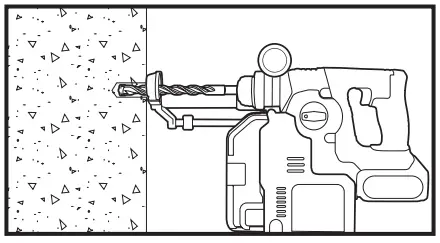

Step 1
Using the proper drill bit size, drill a hole into the base material to the required depth, ho, which is a 1/4-inch deeper than the minimum embedment depth, hnom.

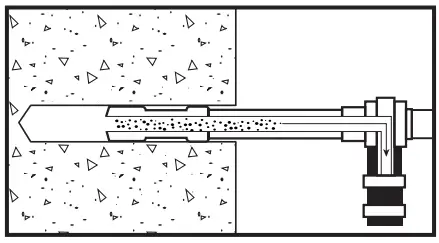

Step 2
Remove dust and debris from the hole during drilling (e.g. dust extractor) or following drilling (e.g. suction, forced air) to extract loose particles created by drilling.

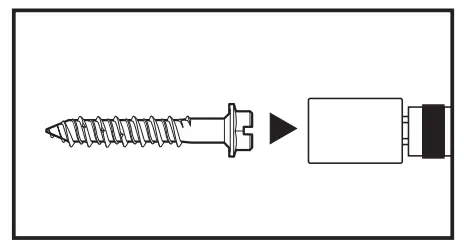

Step 3
Attach a Ultracon+ installation socket tool for the selected anchor size to a percussion drill and set the drill to rotary only mode. Mount the screw anchor head into the socket. For flat head versions a bit tip must be used with the socket tool.

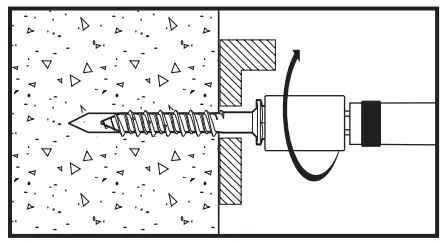

Step 4
Place the point of the Aggre-Gator through the fixture into the pre-drilled hole and drive the anchor in one steady continuous motion until it is fully seated at the proper embedment. The driver will automatically disengage from the head of the screw.
PERFORMANCE DATA
Ultimate Load Capacities for Aggre-Gator in Normal-Weight Concrete1,2
| Nominal Anchor Diameter | Min. Edge Dist. in. | Min. Spacing in. | Min. Embed. in. | Minimum Concrete Compressive Strength | |||||||||
| 2000 psi | 2500 psi | 3000 psi | 3500 psi | 4000 psi | |||||||||
| Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | ||||
| 1/4 | 1-1/4 | 3 | 1 | 450 | – | 495 | – | 955 | – | 1015 | – | 1070 | – |
| 1-3/8 | 1105 | – | 1215 | – | 1215 | – | 1215 | – | 1270 | – | |||
| 1-3/4 | 1125 | – | 1235 | – | 1235 | – | 1235 | – | 1270 | – | |||
| 1-1/2 | 3 | 1 | 450 | 780 | 495 | 815 | 955 | 980 | 1015 | 1020 | 1070 | 1020 | |
| 1-3/8 | 1105 | 990 | 1215 | 1035 | 1215 | 1175 | 1215 | 1220 | 1270 | 1220 | |||
| 1-3/4 | 1125 | 1170 | 1235 | 1220 | 1235 | 1220 | 1235 | 1220 | 1270 | 1220 | |||
| 2-1/2 | 1-1/2 | 1 | 740 | 780 | 815 | 815 | 965 | 980 | 1030 | 1020 | 1085 | 1020 | |
| 1-3/8 | 960 | 990 | 1055 | 1035 | 1055 | 1175 | 1055 | 1220 | 1085 | 1220 | |||
| 1-3/4 | 1220 | 1170 | 1340 | 1220 | 1340 | 1220 | 1340 | 1220 | 1380 | 1220 | |||
| 3 | 1-1/2 | – | 765 [3] | – | 800 [3] | – | – | – | – | – | – | ||
| 1-3/4 | – | 760 [4] | – | 795 [4] | – | – | – | – | – | – | |||
| 3 | 1-1/2 | 1 | 740 | 865 | 815 | 900 | 965 | 900 | 1030 | 900 | 1085 | 900 | |
| 1-3/8 | 960 | 1580 | 1055 | 1650 | 1055 | 1965 | 1055 | 2040 | 1085 | 2040 | |||
| 1-3/4 | 1220 | 1870 | 1340 | 1950 | 1340 | 1985 | 1340 | 2060 | 1380 | 2060 | |||
| 1. Tabulated load values are for anchors installed in uncracked concrete. Concrete compressive strength must be at the specified minimum at the time of installation. 2. Ultimate load capacities must be reduced by a minimum safety factor of 4.0 or greater to determine allowable working load. Consideration of safety factors of 10 and higher may be necessary depending upon the application such as life safety or overhead. 3. These values are for tests conducted with 1″ x 4″ nominal (3/4″ max. thick) treated southern yellow pine attached to concrete; the listed embedment is into the concrete. 4. These values are for tests conducted with 2″ x 4″ nominal (1-1/2″ max. thick) treated southern yellow pine attached to concrete; the listed embedment is into the concrete. | |||||||||||||
Allowable Load Capacities for Aggre-Gator in Normal-Weight Concrete1,2
| Nominal Anchor Diameter | Min. Edge Dist. in. | Min. Spacing in. | Min. Embed. in. | Minimum Concrete Compressive Strength | |||||||||
| 2000 psi | 2500 psi | 3000 psi | 3500 psi | 4000 psi | |||||||||
| Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | ||||
| 1/4 | 1-1/4 | 3 | 1 | 110 | – | 120 | – | 235 | – | 250 | – | 265 | – |
| 1-3/8 | 275 | – | 300 | – | 300 | – | 300 | – | 315 | – | |||
| 1-3/4 | 280 | – | 305 | – | 305 | – | 305 | – | 315 | – | |||
| 1-1/2 | 3 | 1 | 110 | 195 | 120 | 200 | 235 | 245 | 250 | 255 | 265 | 255 | |
| 1-3/8 | 275 | 245 | 300 | 255 | 300 | 290 | 300 | 305 | 315 | 305 | |||
| 1-3/4 | 280 | 290 | 305 | 305 | 305 | 305 | 305 | 305 | 315 | 305 | |||
| 2-1/2 | 1-1/2 | 1 | 185 | 195 | 200 | 200 | 240 | 245 | 255 | 255 | 270 | 255 | |
| 1-3/8 | 240 | 245 | 260 | 255 | 260 | 290 | 260 | 305 | 270 | 305 | |||
| 1-3/4 | 305 | 290 | 335 | 305 | 335 | 305 | 335 | 305 | 345 | 305 | |||
| 3 | 1-1/2 | – | 190 [2] | – | 200 [2] | – | – | – | – | – | – | ||
| 1-3/4 | – | 190 [3] | – | 195 [3] | – | – | – | – | – | – | |||
| 3 | 1-1/2 | 1 | 185 | 215 | 200 | 225 | 240 | 225 | 255 | 225 | 270 | 225 | |
| 1-3/8 | 240 | 395 | 260 | 410 | 260 | 490 | 260 | 510 | 270 | 510 | |||
| 1-3/4 | 305 | 465 | 335 | 485 | 335 | 495 | 335 | 515 | 345 | 515 | |||
| 1. Allowable load capacities listed are calculated using an applied safety factor of 4.0. Consideration of safety factors of 10 or higher may be necessary depending on the application, such as life safety or overhead. 2. These values are for tests conducted with 1″ x 4″ nominal (3/4″ max. thick) treated southern yellow pine attached to concrete; the listed embedment is into the concrete. 3. These values are for tests conducted with 2″ x 4″ nominal (1-1/2″ max. thick) treated southern yellow pine attached to concrete; the listed embedment is into the concrete. | |||||||||||||
Ultimate Load Capacities for Aggre-Gator in Hollow and Grout-Filled Concrete Masonry1,2
| Nominal Anchor Diameter in. | Min. Edge Dist. in. | Min. Spacing in. | Min. Embed. in. | Hollow Block | Grout-Filled Block | ||
| Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | ||||
| 1/4 | 2 | 3 | 1-1/4 | 780 | 935 | 830 | 1035 |
| 2 | – | – | 1625 | 2365 | |||
| 4 | 1-1/2 | 1-1/4 | – | – | 745 | 1410 | |
| 2 | – | – | 2015 | 2385 | |||
| 4 | 3 | 1-1/4 | 880 | 1055 | – | – | |
| 1. Tabulated load values are for anchors installed in grout-filled concrete block conforming to ASTM C90. 2. Ultimate load capacities must be reduced by a minimum safety factor of 5.0 or greater to determine allowable working load. Consideration of safety factors of 10 and higher may be necessary depending upon the application such as life safety or overhead. | |||||||
Allowable Load Capacities for Aggre-Gator in Hollow and Grout-Filled Concrete Masonry1
| Nominal Anchor Diameter in. | Min. Edge Dist. in. | Min. Spacing in. | Min. Embed. in. | Hollow Block | Grout-Filled Block | ||
| Tension lbs. | Shear lbs. | Tension lbs. | Shear lbs. | ||||
| 1/4 | 2 | 3 | 1-1/4 | 155 | 185 | 165 | 205 |
| 2 | – | – | 325 | 470 | |||
| 4 | 1-1/2 | 1-1/4 | – | – | 145 | 280 | |
| 2 | – | – | 400 | 475 | |||
| 4 | 3 | 1-1/4 | 175 | 210 | – | – | |
| 1. Allowable load capacities listed are calculated using an applied safety factor of 5.0. Consideration of safety factors of 10 or higher may be necessary depending on the application, such as life safety or overhead. | |||||||

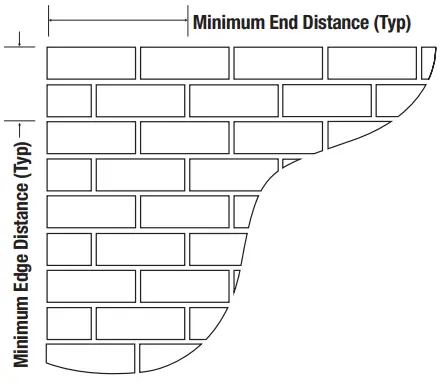

Allowable Load Capacities for Aggre-Gator Anchors Installed in Clay Brick Masonry1,2,3,4
| Nominal Anchor Diameterd in. | Minimum Embed. in. | Minimum Edge Distance in. | Minimum End Distance in. | Installation Location | Tension lbs. | Shear lbs. |
| 1/4 | 1-1/2 | 1-1/8 | 1-3/4 | Face | 220 | 370 |
| 2-1/2 | Mortar Joint | 320 | 360 | |||
| 1. Tabulated load values are for anchors installed in multiple wythe, minimum Grade SW, solid clay brick masonry walls conforming to ASTM C 62. Mortar must be minimum Type N. Masonry compressive strength must be at the specified minimum at the time of installation (f’m ≥ 1,500 psi). 2. Allowable load capacities listed are calculated using an applied safety factor of 5.0. Consideration of safety factors of 10 or higher may be necessary depending upon the application such as life safety or overhead. 3. Allowable shear loads into the face or mortar joint of the brick masonry wall may be applied in any direction. 4. The tabulated values are applicable for anchors installed at a critical spacing between anchors of 12 times the nominal anchor diameter. | ||||||
Ultimate Load Capacity for Aggre-Gator in Wood1,2,3
| Nominal Anchor Diameterd in. | Minimum Embed. in. | Tension lbs. | Shear lbs. |
| 1/4 | 1 | 205 | 435 |
| 2 | 935 | 785 | |
| 1.Pre-drilling is not required for this anchor into wood. (but can be considered). 2. Tabulated values are applicable for anchors installed at a minimum edge distance of 5 times the nominal anchor diameter. 3. Tested in stacked 2″ x 4″ (1-1/2″ max. thickness) southern yellow pine; screws orientated tangential to wood grain. | |||
ORDERING INFORMATION
Silver Stalgard Aggre-Gator®
| Cat. No. | Screw Size | Approximate Thread Length | Pack Qty. | Carton Qty. | |
| HWH | TFH | ||||
| DFM3EML300 | DFM3EMM300 | 1/4″ X 1-1/4″ | 1-1/8″ | 50 | 300 |
| DFM3EML315 | DFM3EMM310 | 1/4″ X 1-3/4″ | 1-5/8″ | 50 | 300 |
| DFM3EML325 | DFM3EMM320 | 1/4″ X 2-1/4″ | 1-7/8″ | 50 | 300 |
| DFM3EML335 | DFM3EMM330 | 1/4″ X 2-3/4″ | 1-7/8″ | 50 | 300 |
| DFM3EML345 | DFM3EMM340 | 1/4″ X 3-1/4″ | 1-7/8″ | 50 | 300 |
| DFM3EML365 | DFM3EMM360 | 1/4″ X 4″ | 1-7/8″ | 50 | 300 |
| HWH = Hex Washer Head, TFH = TrimFit® Flat Head Hex Head Aggre-Gator anchors are measured from below the washer while flat head Aggre-Gator anchors are measured end to end. To select the proper minimum anchor length, determine the embedment depth (e.g. required to obtain desired load capacity). Then add the thickness of the fixture, including any spacers or shims, to the embedment depth. | |||||
UltraCon+ Drill Bits
| Cat. No. | Description |
| DW5381 | 5/32″ x 7″ UltraCon+ SDS bit |
| DW5382 | 3/16″ x 7″ UltraCon+ SDS bit |
| DFX153255 | 5/32″ x 5-1/2″ UltraCon+ straight shank bit |
| DFX131645 | 3/16″ x 4-1/2″ UltraCon+ straight shank bit |
| DFX131675 | 3/16″ x 7-1/2″ UltraCon+ straight shank bit |
Installation Kit
| Cat. No. | Description |
| DW5366 | UltraCon®+ Installation Kit includes: 5/32″ and 3/16″ UltraCon+ bit, 1/4″ and 5/16″ nutsetters, #2 and #3 Phillips bits, Phillips flat head adapter, percussion adapter, drive sleeve and 1/8″ allen wrench |

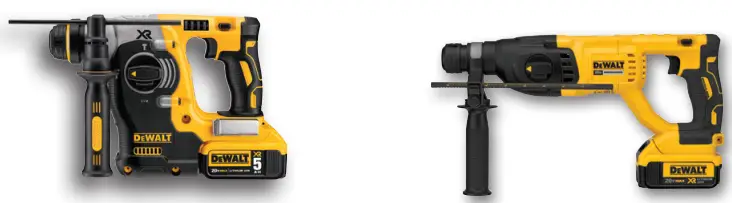

Rotary Hammers
| Cat. No. | Description |
| DCH273 | 20V Max* XR Brushless 1″ L-Shape SDS Plus Rotary Hammer |
| DCH133 | 20V Max* XR Brushless 1″ D-Handle SDS Plus Rotary Hammer |
Accessories
| Cat. No. | Description |
| DWH303DH | Onboard Dust Extractor for 1″ SDS Plus Hammers |
| DWH050 | Large Hammer Dust Extraction – Hole Cleaning |
| DWH200 | Dust Extraction Tube Kit with Hose |

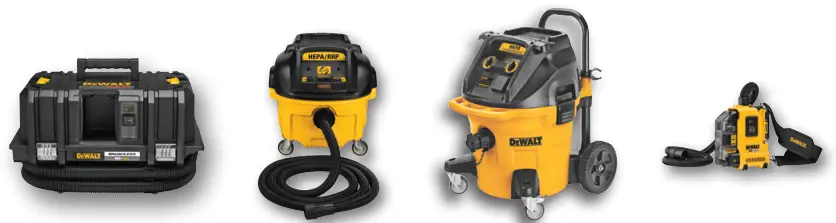

Dust Extractors
| Cat. No. | Description |
| DCV585 | Flexvolt® 60V Max* Dust Extractor |
| DVW010 | 8 Gallon Wet Dry Hepa/Rrp Dust Extractor |
| DWV012 | 10 Gallon Wet Dry Hepa/Rrp Dust Extractor |
| DWH161D1 | 20V Max* XR Brushless Universal Dust Extractor Kit |
