OceanLED X-SERIE Midnight Blue LEDs
KEY FEATURES
- 4,500* Fixture Lumens
- 60° Top Beam
- 60° Side Beam
- Circular Beam Shape
X4 COLOUR PART#
- Ultra White 012301W
- Midnight Blue 012302B
X8 COLOUR PART#
- Ultra White 012304W
- Midnight Blue 012305B
- Colours DMX 012307C
X16 COLOUR PART#
- Ultra White 012308W
- Midnight Blue 012309B
- Colours DMX 012311C

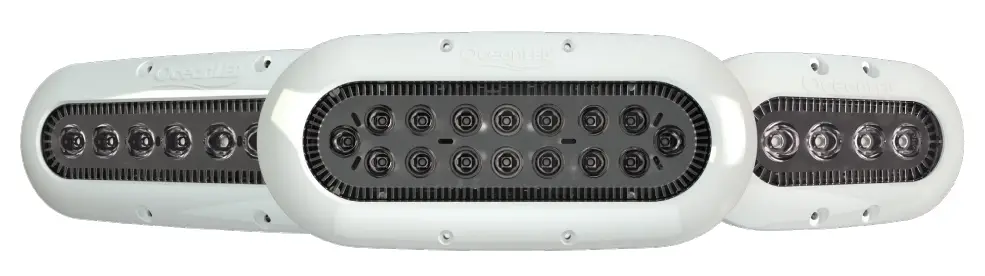

X4 ULTRA WHITE / MIDNIGHT BLUE
The X4 is a small but bright light for a variety of uses and installation types.
X8 ULTRA WHITE / MIDNIGHT BLUE / DMX COLOURS
The X8 is an ideal choice for smaller boats that want a powerful single colour, or multi colour with intelligent control via DMX or DC switch.
X16 ULTRA WHITE / MIDNIGHT BLUE / DMX COLOURS
The X16 gives stunning performance both as a single colour light, or as multi colour with intelligent control via DMX or switch.

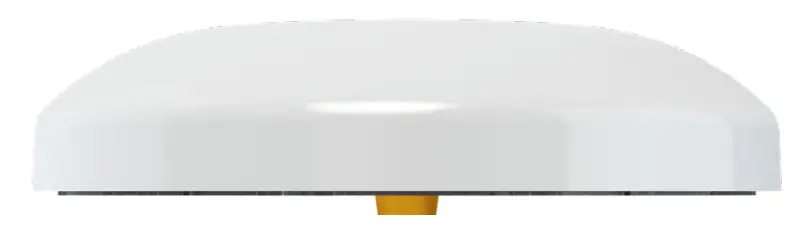

COMPACT DESIGN
Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light.
ACTIVE THERMAL CONTROL
ATC prevents overheating, prolonging the life of the LEDs. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely.
FISH-STROBE MODE
Exceptionally bright, randomised strobing of the light is proven to attract more fish and catch more bait.
IP69k WATER INGRESS PROTECTION
The X-Series is now rated at IP69k, the highest achievable rating of protection against water ingress. IP69k goes one step further than the industry standard IP68, giving you additional protection and piece of mind.

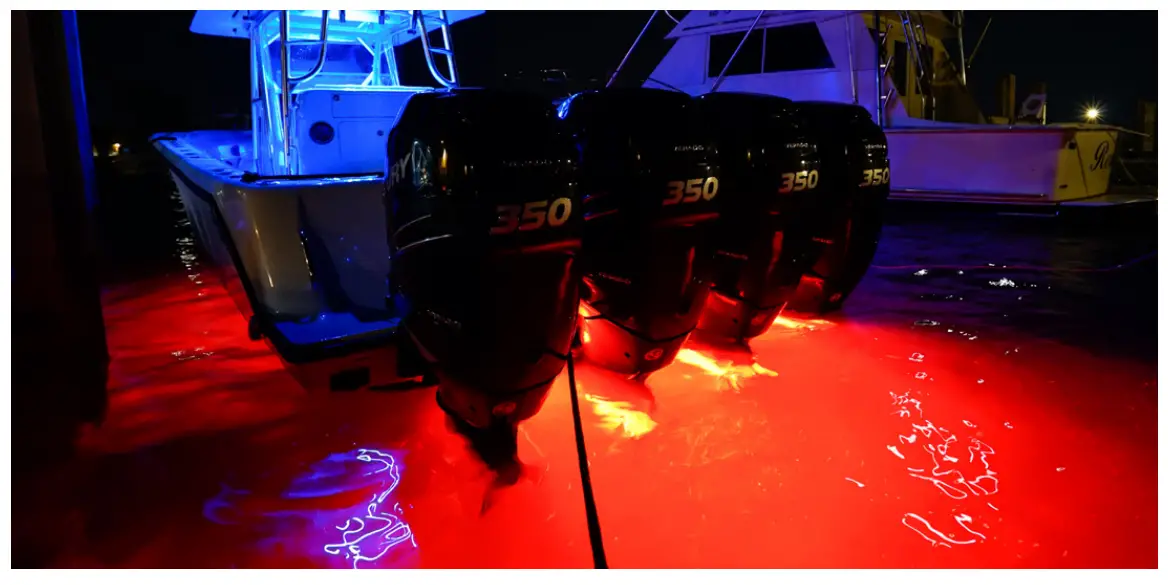

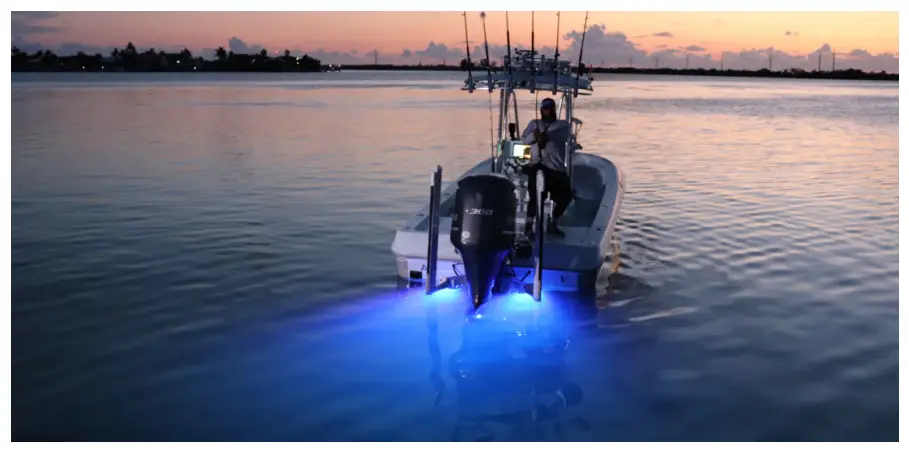

IN-WATER EXAMPLE PHOTOGRAPHY
X-SERIES CHOOSE YOUR LIGHT SETUP

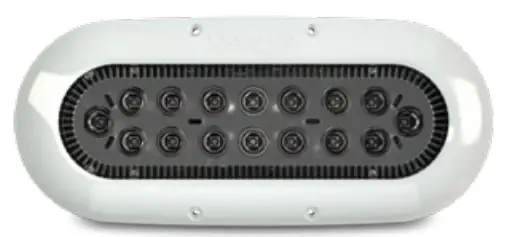

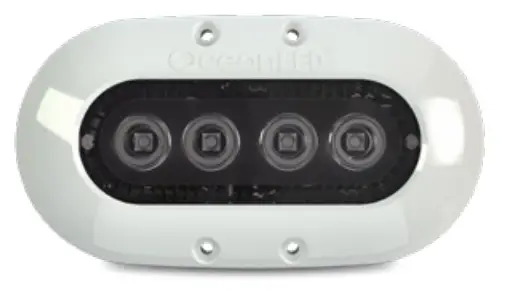

CHOOSE YOUR X SERIES MODEL
X4
#012301W (Ultra White)
- LED Light and Cable
- Fuse Kit
- Mounting Screws
X4
#012302B (Midnight Blue)
- LED Light and Cable
- Fuse Kit
- Mounting Screws

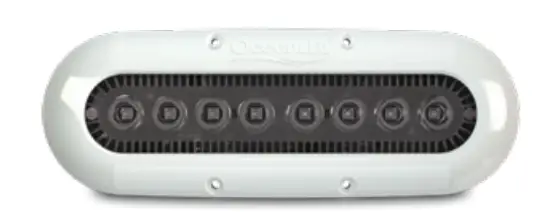

X8
#012304W (Ultra White)
- LED Light and Cable
- Fuse Kit
- Mounting Screws
X8
#012305B (Midnight Blue)
- LED Light and Cable
- Fuse Kit
- Mounting Screws
X16
#012308W (Ultra White)
- LED Light and Cable
- Fuse Kit
- Mounting Screws
X16
#012309B (Midnight Blue)
- LED Light and Cable
- Fuse Kit
- Mounting Screws

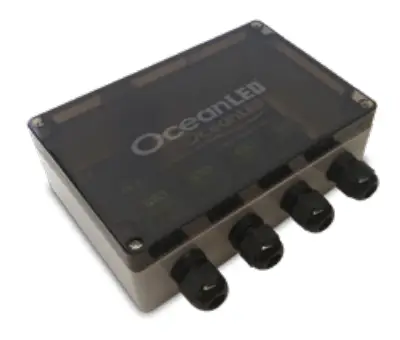

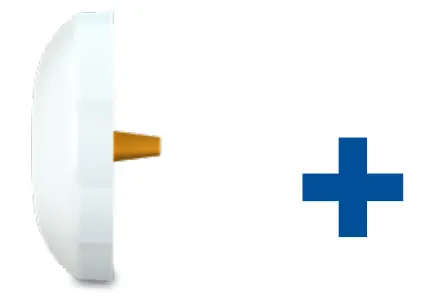

CONNECT POWER & FUSE KIT

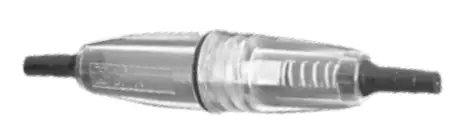

 | Fuse Kit (Included with all models)  |
 | #011702 DMX Junction Box (Included with #011704 X Series Ocean DMX App Controller Kit) |

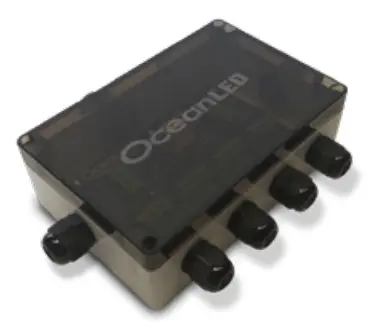

 | #019901 4 Way V DC Power Junction Box |

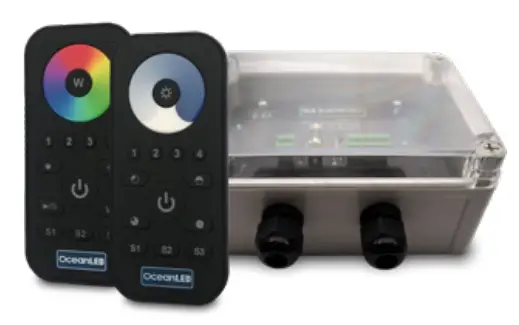

CONTROL VIA SWITCH OR OCEANDMX KIT
 | X4/X8/X16 Single Colour Models 3rd Party control via power switch |
| X8/X16 Colours DMX Models 3rd Party control via power switch |
 | Ocean DMX RC See Ocean DMX RC Product Guide for more information |

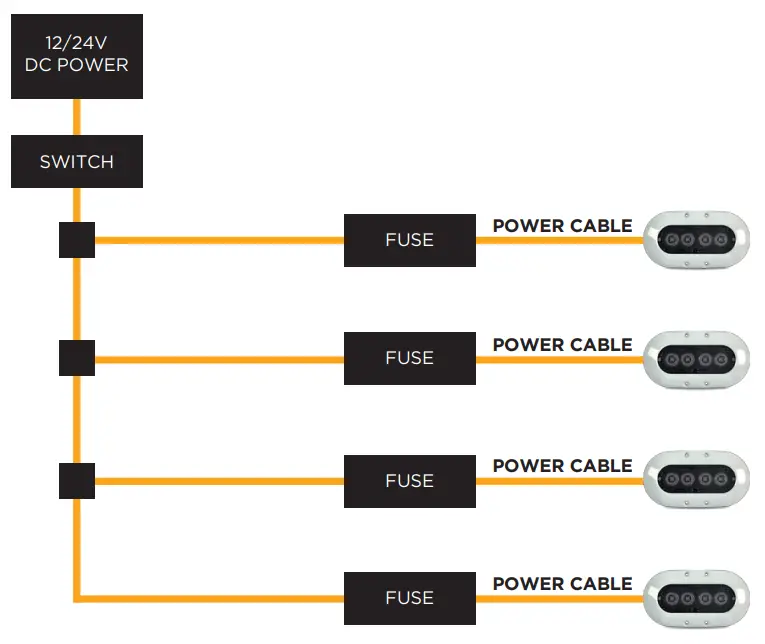

CONTROL / WIRING SCHEMATIC
DMX COLOURS LIGHTING SETUP

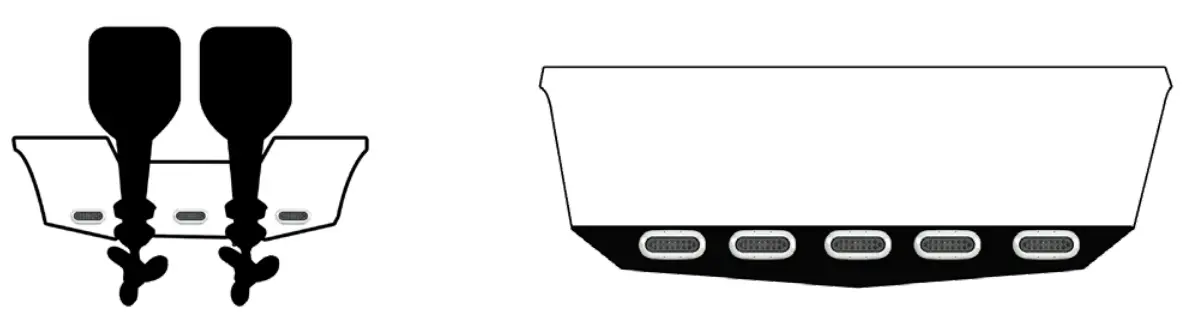

TRANSOM PLACEMENT
Perfect for transoms. Mount underwater, on an even spread around your engines.
EASY TO CLEAN
Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use your boat.

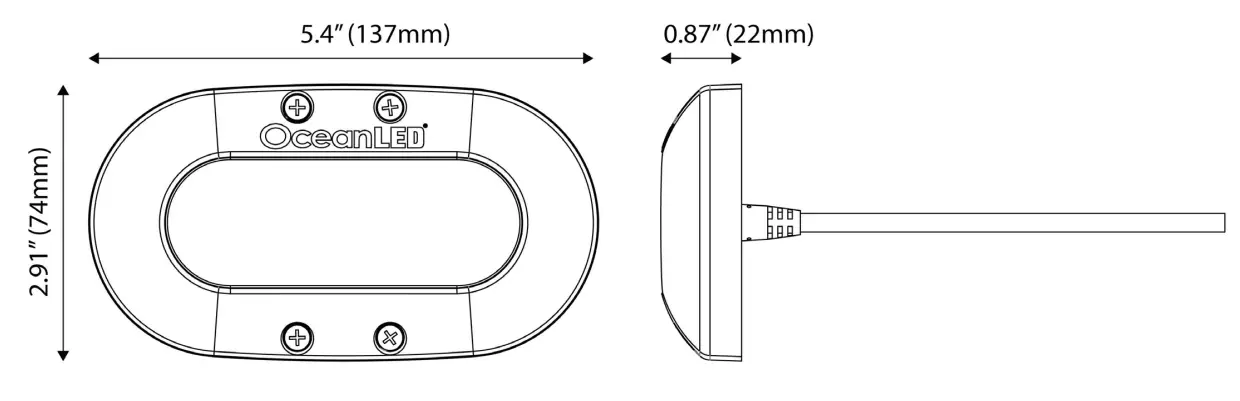

X4 DIMENSIONS

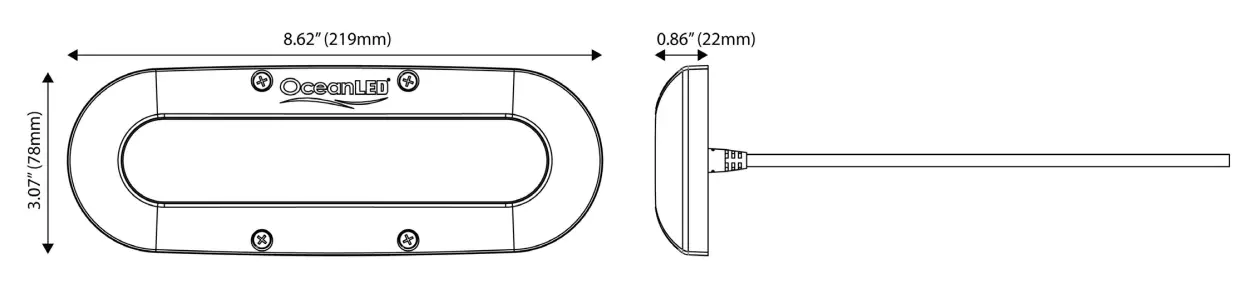

X8 DIMENSIONS

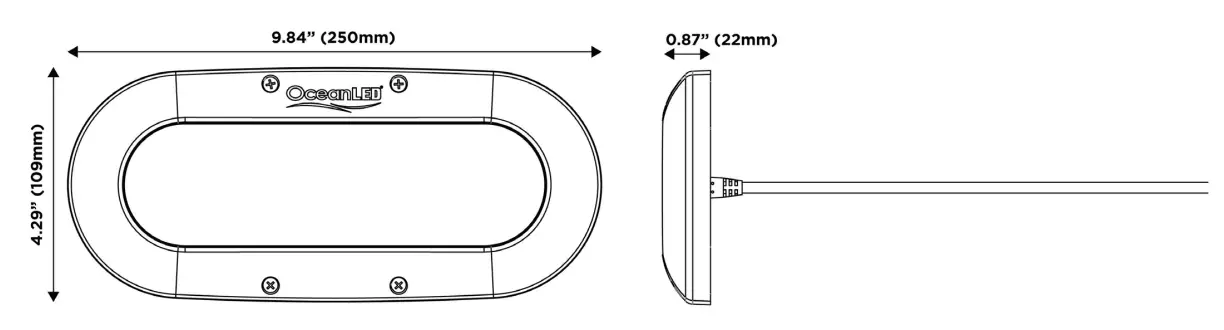

X8 DIMENSIONS
| TECHNICAL | |
| Fixture Lumens (Ultra white) X4 X8 X16 | 1150 2300 4500 |
| Typical LED life expectancy | 40,000+ Hours |
| Minimum-Maximum operating voltage DC | 9-32V DC |
| Current / Amp draw (DC) X4X8 X16 | 12V DC 0.8A 24V DC 0.4A12V DC 1.65A 24V DC 0.75A 12V DC 3.2A |
| Approx. Light penetration (avg. water quality) X4 | 20’ (6m) 26’ (8m) 40’ (12m) |
| Approx. Light penetration (Perfect water quality) X4 X8 X16 | Up to 45’ (13+m) Up to 72’ (21+m) Up to 100’ (30+m) |
| Driver type | Internal, Reverse Polarity Protected |
| PHYSICAL X4 | |
| Total weight X4 X8 X16 | 350g (0.78lbs) 600g (1.32lbs) 860g (1.90lbs) |
| Extension cable length (standard) | 9.84’ (3m) |
| Hole cut-out for cable entry | 0.5” (12.5mm) |
| BOX CONTENTS |
| X-Series LED Light and Cable |
| In-line Fuse Kit |
| Mounting Screws |
| Quick Install Guide |
| ACCESSORIES PART | |
| OceanDMX RC (X8/X16 Colours) App Controller Kit (1-4 Lights) | See OceanDMX RC Product Guide |
| DMX Junction Box (X8/X16 Colours (Required for 5+ OceanDMX Controlled Lights) | 011702 |
| Black Polymer Bezel X4 Black Polymer Bezel X8 Black Polymer Bezel X16 | PLS-000108 PLS-000107 PLS-000017 |
| 316L Stainless Steel Bezel X4 316L Stainless Steel Bezel X8 316L Stainless Steel Bezel X16 | 011416 011417 011418 |
| 4 Way V DC Power Junction Box | 019901 |
| Isolating Mounting Kit | 019913 |
| MOUNTING RECOMMENDATIONS | |
| Boat size X4 X8 X16 | Up to 30’ (9m) Up to 50’ (15m) Up to 65’ (20m) |
| Transom / Hull spacing X4 X8 X16 | 2-3’ (0.5-1m) 2-4’ (0.5-1.2m) 2-4’ (0.5-1.2m) |
| Transom quantity | 2-4 |
| Installation depth (to top of fixture) | 4-8in (10-20cm) |
