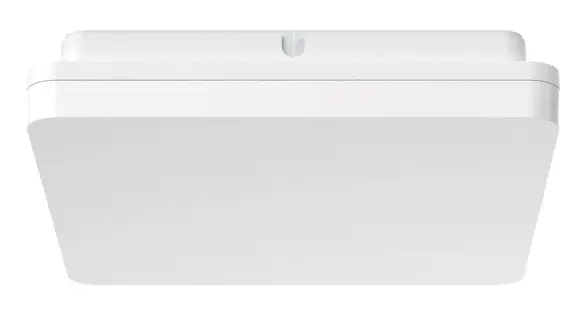

DOMUS LIGHTING SUNSET-SQR-250 Series LED Ceiling Light
Sunset Square
| 20886 | SUNSET-SQR-250 | Square 15W LED ceiling light, TRIO Technology. |
| 20887 | SUNSET-SQR-300 | Square 25W LED ceiling light, TRIO Technology. |
| 20888 | SUNSET-SQR-400 | Square 35W LED ceiling light, TRIO Technology. |
Thank you for purchasing your new LED SUNSET, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.
Specifications
| Voltage: | 240V | CCT: | 3000K – 4000K – 5700K (Switchable) | Dimmable: | Yes* |
| Power: | 15W, 25W, 35W | Beam Angle: | 120° | CRI: | ≥80 |
| IP Rating: | 54 | Lifespan: | 50,000hrs |
Lumen (±5%)
| 15W | 25W | 35W |
| Warm White 3000K – 1430lm Neutral White 4000K – 1520lm White 5700K – 1460lm | Warm White 3000K – 2380lm Neutral White 4000K – 2620lm White 5700K – 2490lm | Warm White 3000K – 3300lm Neutral White 4000K – 3570lm White 5700K – 3380lm |

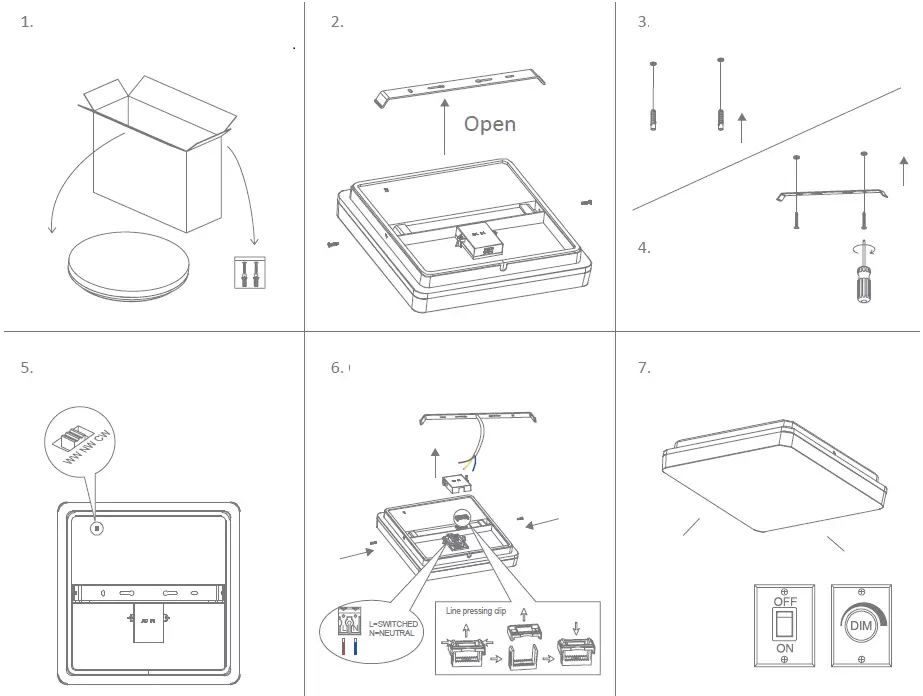

INSTALLATION INSTRUCTION
- Remove ceiling light from the box.
- Remove the side screws and lift the bracket.
- Install the bracket onto the ceiling.
- Install the bracket onto the ceiling & fix it with screws provided.
- Select the desired colour temp.
- Connect to power and use the clip to fix the cable in place.
- Switch on the power.
Note: –The lamp must be installed by professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
