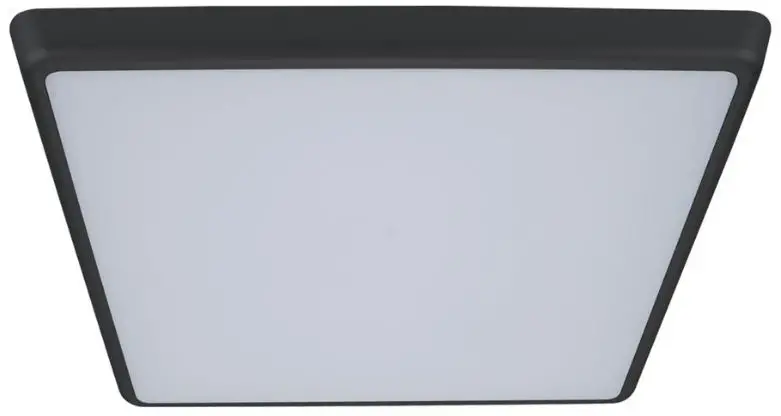

DOMUS SOLAR-SQR-400 Colour Switchable Led Ceiling Light
Product Information
SOLAR-SQR-400
Order Code | Product Code | Description |
| 20945 | SOLAR-SQR-400-WHT-TRIO | 35W Ceiling Light Oyster, TRIO Technology. Satin White Finish |
| 20947 | SOLAR-SQR-400-BLK-TRIO | 35W Ceiling Light Oyster, TRIO Technology. Black Finish |
Thank you for purchasing your new LED SOLAR-SQR-300, Please take the time to read and understand the instruction sheet below. Failure to do so may void the warranty.
Specifications
| Voltage: | AC 240V | Lumen (±5%): | Warm White 3000K – 3000lm Neutral White 4000K – 3050lm White 5000K – 3100lm | Dimmable: | Yes |
| Power: | 35W | Beam Angle: | 120° | Operating Temp: | -20°C~45°C |
| IP Rating: | 54 | CCT: | 3000K – 4000K – 5700K (Switchable) | Power Factor: | ≥0.9 |
| CRI: | ≥80 | Lifespan: | 40,000hrs |
Installation

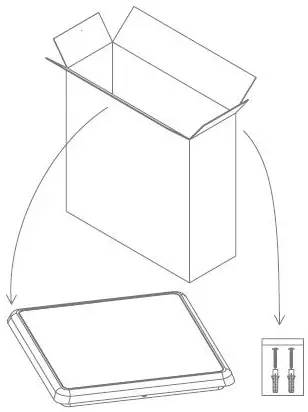

- Take out the ceiling light and accessory pack from the box.
- Knock in the plastic anchor into ceiling.

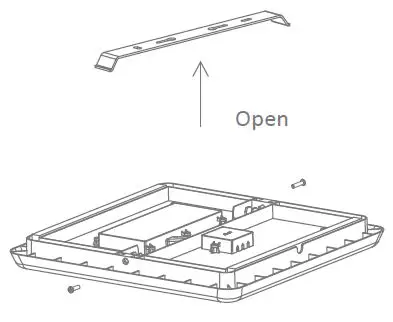

- Remove the screw, and take out the bracket.

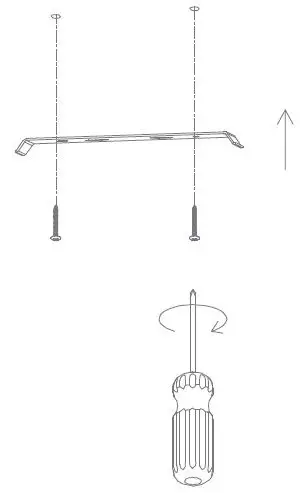

- Fix the bracket with a screw into the ceiling.
- Open the junction box, wire“L” and “N” to the terminal block, and mount the ceiling light in the right place.

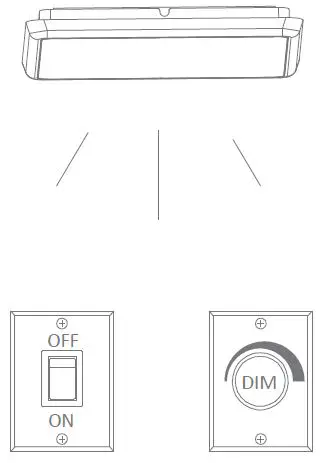

- Switch on
Note:
- The lamp must be installed by a professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
