Anslut 019722 Solar Cell Light Led Instruction Manual

anslut 019722 Solar Cell Light LED Instruction Manual

SYMBOLS

• Read the instructions.

• Approved in accordance with the relevant directives.

• Recycle discarded product in accordance with local regulations.


TECHNICAL DATA

• Output 0.015 W
• Colour temperature 3000 K
• Luminous flux 0.8 lm
• Protection rating IP44
• Battery technique NiMH
• Battery type AAA
• Battery capacity 100 mAh
• Voltage 1.2 V
• Size L8 x W4.5 x H4.3 cm

DESCRIPTION

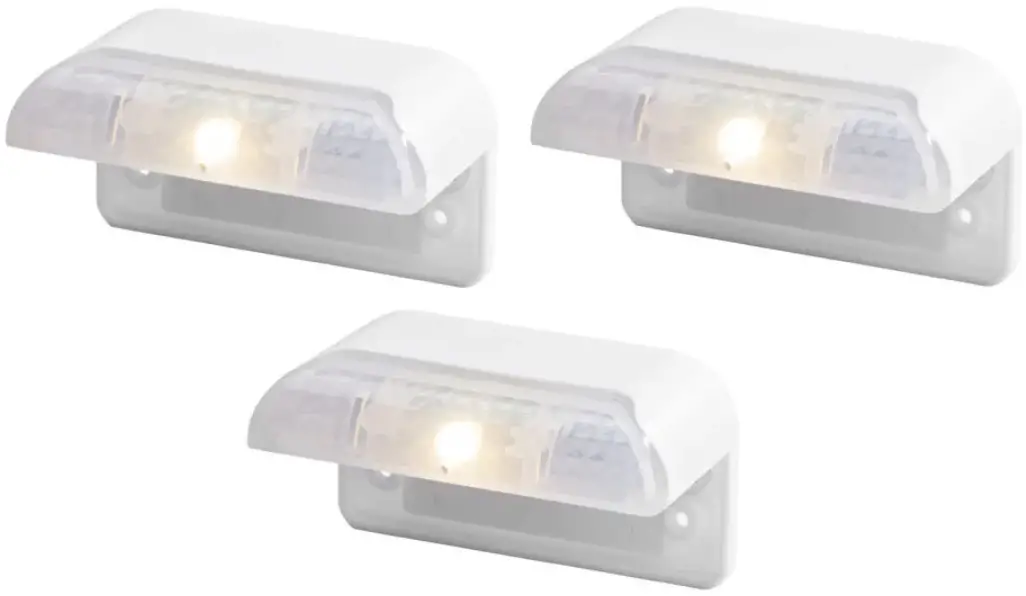

Handy solar cell lamps that fasten round a handrail or railing. The lamps have twilight sensors and automatically switch on when darkness falls. Run on rechargeable AAA batteries (included).

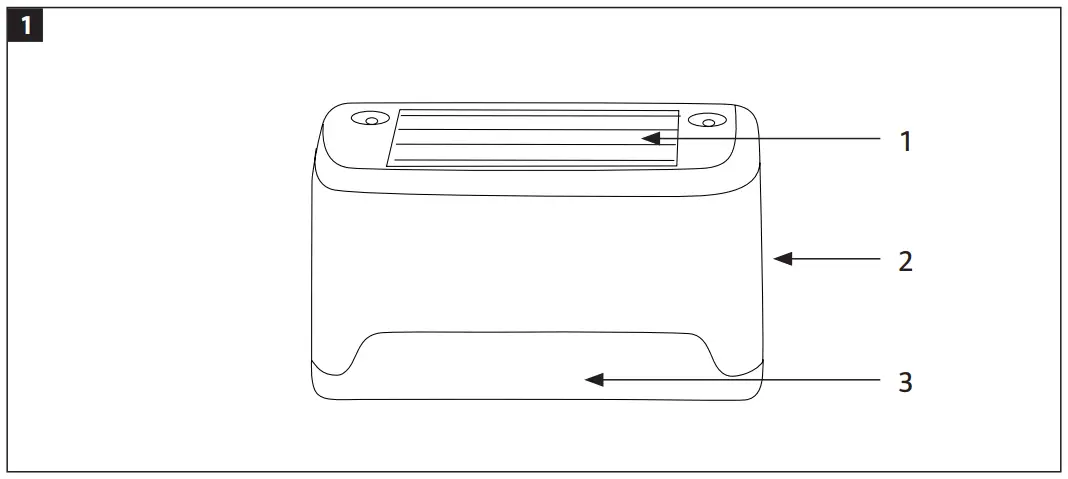

FIG. 1

1. Solar panel
2. Casing
3. Light source

SOLAR CELL POWERED LIGHT

• The product runs on solar energy via the built-in solar panel.
• The solar panel converts solar energy to electrical energy, which is used to charge the rechargeable AA battery (NiMH).
• The light switches on automatically when it goes dark, and switches off in daylight.
• How long the light stays on depends on how long the solar panel has been exposed to sunlight.
  • Long exposure to sunlight produces longer lighting up.
  • For best functionality, place the product so that it is exposed to sunlight and is therefore charged for as long as possible.
  • With maximum exposure to sunlight the light will shine for up to 8 hours.

ASSEMBLY

Read all the instructions carefully before assembly.

1. Carefully remove all the parts from the packaging.

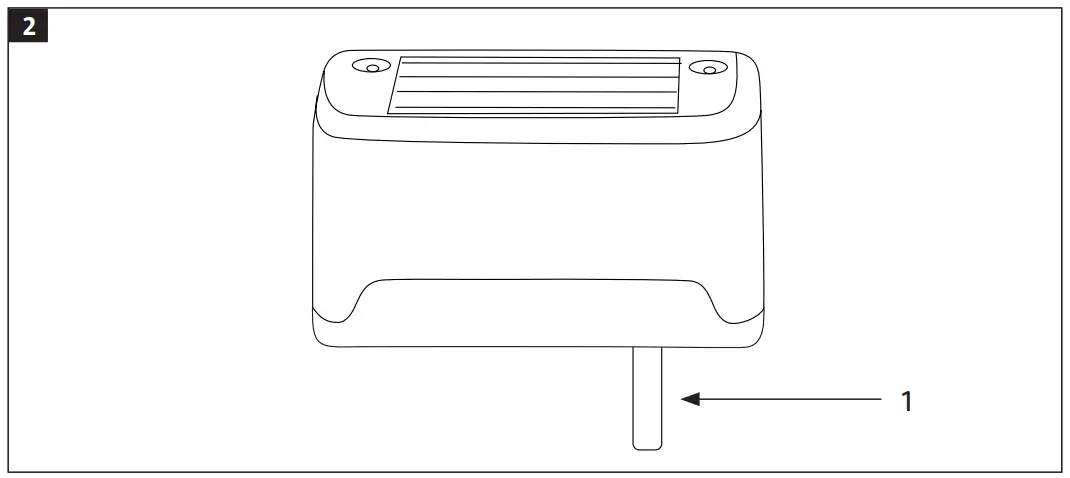

2. Start the product by pulling off the plastic tab between the battery and the contact plate.
   FIG. 2

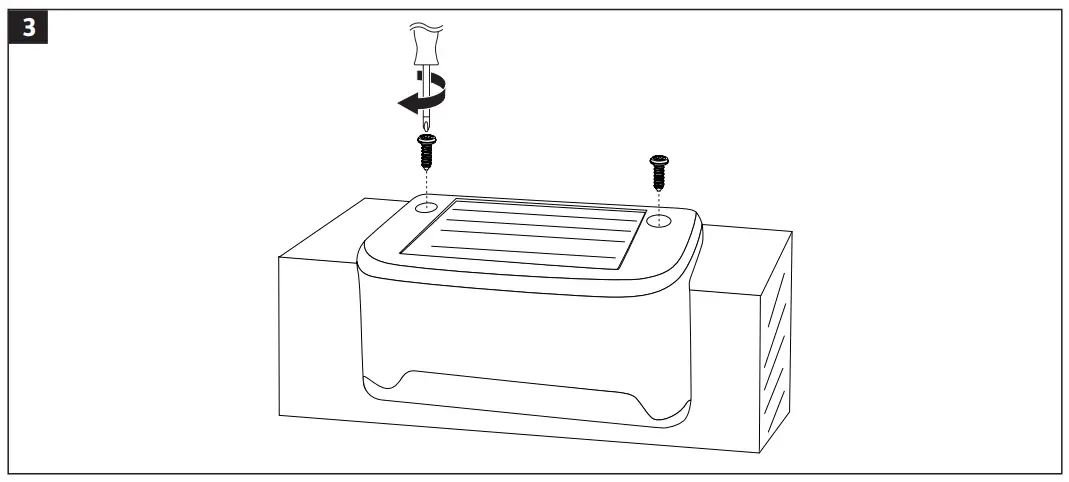

3.  Place the product in the required place.
   FIG. 3



MAINTENANCE

REPLACING THE BATTERY

1. Follow the instructions to replace the rechargeable AAA battery (NiMH).

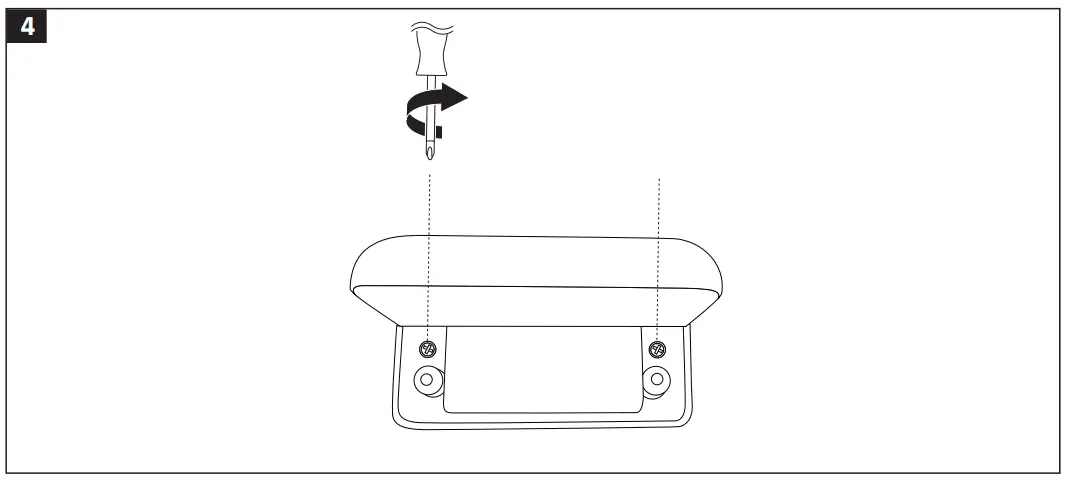

2. Unscrew the screws on the bottom of the casing with a screwdriver and open the battery cover.
   FIG. 4

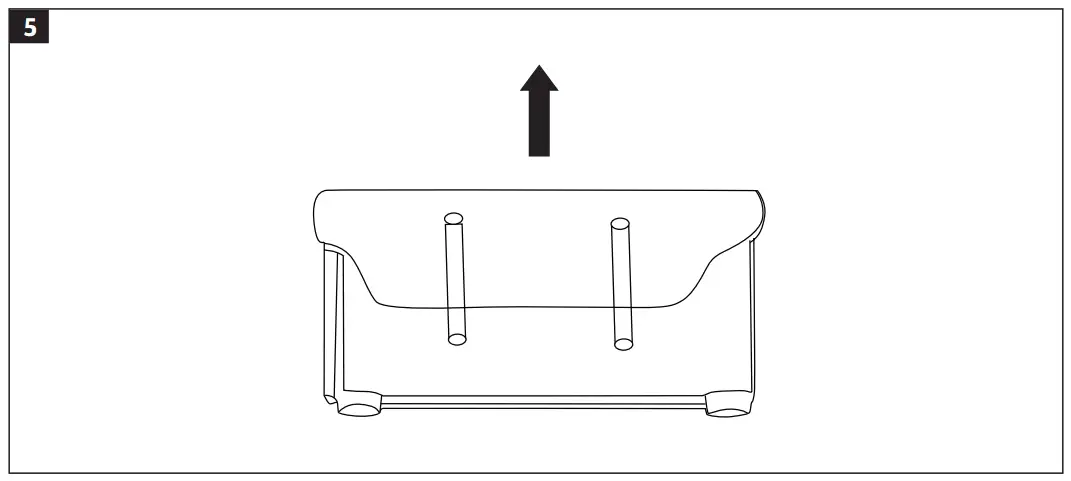

   FIG. 5

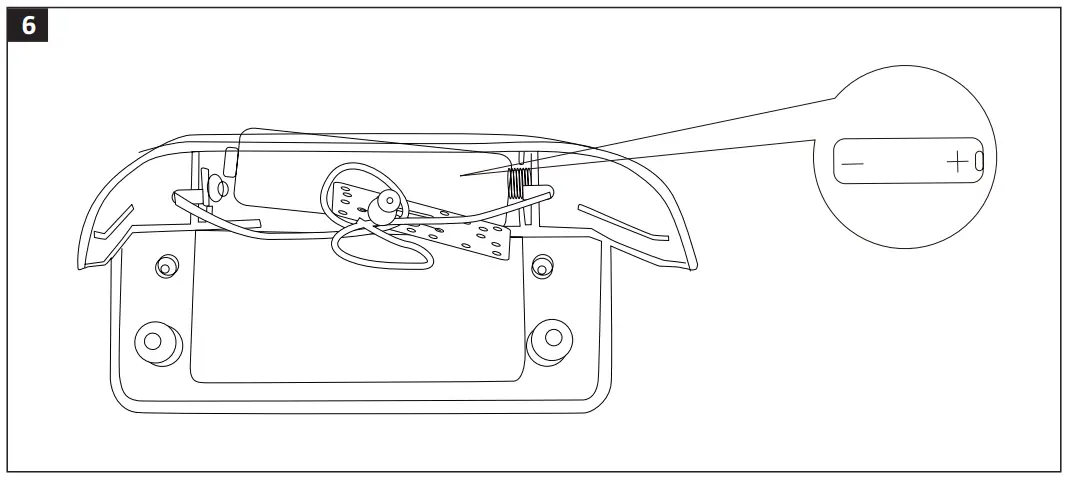

3. Replace the battery with a new one of the same type (rechargeable AAA battery, 1.2 VDC, 100 mAh, NiMH).
   FIG. 6


4. Replace the battery cover and firmly tighten the screws.

IMPORTANT:

• Do not mix old and new batteries.
• Do not mix alkaline batteries with ordinary batteries or rechargeable batteries (NiCd, NiMH etc.).
