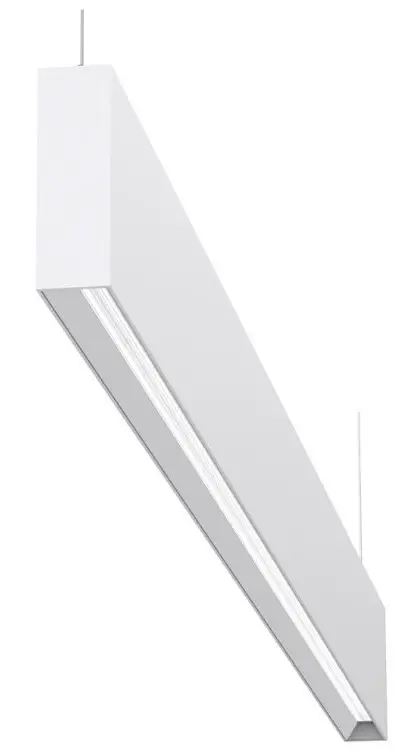

DOMUS MAX-35 Linear Pendant Light
Installation
MAX-35
Thank you for purchasing your new MAX-35 Pendant Light, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.
Specifications
| Voltage: | 240V | Power (W): | 30W | 40W |
| IP Rating: | 20 | Lumens (lm): “Opal” | WW 3000K – 2800lm NW 4000K – 3000lm W 5700K – 3050lm | WW 3000K – 3500lm NW 4000K – 3700lm W 5700K – 3750lm |
| LED Type: | SMD | Lumens (lm): “Honeycomb” | WW 3000K – 1050lm NW 4000K – 1200lm W 5700K – 1400lm | WW 3000K – 1500lm NW 4000K – 1700lm W 5700K – 1900lm |
| CCT: | 3000K – 4000K – 5700K | Beam Angle: | 80º (Opal) 60º (Honeycomb) | |
| CRI: | ≥80 | Dimmable: | Fully dimmable with suitable dimmers | |
| Lifespan (hrs): | 50,000hrs | |||

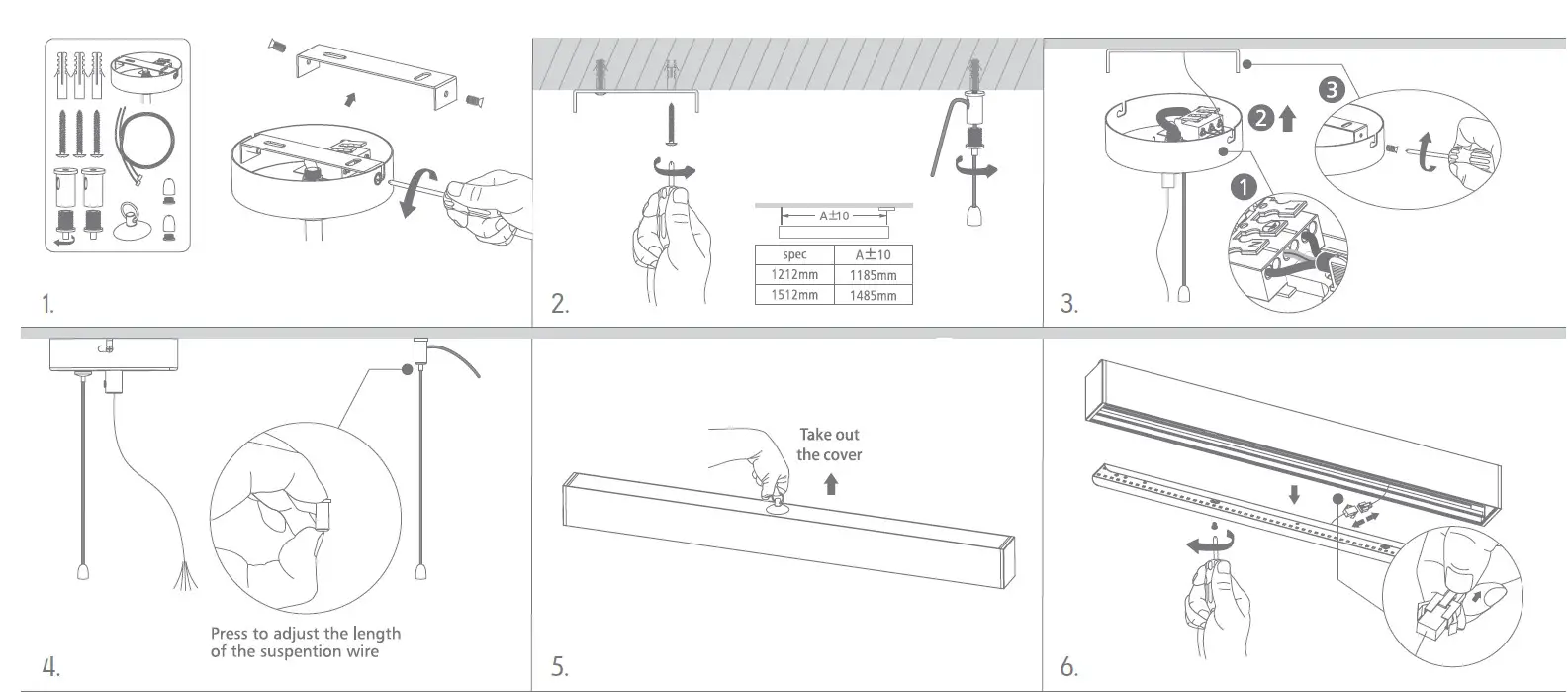

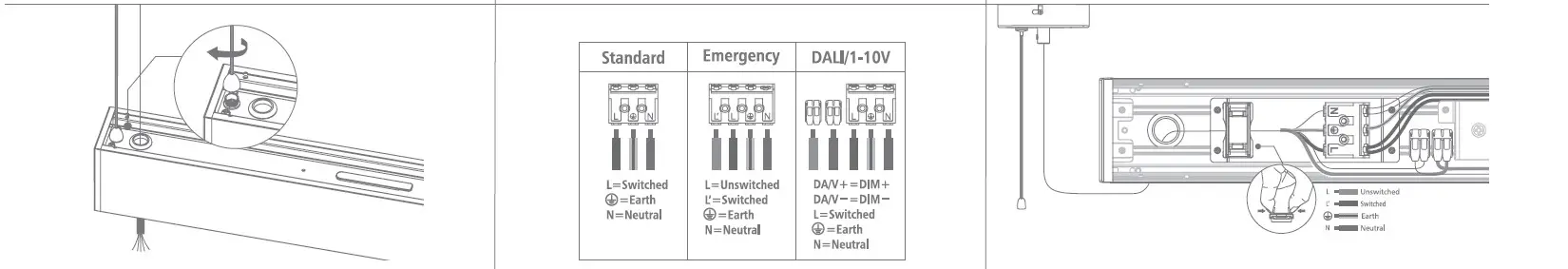

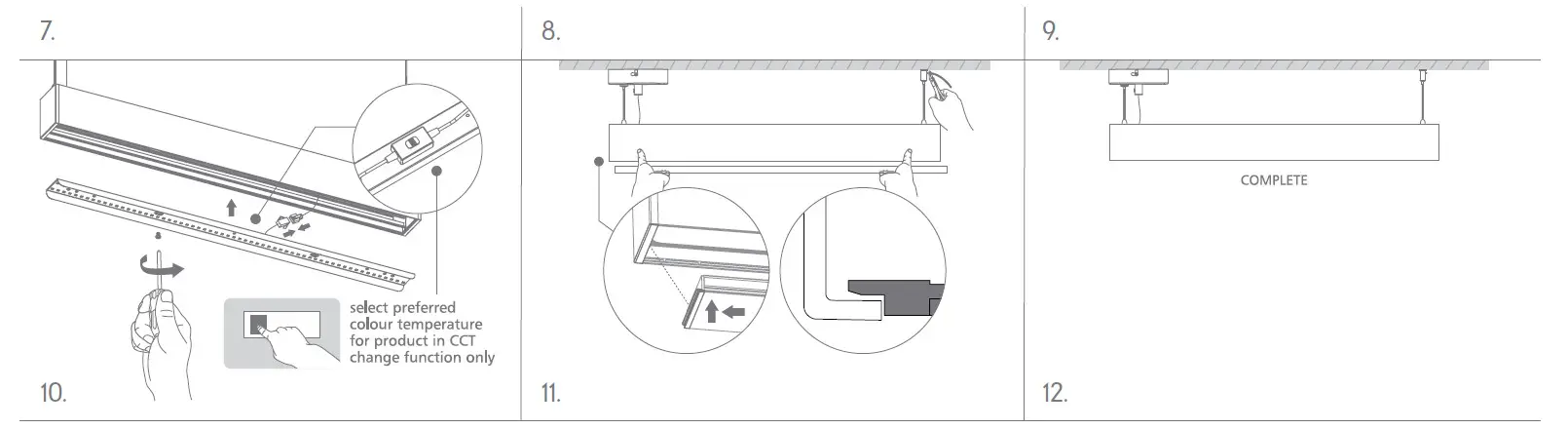

Instructions

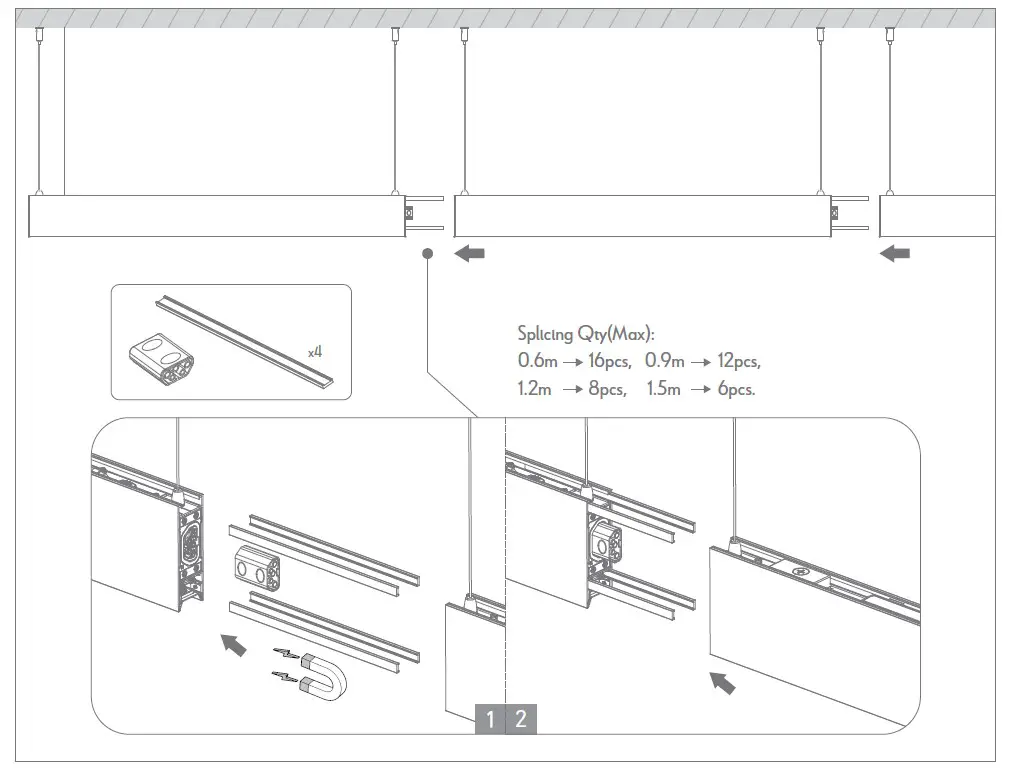

Extension Adaptor
Note:
- The lamp must be installed by a professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
