Hue Xamento Led Light
Installation Guide
Hue Xamento Led Light
Warnings
Always make sure the luminaire is detached from the mains socket
Always make sure the DC cable is detached from the power supply
Staring at the operating light source may cause eye injury
| # | Disassemble/dismantle steps | Tools needed |
| a | Press and rotate diffuser [19] by hand counter clockwise until it unsnaptift the diffuser up to remove it from base [14] | |
| b | Unscrew one nut [5] and remove washer [10], tooth washer [3] and reflector [16] from diffuser [19] | SOCKET WRENCH |
| c | Remove deco ring [13] by lifting up from the base [14] | |
| d | Unplag flat cable from Light source – hue connect [2] and Light source – led strip [8] | |
| e | Unplag wires of the control gear – psu [9] from light source-hue connect [2] | FLATHEAD SCREWDRIVER OR WAGO TOOL #2065 |
| f | Unscrew one screw [1] and remove light source-hue connect [2] | TORXHEAD SCREW DRIVER T10 |
| g | Unscrew 4 screws [1] and remove heat sink [12] with light source – led strip [8] | TORXHEAD SCREW DRIVER T10 |
| h | Unstick light source – led strip [8] from heat sink [12] | |
| I | Rotate bracket [15] by hand counter clockwise until it unsnap.Lift bracket up to remove it from base[14] | |
| j | Unscrew 1 screw [7] and remove terminal block [11] and foil [20] | TORXHEAD SCREW DRIVER T10 |
| k | Unscrew 1 screw [6] and remove suspension cable [18] and washer [10] from base [14] | TORXHEAD SCREW DRIVER T10 |
| I | Unscrew 1 screw [4] and remove it from bracket [15] | CROSSHEAD SCREWDRIVER PZ |
| in | Unscrew 2 screws [6] and remove control gear-psu [9] from base [14] | TORXHEAD SCREW DRIVER T10 |

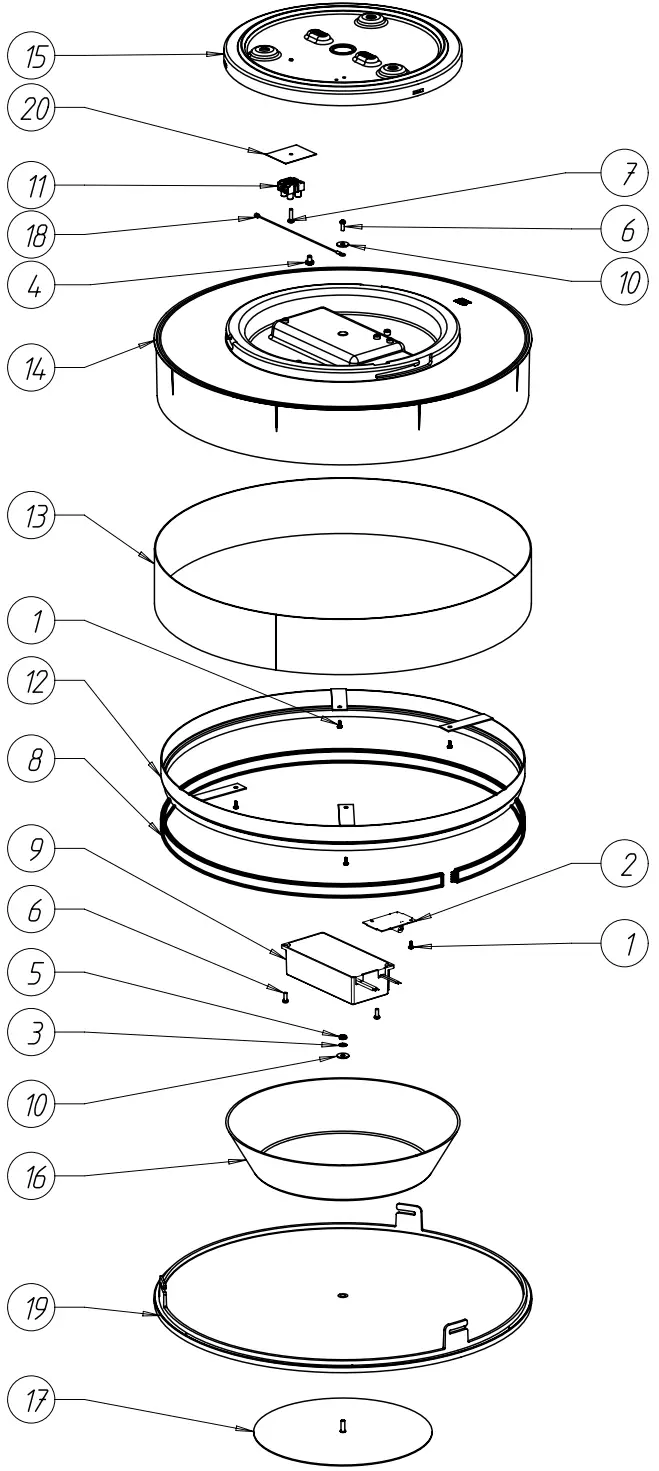

| # | COMPONENT | QTY |
| 1 | Screw | 5 |
| 2 | Light source – hue connect | 1 |
| 3 | Washer | 1 |
| 4 | Screw | 1 |
| 5 | Nut | 1 |
| 6 | Screw | 3 |
| 7 | Screw | 1 |
| 8 | Light source – led strip | 1 |
| 9 | Control gear – psu | 1 |
| 10 | Washer | 2 |
| 11 | Terminal block | 1 |
| 12 | Heat sink | 1 |
| 13 | Deco ring | 1 |
| 14 | Base | 1 |
| 15 | Bracket | 1 |
| 16 | Reflector | 1 |
| 17 | Deco plate | 1 |
| 18 | Suspension cable | 1 |
| 19 | Diffuser | 1 |
| SKU | Color | Country |
| 915005997801 | White | EU/UK |
| 915005997201 | Black | EU/UK |
| 915005997301 | White | EU/UK |
FOR LIGHT SOURCE-LED STRIP REMOVAL PLEASE SEE DOCUMENT “200604 – Instruction LED Strip Removal Procedure”
