Hue Adore White BT Ambiance Bathroom Light
Installation Guide
Hue Adore White BT Ambiance Bathroom Light
Warnings
Always make sure the luminaire is detached from the mains socket
Always make sure the DC cable is detached from the power supply
Staring at the operating light source may cause eye injury.
| # | Disassemble/dismantle steps | Tools needed |
| a | Remove Mirror [5] from Lamp body [3] | |
| b | Unscrew 8pcs Screws [10] and remove Diffuser [9] from Lamp body [3] | screwdriver |
| c | Unscrew 3pcs Screws [13] and remove Junction box cover [6] from Junction box [7] | screwdriver |
| d | Unscrew 2pcs Screws [14] and remove Hue Connect [2] from Junction box [7] | screwdriver |
| e | Remove Driver [1] from Junction box [7] | |
| I | Remove LED strip [8] from Lamp body [3] |

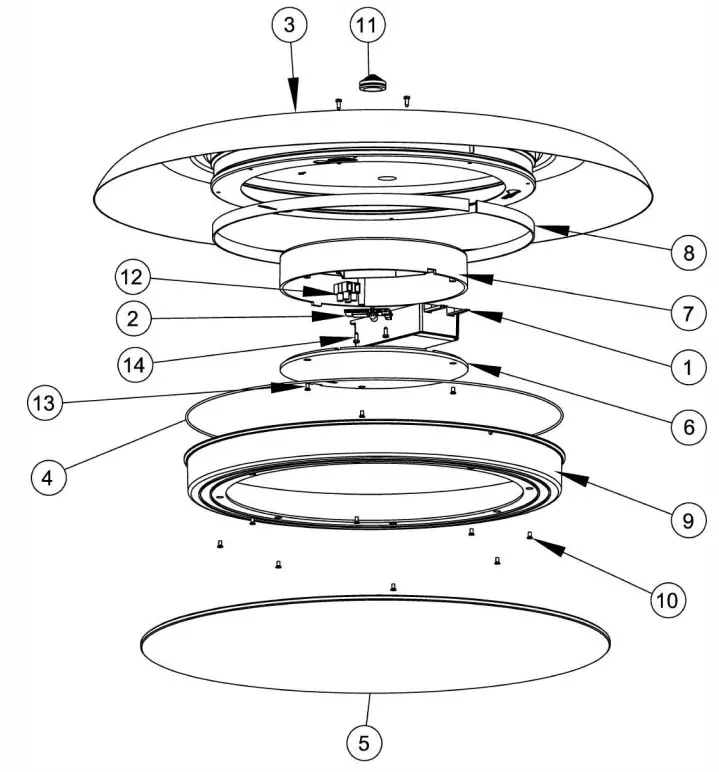

| # | COMPONENT | QTY |
| 1 | Driver | 1 |
| 2 | Hue Connect | 1 |
| 3 | Lamp body | 1 |
| 4 | Silicone ring | 1 |
| 5 | Mirror | 1 |
| 6 | Junction box cover | 1 |
| 7 | Junction box | 1 |
| 8 | LED strip | 1 |
| 9 | Diffuser | 1 |
| 10 | Screw | 8 |
| 11 | Water proof plug | 1 |
| 12 | Terminal block | 1 |
| 13 | Screw | 3 |
| 14 | Screw | 2 |
FOR LIGHT SOURCE-LED STRIP REMOVAL PLEASE SEE DOCUMENT 442295215544_L2 Removal and Test lnstuction Flex LED Strip
| STATUS | DESCRIPTION 929003056801 Adore Hue ceiling lamp chrome 1x27W 24V DOC 12NC | DESIGN ID | 2021-09.02 | |
| NAME Li Ba | LOCAL PART ID 1 | 1 | A3-L | |
| I CHECKED | DATE 2021-09-02 | |||
