Centris BT Ceiling Spot Light
Installation Guide
Hue Centris BT Ceiling Spot Light
Warnings
– Always make sure the luminaire is detached from the mains socket
– Always make sure the DC cable is detached from the power supply
– Staring at the operating light source may cause eye injury

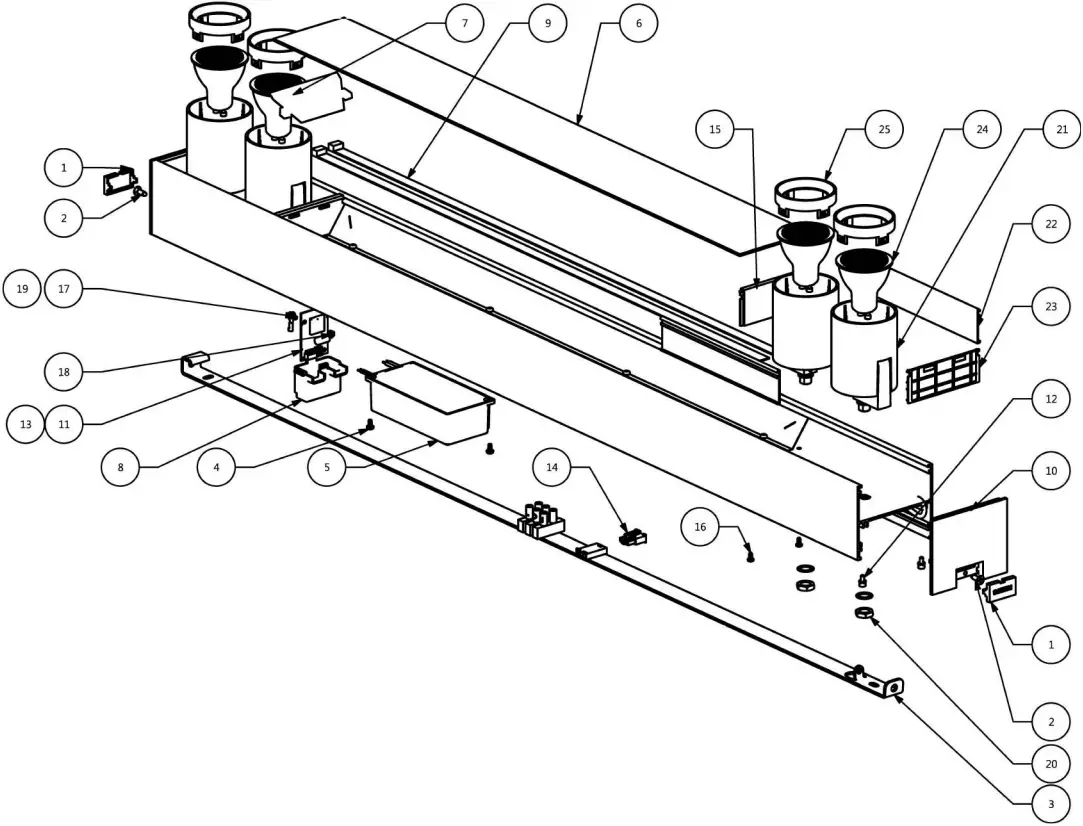

| # | COMPONENT | QTY |
| 1 | COVER | 2 |
| 2 | SCREW | 2 |
| 3 | BRACKET | 1 |
| 4 | SCREW | 2 |
| 5 | CONTROL GEAR – PSU | 1 |
| 6 | DIFFUSER | 1 |
| 7 | REFLECTOR | 1 |
| 8 | COVER | 1 |
| 9 | LIGHT SOURCE – LED STRIP | 2 |
| 10 | END CAP | 1 |
| 11 | CONTROL GEAR- HUE CONNECT | 1 |
| 12 | SCREW | 2 |
| 13 | CONNECTION CABLE | 1 |
| 14 | TERMINAL BLOCK | 1 |
| 15 | COVER | 1 |
| 16 | SCREW | 1 |
| 17 | SCREW | 1 |
| 18 | NUT | 1 |
| 19 | WIRE | 1 |
| 20 | NUT | 2 |
| 21 | TUBE | 2 |
| 22 | COVER | 2 |
| 23 | COVER | 1 |
| 24 | GU 10 BULB | 4 |
| 25 | COVER | 4 |
| # | Disassembly Instructions | Tools needed |
| a | REMOVE BOTH COVERS (1) GENTLY LIFTING THEM OUT | FLATHEAD SCREWDRIVER |
| b | UNSCREW BOTH SCREWS (2) | CROSSHEAD SCREWDRIVER PZ |
| c | DISCONECT TERMINAL BLOCK (14) SILDING IT OUT AT THE SAME TIME PUSHING SAFETY LEVER ON IT | |
| d | TAKE A SIDE BRACKET (3) UNHOOKING IT FROM END CAPS | – |
| e | REMOVE MARKED END CAP (10) BY UNSCREWING BOTH SCREWS (12) | TORXHEAD SCREW DRIVER T10 |
| f | REMOVE COVER (23) AND SLIDE OUT COVER (22) | |
| g | UNSCREW BOTH TUBES (21) BY UNSCREWING NUTS (20) | SOCKET WRENCH |
| h | REMOVE COVER (15) BY UNSCREWING BOTH SCREWS (16) | CROSSHEAD SCREWDRIVER PZ |
| i | SLIDE OUT DIFFUSER (6) | |
| j | SLIDE OUT REFLECTOR (7) | |
| k | UNPLUG CONNECTION CABLES (13) FROM BOTH LIGHT SOURCE-LED STRIPS (9) | |
| I | REMOVE LIGHT SOURCE-LED STRIPS (9) ACCORDING INSTRUCTION 442295215544 J2 REMOVAL AND TEST INSTRUCTION FLEX LED STRIP | SEE INSTRUCTION |
| m | REMOVE THE COVER (8) BY TILTING IT FORWARD WHILE SQUEEZING IT WITH YOUR FINGER BETWEEN THE CABLE EXITS | |
| n | SLIDE OUT CONTROL GEAR – HUE CONNECT (11) FROM THE COVER (8) | |
| o | UNPLUG CONNECTION CABLE (13) AND POWER WIRES FROM CONTROL GEAR – HUE CONNECT (11) | WAGO TOOL #2065 |
| p | DETACH WIRE (19) BY UNSCREWING SCREW (17) FROM NUT (18) | ALLEN KEY, PINCER |
| r | CUT OUT MAIN WIRES OF CONTROL GEAR PSU (5) | CUTTING PLIERS |
| s | REMOVE CONTROL GEAR PSU (5) BY UNSCREWING BOTH SCREWS (4) | ALLEN KEY |
| t | REMOVE COVERS (25) BY ROTATING THEM AND PULLING OUT FROM TUBES (21) | |
| u | REMOVE GU 10 BULBS (24) ROTATING THEM OUT |
| SKU | Color | Country |
| 9.15E+11 | WHITE | EU/UK |
| 9.15E+11 | BLACK | EU/UK |
| STATUS | DESCRIPTION Centris Hue special form 4.7W white/black -Disassembly instruction | DESIGN ID 03 | 2021-08-04 | |||
| DOC 12NC | ||||||
| NAME T.O. | LOCAL PART ID 096940 | SH. 1 | A3-L | |||
| CHECKED | DATE 2021-08-04 | |||||
