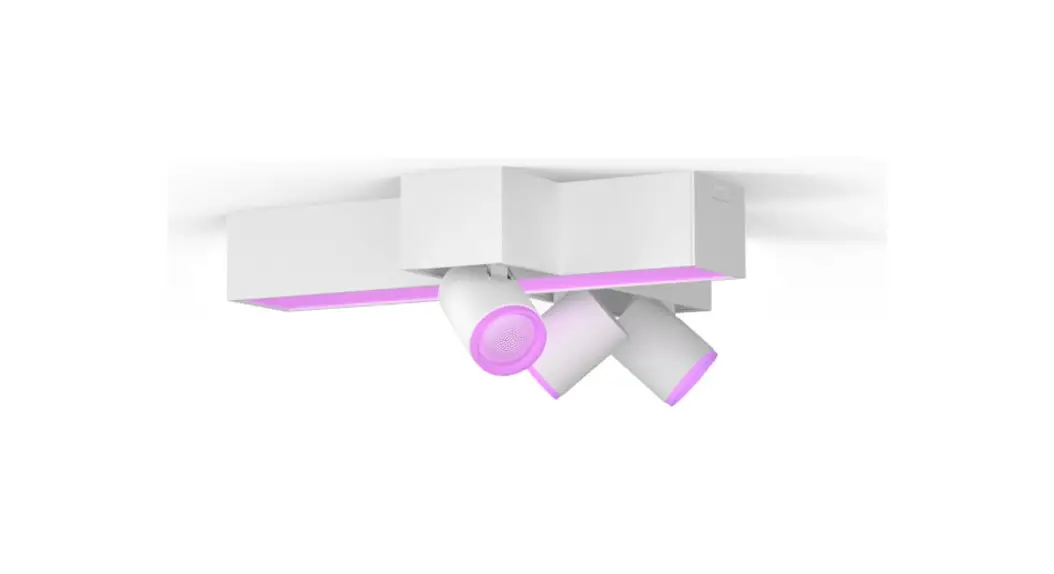

Centris BT Ceiling Spotlight
Installation Guide
Hue Centris BT Ceiling Spotlight

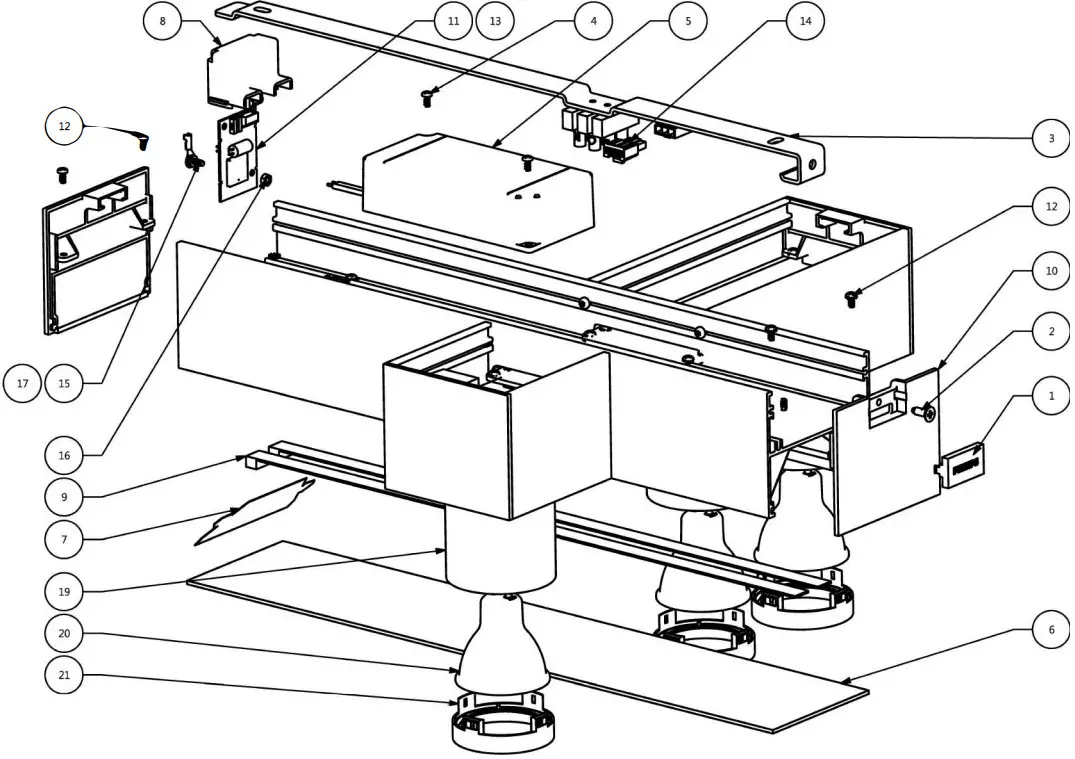

| # | COMPONENT | QTY |
| 1 | COVER | 2 |
| 2 | SCREW | 2 |
| 3 | BRACKET | 1 |
| 4 | SCREW | 2 |
| 5 | CONTROL GEAR – PSU | 1 |
| 6 | DIFFUSER | 1 |
| 7 | REFLECTOR | 1 |
| 8 | COVER | 1 |
| 9 | LIGHT SOURCE – LED STRIP | 2 |
| 10 | END CAP | 1 |
| 11 | CONTROL GEAR – HUE CONNECT | 1 |
| 12 | SCREW | 4 |
| 13 | CONNECTION CABLE | 1 |
| 14 | TERMINAL BLOCK | 1 |
| 15 | SCREW | 1 |
| 16 | NUT | 1 |
| 17 | WIRE | 1 |
| 18 | END CAP | 1 |
| 19 | TUBE | 3 |
| 20 | GU 10 BULB | 3 |
| 21 | COVER | 3 |
| SKU | Color | Country |
| 9.15E+11 | WHITE | EU/UK |
| 9.15E+11 | BLACK | EU/UK |
Warnings
Always make sure the luminaire is detached from the mains socket Always make sure the DC cable is detached from the power supply Staring at the operating light source may cause eye injury
| # | Disassembly Instructions | Tools needed |
| a | REMOVE COVER (1) GENTLY LIFTING THEM OUT | FLATHEAD SCREWDRIVER |
| b | UNSCREW SCREW (2) | CROSSHEAD SCREWDRIVER PZ |
| c | DISCONECT TERMINAL BLOCK (14) SILDING IT OUT AT THE SAME TIME PUSHING SAFETY LEVER ON IT | – |
| d | TA KE A SIDE BRACKET (3) UNHOOKING IT FROM END CAP (10) | – |
| e | REMOVE BOTH END CAPS (10) (18) BY UNSCREWING SCREWS (12) | TORXHEAD SCREW DRIVER T10 |
| f | SLIDE OUT DIFFUSER (6) | |
| g | PULL OUT REFLECTOR (7) | |
| h | UNPLUG CONNECTION CABLES (13) FROM BOTH LIGHT SOURCE-LED STRIPS (9) | |
| i | REMOVE LIGHT SOURCE-LED STRIPS (9) ACCORDING INSTRUCTION 442295215544_L2 REMOVAL AND TEST INSTRUCTION FLEX LED STRIP | |
| j | REMOVE THE COVER (8) BYTILTING IT FORWARD WHILE SQUEEZING IT WITH YOUR FINGER BETWEEN THE CABLE EXITS | |
| k | SLIDE OUT CONTROL GEAR – HUE CONNECT (11) FROM THE COVER (8) | |
| l | UNPLUG CONNECTION CABLE (13) AND POWER WIRES FROM CONTROL GEAR – HUE CONNECT (11) | WAGO TOOL #2065 |
| m | DETACH WIRE (19) BY UNSCREWING SCREW (17) FROM NUT (18) | ALLEN KEY, PINCER |
| n | CUT OUT MAIN WIRES OF CONTROL GEAR PSU (5) | CUTTING PLIERS |
| o | REMOVE CONTROL GEAR PSU (5) BY UNSCREWING BOTH SCREWS (4) | ALLEN KEY |
| p | REMOVE COVERS (21) BY ROTATING THEM AND PULLING OUT FROM TUBES (19) | |
| r | REMOVE GU 10 BULBS (20) ROTATING THEM OUT |
| STATUS | DESCRIPTION Centris Hue Cross special form 3×5.7W white/black – Disassembly instruction | DESIGN ID 04 | 2021-08-04 | ||||
| DOC 12NC | |||||||
| NAME T.O. | LOCAL PART ID 096939 | ISH. 1 | SH. 511 | A3-L | |||
| CHECKED | DATE 2021-08-04 | CONFIDENTIAL PROPERTY OF: CO 2021 Signify Holding | |||||
