PHILIPS Enrave L Hue Ceiling Lamp
IMPORTANT SAFETY INSTRUCTIONS

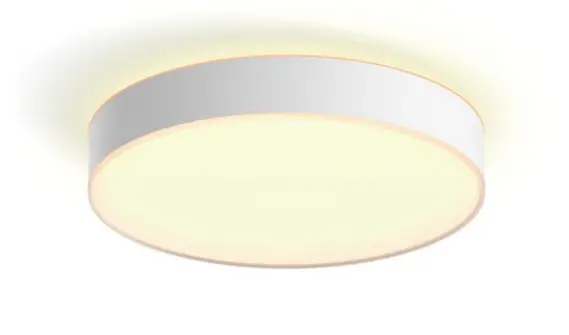

Product appearance may vary from image shown.
CAUTION – RISK OF FIRE
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED. DANGER – RISK OF SHOCK – DISCONNECT POWER BEFORE INSTALLATION.

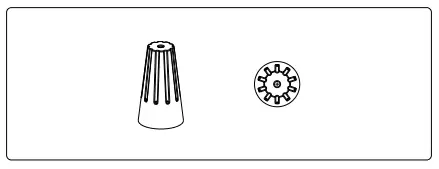

Wire Connectors Instructions:

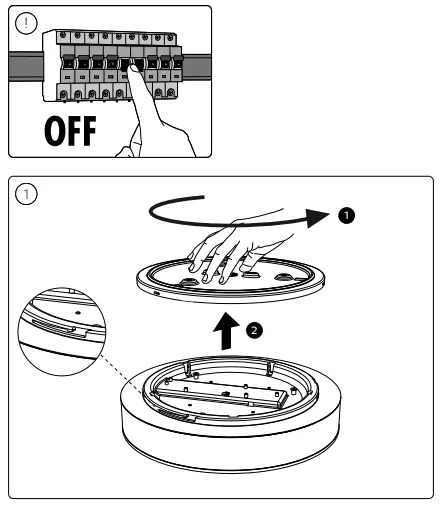

- Turn off power before installing or removing connectors.
- Strip wires 5/16″(7.9mm). For #16 and smaller wires, strip 3/8″(9.5mm).
- Pre-twisting unnecessary, hold stripped wires together with ends even. Lead stranded wires slightly.
- Align any frayed strands or conductors.

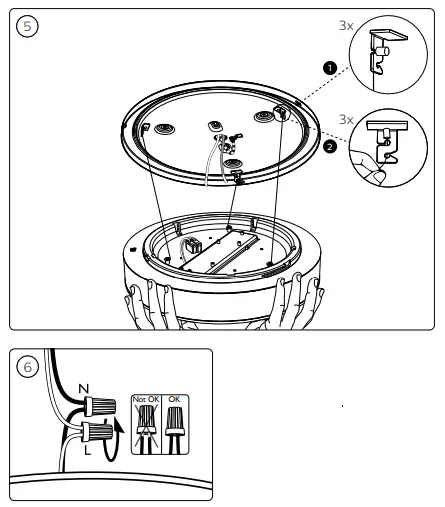

- Push wires into connector and screw on until two twists are visible in wires.
For use with copper to copper conductor
Temperature Rating: 105°C(221 °F) Max.
Voltage Rating: 600V Max. buliding wiring; 1000V Max. in fixtures and signs
Listed as a PRESSURE-TYPE wire connector on the following Solid and /or Stranded wire combinations:
For UL Listed, CSA and CQC Certified
