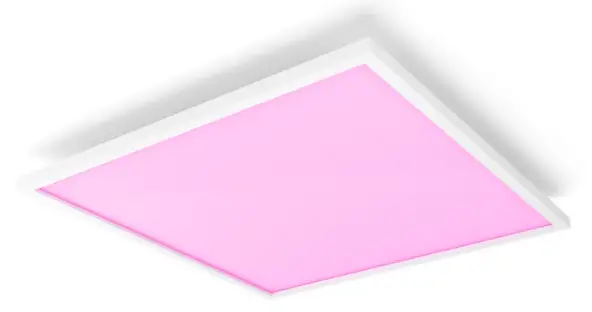

PHILIPS Hue 92002966401 White and Colored Light Surimu

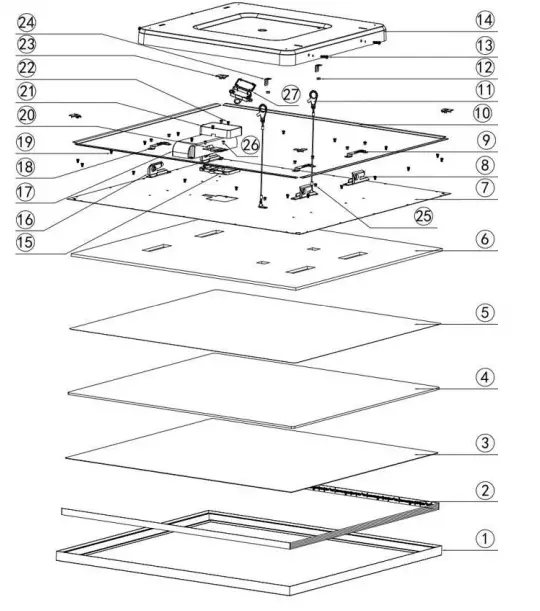

PRODUCT OVERVIREWS
| # | COMPONENT | QTY |
| 1 | FRAME | 1 |
| 2 | LED STRIP | 2 |
| 3 | DIFFUSER | 1 |
| 4 | UGHT GUIDE PLATE | 1 |
| 5 | REFLECTIVE PAPER | 1 |
| 6 | EPE FOAM | 1 |
| 7 | BACK PLATE | 1 |
| 8 | INSTALLATION PLATE B | 2 |
| 9 | WAVY SHEETMETAL STOPER B | 2 |
| 10 | DECORATIVE BAR | 4 |
| 11 | SUSPENDEDROPE | 2 |
| 12 | NUTM4 | 2 |
| 13 | M4X12 SCREW | 4 |
| 14 | INSTALLATION BOX | 1 |
| 15 | HUE CONTROL BOX BOTTOM HOUSING | 1 |
| 16 | INSTALLATION PLATE A | 2 |
| 17 | DRIVER | 1 |
| 18 | WAVY SHEETMETAL STOPER A | 2 |
| 19 | SELFTAPPING SCREW M3X6 | 20 |
| 20 | HUE CONTROL PCBA | 1 |
| 21 | HUE CONTROL BOX TOP HOUSING | 1 |
| 22 | SCREW M3X4 | 4 |
| 23 | CORNER PROTECTOR | 4 |
| 24 | L TYPE SHEET METAL PART | 2 |
| 25 | RIVET | 10 |
| 26 | SELF TAPPING SCREW M3X4 | 2 |
| 27 | WIRE CONNECTION BOX | 1 |
| # | SLR Descrintion | Tools needed |
| a | REMOVE INSTALLATION BOX 14 BY UNSCREWING SCRWE 13 | CROSS HEAD SCREW DRIVER |
| b | REMOVE CONNER PROTECTOR 23 | FLAT HEAD SCREW DRIVER |
| C | REMOVE DECORATIVE BAR 10 | |
| d | REMOVE SELF TAPPING SCREW M3X6 19 | CROSS HEAD SCREW DRIVER |
| e | UNSCREW SCREW M3X4 22 | CROSS HEAD SCREW DRIVER |
| f | REMOVE HUE CONTROL BOX TOP HOUSIN G 21 | FLAT HEAD SCREW DRIVER |
| g | UNPLUG FLAT CABLE FROM HUE CONTROL PCBA 20 | |
| h | UNSCREW SELF TAPPING SCREW M3X4 26 | CROSS HEAD SCREW DRIVER |
| I | UNPLUG 24V POWER INPUT WIRE FROM HUE CONTROL PCBA 20 | |
| J | REMOVE BACK PLATE 7 | |
| k | REMOVE EPE FOAM 6 | |
| I | REMOVE REFLECTIVE PAPER 5 | |
| m | REMOVE LIGHT GUIDE PLATE 4 | |
| n | REMOVE DIFFUSER3 | |
| 0 | REMOVE LED STRIP 2 FROM FRAME 1 |
| SKU | Color | Country |
| 929002966401 | WHITE | EU |
| 929002966501 | WHITE | EU |
| 929003099001 | WHITE | EU |
| SKU | Color | Country |
| 929002966401 | WHITE | EU |
| 929002966501 | WHITE | EU |
| 929003099001 | WHITE | EU |
| 929003099101 | WHITE | EU |
Warnings
Always make sure the luminaire is detached from the mains socket Always make sure the DC cable is detached from the power supply Staring at the operating light source may cause eye injury
FOR LIGHT SOURCE-LED STRIP REMOVAL PLEASE REFER TO DOCUMENT I
442295215544 L2 Removal and Test Instruction Flex LED strip
