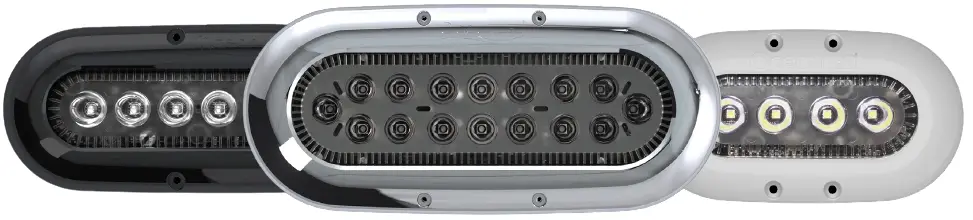

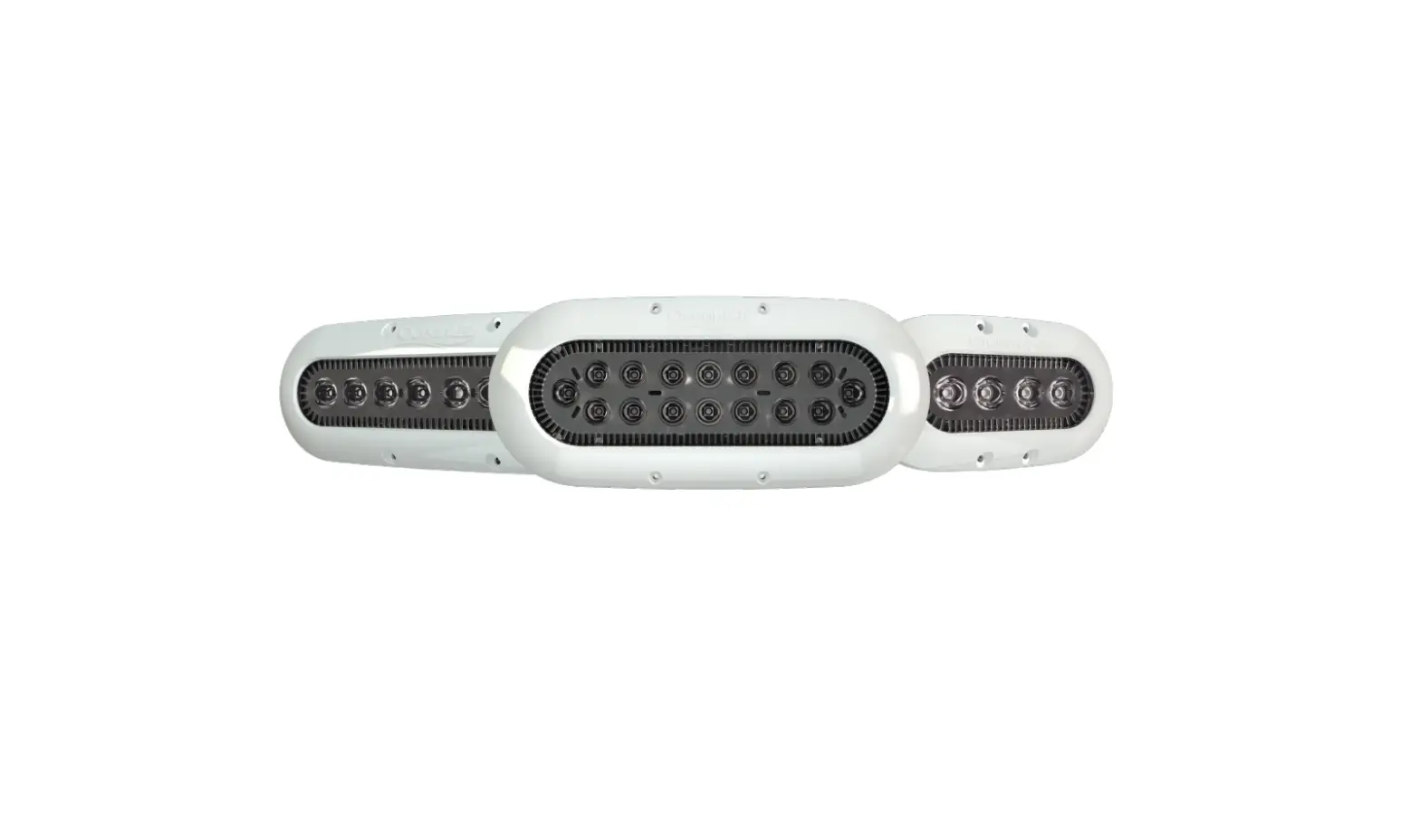

X Series X8 Underwater LED Light Flush mount
User Guide
Overview
| KEY FEATURES |  4,500* Fixture Lumens*White measurement of X16 Ultra White |  60°Top Beam |  60°Side Beam |  CircularBeam Shape |
| X4 COLOUR PART# Bezel |  Ultra White012301W (White Bezel) 012301W-BLK (Black Bezel) 012301W-SS (Stainless Bezel) |  Midnight Blue012302B (White Bezel) 012302B-BLK (Black Bezel) 012302B-SS (Stainless Bezel) |  Colours DMX012312C (White Bezel) 012312C-BLK (Black Bezel) 012312C-SS (Stainless Bezel | |
| X8 COLOUR PART# | Ultra White 012304W (White Bezel) 012304W-BLK (Black Bezel) 012304W-SS (Stainless Bezel) | Midnight Blue 012305B (White Bezel) 012305B-BLK (Black Bezel) 012305B-SS (Stainless Bezel) | Colours DMX 012307C (White Bezel) 0123070-BLK (Black Bezel) 012307C-SS (Stainless Bezel) | |
| X16 COLOUR PART# | Ultra White 012308W (White Bezel) 012308W-BLK (Black Bezel) 012308W-SS (Stainless Bezel) | Midnight Blue 012309B (White Bezel) 012309B-BLK (Black Bezel) 012309B-SS (Stainless Bezel) | Colours DMX 012311C (White Bezel) 01230110-BLK (Black Bezel) 012311C-55 (Stainless Bezel) | |

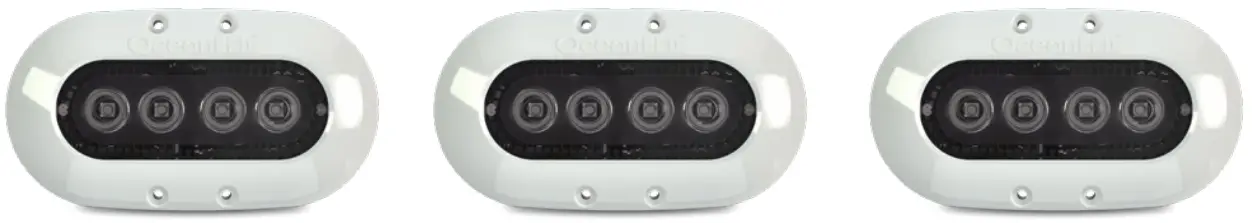

X4 ULTRA WHITE/MIDNIGHT BLUE/DMX COLOURS
The X4 is a small but versatile bright light for a variety of uses and installation types.

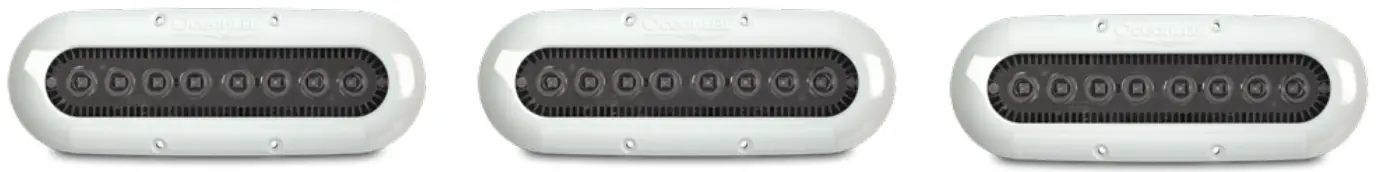

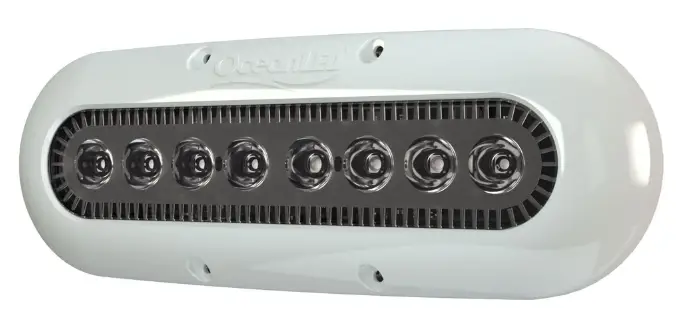

X8 ULTRA WHITE/MIDNIGHT BLUE/DMX COLOURS
The X8 is an ideal choice for smaller boats that want a powerful single colour, or multi colour with intelligent control via DMX or DC switch.

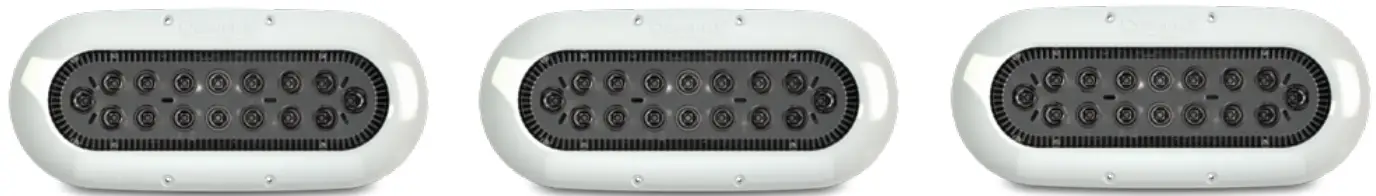

X16 ULTRA WHITE/MIDNIGHT BLUE/DMX COLOURS
The X16 gives stunning “big yacht” performance both as a single colour light, or as multi colour with intelligent control via DMX or switch.

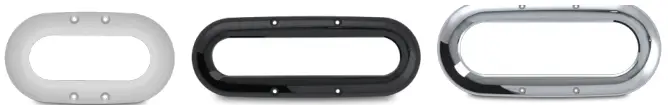

CHOICE OF BEZELS
Choose from either stainless steel, white or black polymer bezel for your boat.
ACTIVE THERMAL CONTROL
ATC prevents overheating, prolonging the life of the LEDs. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely.
FISH-STROBE MODE
Exceptionally bright, randomised strobing of the light is proven to attract more fish and catch more bait.
ABOVE WATER MOUNTING
The X-Series can also be used as an exterior light for your cockpit, deck or trailer.
IP69k WATER INGRESS PROTECTION
The X-Series is rated at IP69k, the highest achievable rating of protection against water ingress. IP69k goes one step further than the industry standard IP68, giving you additional protection and piece of mind.

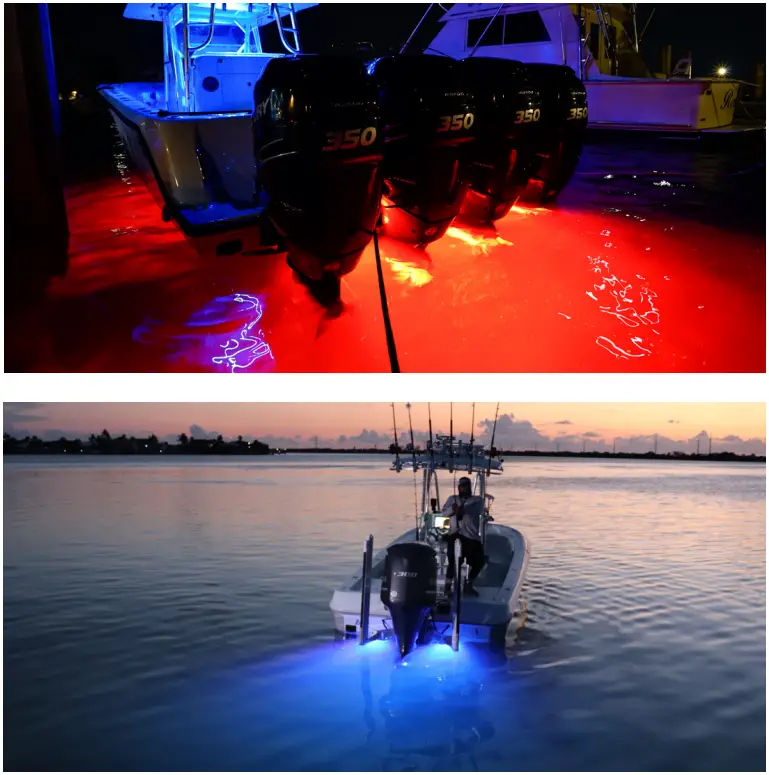

IN-WATER EXAMPLE PHOTOGRAPHY
Installation
X-SERIES CHOOSE YOUR LIGHT SETUP (White Bezel)
CHOOSE YOUR X SERIES MODEL
For stainless steel or black bezel options, see page 1.
 | ||
| X4 #012301W (Ultra White) • LED Light and Cable • Fuse Kit • Mounting Screws | X4 #012302B (Midnight Blue) • LED Light and Cable • Fuse Kit • Mounting Screws | X4 #012312C (Colours DMX) • LED Light and Cable • Fuse Kit • Mounting Screws |
 | ||
| X8 #012304W (Ultra White) • LED Light and Cable • Fuse Kit • Mounting Screws | X8 #012305B (Midnight Blue) • LED Light and Cable • Fuse Kit • Mounting Screws | X8 #012307C (Colours DMX) • LED Light and Cable • Fuse Kit • Mounting Screws |
 | ||
| X16 #012308W (Ultra White) • LED Light and Cable • Fuse Kit • Mounting Screws | X16 #012309B (Midnight Blue) • LED Light and Cable • Fuse Kit • Mounting Screws | X16 #012311C (Colours DMX) • LED Light and Cable • Fuse Kit • Mounting Screws |

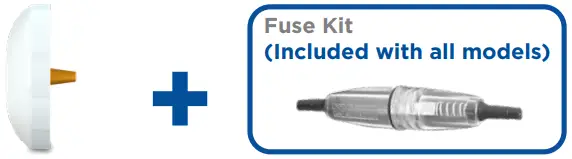

CONNECT POWER & FUSE KIT
 | #011702 DMX Juncton Box (Required for 5+ DMX Controlled Lights) |
 | #019901 4 Way V DC Power Junction Box |
CONTROL VIA SWITCH OR OCEANDMX KIT
 | X4/X8/X16 Single Colour Models 3rd Party control via power switch |
| X4/X8/X16 Colours DMX Models 3rd Party control via power switch |
 | OceanDMX RC See OceanDMX RC Product Guide for more information |

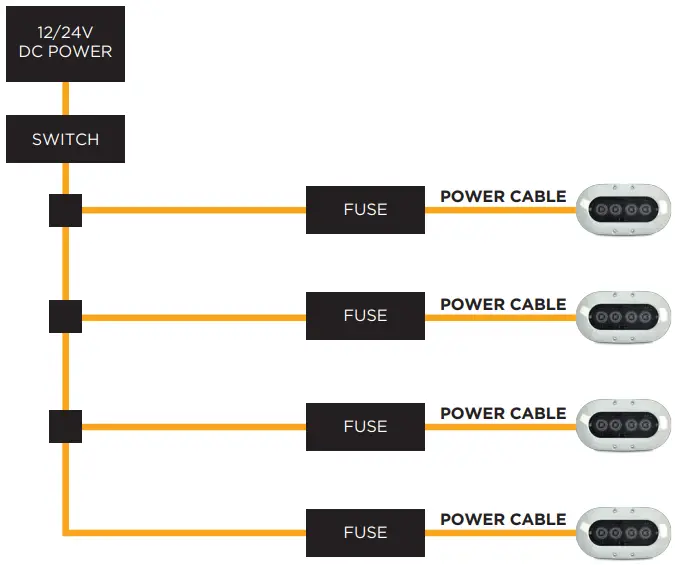

CONTROL/WIRING SCHEMATIC

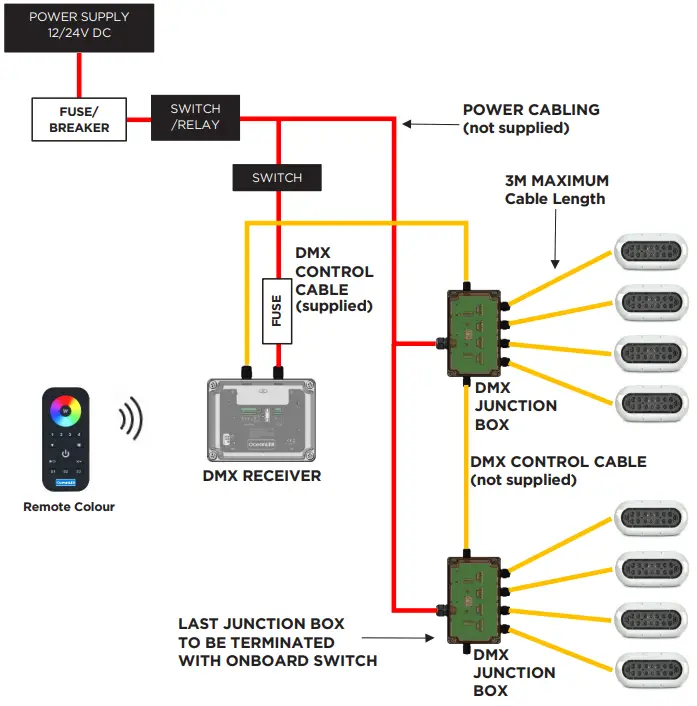

DMX COLOURS LIGHTING SETUP

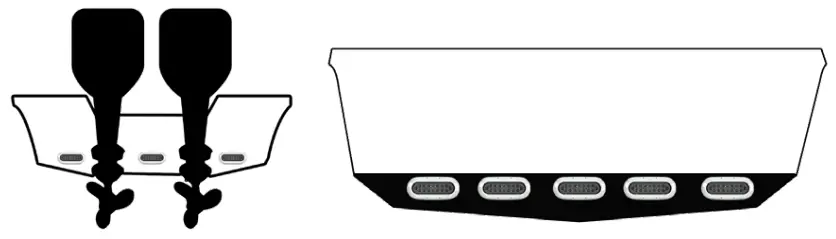

TRANSOM PLACEMENT
Perfect for transoms. Mount underwater, on an even spread around your engines.
EASY TO CLEAN
Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use your boat.

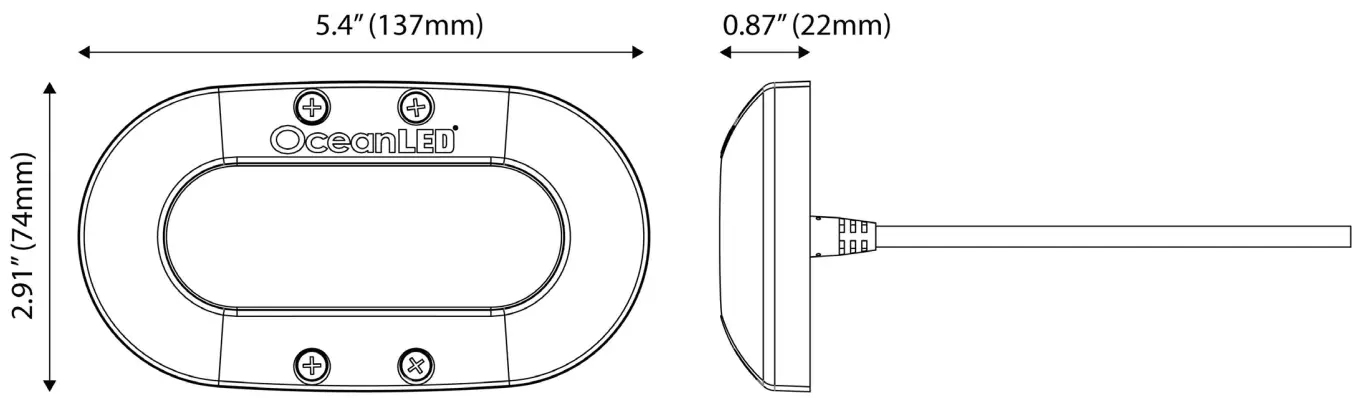

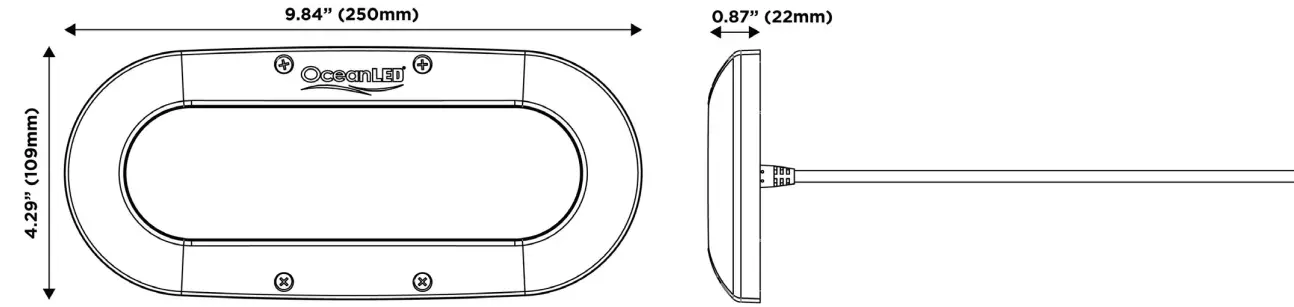

Dimensions
X4 DIMENSIONS

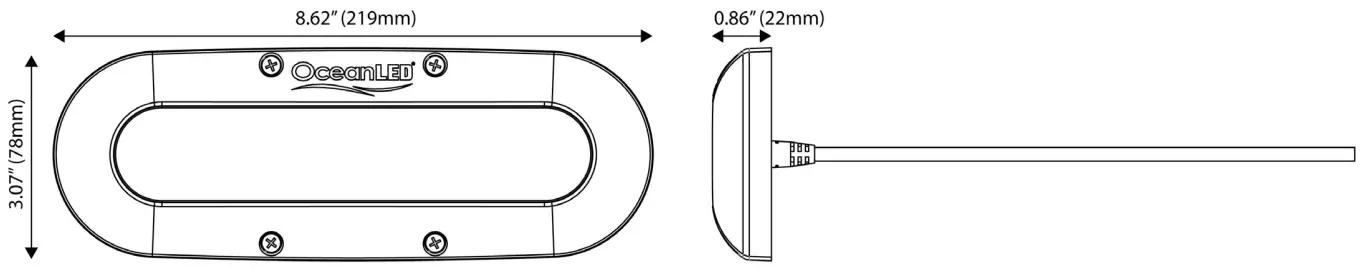

X8 DIMENSIONS
Technical
| ADDITIONAL SKUS (WITH ISOLATING MOUNTING KIT) | SKU |
| X4 Ultra White – White Bezel | 012301WI |
| X4 Ultra White – Black Bezel | 012301W1-BLK |
| X4 Midnight Blue – White Bezel | 012302BI |
| X4 Midnight Blue – Black Bezel | 012302B1-BLK |
| X4 Colours – White Bezel | 012312CI |
| X4 Colours – Black Bezel | 012312C1-BLK |
| TECHNICAL | |
| Fixture Lumens (Ultra white) X4 X8 X16 | 1150 2300 4500 |
| Minimum-Maximum operating voltage DC | 9-32V DC |
| Current/Amp draw (DC) X4 X8 X16 | 12V DC 0.8A/24V DC 0.4A 12V DC 1.65A/24V DC 0.75A 12V DC 3.2A/24V DC 1.5A |
| Approx. Light penetration (Perfect water quality) X4 X8 X16 | Up to 45′ (13+m) Up to 72′ (22+m) Up to 100′(30+m) |
| Driver type | Internal, Reverse Polarity Protected |
| PHYSICAL X4 | |
| Total weight X4 X8 X16 | 350g (0.78Ibs) 600g (1.32lbs) 860g (1.90Ibs) |
| Extension cable length | 9.84′ (3m) |
| Hole cut-out for cable entry | 0.5″ (12.5mm) |
| Material | Chemically resistant optical polymer |
BOX CONTENTS
X-Series LED Light and Cable
In-line Fuse Kit
Mounting Screws
Quick Install Guide
| ACCESSORIES | PART |
| OceanDMX RC (X8/X16 Colours) App Controller Kit (1-4 Lights) | See OceanDMX RC Product Guide |
| DMX Junction Box (Required for 5+ OceanDMX Controlled Lights) | 11702 |
| Black Polymer Bezel X4 Black Polymer Bezel X8 Black Polymer Bezel X16 | PLS-000108 PLS-000107 PLS-000017 |
| 316L Stainless Steel Bezel X4 316L Stainless Steel Bezel X8 316L Stainless Steel Bezel X16 | 011416 011417 011418 |
| 4 Way V DC Power Junction Box | 19901 |
| Isolating Mounting Kit | 19913 |
| MOUNTING RECOMMENDATIONS | |
| Boat size X4 X8 X16 | Up to 30′ (9m) Up to 50′ (15m) Up to 65′ (20m) |
| Transom/Hull spacing X4 X8 X16 | 2-3′ (0.5-1m) 2-4′ (0.5-1.2m) 2-4′ (0.5-1.2m) |
| Transom quantity | 2-4 |
| Installation depth (to top of fixture) | 4-8in (10-20cm) |
Specifications are subject to change without notice.
Trademarks are the property of OceanLED.
www.oceanled.com
Ocean LED USA LLC
Tel +1 954 523 2250
[email protected]
