VPL-CWZ10
5,000 lumens WXGA laser light source projector
Overview
Enjoy brilliant images anywhere with this compact, easy to use, affordable 3LCD laser projector that integrates seamlessly with today’s networked AV environments
The VPL-CWZ10 features an energy-efficient Z-Phosphor laser light source that’s teamed with Sony’s acclaimed BrightEra 3LCD engine for crisply detailed WXGA resolution images with high 5,000-lumen brightness and rich, stable colors.
Switch on the VPL-CWZ10 and start presenting without waiting for the lamp warm-up. The advanced laser light source offers up to 20,000 hours* operation without lamp exchange, reducing maintenance needs and lifetime running costs compared with lamp-based projectors.
You’ll save even more time with Intelligent Setting presets that instantly fine-tune brightness, cooling, color, and other projector settings for impressive pictures in any environment.
Integration’s easy in today’s AV environments. The VPL-CWZ10 is an ideal partner with leading networked control, monitoring, and management systems such as Crestron Connected™ and Extron® XTP™ Systems.
Beautifully light, compact, and easy to carry, the VPL-CWZ10 is the smallest** projector in its class. The stylish design fits elegantly into any space, with a flat top surface that blends in discreetly when the projector’s ceiling mounted.
* Actual hours may vary depending on usage.
** As of February 2020 (according to Sony research), in 5,000 lm 3LCD laser projectors
Features
Very high image quality
The long-lasting Z-Phosphor laser light source is coupled with Sony’s acclaimed BrightEra 3LCD projection engine to ensure bright, high-quality images with vivid, natural color reproduction.
Minimal maintenance
The laser light source offers up to 20,000 hours* operation without lamp exchange, reducing maintenance needs compared with traditional projectors. Near-zero maintenance is complemented by a range of energy-saving features that significantly drive down total lifetime ownership costs.
* Depending on usage environment.
Consistent brightness
Experience consistent image brightness throughout the laser light source’s 20,000 hours recommended lifespan.
Full HD resolution images
Equipped with the latest scaler chip, Full HD image quality is achieved ensuring all your content looks its best, whether it’s PC presentations, video or signage.
Networked control and monitoring
The VPL-CWZ10 is ideal for integration in AV environments with leading control, monitoring and management systems such as Crestron Connected™ and Extron® XTP™ Systems.*
* Extron and XTP Systems are trademarks of RGB Systems Inc.
Stylish blend-in design
The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.
Specifications
| Display system |
| Display system | 3 CD system |
| Display device |
| Size of effective display area | 0.64”(16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio:16:10 |
| Number of pixels | 3,072,000 (1280 x 800 x 3) pixels |
| Projection lens |
| Focus | Manual |
| Zoom – Powered/Manual | Manual |
| Zoom – Ratio | Approx. x 1.6 |
| Throw ratio | 1.29:1 to 2.07:1 |
| Lens shift | N/A (Lens Offset Vertical +37%) |
| Light source |
| Type | Laser diode |
| Filter cleaning/replacement cycle (Max.) |
| Filter cleaning/replacement cycle (Max.) | Standard mode: 1000 H (cleaning) |
| Screen size |
| Screen size | 40″ to 300″ (1.02 m to 7.62 m) |
| Light output |
| Mode: Standard | 5,000 lm |
| Color light output |
| Mode: Standard | 5,000 lm |
| Contrast ratio (full white / full black) *1 |
| Contrast ratio (full white / full black) | ∞ :１ |
| Speaker |
| Speaker | 16 W (monaural) |
| Displayable scanning frequency |
| Horizontal | 15 kHz to 92 kHz |
| Vertical | 48 Hz to 92 Hz |
| Display resolution |
| Computer signal input | Maximum display resolution: 1920 x 1200
dots *2 |
| Video signal input | NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p |
| Color System |
| Color System | NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 |
| Keystone correction (Max.) |
| Horizontal | +/- 30 degrees |
| Vertical | +/- 30 degrees |
| INPUT-OUTPUT (Computer/Video/Audio/Control) |
| INPUT A | RGB / Y PB PR input connector:Mini D-sub 15 pin (female) Audio input connector: Stereo mini jack |
| INPUT B | HDMI input connector: HDMI 19-pin, HDCP support Audio input connector: HDMI audio support |
| INPUT C | HDMI input connector: HDMI 19-pin, HDCP support Audio input connector: HDMI audio support |
| VIDEO IN | Video input connector: Phono Jack Audio input connector: Shared with INPUT A |
| OUTPUT | Audio output connector: Stereo mini jack |
| REMOTE | D-sub 9-pin (male) / RS232C |
| LAN | RJ45, 10BASE-T/100BASE-TX |
| USB | TYPE-A (Only for FW upgrade) |
| Acoustic Noise |
| Lamp Mode: Standard /Middle / Low | 36 dB / 32 dB / 28 dB |
| Operating temperature / Operating humidity |
| Operating temperature /Operating humidity | 0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation) |
| Storage temperature / Storage humidity |
| Storage temperature /Storage humidity | -10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation) |
| Power requirements |
| Power requirements | AC 100 V to 240 V, 3.4 A to 1.5 A, 50 Hz / 60 Hz |
| Power Consumption |
| AC 100 V to 120 V | Mode: Standard: 342 W |
| AC 220 V to 240 V | Mode: Standard: 326 W |
| Power Consumption (Standby Mode) |
| AC 100 V to 120 V | 0.5 W (when “Standby mode” is set to “Low”) |
| AC 220 V to 240 V | 0.5 W (when “Standby mode” is set to “Low”) |
| Power Consumption (Networked Standby Mode) |
| AC 100 V to 120 V | 2 W (“Remote Start” is set to “On” , when “Standby Mode” is set to “Low”) 15W (ALL Terminals and Networks “Standard”) |
| AC 220 V to 240 V | 2 W (“Remote Start” is set to “On” , when “Standby Mode” is set to “Low”) 15W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”) |
| Standby Mode / Networked Standby Mode Activated |
| Standby Mode / Networked Standby Mode Activated | Approx. 10 Minutes |
| Heat dissipation |
| AC 100 V to 120 V | 1167 BTU/h |
| AC 220 V to 240 V | 1112 BTU/h |
| Dimensions (W x H x D) |
| Dimensions (W x H x D) (without protrusions) | Approx. 371x 100 x 319.3 mm (14 19/32 x 3 15/16 x 12 9/16 inches) |
| Mass |
| Mass | Approx. 5.7 kg (13 lb) |
| Supplied accessories |
| Remote commander | RM-PJ8 |
| Notes |
| *1 | The value is average |
| *2 | Available for VESA Reduced Blanking signal. |

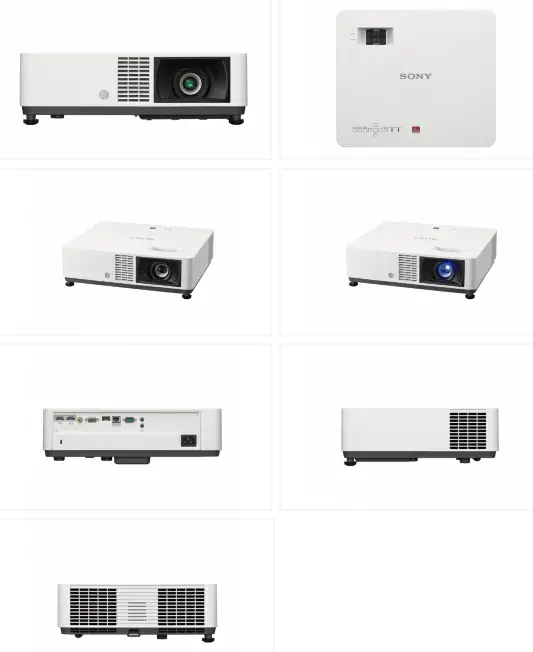

Gallery
