VPL-PHZ11
5,000 lumens WUXGA laser
light source projector
VPL-PHZ11 5000 Lumens WUXGA Laser Light Source Projector
Overview
Cost-effective laser projection with excellent picture quality, easy installation, and low running costs Cost-effective laser projection with excellent picture quality, easy installation, and low running costs
The VPL-PHZ11 laser projector is a versatile, affordable choice for installation in a wide range of education, business and entertainment environments.
The powerful Z-Phosphor laser light source is teamed with Sony’s advanced BrightEra 3LCD projection engine to deliver extremely bright, detail-packed WUXGA resolution images with generous 5000 lumens brightness and rich, stable colors. This laser light source allows up to 20,000 hours* of virtually zero maintenance operation without the worry of sudden lamp failures. An automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving features, significantly driving down total lifetime ownership costs. Constant Bright maintains consistent light output levels throughout the laser’s 20,000 hours (at light output mode “Middle”) recommended lifespan.
Offering a stylish blend-in design and low fan noise, the VPL-PHZ11 fits smoothly into almost any environment – from academic institutions to corporate environments.
Mount the projector at any angle, even on its side or upside down. Set-up’s easier than ever with a friendly new installation menu.
*Actual hours may vary depending on the usage environment.
Features
Very high image quality with Sony’s advanced BrightEra 3LCD projection engine and Z-Phosphor laser light source
Very high image quality with Sony’s advanced BrightEra 3LCD projection engine and Z-Phosphor laser light source The Z-Phosphor laser light source is coupled with Sony’s acclaimed BrightEra 3LCD projection engine to ensure high 5000-lumen image brightness with vivid, natural color reproduction.
Constant Brightness
Constant Bright maintains the same brightness of 4,500 lumens throughout the 14,000-hour recommended life span.*
*When Constant Bright is on, and using ‘Standard’ light output mode
Advanced picture refinement technologies
Picture quality is boosted by advanced processing featured on Sony’s home cinema projectors. Reality Creation uses a powerful pattern-matching database to optimize every pixel. Contrast Enhancer actively analyses and refines dark and light image areas for sparkling highlights and rich, deep blacks. Advanced picture refinement technologies
Crisp, detail-packed WUXGA resolution images
See fine detail in PC presentations, videos, or multimedia signage with WUXGA (1920 x 1200) 16:10 resolution. Crisp, detail-packed WUXGA resolution images Up to 20,000 hours* operation with virtually no maintenance
The advanced laser light source offers up to 20,000 hours* operation without lamp exchange, reducing lifetime running costs compared with traditional projectors.
*Actual hours may vary depending on the usage environment.
Hassle-free automatic filter cleaning
Focus on great-looking images instead of arduous maintenance tasks: a new automated filter cleaning system removes dust every 100 hours. Hassle-free automatic filter cleaning
Energy saving features
Reduce running costs even further with convenient energy-saving features: Picture Mute and Auto Dimming. Energy saving features
Save time with every presentation
Quick power On/Off dramatically cuts warm-up time after switch-on before you can start presenting at full brightness.
360° free-angle installation capability
Enjoy greater installation flexibility: position the projector freely at any angle – or its side or even upside down. 360° free-angle installation capability
Supports HDBaseT
Simpler, more cost-effective installation and connectivity with digital transmission of HD video, audio, and networking/control over a single Ethernet cable. Supports HDBaseT
Quiet operation
Low fan noise ensures discreet, unobtrusive operation in quiet environments for academic and corporate use. Quiet operation
Slim, attractive blend-in design
The slim, stylish case design features a flat top surface that blends in discreetly when the projector is ceiling Slim, attractive blend-in design mounted.
Picture Mode
Picture Mode ensures great-looking pictures in any presentation condition. Select Standard, Dynamic, or Brightness Priority mode for optimized image quality, with any source, and in every room.
Picture Mode
Simple set-up with the friendly new Installation menu Easily adjusts projector settings with remote commander. Simple set-up with the friendly new Installation menu
Specifications
Display system
| Display system | 3 LCD system |
Display device
| Size of effective display area | 0.76” (19.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10 |
| Number of pixels | 6,912,000 (1920 x 1200 x 3) pixels |
Projection lens
| Focus | Manual |
| Zoom Powered/Manual | Manual |
| Zoom – Ratio | Approx. x 1.45 |
| Throw ratio | 1.28:1 to 1.88:1 |
| Lens shift Powered/Manual | Manual |
| Lens shift – Range Vertical | +20% to +55% |
| Lens shift – Range Horizontal | +/- 10% |
Light source
| Type | Laser diode |
Filter cleaning/replacement cycle (Max.)
| Filter cleaning/replacement cycle (Max.) | 20,000 H (service maintenance) |
Screen size
| Screen size | 40″ to 300″ (1.02 m to 7.62 m) |
Light output *1
| Mode: Standard | 5,000 lm *2 |
| Mode: Standard (Centre) | 5,200 lm *3 |
Color light output *1
5,000 lm
Mode: Standard
Contrast ratio (full white / full black) *1
| Contrast ratio (full white / full black) | ∞:1 |
Speaker
| Speaker | 16 W (monaural) |
Displayable scanning frequency
| Horizontal | 15 kHz to 92 kHz |
| Vertical | 48 Hz to 92 Hz |
Accepted signal resolution
| Computer signal input | Maximum signal resolution: 1920 x 1200 *4 |
| Video signal input | NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p |
Color System
| NTSC3.58, PAL, SECAM, Color System | NTSC4.43, PAL-M, PAL-N, PAL60 |
Keystone correction (Max.)
| Horizontal | +/- 30 degrees |
| Vertical | +/- 20 degrees |
INPUT-OUTPUT (Computer/Video/Control)
| INPUT A | RGB / Y PB PR input connector:Mini D-sub 15 pin (female) Audio input connector: Stereo mini jack |
| INPUT B | HDMI input connector: HDMI 19-pin, HDCP support Audio input connector: HDMI audio support |
| INPUT C | HDMI input connector: HDMI 19-pin, HDCP support Audio input connector: HDMI audio support |
| INPUT D | HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control) |
| VIDEO IN | Video input connector: BNC Audio input connector: Shared with INPUT A |
| OUTPUT | Audio output connector: Stereo mini jack |
| REMOTE | D-sub 9-pin (male) / RS232C |
| LAN | RJ45, 100BASE-TX (Shared with INPUT D) |
| USB | TYPE-A |
| USB | TYPE-B |
Acoustic Noise *1
| Lamp Mode: Standard / Middle / Low | 36 dB / 28 dB / 25 dB |
Operating temperature / Operating humidity
| Operating temperature / Operating humidity | 0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation) |
Storage temperature / Storage humidity
| Storage temperature / Storage humidity | -10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation) |
Power requirements
| Power requirements | AC 100 V to 240 V, 4.3 A to 1.7 A, 50 Hz / 60 Hz |
Power Consumption
| AC 100 V to 120 V | 0.5 W (when “Standby mode” is set to “Low”) |
| AC 220 V to 240 V | 0.5 W (when “Standby mode” is set to “Low”) |
Power Consumption (Networked Standby Mode)
| AC 100 V to 120 V | 12.5 W (LAN) 13.2 W (optional WLAN module) 16.8 W (HDBaseT) 17.4 W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”) |
| AC 220 V to 240 V | 11.9W (LAN) 12.6W (optional WLAN module) 17.0W (HDBaseT) 17.6W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”) |
Standby Mode / Networked Standby Mode Activated
| Standby Mode / Networked Standby Mode Activated | Approx. 2 Minutes |
Heat dissipation
| AC 100 V to 120 V | 1446 BTU/h |
| AC 220 V to 240 V | 1374 BTU/h |
Dimensions (W x H x D)
| Dimensions (W x H x D) (without protrusions) | 510 x 113 x 354.6 mm (20 3/32 x 4 7/16 x 13 31/32 inches) |
Mass
| Mass | Approx. 8.7kg (19 lb) |
Supplied accessories
| Remote commander | RM-PJ8 |
Notes
| *1 | The figures are approximate. They vary depending on the environment or how the projector is used. |
| *2 | The value is in accordance with ISO 21118 and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments. |
| *3 | The value is light output measured at the center area of the screen in Standard mode, and an average of all products shipped. |
| *4 | Available for VESA Reduced Blanking signal. |
| This projector has a total constant brightness of 4500 lumens for up to 14,000 hours depending on the usage environment. This enables users to experience the projectors’ original level of image quality for years while achieving a maximum 5,000 lumens brightness when the constant brightness mode is off. |

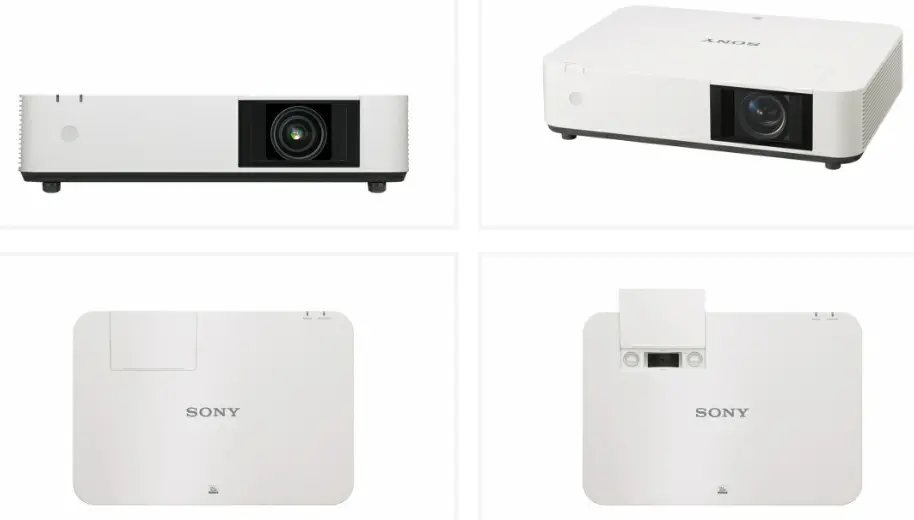

Gallery
