Easythreed X3 3d Printer Instruction Manual

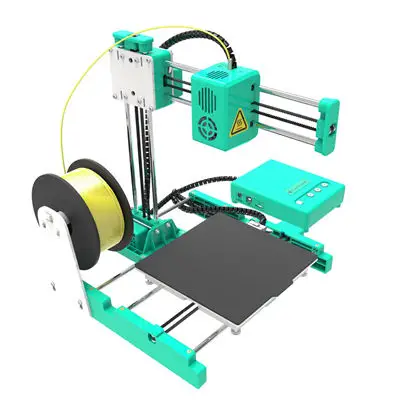

Easythreed X3 3D Printer

• This manual is written in accordance with EasyThreed X3 3D printer。
• Printer upgrades and equipment models are slightly different, is a normal phenomenon, based on the actual products received.
• User’s manual inside TF card.

Parts

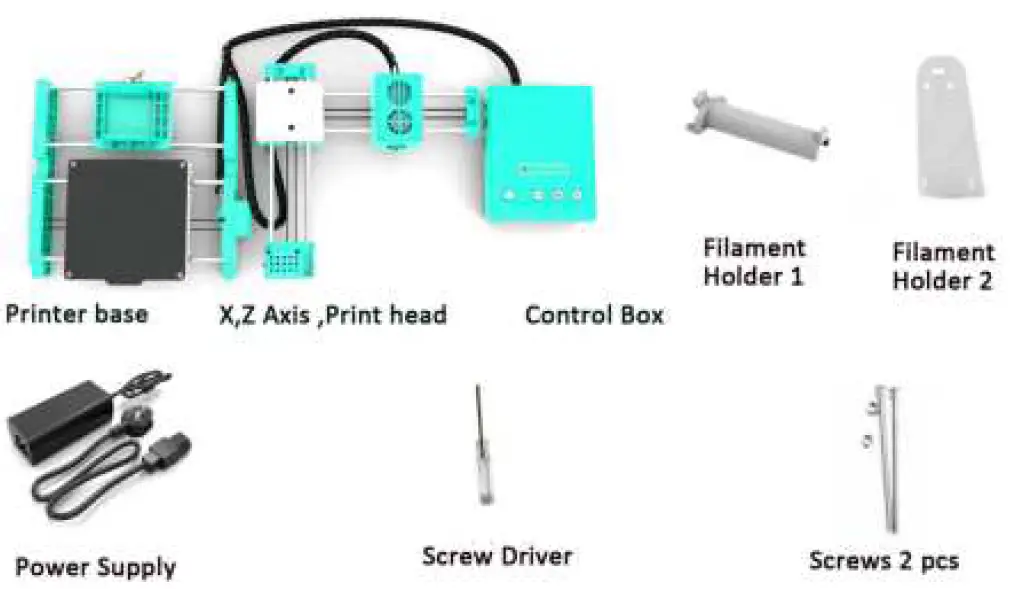

Parts List: Take out parts from package , check if all parts have as listed below

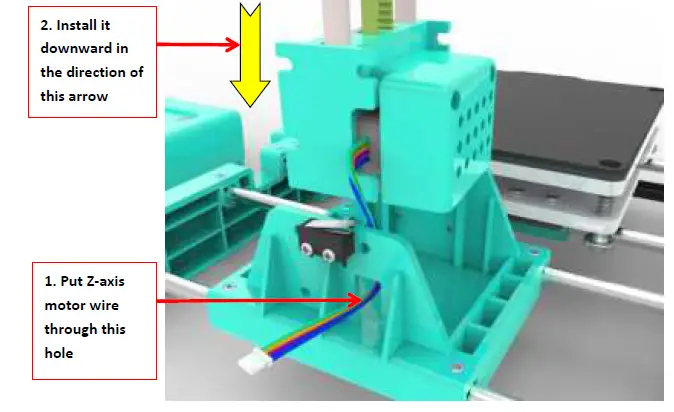

1. Install the XZ Axis set to the Printer Base.

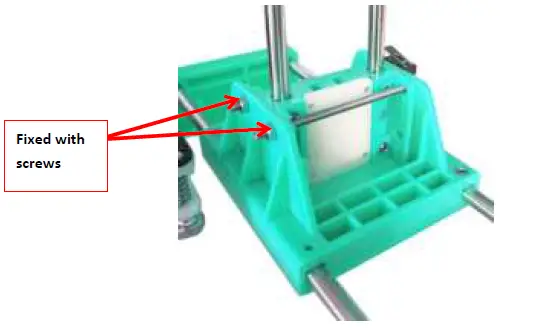

2. After insert the XZ Axis, Fixed with 2 screws.

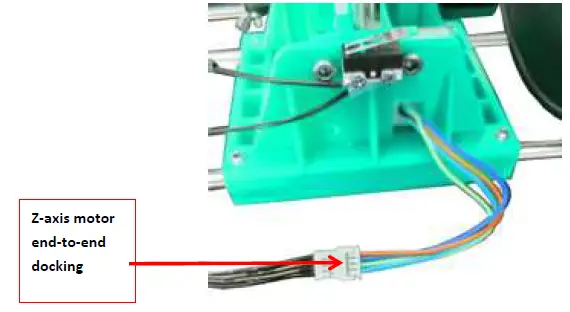

3. Connect the Z-axis motor line to the output line of the printer control box as shown in the figure below

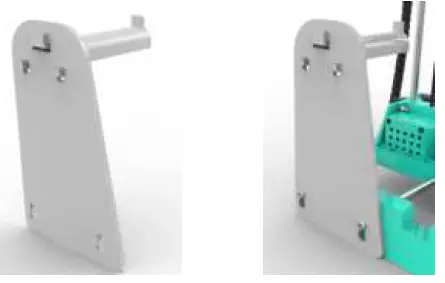

4. Install the Filament Holder as below.

ShenZhen EasyThreed Technology CO.,LTD
http://www.easythreed.com
[email protected]
