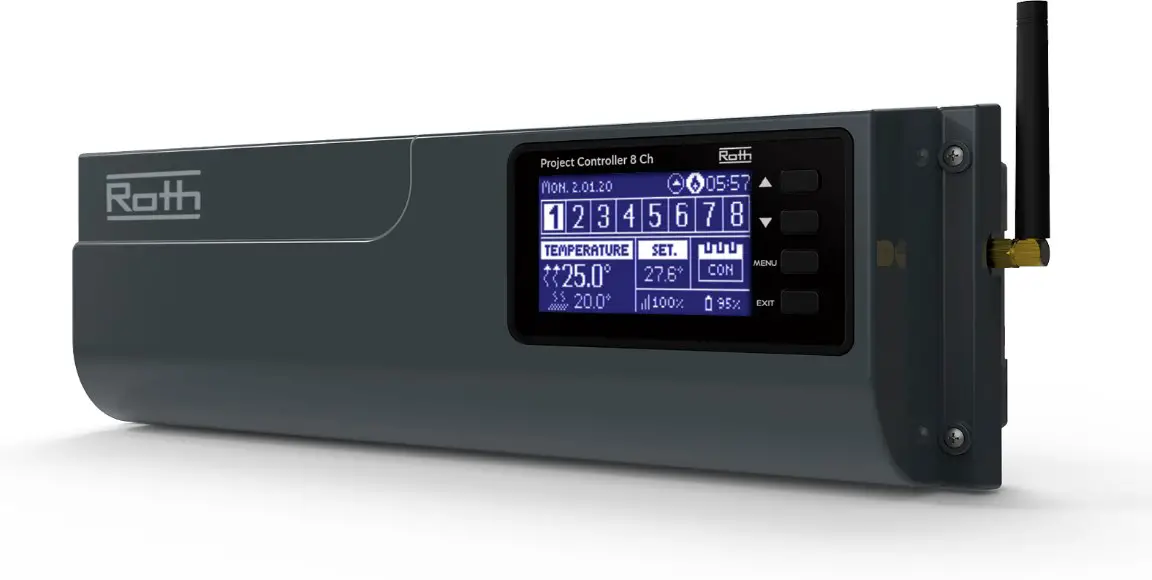

Roth 7466275430 Touchline Pl Controller 8 Channels Instructions

Roth 7466275430 Touchline PL Controller 8 Channels Instructions

Instruction

 WARNING
Risk of fatal electric shock from touching live connections. Before working on the controller always switch off the 230V power supply and prevent it from being accidentally switched on.

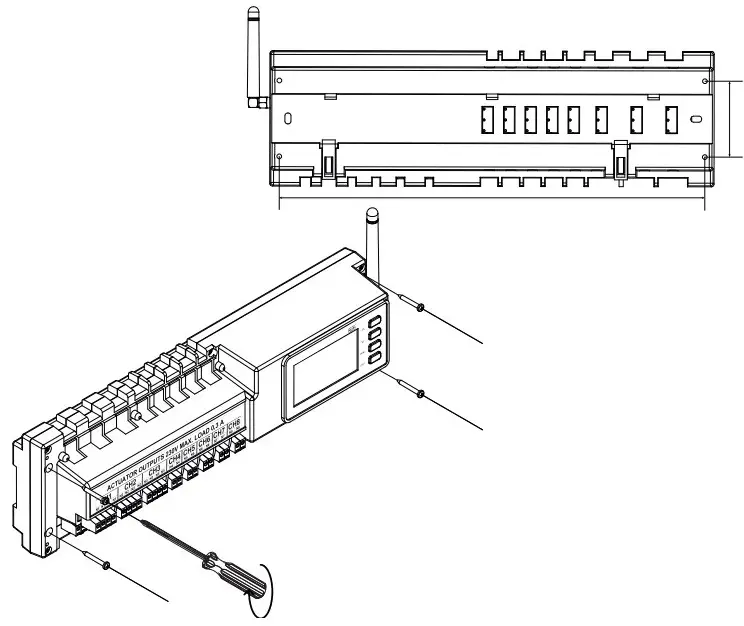

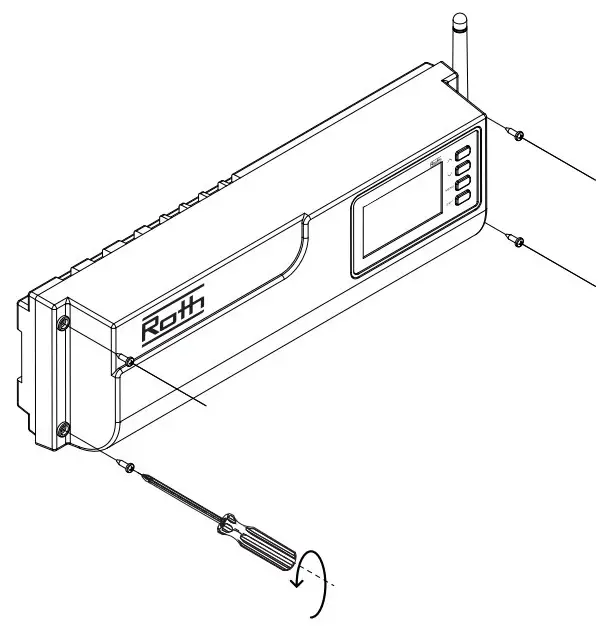

1. Must be mounted on a flat surface or using a DIN rail (not incl.), screws max. Ø 3 mm.

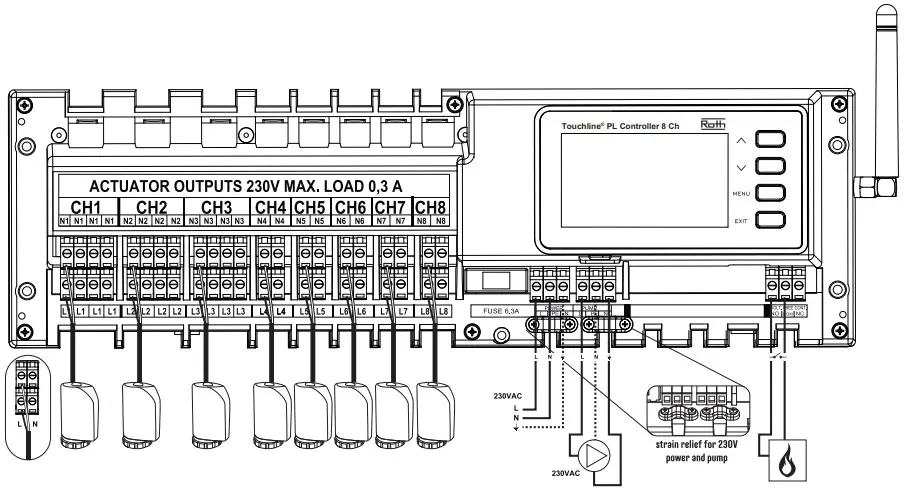

2. Actuators, connect ”brown” to L and ”blue” to N. Use Roth Project actuators 230V 1 watt, HVAC no.
   7466275430. Max. number of actuators = 22 pcs. (3 zones of 4 pcs. and 5 zones of 2 pcs.).

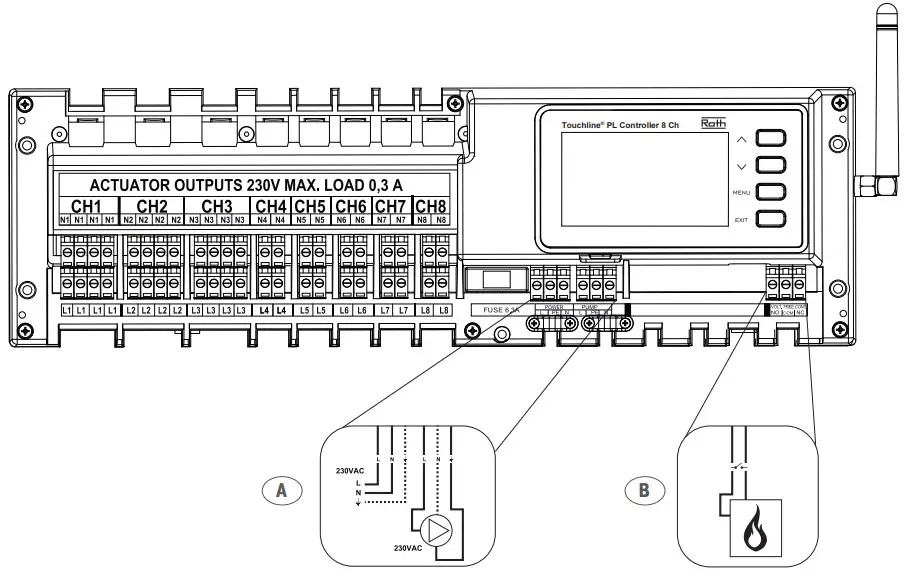

3. Boiler/heat supply, potential free relay max. load 1 A.

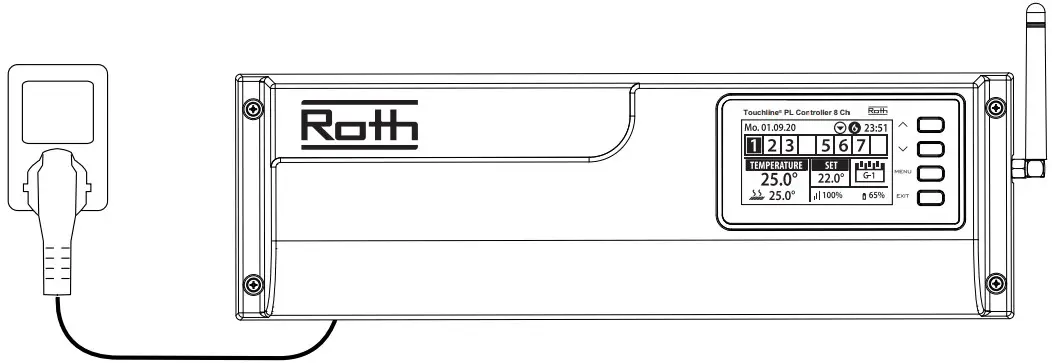

4. Connect to 230V power, Controller is ready for pairing of sensors. Please see thermostat/sensor operation manual.

5. Glass fuse WT 6.3A (5 x 20mm). Turn off 230V power before changing.
