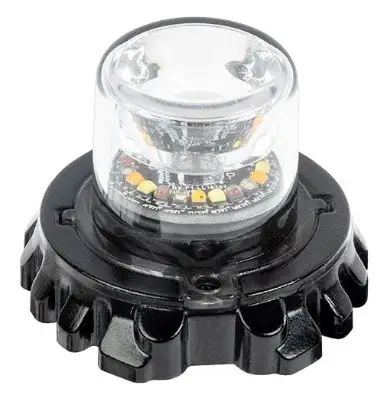

SUPER BRIGHT LEDS MSTRB2 Hideaway LED Strobe

Product Information

Product Name: Hideaway LED Strobe
Model: MSTRB2
Type: Quad Color
Rev Date: V1 11/28/2022
Manufacturer: Super Bright LEDs
Manufacturer Address: 4400 Earth City Expy, St. Louis, MO 63045
Manufacturer Contact: 866-590-3533
Manufacturer Website: https://www.superbrightleds.com

Safety and Notes

Please read all of the following instructions before installation. Failure to install or use this product according to the manufacturer’s recommendations may result in property damage, serious injury, and/or death.

Proper installation of the product requires the installer to have a good understanding of automotive electronics, systems, and procedures.
This product contains high-intensity LEDs. Do not stare directly into these lights. Momentary blindness and/or eye damage could result.
Use only soap and water to clean the outer lens.
Do not install this product or route any wires in the deployment area for your air bag. Equipment mounted or located in the air bag deployment area will damage or reduce the effectiveness of the air bag, or become a projectile that could cause serious personal injury or death. Refer to your vehicle owner manual for the air bag deployment area. The User/Installer assumes full responsibility to determine proper mounting location, based on providing ultimate safety to all passengers inside the vehicle.
If mounting this product requires drilling holes, the installer must be sure that no vehicle components or other vital parts could be damaged by the drilling process. Check both sides of the mounting surface before drilling begins. Also de-burr any holes and remove any metal shards or remnants. Install grommets into all wire passage holes.
Inspect and operate this product regularly to confirm its proper operation and mounting condition. Do not use a pressure washer to clean this product.
For this product to operate at optimum efficiency, a good electrical connection to the chassis ground must be made. The recommended procedure requires the product ground wire to be connected directly to the NEGATIVE (-) battery post.
It is recommended that these instructions be stored in a safe place and referred to when performing maintenance and/or re-installation of this product.

Operation

Connections:

	Quad Color
Wire	Group 1	Group 2	Group 3
Red	Positive		Positive
White		Positive	Positive
Black	Negative
Blue	Apply to negative for pattern switch apply to positive for dimming
Yellow	Synchronized Function
Green	Apply to negative for mode switch

Pattern Switch Operation:
Blue wire applies to Negative to Switch Flash Pattern

Less than 1 second: Next Pattern
Between 1-3 seconds: Previous Pattern
Between 3-5 seconds: Factor Default Pattern
More than 5 seconds: Last Pattern

Phase Operation

Phase 1 (Ph1) flashes simultaneously with Phase 1 (Ph1).
Phase 2 (Ph2) flashes simultaneously with Phase 2 (Ph2).
Phase 1 (Ph1) flashes alternates with Phase 2 (Ph2).

Mode Switch Operation: Apply Green Wire to Negative.

Quad Color
Mode 1	Color 1	Mode 9	Color 2,4
Mode 2	Color 2	Mode 10	Color 3,4
Mode 3	Color 3	Mode 11	Color 1,2,3
Mode 4	Color 4	Mode 12	Color 1,2,4
Mode 5	Color 1 & 2	Mode 13	Color 1,3,4
Mode 6	Color 1 & 3	Mode 14	Color 2,3,4
Mode 7	Color 1 & 4	Mode 15	Color 1,2,3,4
Mode 8	Color 2 & 3

Recommend Operation Environment

Ambient Temperature: -22°–122° F (-30°–50° C)
Relative Humidity: 10–85%, non-condensing

Setting Synchronization

Set all lights to the same Flash Pattern, then connect the Yellow wire of all lights together for synchronization.
Maximum of 8 Warning Lights can be synchronized.

Troubleshooting

The Light Head has been factory tested and approved. If the functions of the device fail, please check the following:

After connecting with the power supply, be sure that the power source end is joined in the correct way. And then, make sure that there is no short-circuited power occurring. Plug device ensure the power switch which has LED is “ON” state.
Ensure the Power switch is turned to the “ON” position.

Quad Color

Type

Quad Color

Pattern

Sync

Mode

Single 75FPM Ph1 Color 1

Yes

Single 75FPM Ph2 Color 1

Yes

Single 75FPM Ph1 Color 2

Yes

Single 75FPM Ph2 Color 2

Yes

Single 75FPM Ph1 Color 3

Yes

Single 75FPM Ph2 Color 3

Yes

Single 75FPM Ph1 Color 4

Yes

Single 75FPM Ph2 Color 4

Yes

Single 75FPM Ph1 Color 1 Alt Color 2

Yes

Single 75FPM Ph2 Color 1 Alt Color 2

Yes

Single 75FPM Ph1 Color 1 Alt Color 3

Yes

Single 75FPM Ph2 Color 1 Alt Color 3

Yes

Single 75FPM Ph1 Color 1 Alt Color 4

Yes

Single 75FPM Ph2 Color 1 Alt Color 4

Yes

Single 75FPM Ph1 Color 2 Alt Color 3

Yes

Single 75FPM Ph2 Color 2 Alt Color 3

Yes

Single 75FPM Ph1 Color 2 Alt Color 4

Yes

Single 75FPM Ph2 Color 2 Alt Color 4

Yes

Single 75FPM Ph1 Color 3 Alt Color 4

Yes

Single 75FPM Ph2 Color 3 Alt Color 4

Yes

Single 75FPM Ph1 Color 1 Alt Color 2 Alt Color 3

Yes

Single 75FPM Ph2 Color 1 Alt Color 2 Alt Color 3

Yes

Single 75FPM Ph1 Color 1 Alt Color 2 Alt Color 4

Yes

Single 75FPM Ph2 Color 1 Alt Color 2 Alt Color 4

Yes

Single 75FPM Ph1 Color 1 Alt Color 3 Alt Color 4

Yes

Single 75FPM Ph2 Color 1 Alt Color 3 Alt Color 4

Yes

Single 75FPM Ph1 Color 2 Alt Color 3 Alt Color 4

Yes

Single 75FPM Ph2 Color 2 Alt Color 3 Alt Color 4

Yes

Single 75FPM Ph1 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Single 75FPM Ph2 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Single 120FPM Ph1 Color 1

Yes

Single 120FPM Ph2 Color 1

Yes

Single 120FPM Ph1 Color 2

Yes

Single 120FPM Ph2 Color 2

Yes

Single 120FPM Ph1 Color 3

Yes

Single 120FPM Ph2 Color 3

Yes

Single 120FPM Ph1 Color 4

Yes

Single 120FPM Ph2 Color 4

Yes

Single 120FPM Ph1 Color 1 Alt Color 2

Yes

Single 120FPM Ph2 Color 1 Alt Color 2

Yes

Single 120FPM Ph1 Color 1 Alt Color 3

Yes

Single 120FPM Ph2 Color 1 Alt Color 3

Yes

Single 120FPM Ph1 Color 1 Alt Color 4

Yes

Single 120FPM Ph2 Color 1 Alt Color 4

Yes

Single 120FPM Ph1 Color 2 Alt Color 3

Yes

Single 120FPM Ph2 Color 2 Alt Color 3

Yes

Single 120FPM Ph1 Color 2 Alt Color 4

Yes

Single 120FPM Ph2 Color 2 Alt Color 4

Yes

Single 120FPM Ph1 Color 3 Alt Color 4

Yes

Single 120FPM Ph2 Color 3 Alt Color 4

Yes

Single 120FPM Ph1 Color 1 Alt Color 2 Alt Color 3

Yes

Single 120FPM Ph2 Color 1 Alt Color 2 Alt Color 3

Yes

Single 120FPM Ph1 Color 1 Alt Color 2 Alt Color 4

Yes

Single 120FPM Ph2 Color 1 Alt Color 2 Alt Color 4

Yes

Single 120FPM Ph1 Color 1 Alt Color 3 Alt Color 4

Yes

Single 120FPM Ph2 Color 1 Alt Color 3 Alt Color 4

Yes

Single 120FPM Ph1 Color 2 Alt Color 3 Alt Color 4

Yes

Single 120FPM Ph2 Color 2 Alt Color 3 Alt Color 4

Yes

Single 120FPM Ph1 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Single 120FPM Ph2 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Single 375FPM Ph1 Color 1

Yes

Single 375FPM Ph2 Color 1

Yes

Single 375FPM Ph1 Color 2

Yes

Single 375FPM Ph2 Color 2

Yes

Single 375FPM Ph1 Color 3

Yes

Single 375FPM Ph2 Color 3

Yes

Single 375FPM Ph1 Color 4

Yes

Single 375FPM Ph2 Color 4

Yes

Single 375FPM Ph1 Color 1 Alt Color 2

Yes

Single 375FPM Ph2 Color 1 Alt Color 2

Yes

Single 375FPM Ph1 Color 1 Alt Color 3

Yes

Single 375FPM Ph2 Color 1 Alt Color 3

Yes

Single 375FPM Ph1 Color 1 Alt Color 4

Yes

Single 375FPM Ph2 Color 1 Alt Color 4

Yes

Single 375FPM Ph1 Color 2 Alt Color 3

Yes

Single 375FPM Ph2 Color 2 Alt Color 3

Yes

Single 375FPM Ph1 Color 2 Alt Color 4

Yes

Single 375FPM Ph2 Color 2 Alt Color 4

Yes

Single 375FPM Ph1 Color 3 Alt Color 4

Yes

Single 375FPM Ph2 Color 3 Alt Color 4

Yes

Single 375FPM Ph1 Color 1 Alt Color 2 Alt Color 3

Yes

Single 375FPM Ph2 Color 1 Alt Color 2 Alt Color 3

Yes

Single 375FPM Ph1 Color 1 Alt Color 2 Alt Color 4

Yes

Single 375FPM Ph2 Color 1 Alt Color 2 Alt Color 4

Yes

Single 375FPM Ph1 Color 1 Alt Color 3 Alt Color 4

Yes

Single 375FPM Ph2 Color 1 Alt Color 3 Alt Color 4

Yes

Single 375FPM Ph1 Color 2 Alt Color 3 Alt Color 4

Yes

Single 375FPM Ph2 Color 2 Alt Color 3 Alt Color 4

Yes

Single 375FPM Ph1 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Single 375FPM Ph2 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Double 75FPM Ph1 Color 1

Yes

Double 75FPM Ph2 Color 1

Yes

Double 75FPM Ph1 Color 2

Yes

Double 75FPM Ph2 Color 2

Yes

Double 75FPM Ph1 Color 3

Yes

Double 75FPM Ph2 Color 3

Yes

Double 75FPM Ph1 Color 4

Yes

Double 75FPM Ph2 Color 4

Yes

Double 75FPM Ph1 Color 1 Alt Color 2

Yes

Double 75FPM Ph2 Color 1 Alt Color 2

Yes

Double 75FPM Ph1 Color 1 Alt Color 3

Yes

Double 75FPM Ph2 Color 1 Alt Color 3

Yes

Double 75FPM Ph1 Color 1 Alt Color 4

Yes

Double 75FPM Ph2 Color 1 Alt Color 4

Yes

Double 75FPM Ph1 Color 2 Alt Color 3

Yes

Double 75FPM Ph2 Color 2 Alt Color 3

Yes

Double 75FPM Ph1 Color 2 Alt Color 4

Yes

Double 75FPM Ph2 Color 2 Alt Color 4

Yes

Double 75FPM Ph1 Color 3 Alt Color 4

Yes

Double 75FPM Ph2 Color 3 Alt Color 4

Yes

Double 75FPM Ph1 Color 1 Alt Color 2 Alt Color 3

Yes

Double 75FPM Ph2 Color 1 Alt Color 2 Alt Color 3

Yes

Double 75FPM Ph1 Color 1 Alt Color 2 Alt Color 4

Yes

Double 75FPM Ph2 Color 1 Alt Color 2 Alt Color 4

Yes

Double 75FPM Ph1 Color 1 Alt Color 3 Alt Color 4

Yes

Double 75FPM Ph2 Color 1 Alt Color 3 Alt Color 4

Yes

Double 75FPM Ph1 Color 2 Alt Color 3 Alt Color 4

Yes

Double 75FPM Ph2 Color 2 Alt Color 3 Alt Color 4

Yes

Double 75FPM Ph1 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Double 75FPM Ph2 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Type

Quad Color

Pattern

Sync

Mode

Double 120FPM Ph1 Color 1

Yes

Double 120FPM Ph2 Color 1

Yes

Double 120FPM Ph1 Color 2

Yes

Double 120FPM Ph2 Color 2

Yes

Double 120FPM Ph1 Color 3

Yes

Double 120FPM Ph2 Color 3

Yes

Double 120FPM Ph1 Color 4

Yes

Double 120FPM Ph2 Color 4

Yes

Double 120FPM Ph1 Color 1 Alt Color 2

Yes

Double 120FPM Ph2 Color 1 Alt Color 2

Yes

Double 120FPM Ph1 Color 1 Alt Color 3

Yes

Double 120FPM Ph2 Color 1 Alt Color 3

Yes

Double 120FPM Ph1 Color 1 Alt Color 4

Yes

Double 120FPM Ph2 Color 1 Alt Color 4

Yes

Double 120FPM Ph1 Color 2 Alt Color 3

Yes

Double 120FPM Ph2 Color 2 Alt Color 3

Yes

Double 120FPM Ph1 Color 2 Alt Color 4

Yes

Double 120FPM Ph2 Color 2 Alt Color 4

Yes

Double 120FPM Ph1 Color 3 Alt Color 4

Yes

Double 120FPM Ph2 Color 3 Alt Color 4

Yes

Double 120FPM Ph1 Color 1 Alt Color 2 Alt Color 3

Yes

Double 120FPM Ph2 Color 1 Alt Color 2 Alt Color 3

Yes

Double 120FPM Ph1 Color 1 Alt Color 2 Alt Color 4

Yes

Double 120FPM Ph2 Color 1 Alt Color 2 Alt Color 4

Yes

Double 120FPM Ph1 Color 1 Alt Color 3 Alt Color 4

Yes

Double 120FPM Ph2 Color 1 Alt Color 3 Alt Color 4

Yes

Double 120FPM Ph1 Color 2 Alt Color 3 Alt Color 4

Yes

Double 120FPM Ph2 Color 2 Alt Color 3 Alt Color 4

Yes

Double 120FPM Ph1 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Double 120FPM Ph2 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Triple 75FPM Ph1 Color 1

Yes

Triple 75FPM Ph2 Color 1

Yes

Triple 75FPM Ph1 Color 2

Yes

Triple 75FPM Ph2 Color 2

Yes

Triple 75FPM Ph1 Color 3

Yes

Triple 75FPM Ph2 Color 3

Yes

Triple 75FPM Ph1 Color 4

Yes

Triple 75FPM Ph2 Color 4

Yes

Triple 75FPM Ph1 Color 1 Alt Color 2

Yes

Triple 75FPM Ph2 Color 1 Alt Color 2

Yes

Triple 75FPM Ph1 Color 1 Alt Color 3

Yes

Triple 75FPM Ph2 Color 1 Alt Color 3

Yes

Triple 75FPM Ph1 Color 1 Alt Color 4

Yes

Triple 75FPM Ph2 Color 1 Alt Color 4

Yes

Triple 75FPM Ph1 Color 2 Alt Color 3

Yes

Triple 75FPM Ph2 Color 2 Alt Color 3

Yes

Triple 75FPM Ph1 Color 2 Alt Color 4

Yes

Triple 75FPM Ph2 Color 2 Alt Color 4

Yes

Triple 75FPM Ph1 Color 3 Alt Color 4

Yes

Triple 75FPM Ph2 Color 3 Alt Color 4

Yes

Triple 75FPM Ph1 Color 1 Alt Color 2 Alt Color 3

Yes

Triple 75FPM Ph2 Color 1 Alt Color 2 Alt Color 3

Yes

Triple 75FPM Ph1 Color 1 Alt Color 2 Alt Color 4

Yes

Triple 75FPM Ph2 Color 1 Alt Color 2 Alt Color 4

Yes

Triple 75FPM Ph1 Color 1 Alt Color 3 Alt Color 4

Yes

Triple 75FPM Ph2 Color 1 Alt Color 3 Alt Color 4

Yes

Triple 75FPM Ph1 Color 2 Alt Color 3 Alt Color 4

Yes

Triple 75FPM Ph2 Color 2 Alt Color 3 Alt Color 4

Yes

Triple 75FPM Ph1 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes

Triple 75FPM Ph2 Color 1 Alt Color 2 Alt Color 3 Alt Color 4

Yes
