22270001 Helifire 360 Flush Mount Power Vent Kit

HELIFIRE 360 FLUSH MOUNT POWER VENT KIT

Product Information

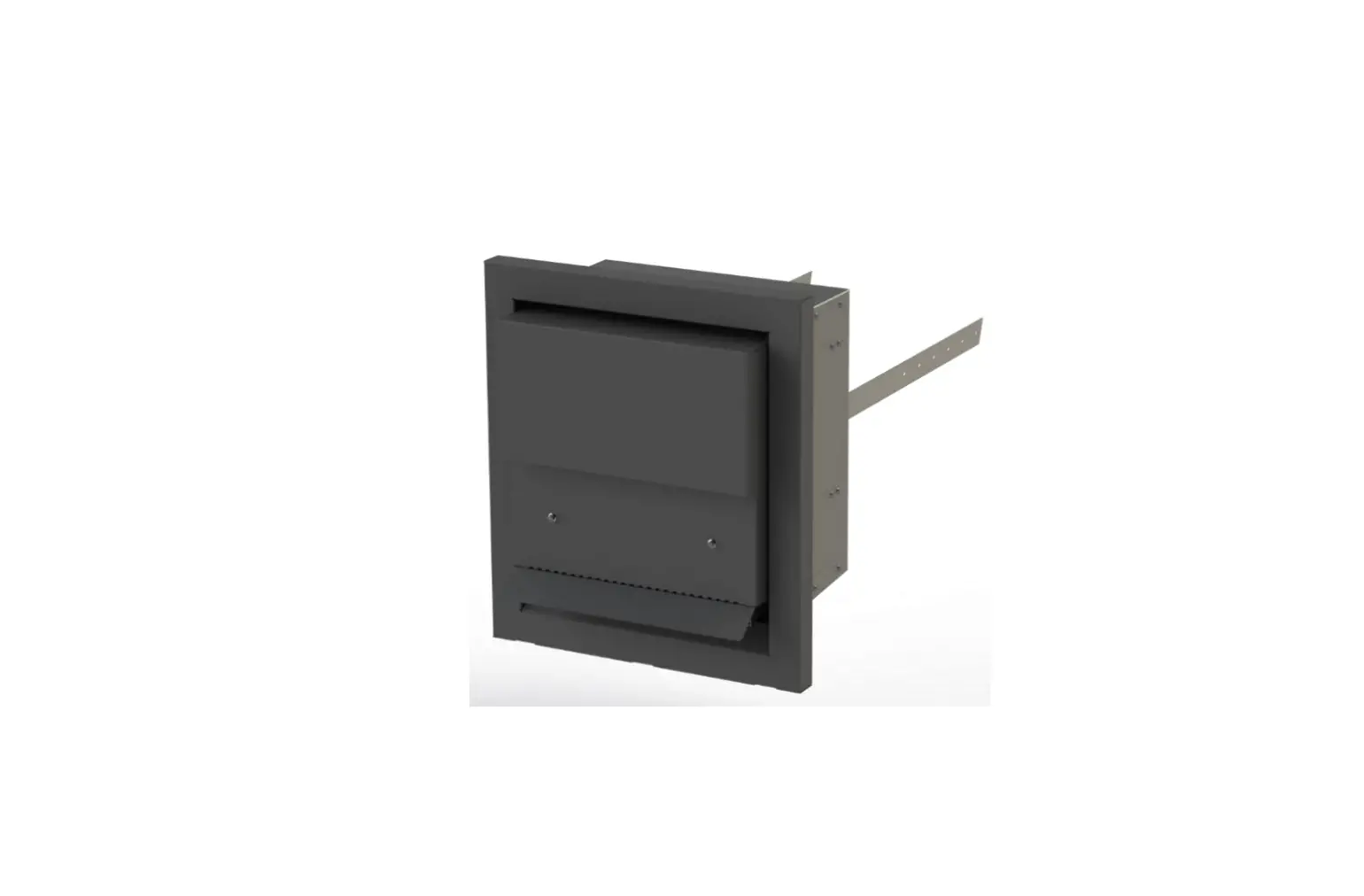

The HELIFIRE 360 Flush Mount Power Vent Kit is a supplementary
kit for gas fireplaces. The kit is designed to be used with the
Installation and Operating Instructions supplied with the
fireplace. The kit includes a power vent, venting configurations,
minimum clearances, and wiring instructions. The maximum flue
outlet pipe length is 50 feet, and the maximum combustion air inlet
pipe is 50 feet. The kit has SKU# 22270001 and the latest version
of the manual can be found on www.townandcountryfireplaces.net.

Product Usage Instructions

Before using the HELIFIRE 360 Flush Mount Power Vent Kit, refer
to the Installation and Operating Instructions supplied with the
fireplace for proper gas supply, safety requirements, and operating
instructions. Follow the below instructions for proper usage of the
kit:

Dimensions

The dimensions of the flush mount power vent are as follows:

• 12 1/2 inches width
• 15 inches height
• 7 3/8 inches depth
• 1 1/2 inches maximum facing thickness

Refer to Figure 1 for the flush mount power vent dimensions.

Venting Configurations

The HELIFIRE 360 Flush Mount Power Vent Kit has adjacent
structure venting configurations with minimum clearance of 36
inches and minimum clearance below the unit of 18 inches. The kit
has stud/vent supports and fire stops (exhaust direction
dependent). The minimum venting length is 1.5 feet to the power
vent location options. Refer to Figure 2 for surface mount venting
configurations.

Minimum Clearances

The minimum clearances for the vent terminal are as follows:

• A= See bottom of page
• B= *18 inches (45 cm) min.
• C= 12 inches (30 cm) min.
• D= 0 inches (0 cm) min.
• E= 0 inches (0 cm) min.
• F= 6 inches (15 cm) min.
• G= 6 inches (15 cm) min.
• H= 3 feet (90 cm) min.
• I= *6 feet (1.8 m) min.
• J= *18 inches (45 cm) min.
• K= *6 feet (1.8 m) min.
• L= *7 feet (2.1 m) min.
• M= **0 inches (0 cm) min

Refer to Figure 3 for vent terminal minimum clearances.

Power Venting Clearances

The flush mount power venting must have a minimum of 18 inches
clear below the bottom of the power vent and 36 inches clearance in
front of the power vent. Refer to Figure 4 for flush mount
clearances.

Electrical Connection

The kit includes a wiring diagram for flush mount wiring. The
wiring instructions are as follows:

• BLACK – LINE
• WHITE – NEUTRAL
• BROWN – POWER VENT
• GREY – 24 VAC TRANSFORMER
• GREEN – GROUND

Refer to Figure 5 for wiring instructions and Figure 6 for flush
mount wiring.

Helifire 360 Wiring Diagram

The wiring diagram includes a gas valve, vacuum switch, blower,
on/off wall switch, and spark/sense. Refer to Figure 7 for the
Helifire 360 wiring diagram.

IMPORTANT: THESE INSTRUCTIONS ARE TO REMAIN WITH THE HOMEOWNER
These instructions are supplementary to the Installation and Operating Instructions supplied with the fireplace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions.

HELIFIRE 360 FLUSH MOUNT POWER VENT KIT INSTALLATION AND OPERATING INSTRUCTIONS

SKU# 22270001

Visit www.townandcountryfireplaces.net for the most recent version of this manual

210323-12

SKU# 22270001

100005498

Dimensions

12″

1 1/2″ maximum facing thickness

7″

12″ 7 3/8″

15″
Figure 1: Flush mount power vent dimensions.

2″ 9 5/8″ 12 1/2″

Venting Configurations

Adjacent structure

36 ” Min. clearance
18 ” Min. clearance below unit

stud / vent supports
Maximum flue outlet pipe length is 50 feet and the maximum combustion air inlet pipe is 50 feet.

Fire stops (Exhaust direction dependent)
Minimum venting length is 1.5′ to the power vent

location options

Figure 2: Helifire 360 Surface mount venting configurations.

100005948

2

SKU# 22270001_210323-12

Minimum Clearances

D E
V

L

B

V VENT TERMINAL

G V

A

H

C

V

FIXED

CLOSED

F V

OPENABLE

B

B

V

V

OPEN- FIXED

ABLE CLOSED

B B

VJA
A

I G

M VK A

A AIR SUPPLY INLET

AREA WHERE TERMINAL IS NOT PERMITTED

G

GAS METER

Figure 3: Vent terminal minimum clearances.

A= See bottom of page B= *18 in. (45 cm) min. C= 12 inches (30 cm) min. D= 0 inches (0 cm) min.
E= 0 inches (0 cm) min. F= 6 inches (15 cm) min. G= 6 inches (15 cm) min. H= 3 feet (90 cm) min.
I= *6 feet (1.8 m) min. J= *18 in. (45 cm) min.
K= *6 feet (1.8 m) min. L= *7 feet (2.1 m) min. M= **0 inches (0 cm) min

Clearances above grade, veranda, porch, deck, or balcony. (See “Power Venting Clearances” for flush mount rule. Flush mount clearance to window or door that may be opened. (See Figure 4). Clearance to permanently closed window recommended to preventing condensation on window. Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (60 cm) from the edge of the terminal. Clearance to unventilated soffit. Clearance to outside corner. Clearance to inside corner. *Not to be installed above a meter/regulator assembly within 3 feet (90 cm) horizontally from the center-line of the regulator. Clearance to service regulator venting outlet. Clearance to non mechanical air supply inlet to building or the combustion air inlet to any other appliance. (See Figure 4). Clearance to a mechanical air supply inlet. ^ Clearance above paved side-walk or a paved driveway located on public property. Clearance under veranda, porch, deck, or balcony.

^ a venting shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and serves both dwellings* ** only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the floor* * as specified in CAN/CSA B149.1 Installation Codes, Note: local Codes or Regulation may require different clearances * for U.S.A. Installations follow the current National Fuel Gas Code, NFPA54/ANSI Z223.1

Power Venting Clearances

Flush mount power vent

0 in.

0 in.

Flush mount power venting must

have a minimum of 18 inches

0 in.

0 in.

clear below the bottom of the

power vent, and 36 inches

clearance in front of power

vent.

SKU# 22270001_210323-12

18″ Min. Clearance
3

36 in.

Figure 4: Flush mount clearances.

18″ Min. Clearance
100005948

Electrical Connection

BK BRN GND GRY WHT –

BLACK BROWN GROUND GREY WHITE

BRN BRN
GND GRY

BRN BRN
BK WHT

LINE

BK

NEUTRAL

WHT

GND

WHT GND BK

GND

Black

White

Figure 5: Wiring instructions.

Figure 6: Flush mount wiring.

GREEN GREEN GREEN

POWER VENT

B L U E

B R O W N

G R E E N

O R A N G

E

W

B

H

L

I

A

T

C

E

K

115 VAC 60 Hz

NEUTRAL LINE

Single phase GND

GREY
WHITE BLACK GREEN

24 VAC TRANSFORMER

W

B

H

L

I

A

T

C

E

K

GAS VALVE

BROWN BROWN ON / OFF WALL SWITCH (SUPPLIED)
Figure 7: Helifire 360 wiring diagram.
100005948

P

P

U

U

R

R

P

P

L

L

E

E

VACUUM

SWITCH

4

BLACK BLACK

MODULE
1 GND (MV / 24 VAC) 2 GND (BURNER) 3 24 VAC 4 (POWER VENT) BLOWER 5 120 VAC (LINE) 6 MV 7 ALARM (NOT USED) 8 (ON / OFF SWITCH) T-STAT 9 APS (VACUUM SWITCH) 10 SENSE (NOT USED) 11 SPARK / SENSE

BROWN SENSE ELECTRODE

SKU# 22270001_210323-12

Framing
The power vent can be framed in using standard lumber. The rear of the power vent can be protected from outside moisture by placing a non-combustible, moisture resistant cover over it. If using a non-combustible cover for the rear of the power vent, the 1/4 inch clearance does not apply.

1 1/2″ Maximum exterior facing

7 3/8″ 1/4″ Clearance

12″

* 1/4″ Clearance
12″

2 X 6 Studs 2 1/2″ Frame

* 1/4″ clearance around exhaust port not required if board is made of non-combustible material.

1/2″ Non-combustible board

*1/4″ Clearance

12″

Figure 8: Framing in the power vent.

SKU# 22270001_210323-12

5

100005948

Venting
Exhuast venting options
The Helifire 360 has three exhaust venting options. The default exhaust position is at the exhaust end of the Helifire 360. The other two are at the left and the right sides of the Helifire 360 (Figure 9).
To change exhaust vent position:
1. Remove the flue collar from the exhaust end of the Helifire 360.
2. Remove the cover plate from the desired side of the Helifire 360 and secure the flue collar to that opening.
3. Secure the left over cover plate to the exposed opening.
Note: The intake vent has only one position which is at the opposite end of the Helifire 360 body.

Ehaust

Figure 9: Exhaust position options.

Default possition
FLUE COLLAR POSITION OPTIONS
Power venting – flexible venting connection
Use supplied hose clamps to secure the flexible venting to the power venting collar. For additional security, apply at least one self tapping screw through vacant screw slots on the band. This will ensure that the venting never works its way off of the collar.

4″ Hose clamp
100005948

Self tapping screws
4″ Flexible venting
6

Figure 10: Intake and exhaust vent connections.
SKU# 22270001_210323-12

Venting through combustible ceiling or floor
Fire stops are used to protect combustible floor, ceiling and wall material from open flame present outside of the unit. They surround the flexible venting material as it passes through combustible material
NOTE
1 pair of Firestop come with the Flush mount vent kit. Use as many firestops as is necessary to maintain a 1/4 inch clearance between the flexible vent and any combustible material throughout the length of the exhaust portion of the flexible vent. If additional firestops are required, packages of 2 pair can be ordered through a Town & Country Retailer.
Figure 11: Helifire 360 Firestops.
Stud Supports
Stud supports for 2×6 studs are used to guide the flexible venting from the fire feature venting collar to the power venting exhaust. Use stud supports to maintain the structural integrity of the supports and to keep the venting from unnecessary movement. These supports can also be used to guide the venting through a floor or ceiling. To install, cut out a 4 5/8″ section of a stud and fasten two supports to each stud. The Helifire 360 comes with 4 pairs of supports. Additional supports can be ordered from a Town & Country Retailer.

Figure 12: Stud support brackets on 2 X 6.

Figure 13: Stud support brackets.

NOTE
4 pair of Stud Bracket Supports come with the and the Flush mount vent kit. Use as many supports as is necessary to maintain a 1/4 inch clearance between the flexible vent and any combustible studs the venting runs through. If additional stud support brackets are required, packages of 4 pair can be ordered through a Town & Country Retailer.

SKU# 22270001_210323-12

7

100005948

Vent Stand-Offs
Vent stand-offs (Figure 14) are used to maintain a 1/4 inch gap between combustible surfaces and the flexible venting material (Figure 15). The flexible venting material may come into direct contact with non-combustible material.

Figure 14: Vent stand-off.

1/4 inch gap

Figure 15: Gap created by stand-off.

Figure 16: Vent stand-offs example.

NOTE
20 vent stand-offs come with the Flush mount power vent. Use as many stand-offs as necessary to maintain a 1/4 inch clearance between the flexible vent and any combustible material throughout the length of the exhaust portion of the flexible vent. If additional stand-offs are required, packages of 20 can be ordered through a Town & Country Retailer.

100005948

8

SKU# 22270001_210323-12

Parts Diagram

Part

Part number

Flush mount power vent kit………………………………………………………………………………… 22270001 Includes 2 x 25′ – 4″ aluminum flex pipe Includes 4 pairs of stud brackets

Vent extension kit ………………………………………………………………………………………… ……22270008 4″ aluminum flex pipe 2-25′ sections

Stud bulkhead kit (4 pair) …………………………………………………………………………………… 22490004

Helifire 360 Firestops (2 pair)………………………………………………………………………………. 80000575

Vent stand-offs (20 pcs) …………………………………………………………………………………….. 80001410

Blower Motor, replacment ………………………………………………………………………………….. 80000529

Vent stand-offs 20 pieces

Helifire 360 Fire stops

Flush mount power vent kit. SKU# 22270001_210323-12

Stud bulkhead kit.

8 pieces

9

100005948

100005948

10

SKU# 22270001_210323-12

SKU# 22270001_210323-12

11

100005948

© 2017 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.
For technical support, please contact your retailer. Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8
Printed in Canada
