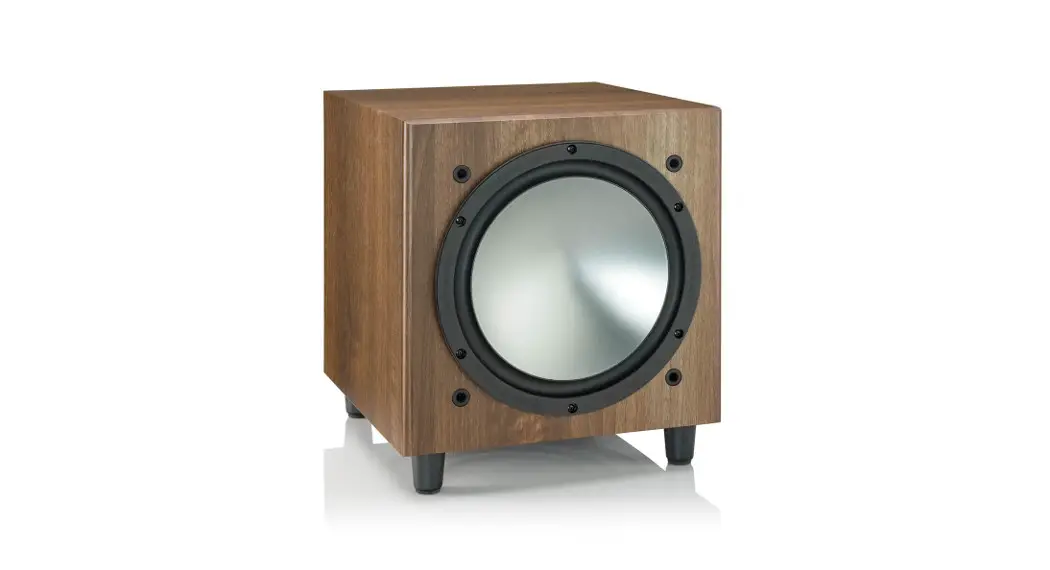

W10 Anthra Subwoofer
Product Information:
The Anthra Subwoofer Series is a line of high-quality subwoofers
manufactured by Monitor Audio. These subwoofers are designed to
enhance the low-frequency extension of audio systems, providing
deep and powerful bass reproduction.
The subwoofers in the Anthra series feature a Class-D amplifier
topology, which ensures efficient power delivery and low
distortion. The amplifiers have both dynamic peak power and
continuous power ratings, allowing them to handle demanding audio
signals with ease.
The Anthra subwoofers come in three different models: Anthra
W10, Anthra W12, and Anthra W15. Each model has varying
specifications and features to cater to different audio setups and
preferences.
Anthra W10:
- Low Frequency Extension (-6dB): 17Hz
- Amplifier Power (Dynamic Peak): 500W (240VAC Mains), 450W
(120VAC Mains) - Amplifier Power (Continuous): 425W (240VAC Mains), 390W (120VAC
Mains) - Driver Size: 254mm (10 inches)
- Cabinet Style: Sealed
- External Dimensions (H x W x D): 321 x 321 x 321 mm
- Weight: 18.5kg (40 lb 12 oz)
Anthra W12:
- Low Frequency Extension (-6dB): 16Hz
- Amplifier Power (Dynamic Peak): 1700W (240VAC Mains), 1325W
(120VAC Mains) - Amplifier Power (Continuous): 1400W (240VAC Mains), 1400W
(120VAC Mains) - Driver Size: 305mm (12 inches)
- Cabinet Style: Sealed
- External Dimensions (H x W x D): 374 x 374 x 374 mm
- Weight: 27kg (59 lb 8 oz)
Anthra W15:
- Low Frequency Extension (-6dB): 16Hz
- Amplifier Power (Dynamic Peak): 2500W (240VAC Mains), 2500W
(120VAC Mains) - Amplifier Power (Continuous): 2400W (240VAC Mains), 2400W
(120VAC Mains) - Driver Size: 381mm (15 inches)
- Cabinet Style: Sealed
- External Dimensions (H x W x D): 439 x 439 x 439 mm
- Weight: 33.6kg (74 lb 1 oz)
For more information and support, please visit the Monitor Audio
website at monitoraudio.com.
Product Usage Instructions:
Unboxing:
- Remove the subwoofer from its packaging.
Attaching Feet:
- Attach the provided feet to the bottom of the subwoofer.
Connections:
- Connect the power cord to the appropriate power source
(220-240VAC or 100-120VAC). - Connect your audio source using one of the following options:
- Unbalanced RCA – In / Out LFE – In
- Balanced XLR – In / Out
- 12v DC Trigger – In
Powering On:
- Press the power button or switch to turn on the subwoofer.
Setting up and control with MaestroUnite:
- Download and install the MaestroUnite app on your device.
- Follow the instructions provided in the app to finish setting
up your subwoofer. - If you already have MaestroUnite installed, open the app and
select your subwoofer to control it.
Using Control Screen:
On the control screen of the MaestroUnite app, you can access
the following options:
- Menu
- Volume
- EQ Presets
- Low Pass Filter
- Service
Select the desired option to adjust the settings
accordingly.
For more information on speaker placement, refer to the FAQ
section on the Monitor Audio website at monitoraudio.com/support/faq.
Anthra Subwoofer Series
Quick Start Guide
monitoraudio.com/anthra-support
EN
Low Frequency Extension (-6dB)
Amplifier Topography
Amplifier Power (Dynamic Peak)
Amplifier Power (Continuous)
Driver Size (Ø)
FR
Extension basse fréquence (-6dB)
Topographie de l’amplificateur
Puissance de l’amplificateur (crête
dynamique)
Puissance de l’amplificateur (continu)
taille du hautparleur (Ø)
IT
Estensione a bassa frequenza
(-6dB)
Topografia dell’amplificatore
Potenza dell’amplificatore (picco dinamico)
Potenza dell’amplificatore
dimensione
(continua)
dell’altoparlante (Ø)
DE
Niederfrequenzerweiterung
(-6dB)
Verstärkertopographie
Verstärkerleistung (Dynamic Peak)
Verstärkerleistung (kontinuierlich)
Lautsprechergröße (Ø)
ES
Extensión de baja frecuencia
(-6dB)
Topografía del amplificador
Potencia del amplificador (pico dinámico)
Potencia del amplificador tamaño del altavoz
(continua)
(Ø)
PT
Extensãode baixa Topografia do frequência (-6dB) Amplificador
Potência do Amplificador (Pico Dinâmico)
Potência do Amplificador (Contínua)
tamanho do altofalante (Ø)
NL
Uitbreiding lage frequentie (-6dB)
Versterker Topografie
Versterkervermogen (dynamische piek)
Versterkervermogen (continu)
grootte van de luidspreker (Ø)
CN RU JP AR PL Anthra W10 Anthra W12 Anthra W15
-6dB
(Ø)
(-6 )
( )
(-6dB)
-6(
) Rozszerzenie
niskich czstotliwoci
(-6dB)
17Hz
( )
Topografia wzmacniacza
Moc wzmacniacza (szczytowa dynamika)
Class-D
240VAC Mains – 500W 120VAC Mains – 450W
() ()
)(
Moc wzmacniacza (cigla)
240VAC Mains – 425W 120VAC Mains – 390W
(Ø)
(Ø) (Ø)
Rozmiar glonika
254mm (10″)
16Hz
Class-D
240VAC Mains – 1700W 120VAC Mains – 1325W
240VAC Mains – 900W 120VAC Mains – 700W
305mm (12″)
16Hz
Class-D
240VAC Mains – 2500W 120VAC Mains – 2500W
240VAC Mains – 1400W 120VAC Mains – 1400W
381mm (15″)
Cabinet Style Style d’armoire Stile gabinetto
Kabinett-Stil Estilo de gabinete estilo de armário
Kaststijl Styl gabinetu Sealed Sealed Sealed
External Dimensions (H x W x D) (inc. grille and feet + spikes)
Dimensions externes (incluant les grille et pieds + pointes)
(H x L x P) Dimensioni esterne (inclusi griglia e punte e piedini)
(A x L x P)
Außenabmessungen (einschließlich Gitter und Füße+Stifte)
(H x B x T)
Dimensiones externas (con rejillas y pies+puntas) (Al x An x P)
Dimensões externas (incluindo grelha e pés + espigões)
(A x L x P)
Externe afmetingen (inclusief grille envoetjes+spijkers)
(H x B x D)
+ ) (xx
Weight
Poids du produit
Peso del prodotto
Produktgewicht
Peso del producto
Peso do produto
Gewicht product
, , ( x x )
( x x )
) ( ) × × (
Zewntrzne wymiary (wraz z wysignikami, nókami i kolcami
(H x W x D)
Waga produktu
321 x 321 x 321 mm 12 5/8 x 12 5/8 x 12 5/8″
18.5kg 40 lb 12 oz
374 x 374 x 374 mm 14 3/4 x 14 3/4 x 14 3/4″
27 kg 59 lb 8 oz
439 x 439 x 439 mm 17 5/16 x 17 5/16 x 17 ” 5/16
33.6 kg 74 lb 1 oz
Monitor Audio Ltd, 24 Brook Road, Rayleigh, Essex, UK, SS6 7XJ | +44 1268 740 580 | [email protected] | monitoraudio.com
© Monitor Audio | Version 1 2023
Unboxing
Attaching feet
Connections
12v DC Trigger – In
Unbalanced RCA – In / Out LFE – In
Balanced XLR – In / Out
220-240V 100-120V
12v DC Trigger
Powering on
Setting up and control with MaestroUnite
Follow the instructions on the app to finish setting up your product. Already have MaestroUnite?
+ Open the app and select
Placement
200W 100-240VAC | 50-60Hz
ONLY USE POWER CORD PROVIDED
Using control screen
Menu
Volume EQ Presets Low Pass Filter Service
Select
A
A
B
B
7.1 = A + B 5.1 = A
Learn more about speaker placement at monitoraudio.com/support/faq
