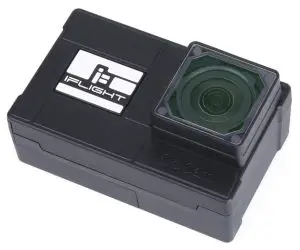

IFLIGHT GOCam PM GR User Manual

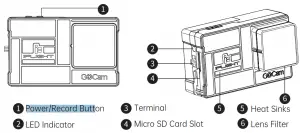

Name of Parts

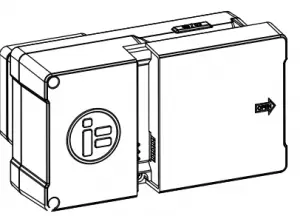

Install Camera

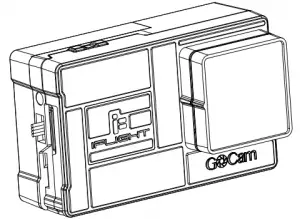

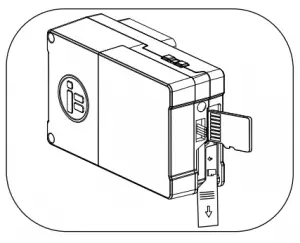

Install Micro SD Card

You will need a Micro SD card (sold separately) to save videos and photos, please choose the  SD Card brands which can meet the following  requirements.

• • Micro SD, Micro SDHC or Micro SD xc
  • Class 10 or UHS-3
  • Storage up to 256GB

Note: Always wash and dry your hands before handling the SD card. Check the manufacture’s manual, learn about the acceptable temperature range for memory cards and other important information.
Professional Tip: It is recommended to periodically format the SD card regularly to keep it in good condition. This will erase all media files, be sure to save the files first. Install battery or adaptor

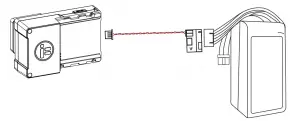

Professional Tip: Ensure that the camera battery is fully charged beforeusing. GOCam PM GR special charger can charge 3 batteries at the sametime, takes about an hour to fully charge and the LED light will become solid green. Besides being powered by the camera battery, it can be also power by the BEC adapter  cable, which supports 2-6S voltage input.

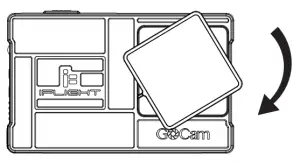

 Install Filter

Professional Tip: Please select the appropriate filter for your environment. It comes with 4 filteres.(UV filter, ND8, ND16, ND32).

Camera ting

GOCam PM GR using QRCode to adjust parameters.
App install: https://www.runcam.com/download/GOCamPMGR

GOCam PM GR

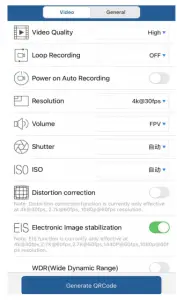

QRCode Configuration

Scan the following QR code in GOMCam R! setting mode to apply the configuration.

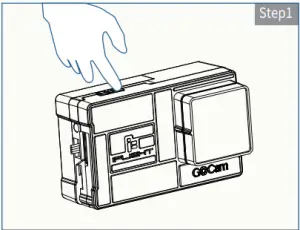

Step1: Long press the Record Button to power on the camera and ensure insert the micro SD card.

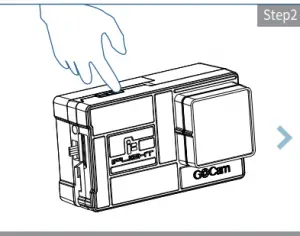

Step2: Double press the Record Button to parameters mode(indicator light changes to solid green)

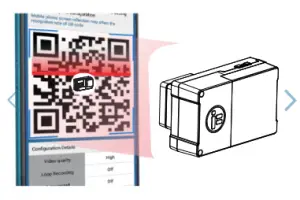

Step3: Scan the QRcode, when it configure the appication succesfully, it will beep 2 times.

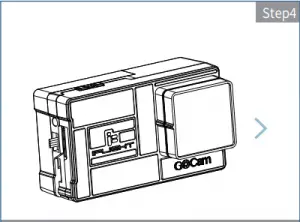

Step4: Green light on, setup successfully.

Camera Operation

Turn on Press “Mode” button, GOCam PM GR will turn on.

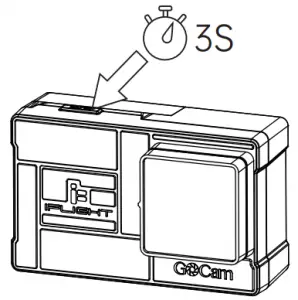

Turn off Press “Mode” button for 3 seconds.

Remote Control Instruction

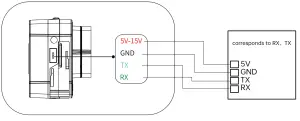

Connect camera and FC to extra UART ( corresponds to RX、TX).

For instance, connect camera to UART3( corresponds to R3, T3): connect FC to your PC, open parameter adjustment configurator ( choose the corresponding software according to the type of FC firmware, such as CleanFlight Configurator or BetaFlight Configurator). Then choose RunCam Device at Peripherals in UART3 and click Save And Reboot.

Binding Camera Control Function With Channel

Enter Mode page, at the bottom of the page, you’ll see CAMERA WI-FI, CAMERA POWER, CAMERA CHANGE MODE. CAMERA POWER: Start and stop recording. Select the next in OSD mode. CAMERA CHANGE MODE: Switching between Recording and OSD mode. Exit the page in OSD setting .Bind the functions you need to any available channels.

Binding Remote Controller With Channel

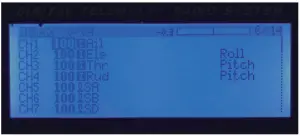

Select your Model on remote controller, enter MIXER, bind to the specific channel. Take the opentx 2.2.0, bind SA, SB, SD to CH5, CH6 and CH7 respectively.

Testing

Charge FC and camera Toggle SA to the bottom, camera will start/stop recording. Toggle SD to the bottom, camera will switching between Recording and OSD mode. In OSD mode, toggle SD can toggle the option, toggle SD can access to sub-menus or confirm the settings.

Technical Specification

Video bit rates and encoding methods

Camera Parameters

Technical Support

https://iflightrc.freshdesk.com

Reminder

1. Make sure the battery is fully charged before using
2. Do not touch the camera’s heat sink directly.
3. If you shoot high resolution or high frame rate video when the temperature is high outside, it will cause the camera to heat up and consume more power.
4. Please do understand that we are not responsible for the camera damages that caused by disassemble.

Included

• GOCam PM GR
• UV Filter *
• ND16 Filter *1
• Manual *1
• BEC Adaptor *1
• ND8 Filter *1
• ND32 Filter *
• Camera Mount *

References

• RunCam - iFlight GOCamPMGR- download
