GLEAM 14W/17W CCT SELECTABLE DIMMABLE
SURFACE FITTING IP54 WHITE
RGL14CCT3-01
RGL17CCT3-01
INSTRUCTION MANUAL

RGL14CCT3-01 Gleam 14W or 17W CCT Selectable Dimmable Surface Fitting IP54 White

PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
!Electrical products can cause death or injury, or damage to property. The Installation must be carried out by a qualified electrician.
Note:
The luminaire must be disconnected before carrying out any insulation resistance testing.
Product technical information and specification may change over time without prior notification. For the latest technical information please visit our web site www.robus.com.au and www.robusled.co.nz
220-240V~50/60Hz, -20°C < Ta < +40°C, Class II, IP54
Suitable for mounting on a normally flammable surface.
See website for compatible dimmer list: www.robus.com.au

Installation

1. Ensure mains supply is switched off before commencing work.
2. Ensure there is at least 100mm of free space around the luminaire location.

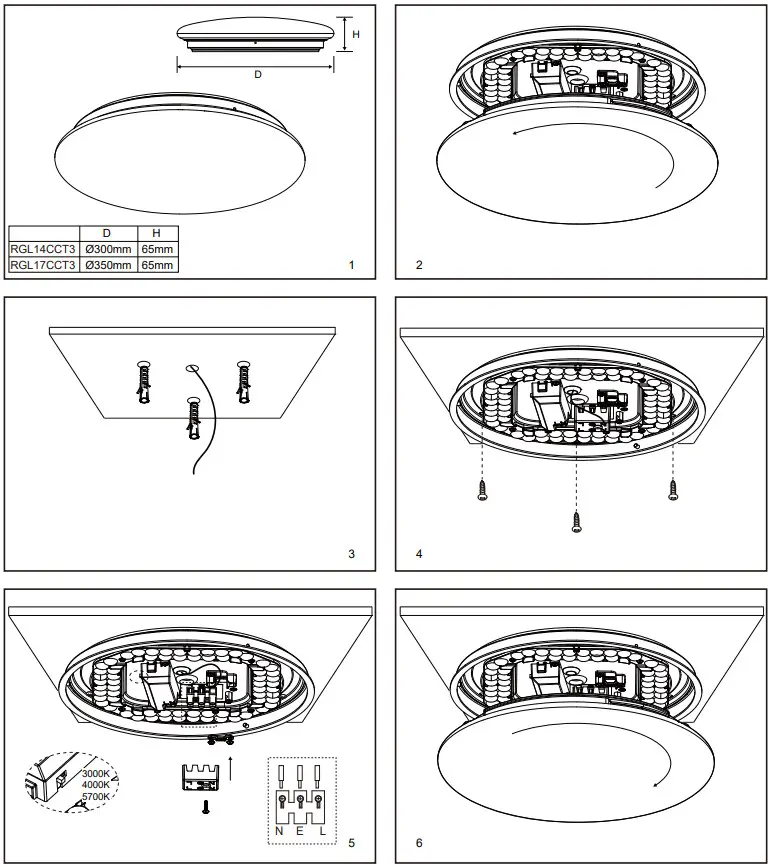

3. Rotate and remove the diffuser from the base as per fig2.
4. Mark appropriate fixing hole positions on wall or ceiling basing on the mounting bracket, check location of buried cables, pipes and other building services before drilling.
5. Drill holes in the ceiling and insert the wall plugs.
6. Feed the supply cables through the grommet on the cable entry hole.
7. Fix the base onto the ceiling using screws.
8. Remove the terminal cover and restraining bracket, and connect the AC power
   supply cable to the terminal: Brown/Live to L and Blue/Neutral to N.
9. Refit the terminal cover and restraining bracket.
10. Move the switch to select colour temperature: 3000K, 4000K or 5700K.
    WARNING: DO NOT CHANGE CCT WHEN THE FITTING IS ON!!
11. Refit the diffuser to the base.
    Note: This product has no user serviceable parts. If any part is damaged, disconnect from mains and discontinue use.
