LUXONOS LED Digital Dance Floor

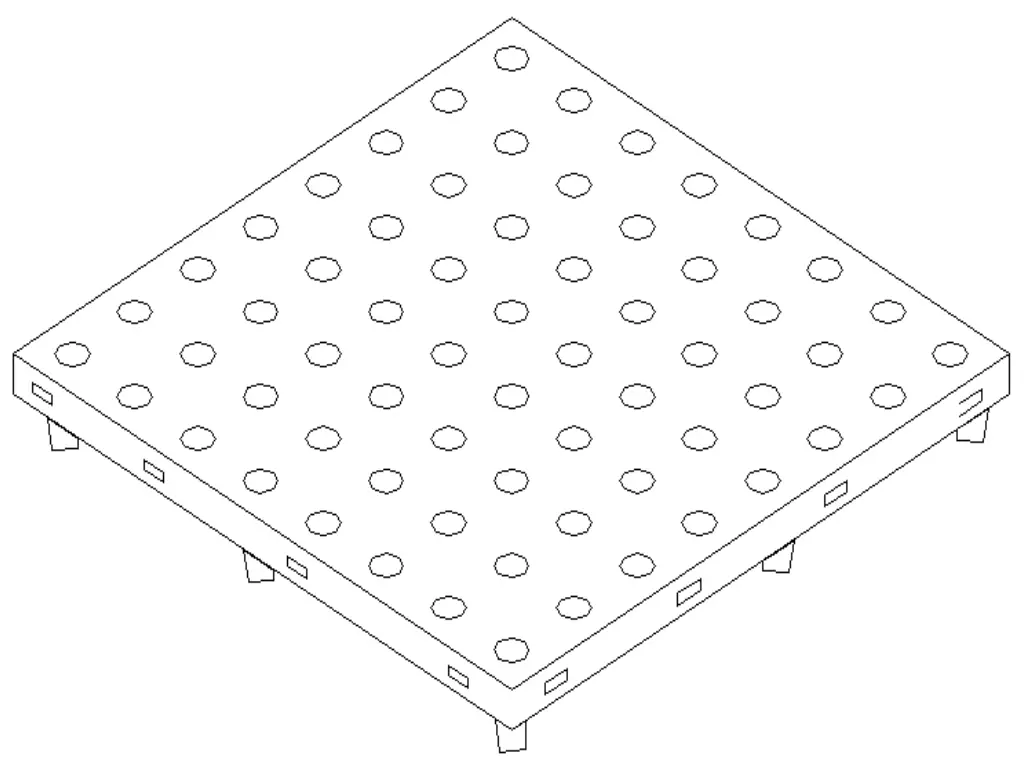

Product Overview
- This product is the latest development of the LED digital dance floor, with high brightness.
- With 5050 SMD 3IN1 high brightness LED lamp board.
- SD control or PC software control are both available, to achieve gorgeous effects. With optional of Remote control, audio control and DMX control.
- With metal housing base, tempered glass. Advantage are light weight, ultra-thin, sophisticated, high-end.
- With wireless magnetic connection, very simple, convenient, fast and safe to install.
Specification
| Model | |
| Control mode | SD control with DMX512, sounds active PC control (Madrix acceptable) |
| Dimension(mm) | L500*W500*H70mm |
| LED quantitypcs/unit） | 64 |
| Light source | 5050 SMD 3in 1 |
| Max power | 10W |
| Input voltage | DC24V |
| Net Weight | 7.5KG |
| Brightness | Hight Brightness |
| Resolution（L*W） | 8*8 |
| Surface material | Tempered glass |
| Base housing material | metal |
| Bearing weight | 500KG/m2 |
| Protection level | IP55 |
| Visual angle | 120° |
| Working temperature | -20~ +45℃ |
| Lifespan | ≥50，000 hours |
| Insulation grade | CLASSE II |

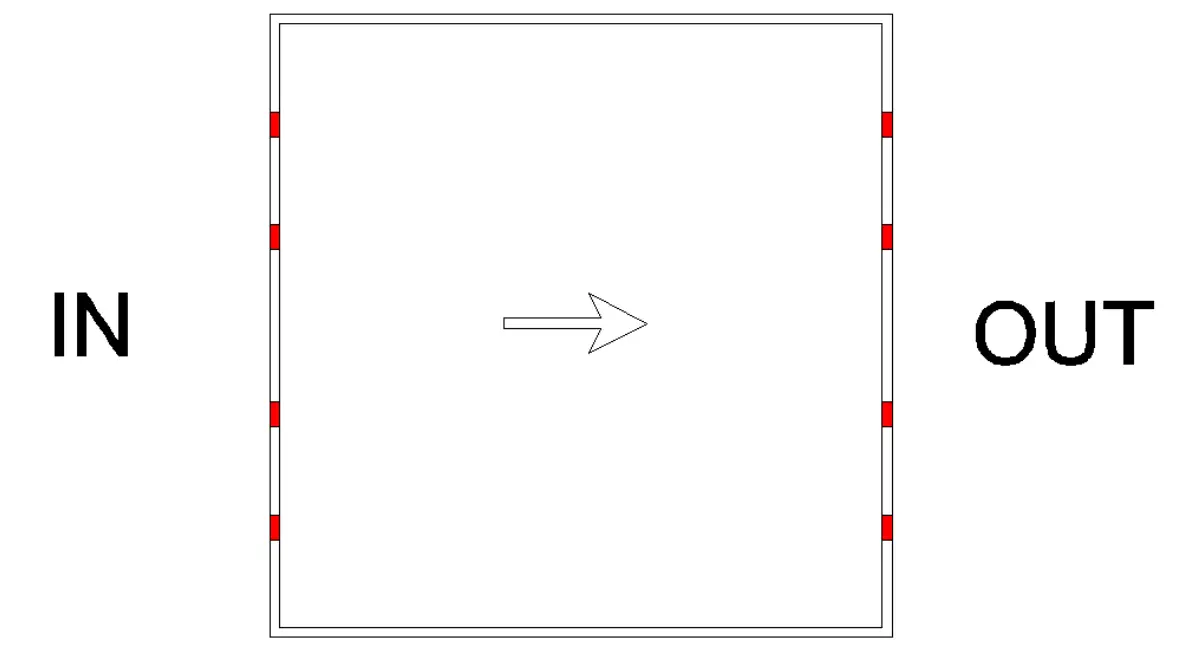

Module installation method
Note:
Be careful in installation ,avoid bump and damage, please take the light when the stitching.
Do not power and signal when splicing. After splicing and then power and communication.

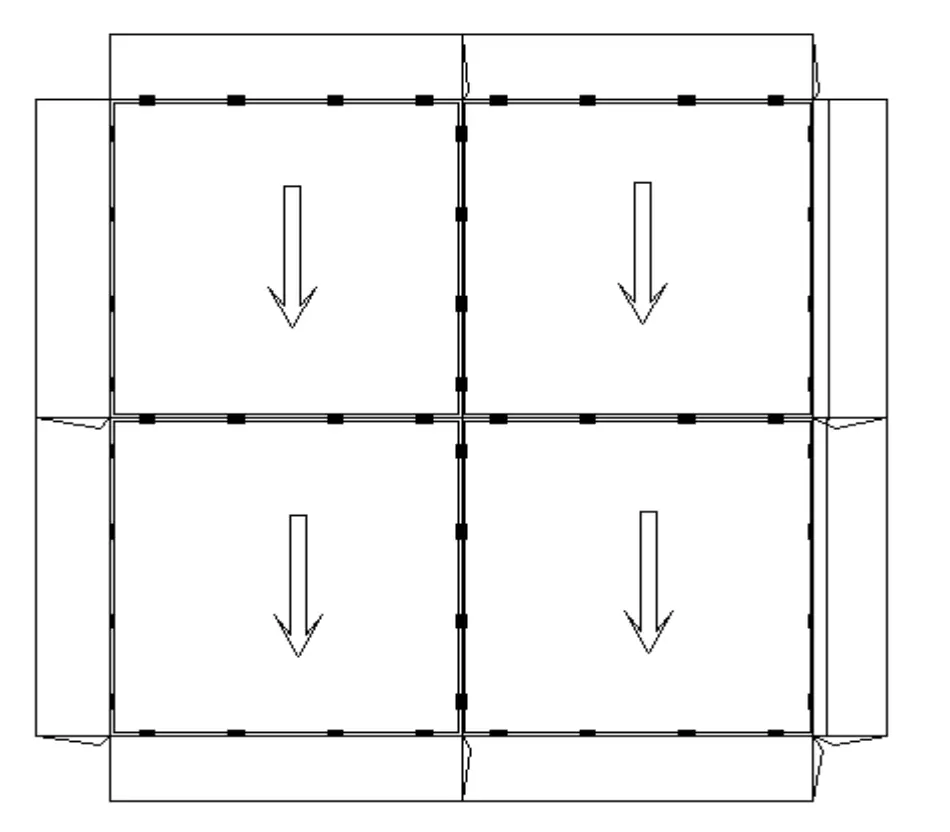

- With strong magnet to force suction connect each modules. Set the starting point firstly, Secondly, to set the power supply ramp (with cable).
Note: 1）according to the arrow direction on bottom to connect followed by splicing.
2）When stitching must be in accordance with the direction of the arrows at the bottom of the ending, it is forbidden to rotate 90 degrees or 180 degrees.
3） Power for the multi-column series, the signal for each column a single signal - Splicing, the magnet and the magnet to be aligned, otherwise it will lead to poor contact (power and signal).
- The four corners are empty for power lines and signal lines.

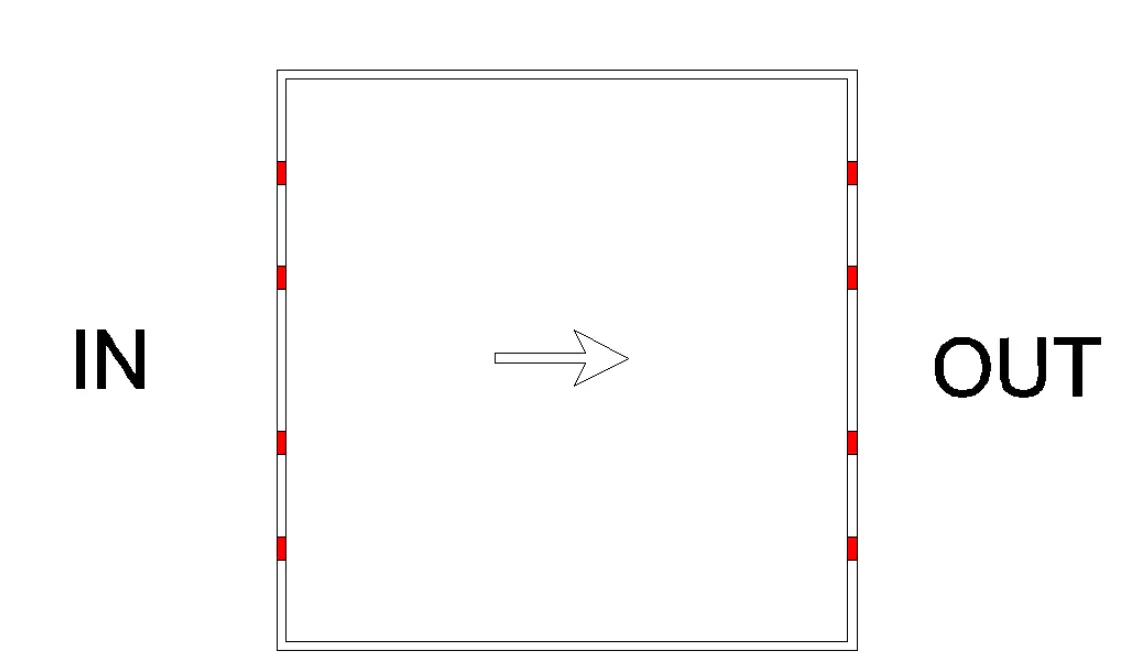

The circuit port of lamps
Power supply
This product uses the external power way, the lamps use DC24V power supply. The external power supply box converts the AC100-250V voltage to DC24V for use by the fixture. Our company provides customers with 750 w, 1600 w, 3000 w three kinds of specifications of the power supply, for customers to choose to buy.
Control Way

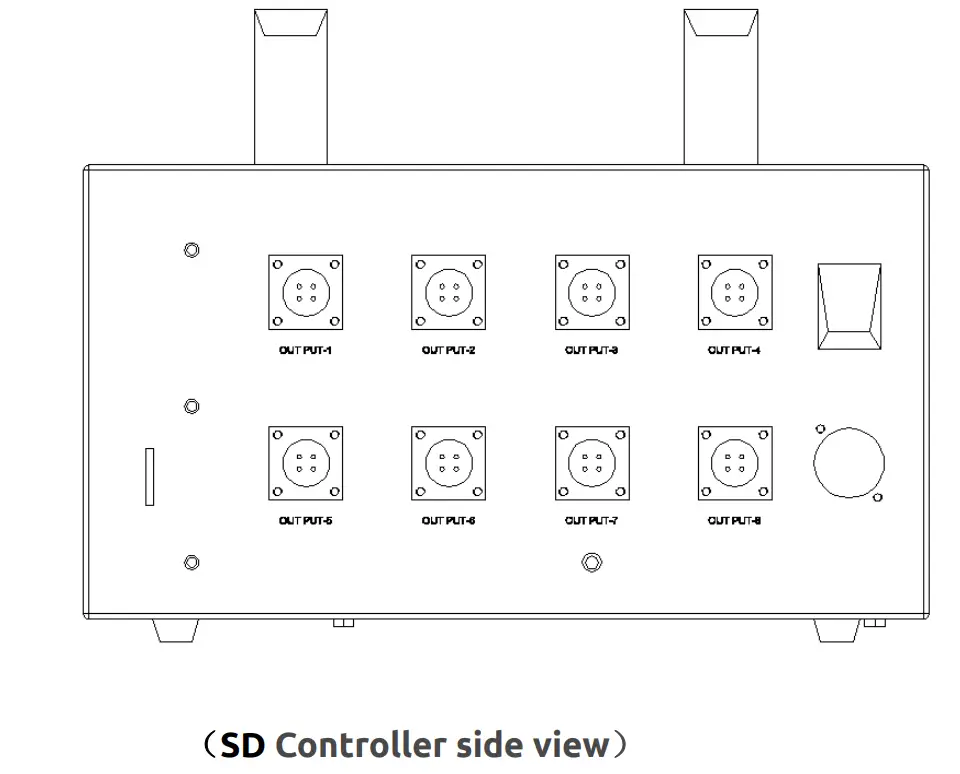

- SD controllers: shown below picture
Note: Please don’t plug SD card under power on。
SD controller have 8 output each output max control 16pcs dance floor so 1 sd controller max control led dance floor quantity is：8*16=128pcs。

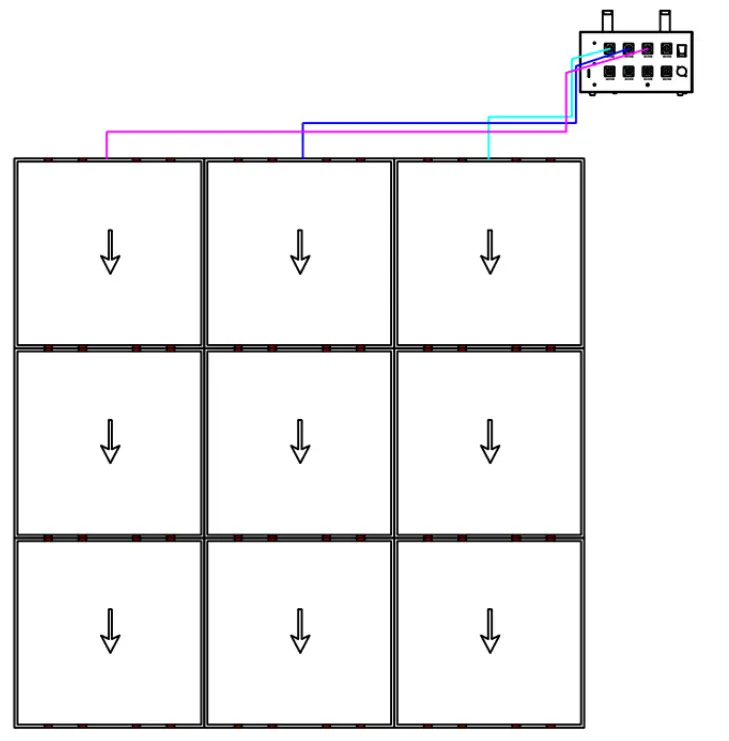

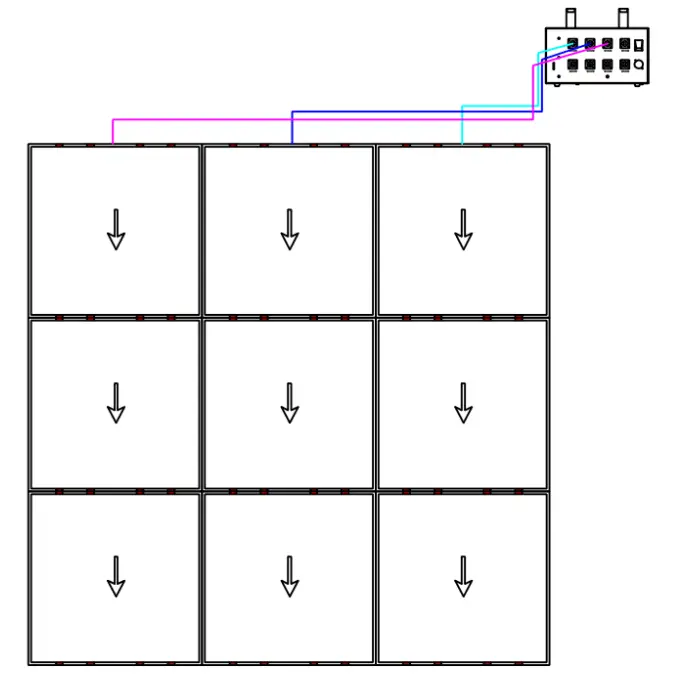

The following is the SD controller 3X3 signal line connection diagram:
Attention
- In order to ensure the service life of the product, the product should not work in the environment of more than 40 degrees.
- Do not place this product in a location that is susceptible to loosening or shock.
- In order to avoid the risk of electric shock, the maintenance of this product requested the help of professional maintenance.
- Do not splice or disassemble the lamp while the power is on..
- The surface of the product has a certain degree of water resistance, but not completely waterproof, Please try not to install it in a humid environment.
- To ensure proper operation of this product, please read these instructions and the relevant controller instructions carefully.
