Game
rev. 14-01-2022
273167 LED Ceiling Light
General info
Technical – Recessed

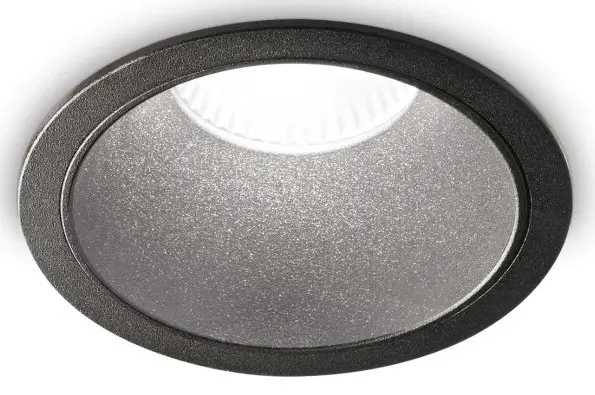

Die-cast aluminum recessed spotlight with round or square seal, suitable for the installation on plasterboard ceilings. Matt chrome finish, matt white RAL 9001, matt black RAL 9011, matt gold RAL 1032.
| Ean | 8.0217E+12 |
| Item | GAME ROUND 20W 3000K BK BK |
| Installation | Recessed |
| Guarantee | 5 years |
| Gross weight | 0.98 kg |
| Volume | 0.003328 m³ |
Technical info
| Net weight | 0.66 kg |
| Insulation class | II |
| Protection index | IP20 |
| Compliance | – |
| Operating temperature | 0° ~ +40 °C K |
| Dimmer | No dimmerable, On-Off |
| Power output | 50/60 Hz |
| Power supply | Separato, inclusoSI (solo personale qualificato), elettronico |

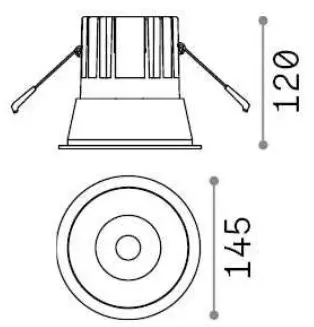

| Recessed specifications | Ø 110 – h. min. 150 , 3-35 |
| Load resistance | – |
| Adjustability | – |
| Front protection index | IP40 [DO NOT COVER] |
| Accessories not included | – |
Source info
| Integrated source | Modulo LED integrato |
| Repleaceable source | Sì |
| Power | 20W |
| Emission | Diretta |
| Max consuption | max 20 W |
| Features LED | LED COB BRIDGELUX |
| CCT | 3000 K |
| Duration LED (t. 25°c) | – |
| CRI | 90 |
| SDCM | 3 |
| Light beam | 24° |
| UGR Maximum | <19 |
| Light beam flux | 2350 lm |
| Useful light flux | 2020 lm |
| Photobiological risk | – |
| Standby power | – |
