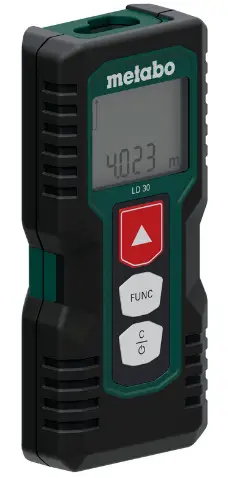

metabo LD 30 Laser Distance Meter

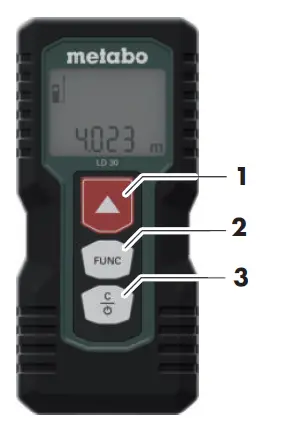

Product overview
- On/Measure
- Area / Volume / Unit
- Clear / Off

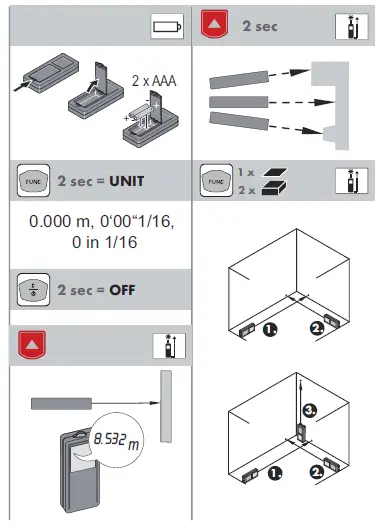

Instrument Set-up
Introduction
The safety instructions and the user manual should be read through carefully before the product is used for the first time. The person responsible for the product must ensure that all users understand these directions and adhere to them.

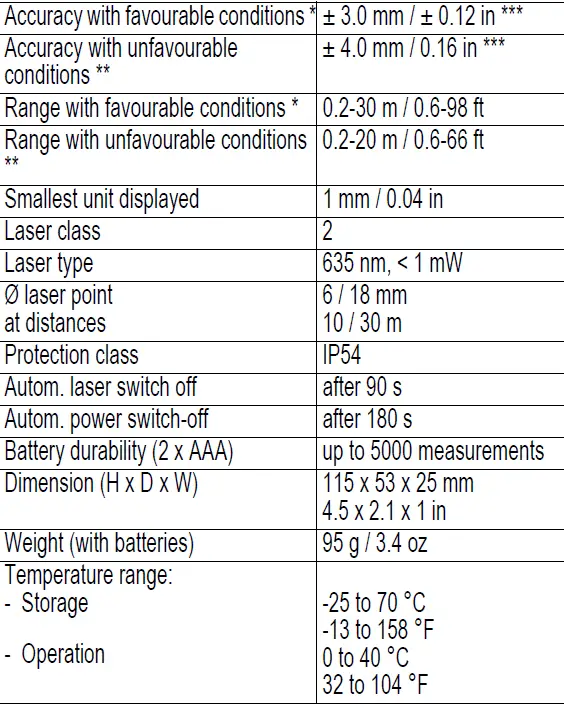

Technical data
- favourable conditions are: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.
- unfavourable conditions are: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.
- Tolerances apply from 0.2 m to 5 m with a confidence level of 95%.
- With favourable conditions the tolerance may deteriorate by 0.1 mm/m for distances above 5 m.
- With unfavourable conditions the tolerance may deteriorate by 0.15 mm/m for distances above 5 m.

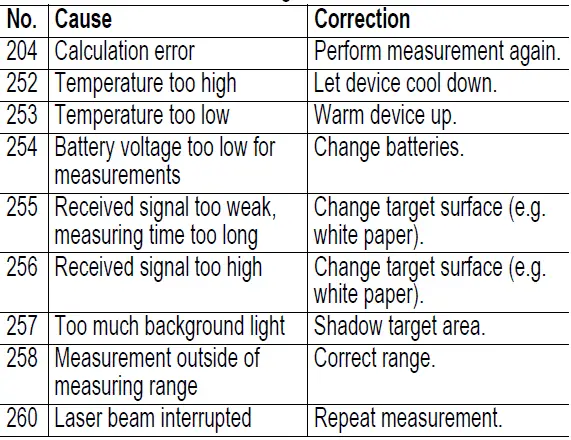

Message Codes
If the message Error does not disappear after switching on the device repeatedly, contact the dealer. If the message InFo appears with a number, press the Clear button and observe the following instructions:

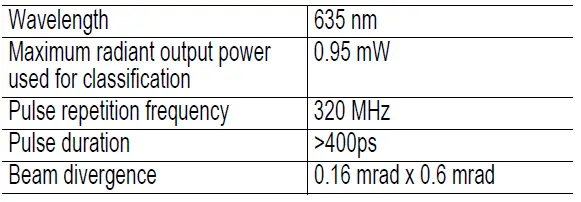

Laser classification
