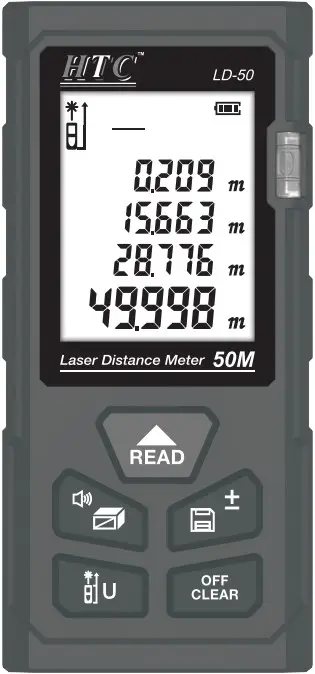

HTC LD-50 Laser Distance Meter Owner’s Manual
Features :
- Battery Installation and Replacement
- Turn On/Off Button
- Backlight On/Off
- Self Calibration Function
- Single/Continuous/Area/Volume Measurement
Technical Data
| ITEM | LD 50 | LD 70 | LD 100 |
| Working Range | 0.05-50m | 0.05-70m | 0.05-100m |
| Precision | ±(2mm+d*1/10000)* | ||
| Continuous Measurement | ok | ||
| Area/Volume Measurement | ok | ||
| Pythagorean Measurement | ok | ||
| Add And Subtract Measurement | ok | ||
| Area & Volume Addition/Subtraction | ok | ||
| Min/Mix Value | ok | ||
| Self-Calibration | ok | ||
| Laser Level | II | ||
| Laser Type | 630-670mm, <1mW | ||
| Max Storage | 99 Units | ||
| Automatically Cut off Laser | 20s (single measurement) | ||
| Auto Power-off | 150s | ||
| Battery Life | 4000/8000 times (carbon-zinc battery/ alkaline battery) | ||
| Storage Temperature | -20°C~60°C | ||
| Working Temperature | 0°C~40°C | ||
| Storage Humidity | 20%~80%RH | ||
| Battery | 2X1.5V AAA | ||
| Dimension | 108x50x25mm | ||
