IMPORTANT SAFETY INSTRUCTIONS
Do not use the product before you have studied the Safety instructions and the User Manual.

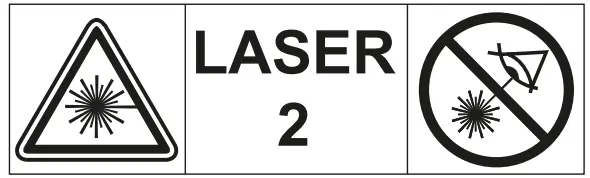

Laser Classification
WARNING:

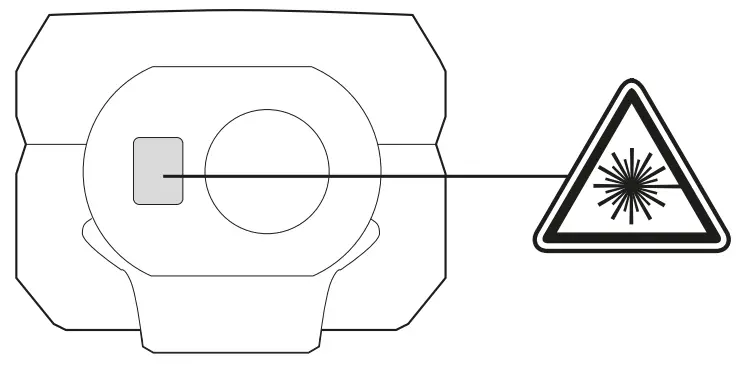

It is a Class 2 laser product in accordance with EN60825-1:2014.
WARNING:
Avoid direct eye exposure. The laser beam can cause flash blindness.
Do not stare into the laser beam or direct it toward other people unnecessarily.
Don’t dazzle other individuals.
WARNING: Do not operate the tool around children or allow children to operate the tool.
The reflective surface could reflect the beam back at the operator or other persons.
Keep extremities in a safe distance from the moving parts.
Carry out periodic test measurements. Particularly before, during, and after important measurements.
Watch out for erroneous measurements if the product is defective or if it has been dropped or has been misused or modified.
WARNING: Use of controls, adjustments, or the performance of procedures other than those specified in the manual may result in hazardous radiation exposure.
The laser distance measurer has limits of use. (Refer to the “Technical data” section). Attempts to measure outside the maximum and minimum range will cause inaccuracy. Use in adverse conditions including too hot, too cold, very bright sunlight, rain, snow, fog, or other vision-restricting conditions will result in inaccurate readings.
When the laser distance measurer is brought into a warm environment from very cold conditions or vice versa, allow it to come to the surrounding temperature before use.
Always store the laser distance measurer indoors, and avoid exposing the tool to shock, continuous vibration or extreme temperatures.
Always keep the tool away from dust, liquids, and high humidity. These may damage internal components or affect accuracy. Do not use aggressive cleaning agents or solutions. Use only a clean, soft cloth for cleaning.
Avoid heavy impact to or dropping of the measuring tool. The accuracy of the tool should be checked before use if it has been dropped or subjected to other mechanical stresses. Any repair required on this laser product should be performed only by authorized service personnel. Do not operate the product in explosion-hazardous areas or in
aggressive environments.
Flat batteries must not be disposed of with household waste. Care for the environment and take them to the collection points provided in accordance with national or local regulations. The product must not be disposed of with household waste. Dispose of the product appropriately in accordance with the national regulations in force in your country. Adhere to national and country-specific regulations. Please contact your local authority or your dealer for how to dispose of batteries properly.
European Conformity Mark
TECHNICAL DATA
| Receiving Lens | 15 mm x 9.5 mm |
| Measuring Range Minimum distance Maximum distance | 0.15 m 30 m |
| Distance Measurement Typical tolerance (applies for 100 % target reflectivity (white painted wall). low background illumination. 25 °C) Maximum tolerance (applies to targets with lower reflectivity, and high background illumination. or temperatures approaching the lower/upper limit) Smallest unit displayed | ± 2.0 mm (an additional tolerance of 0.1 mm/m should be taken into account) ± 4.0 mm (an additional tolerance of 0.15 mm/m should be taken into account) 1.0 mm |
| Laser Spot Size 10 m distance: 30 m distance: | 20 x 35 mm 40 x 65 mm |
| Laser Class | 2 |
| Laser Type | 650 nm, < 1 mW |
| Laser Radiation Vertical Angle Horizontal Angle | ± 1 degree + 1 degree |
| Display Type | LCD (25 mm x 25 mm) |
| Laser auto off time | 90 sec |
| Device auto-off time | 180 sec |
| Power Type | AAA 2x (Alkaline Battery) |
| Battery Life | 10000 (Single Measure) |
| Operating Temperature Range | 0°C to +40°C |
| Storage Temperature Range | -10°C to +60°C |
| Weight without Battery | 72 g |
| Dust and Water resistance | IP54 |
SPECIFIED CONDITIONS OF USE
The laser distance measurer can be used for measuring distances Do not use this product in any other way as stated for normal use.
ERROR CODE TABLE
| Code | Description | Solution |
| Err500 | Hardware problems | Turn the meter off and back on. If the the problem remains, return the meter to the nearest service center. |

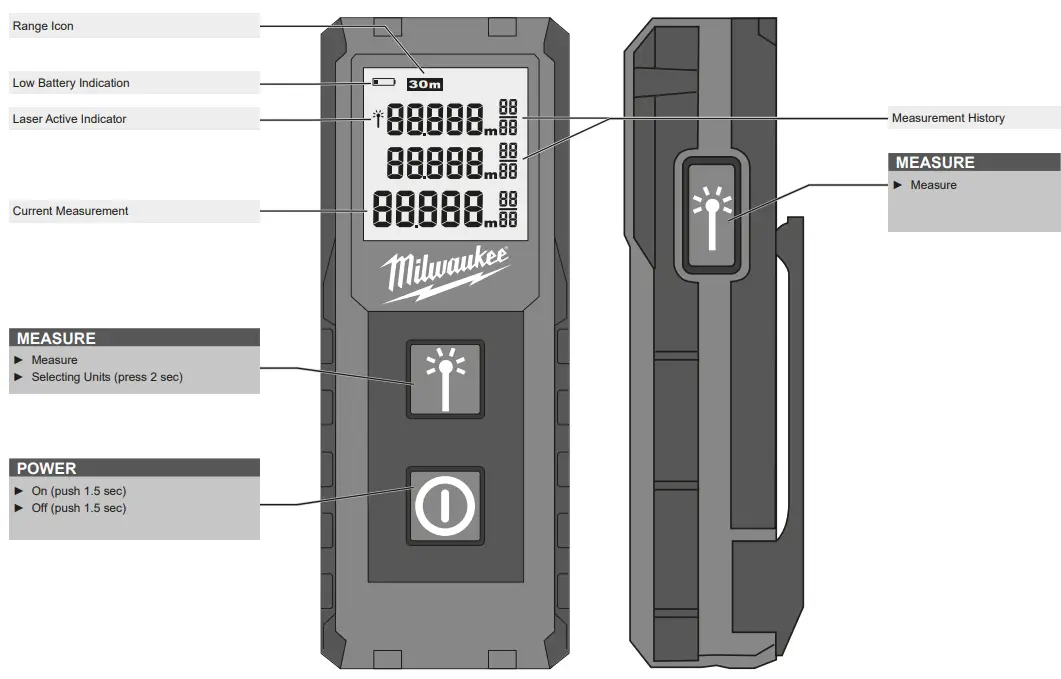

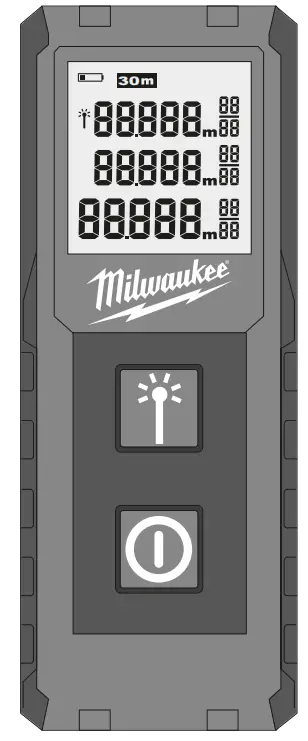

OVERVIEW

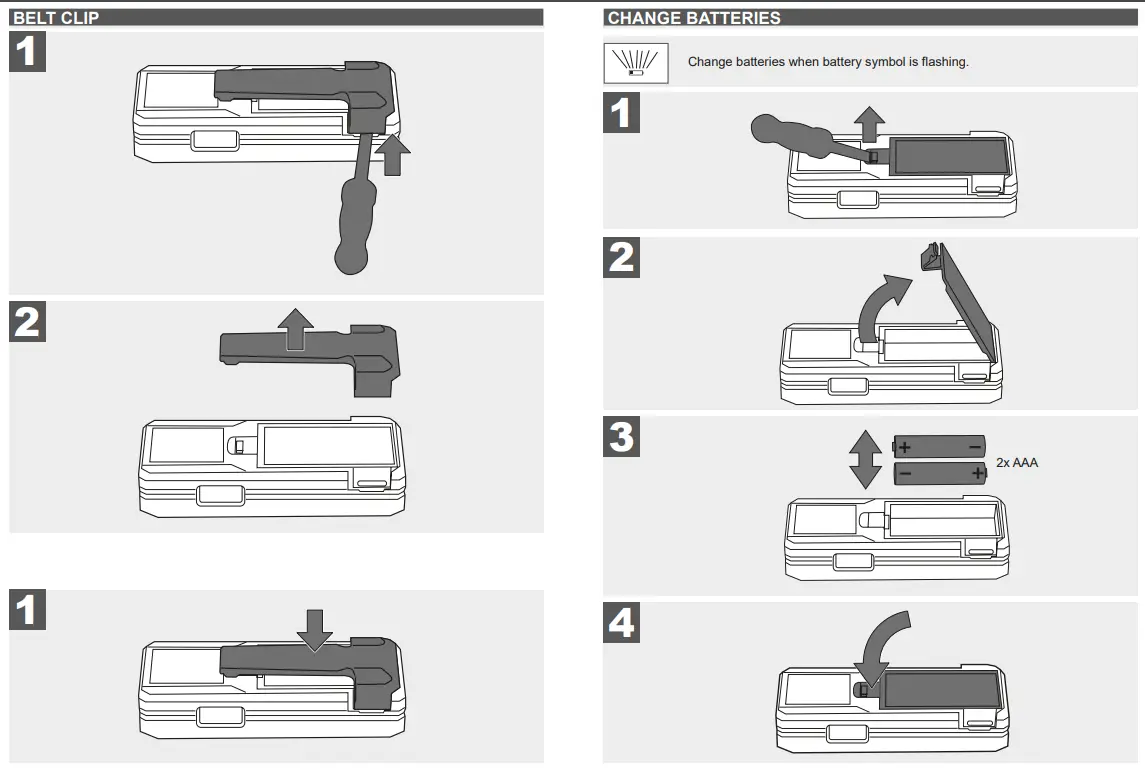

BELT CLIP

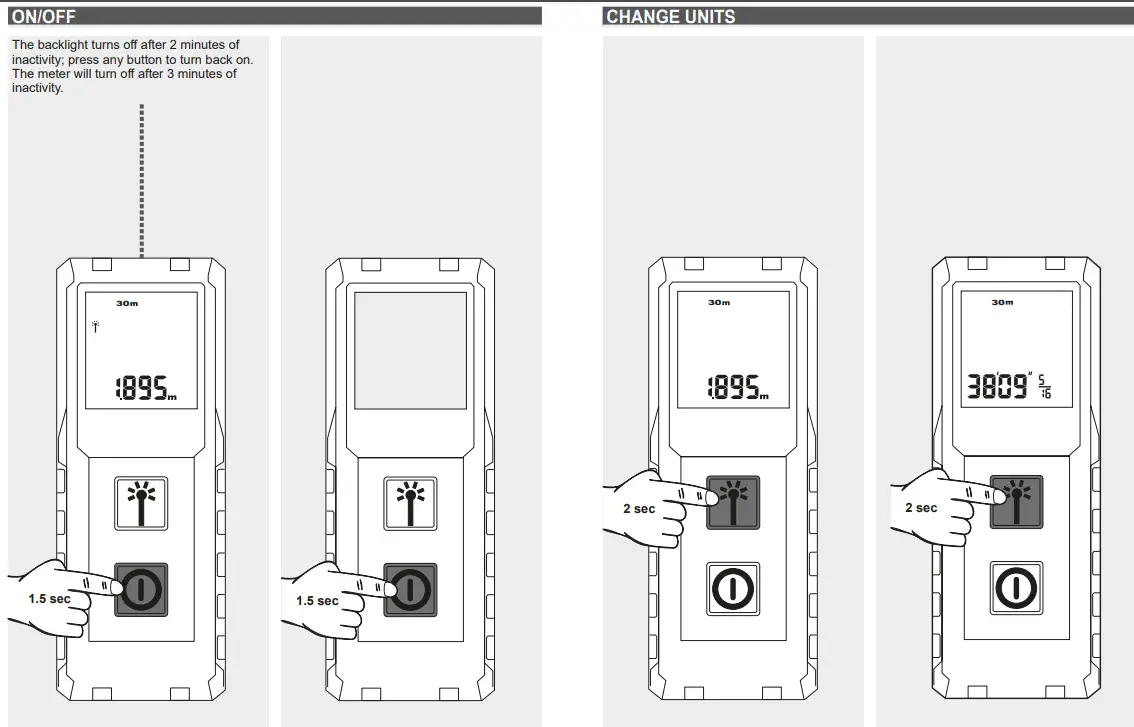

MEASURING

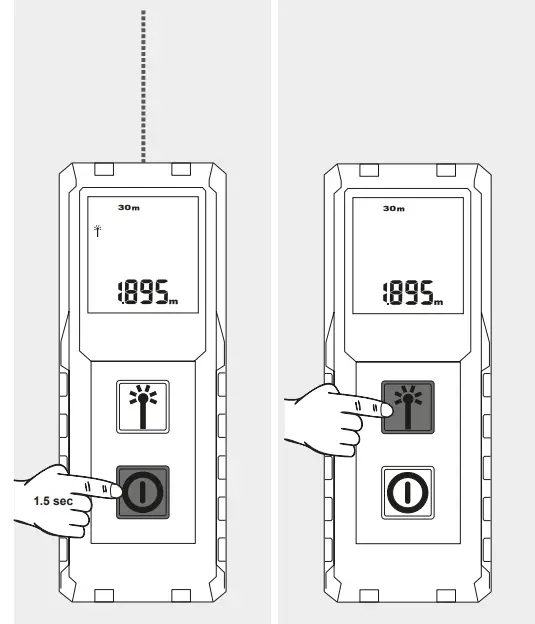

After turning on point the laser at the target. A live reading is displayed.
To freeze the measurement, press the measure button.

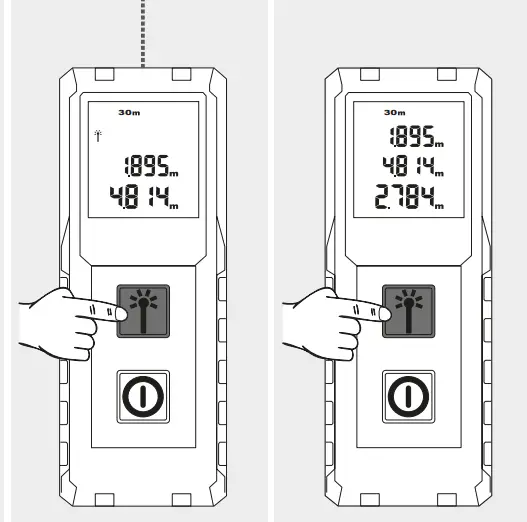

Press the measure button again to begin another live reading. The previous measurements are moved up into the history fields.
NOTE: Measuring errors can occur when measuring on some target surfaces, such as colorless liquids, glass, styrofoam, or semipermeable surfaces, or when aiming at high gloss surfaces.
Press the measure button again to begin another live reading. The previous measurements are moved up into the history fields.
